Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#130066) — 197 parça

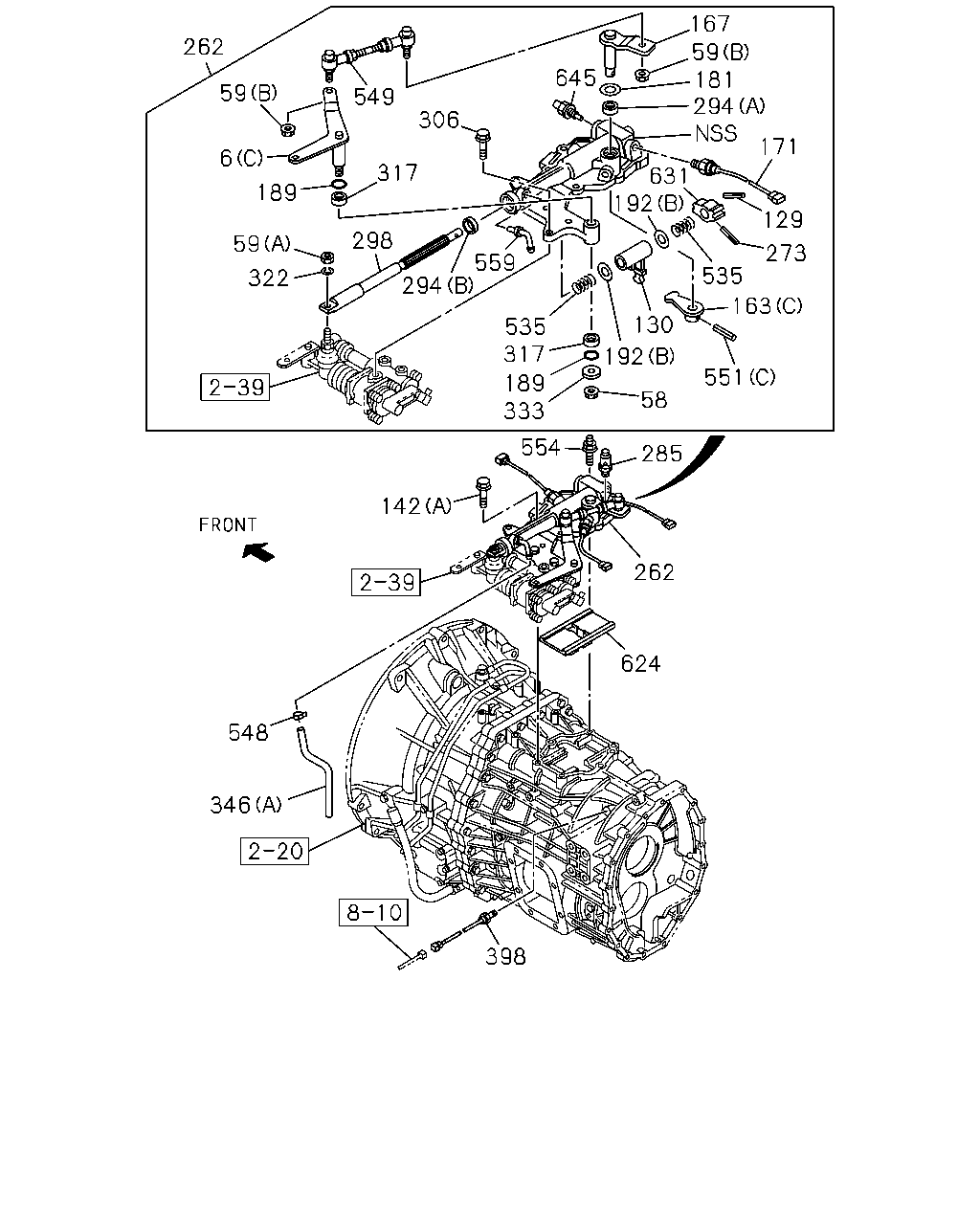

262 59 6 189 59 322 549 317 306 298 294 559 535 317 189 333 554 285 262 624 142 548 346 398 58 192 130 551 163 535 273 129 171 294 181 59 167 645 631 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1311-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1311-
58	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-110-0	01	1	1311-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12	0-91110-512-0	01	1	1311-
59	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8 FLANGE	0-91180-108-0	02	1	1311-
129	PIN; SPR,SHIFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=30 OD=4	1-09748-031-0	01	1	1311-
130	LEVER; SHIFT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97306-647-0	01	1	1311-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1311-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1311-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1311-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1311-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1311-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1311-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1311-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1311-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1311-1312
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1311-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97367-327-0	01	1	1311-
189	GASKET; SELECT LEVER,CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09623-594-0	02	1	1311-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1311-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98249-040-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98241-122-1	01	1	1311-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-686-0	01	1	1510-
273	PIN; SPR,STOPPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) D=4.2 L=25	8-97103-142-0	01	1	1311-
285	BREATHER; AIR,QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-33149-003-0	01	1	1311-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1311-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1311-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1311-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-685-0	01	1	1311-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1311-
306	BOLT; SHIFT ASSISTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X50 FLANGE	0-28051-050-0	03	1	1311-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1311-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1311-
322	WASHER; LK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-750-0	01	1	1311-
333	WASHER; PL,LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.5	0-91610-710-0	01	1	1311-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1311-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1311-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1311-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97385-713-0	02	1	1311-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1311-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
549	ROD; LINK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-841-0	01	1	1311-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1311-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1311-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1311-
554	STUD; CONT BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X15,M8X25 L=49	8-97365-378-0	02	1	1311-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1311-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1311-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1311-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1311-
645	DETENT ASM TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98019-536-0	01	1	1311-

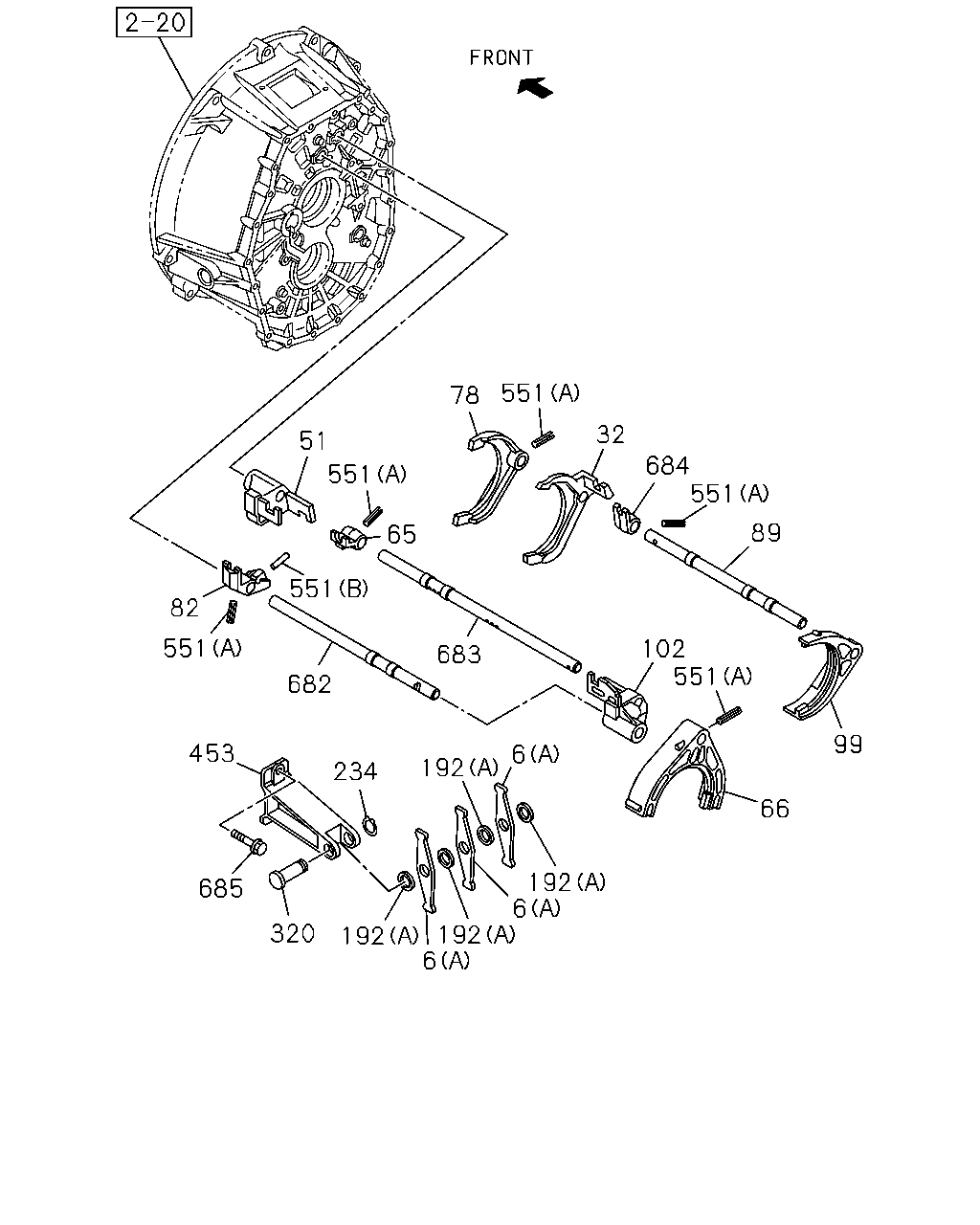

551 32 684 551 89 78 51 551 65 551 683 102 551 99 66 192 6 192 192 6 320 685 234 453 682 551 82 6 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1311-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1311-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1311-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1311-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1311-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1311-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1311-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1311-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1311-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1311-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1311-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1311-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1311-
320	SHAFT; LEVER	8-97377-928-0	01	1	1311-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1311-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1311-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1311-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1311-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1311-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1311-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1311-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1311-

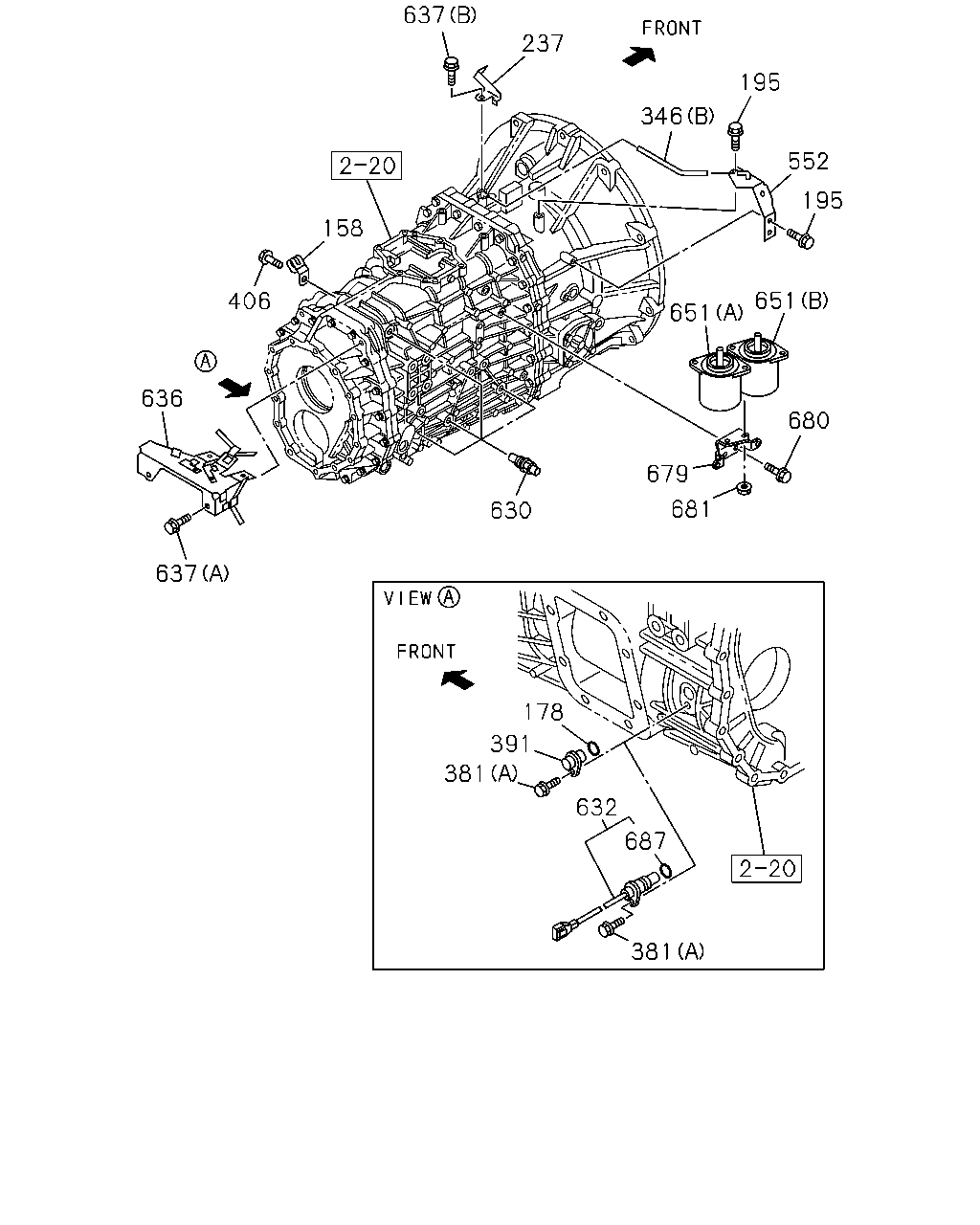

637 237 346 195 552 195 651 651 679 681 630 637 636 406 158 680 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1311-
158	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1311-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09567-113-0	01	1	1311-
195	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	02	1	1311-
237	BRACKET; CABLE,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-307-1	01	1	1311-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1311-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1311-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1311-
391	PLUG; SW HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97300-273-1	01	1	1311-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1311-
406	BOLT; HARNESS CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	1311-
552	BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-329-1	01	1	1311-
630	DETENT ASM	8-98019-536-0	04	1	1311-
632	SENSOR; TRANS,REV TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97315-604-1	01	1	1311-
636	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98114-843-0	01	1	1311-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE	0-28050-816-0	02	1	1311-
637	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X20 FLANGE	0-28650-820-0	01	1	1311-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1311-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1311-
679	BRACKET; HEAT PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98005-332-0	01	1	1311-
680	BOLT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X20 FLANGE	0-28761-020-0	02	1	1311-
681	NUT; FLANGE TRANSMISSION CONTROL-SMOOTHER(8GF) M10 FLANGE	0-91180-210-0	02	1	1311-
687	GASKET; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF)	9-09567-113-0	01	1	1311-

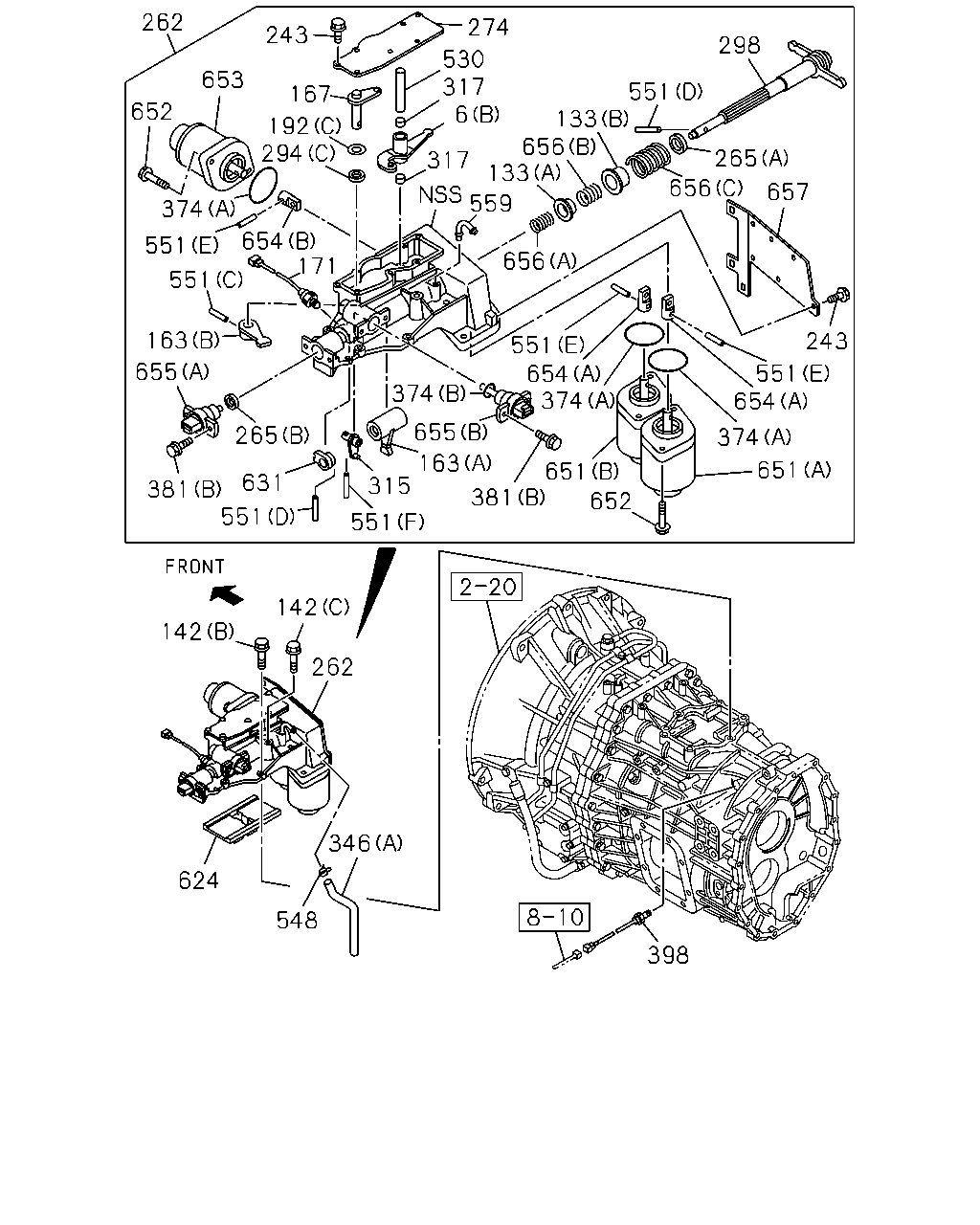

262 652 653 243 167 374 551 551 163 655 265 381 551 631 551 315 374 655 163 381 652 651 374 654 551 656 133 656 133 551 298 274 530 317 6 317 192 294 654 171 265 656 657 243 551 654 374 651 559 142 142 262 346 548 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98022-855-0	01	1	1311-
6	LEVER; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-995-0	01	1	1311-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-988-0	01	1	1311-
133	SEAT; SPR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-989-0	01	1	1311-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X22 FLANGE	8-97365-376-0	04	1	1311-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M8X35 FLANGE	8-98020-384-0	03	1	1311-
142	BOLT; QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF) (C) M8X75 FLANGE	8-98020-385-0	03	1	1311-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-97305-663-0	01	1	1311-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-979-0	01	1	1311-
163	LEVER; SELECT,INTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-990-0	01	1	1311-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98022-857-0	01	1	1311-
167	LEVER; SELECT,EXTERNAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-994-0	01	1	1311-
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98023-050-0	01	1	1311-1312
171	SWITCH; NEUTRAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98242-172-0	01	1	1311-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97305-661-0	02	1	1311-
192	WASHER; PL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09503-280-0	01	1	1311-
243	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE	1-33739-842-0	11	1	1311-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98249-040-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98241-009-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98276-160-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-335-1	01	1	1508-
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98241-122-1	01	1	1311-1411
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-530-0	01	1	1412-1509
262	BOX ASM; SHIFT CONT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98331-686-0	01	1	1510-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97363-225-0	01	1	1311-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-981-0	01	1	1311-
274	COVER; SHAFT,QUAD BOX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-711-0	01	1	1311-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97305-662-0	01	1	1311-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-97363-225-0	01	1	1311-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	1-09625-600-0	01	1	1311-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-685-0	01	1	1311-1507
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98305-342-0	01	1	1508-
298	SHAFT; SHIFT LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-978-0	01	1	1311-
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-998-0	01	1	1311-1411
315	LEVER; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98296-526-0	01	1	1412-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09330-119-0	02	1	1311-
317	BUSHING; LEVER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-997-0	02	1	1311-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97309-855-0	01	1	1311-1404
346	HOSE; AIR (A)	8-97309-855-0	01	1	1405-
346	HOSE; AIR TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-381-0	01	1	1311-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-571-0	03	1	1311-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97349-573-0	01	1	1311-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1311-
381	BOLT TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X12 FLANGE	1-33739-842-0	04	1	1311-
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1311-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
530	SHAFT; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-996-0	01	1	1311-
548	CLIP; HOSE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97031-674-0	01	1	1311-1404
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1311-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1311-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (D) L=30 OD=4	1-09748-031-0	02	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=5	8-97184-905-0	03	1	1311-
551	PIN; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF) (F)	8-97379-991-0	01	1	1311-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-710-0	01	1	1311-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1311-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97305-666-0	01	1	1311-
631	STOPPER; SPRING TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97379-984-0	01	1	1311-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98048-497-1	01	1	1311-
651	SOLENOID ASM; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98048-498-1	01	1	1311-
652	BOLT; SORENOID TRANSMISSION CONTROL-SMOOTHER(8GF) M10X25 FLANGE	0-28151-025-0	06	1	1311-
653	SOLENOID ASM; SELECT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98002-761-0	01	1	1311-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97349-473-0	02	1	1311-
654	JOINT; SOLENOID,CASE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97380-419-0	01	1	1311-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98107-823-0	01	1	1311-
655	SENSOR; STROKE TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98107-824-0	01	1	1311-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97379-985-0	01	1	1311-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97379-986-0	01	1	1311-
656	SPRING; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97379-987-0	01	1	1311-
657	PLATE; SIDE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-712-0	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
