2-05 — CLUTCH PIPING (#130059) — 39 parça

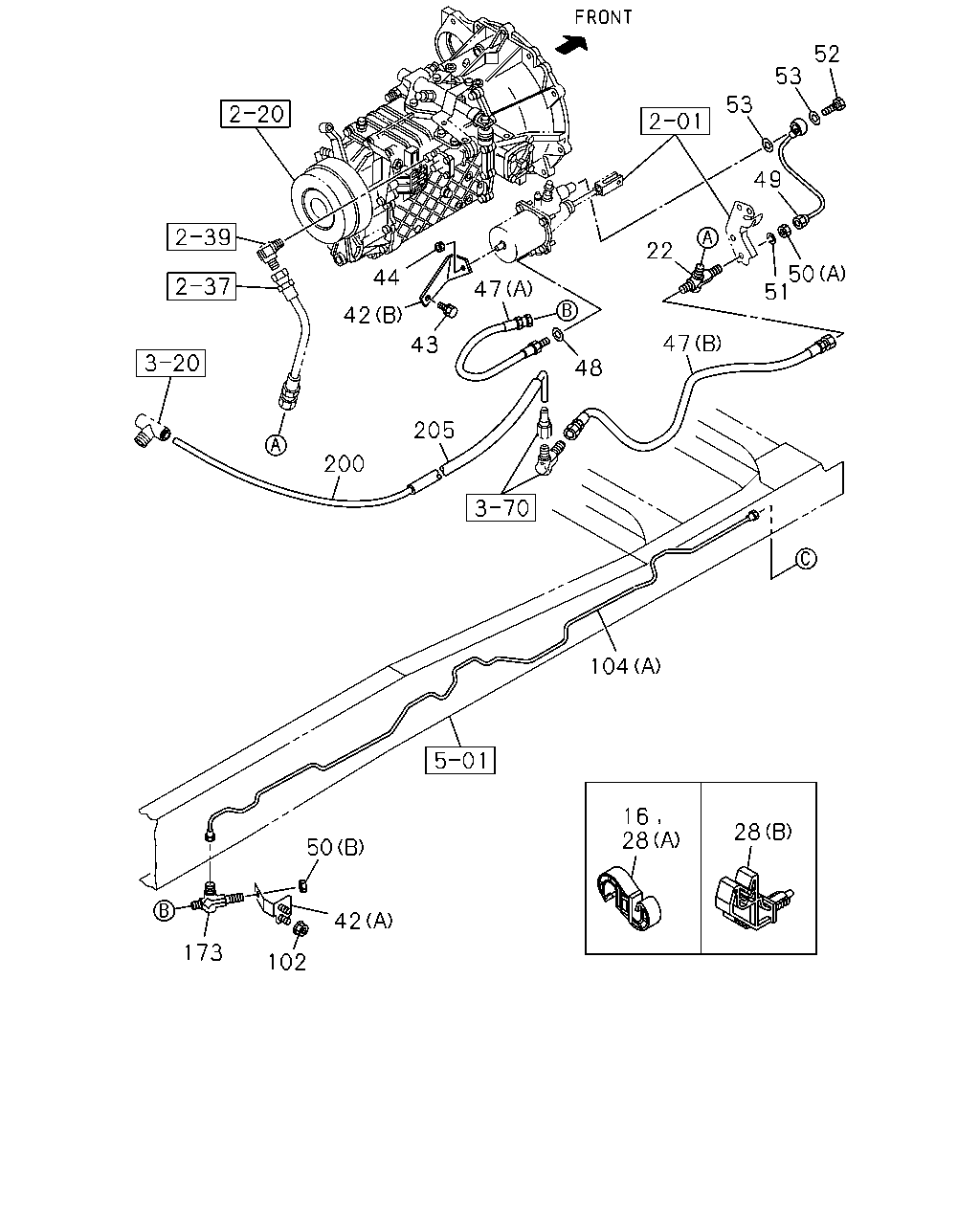

çizim 385419
44 42 43 205 200 47 48 22 47 53 53 52 49 50 51 104 50 42 102 173 16 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 01 1 1311- ● ●
22 UNION; CLU PIPE
15" CLUTCH(RE9) M12 3WAY 		0-92138-706-0 01 1 1311- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 		1-09701-247-1 01 1 1311- ● ●
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1311- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
15" CLUTCH(RE9) (B) 		1-31429-531-0 01 1 1311- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98203-636-0 01 1 1311- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
15" CLUTCH(RE9) M10X25 FLANGE 		0-28751-025-0 01 1 1311- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
15" CLUTCH(RE9) M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=500 		1-09363-733-0 01 1 1311- ● ●
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=440 		8-98072-346-0 01 1 1311- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1311- ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) 		8-98222-994-0 01 1 1311- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1311- ● ●
50 NUT; UNION
15" CLUTCH(RE9) (A) M12 		9-09840-280-0 01 1 1311- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1311- ● ●
51 WASHER; LK
15" CLUTCH(RE9) ID=12.2 		0-91510-812-0 01 1 1311- ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 1311- ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1311-1312 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
102 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1311- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1311- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2459 SERVICED BY L=2500 		1-47428-742-0 01 1 1311- ● ●
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1311- ● ●
200 TUBE; NYLON
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1311- ●
200 TUBE; NYLON
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1311- ●
200 TUBE; NYLON
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1311- ●
205 TUBE; CORRUGATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1311- ●
205 TUBE; CORRUGATE
WHEEL BASE 4900MM(49W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1311- ●
205 TUBE; CORRUGATE
WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1311- ●
çizim 386396
48 101 50 239 23 104 184 50
BalonParca AdiParca NoAdetTipApplied Date A B
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1311- ● ●
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1311- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1311- ● ●
50 NUT; UNION
15" CLUTCH(RE9) (A) M12 		9-09840-280-0 01 1 1311- ● ●
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1311- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1311- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1311- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2459 SERVICED BY L=2500 		1-47428-742-0 01 1 1311- ● ●
184 UNION; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98150-865-0 01 1 1311- ● ●
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1311- ● ●
