2-03 — CLUTCH PEDAL AND CONTROL (#130058) — 21 parça

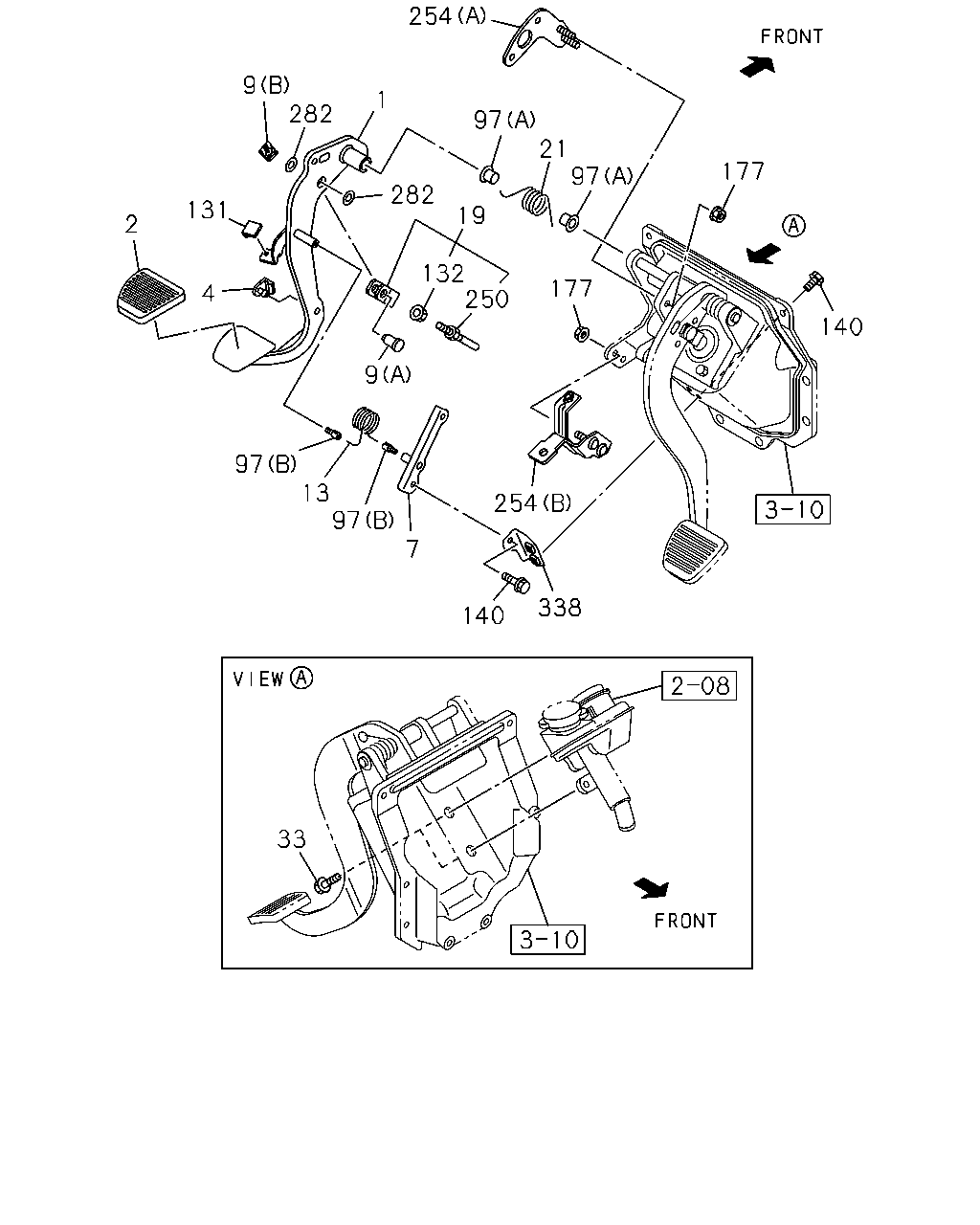

çizim 385411
9 131 2 4 282 1 282 254 97 21 97 19 132 250 177 9 97 13 97 7 254 140 338 140 177 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-862-0 01 1 1311- ● ●
2 COVER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98056-865-0 01 1 1311- ● ●
4 STOPPER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98079-251-0 01 1 1311- ● ●
7 BRACKET; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-860-0 01 1 1311- ● ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98007-161-0 01 1 1311- ● ●
9 PIN; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98147-657-0 01 1 1311- ● ●
13 SPRING; ASSIST,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-844-0 01 1 1311- ● ●
19 ROD ASM; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-406-1 01 1 1311- ● ●
21 SPRING; RETURN,CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-560-0 01 1 1311- ● ●
33 BOLT; CLU M/CYL TO BRKT
15" CLUTCH(RE9) M12X20 FLANGE 		0-28051-220-0 02 1 1311- ● ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-94238-596-0 02 1 1311- ● ●
97 BUSHING; CLU PEDAL SHAFT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98222-859-0 02 1 1311- ● ●
131 STOPPER; CLU SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97302-305-0 01 1 1311- ● ●
132 NUT; LK,PUSH ROD
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
140 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 03 1 1311- ● ●
177 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 04 1 1311- ● ●
250 ROD; PUSH,CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-589-0 01 1 1311- ● ●
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98021-376-1 01 1 1311- ● ●
254 BRACKET; CLU SENSOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98021-377-1 01 1 1311- ● ●
282 SPACER; CLU PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98070-329-0 02 1 1311- ● ●
338 SUPPORT; CLUTCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98222-861-0 01 1 1311- ● ●
