1-56 — EXHAUST BRAKE SYSTEM (#130056) — 24 parça

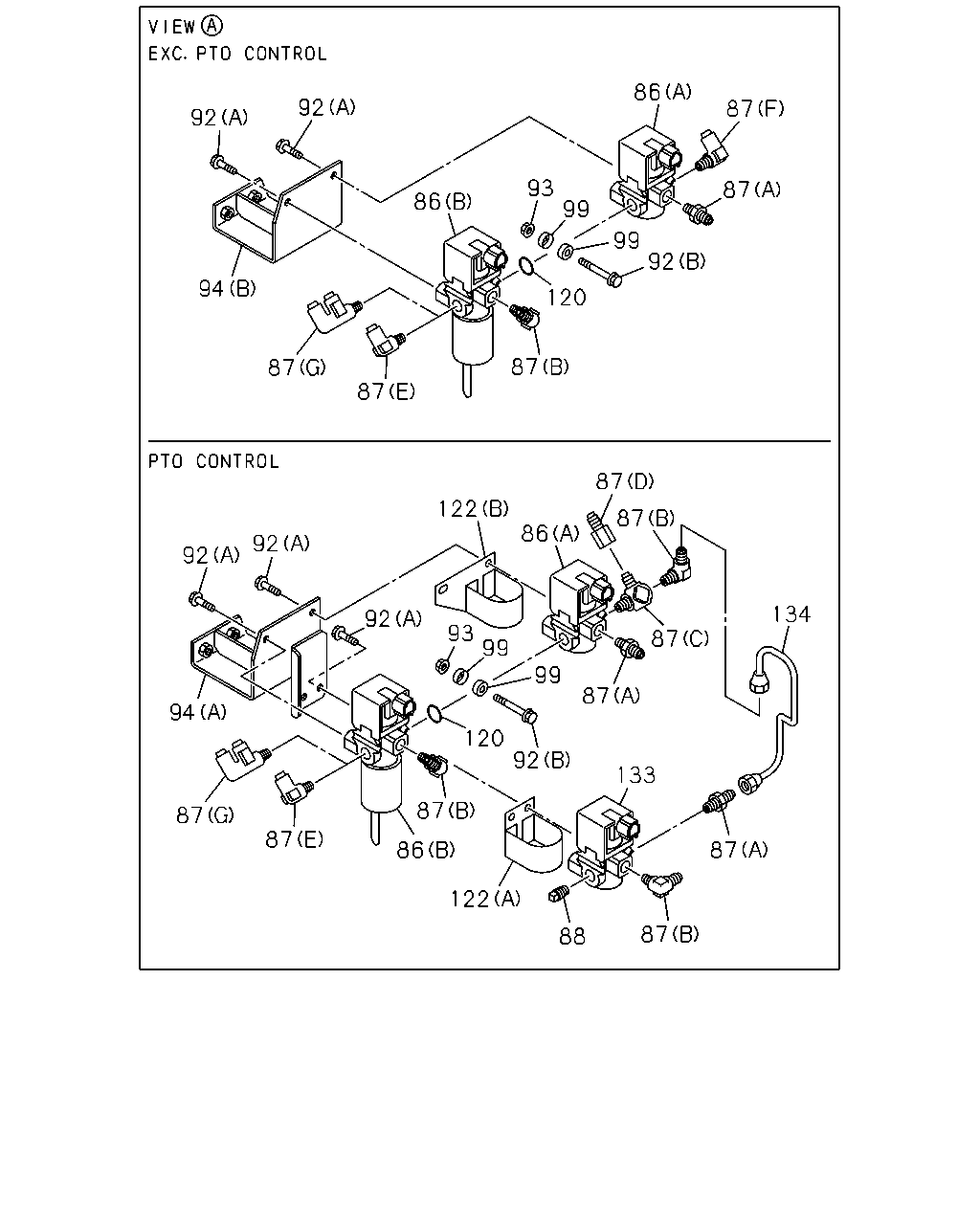

çizim 386109
87 87 86 93 99 99 92 120 87 87 87 94 86 92 92 122 87 87 86 134 87 133 92 120 99 99 93 92 92 92 94 87 87 86 122 88 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(A) 		1-82563-871-2 01 1 1311-
86 VALVE; MAG,EXH BRK
(B) 		8-97633-075-0 01 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (C) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 1311-
87 CONNECTOR
PTO CONTROL<SV6> (D) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1311-
87 CONNECTOR
AIR SUS(FCD***) (G) DIN8X2 & PT1/4 DOUBLE ELBOW 		8-98179-708-0 01 1 1311-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1311-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1311-
87 CONNECTOR
EXC. PTO CONTROL<SV6> (F) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1311-
87 CONNECTOR
LEAF SUS(FCR***) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1311-
88 PLUG
PTO CONTROL<SV6> PT1/4 		9-99204-513-0 01 1 1311-
92 BOLT; MAG VLV
PTO CONTROL<SV6> (A) M8X20 FLANGE 		0-28650-820-0 04 1 1311-
92 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 1311-
92 BOLT; MAG VLV
EXC. PTO CONTROL<SV6> (A) M8X20 FLANGE 		0-28650-820-0 02 1 1311-
93 NUT; MAG VLV
M6 FLANGE 		0-91180-106-0 01 1 1311-
94 BRACKET; MAG VLV,EXH BRAKE
PTO CONTROL<SV6> (A) 		8-98237-819-0 01 1 1311-
94 BRACKET; MAG VLV,EXH BRAKE
EXC. PTO CONTROL<SV6> (B) 		8-98223-109-0 01 1 1311-
99 WASHER; MAG VLV 1-82569-266-0 02 1 1311-
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 1311-
122 PROTECTOR; MAG VLV
PTO CONTROL<SV6> (A) 		1-47471-046-0 01 1 1311-
122 PROTECTOR; MAG VLV
PTO CONTROL<SV6> (B) 		8-98237-820-0 01 1 1311-
133 VALVE; MAG,PTO CONT
PTO CONTROL<SV6> 		1-82563-871-2 01 1 1311-
134 PIPE; AIR,MAG VLV
PTO CONTROL<SV6> 		8-98237-821-0 01 1 1311-
