◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#130054) — 113 parça

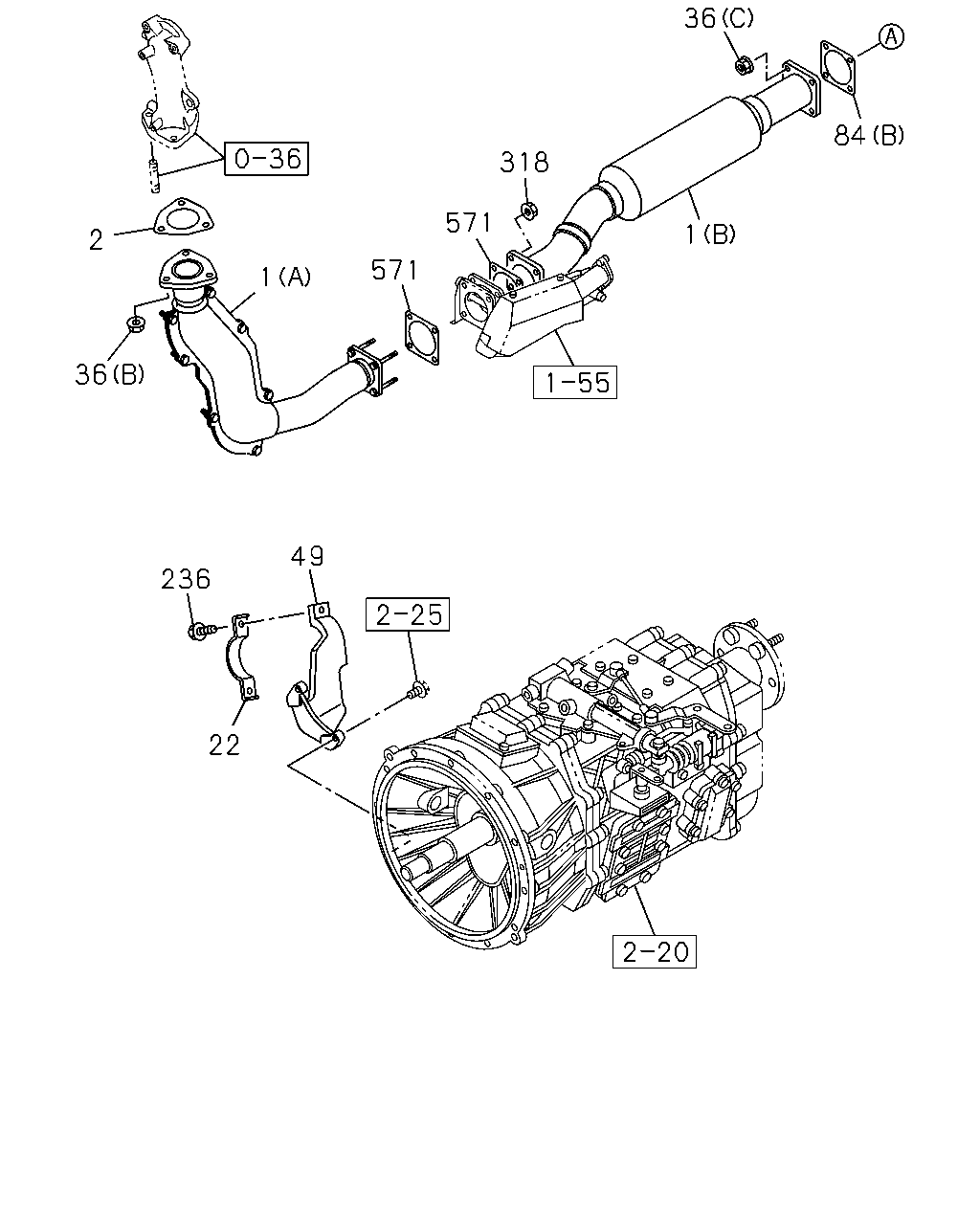

çizim 385386
2 36 1 571 571 318 1 36 84 49 236 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(A) 		8-98252-498-0 01 1 1311- ● ●
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1311- ●
1 PIPE; EXH
WHEEL BASE 4900MM(49W) (C) 		8-98229-233-0 01 1 1311- ●
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1311- ● ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77.5 		8-98159-745-0 01 1 1311- ● ●
22 CLAMP; EXH PIPE 8-98147-597-1 01 1 1311- ● ●
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1311- ●
36 NUT; EXH PIPE
WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 04 1 1311- ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1311- ● ●
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1311- ● ●
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98147-599-0 01 1 1311- ● ●
49 BRACKET; EXH PIPE TO TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98147-598-0 01 1 1311- ● ●
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 01 1 1311- ●
84 GASKET; EXH PIPE
WHEEL BASE 4900MM(49W) (B) ID=64 		8-97373-108-0 01 1 1311- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1311- ● ●
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1311- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1311- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1311- ● ●
571 GASKET
ID=64 		8-97373-108-0 02 1 1311- ● ●

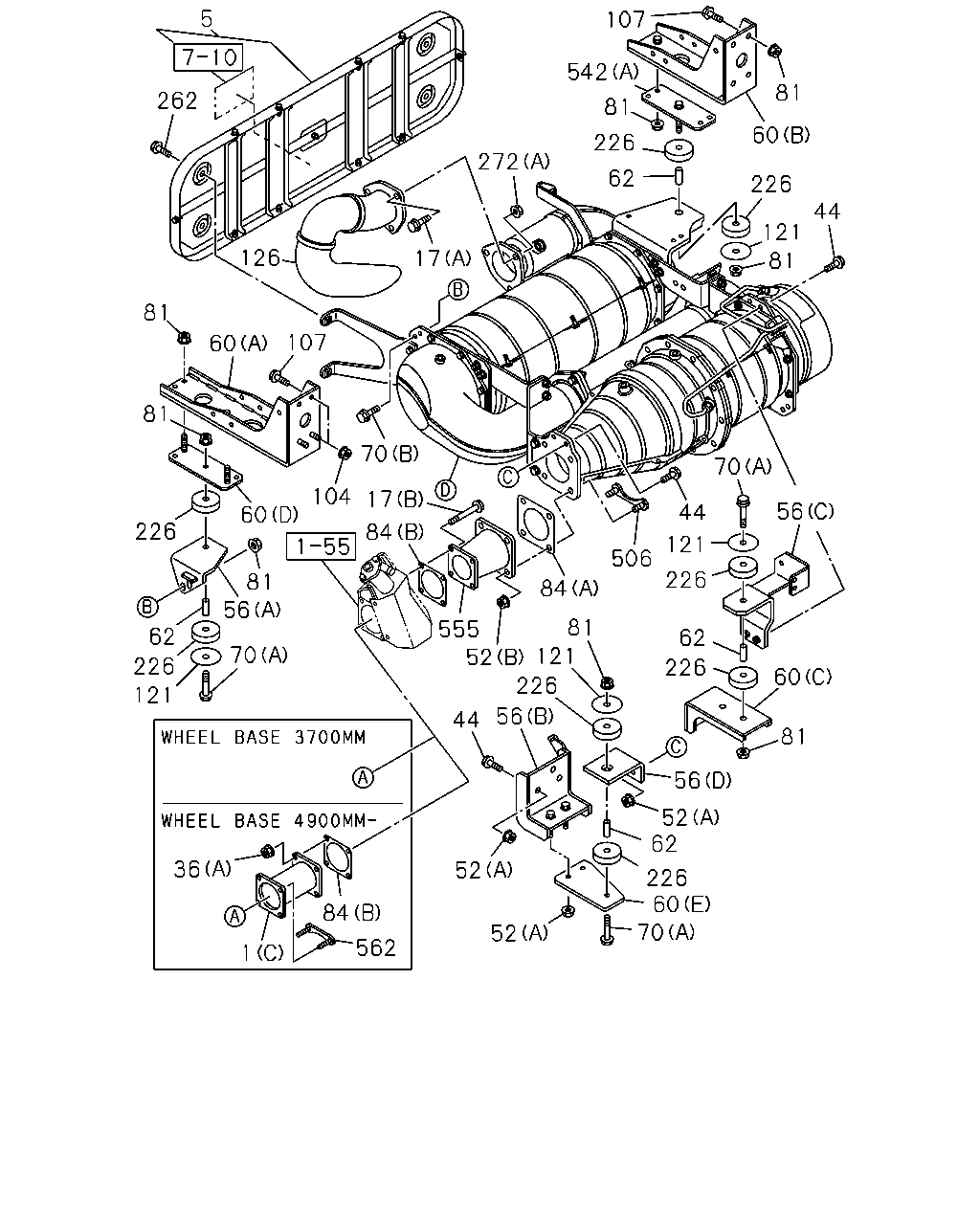

çizim 385912
107 542 81 226 62 81 60 226 121 81 44 70 56 44 121 226 62 226 60 81 56 52 62 226 60 70 52 52 44 56 226 121 81 84 52 555 506 84 17 70 104 60 81 56 70 121 226 62 226 81 81 60 107 126 262 5 17 272 36 1 84 562
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(A) 		8-98252-498-0 01 1 1311- ● ●
1 PIPE; EXH
(C) 		8-98229-233-0 01 1 1311- ●
1 PIPE; EXH
WHEEL BASE 4900MM(49W) (C) 		8-98229-233-0 01 1 1311- ●
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1311- ● ●
5 PROTECTOR; HEAT 8-98236-295-0 01 1 1311- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1311- ● ●
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1311- ● ●
36 NUT; EXH PIPE
(A) M8 FLANGE 		0-91180-108-0 04 1 1311- ●
36 NUT; EXH PIPE
WHEEL BASE 4900MM(49W) (A) M8 FLANGE 		0-91180-108-0 04 1 1311- ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1311- ● ●
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1311- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1311- ● ●
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1311- ● ●
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1311- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1311- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98228-981-0 01 1 1311- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1311- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1311- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1311- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1311- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1311- ● ●
60 BRACKET; FRAME TO BRKT
(E) 		8-98228-982-0 01 1 1311- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1311- ● ●
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1311- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1311- ● ●
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1311- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ●
81 NUT; BRKT
WHEEL BASE 4900MM(49W) M10 FLANGE 		0-91180-210-0 04 1 1311- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1311- ● ●
81 NUT; BRKT
WHEEL BASE 3700MM(37W) M10 FLANGE 		0-91180-210-0 06 1 1311- ●
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 01 1 1311- ●
84 GASKET; EXH PIPE
WHEEL BASE 4900MM(49W) (B) ID=64 		8-97373-108-0 01 1 1311- ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1311- ● ●
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1311- ● ●
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1311- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1311- ● ●
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1311- ● ●
126 PIPE; EXH,RR 8-98224-713-0 01 1 1311- ● ●
226 RUBBER; CUSHION 8-97625-670-0 08 1 1311- ● ●
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1311- ● ●
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1311- ● ●
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1311- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1311- ● ●
542 BRACKET
(B) 		8-98232-788-0 01 1 1311- ● ●
542 BRACKET
(A) 		8-98236-728-0 01 1 1311- ● ●
555 PIPE; EXH,DPD 8-98224-353-0 01 1 1311- ● ●
562 PLATE; STUD,BOLT 8-97373-966-0 02 1 1311- ●
562 PLATE; STUD,BOLT
WHEEL BASE 4900MM(49W) 		8-97373-966-0 02 1 1311- ●

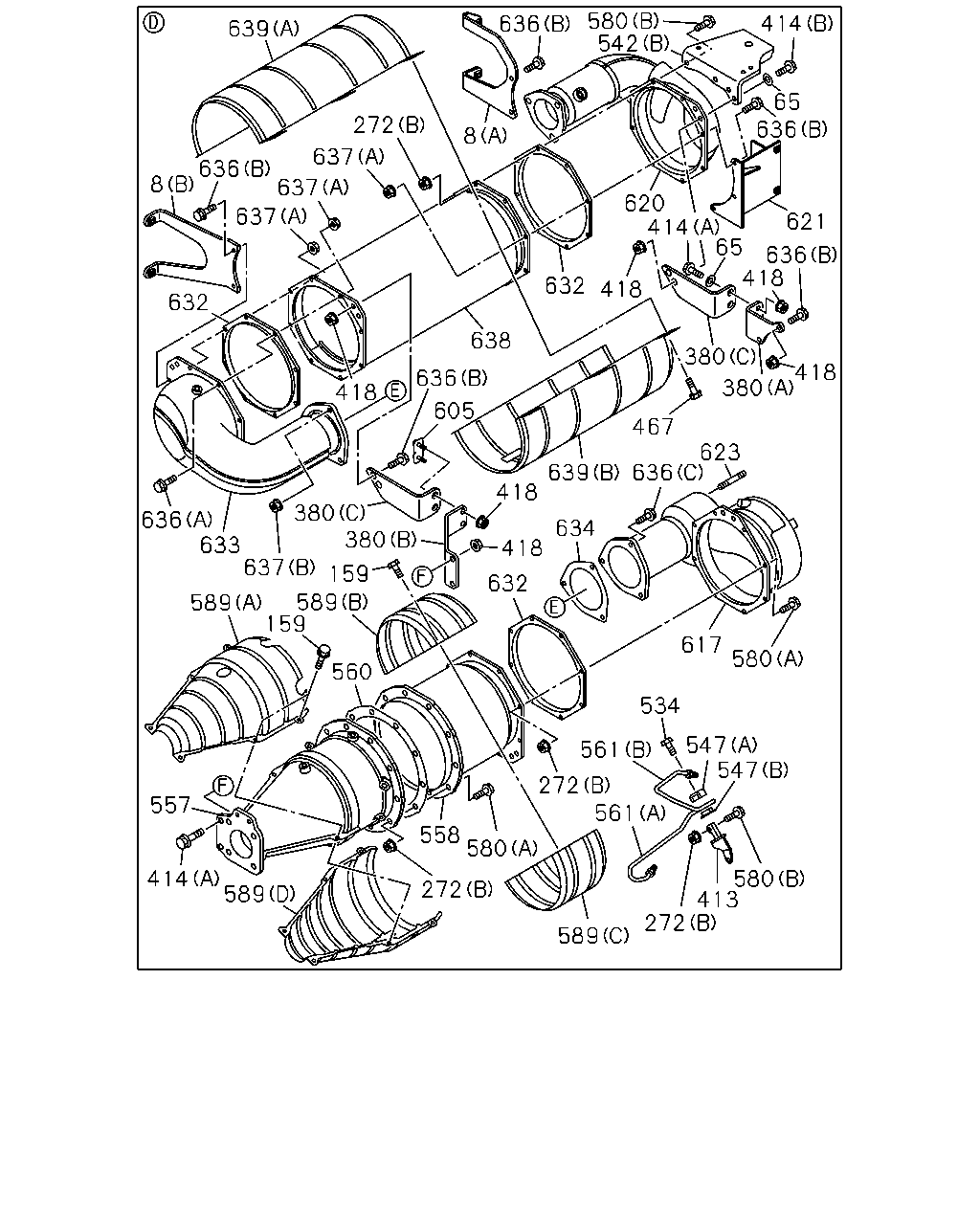

çizim 385930
617 580 547 547 534 561 272 561 589 272 580 272 558 632 418 639 636 623 467 380 418 620 65 621 636 65 414 636 414 418 380 418 632 638 636 418 605 418 8 634 380 380 637 633 589 589 560 159 159 589 414 557 636 632 8 637 636 637 272 637 639 636 580 413 580 542
BalonParca AdiParca NoAdetTipApplied Date A B
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1311- ● ●
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1311- ● ●
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1311- ● ●
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1311- ● ●
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1311- ● ●
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1311- ● ●
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1311- ● ●
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1311- ● ●
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1311- ● ●
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1311- ● ●
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1311- ● ●
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1311- ● ●
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1311- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1311- ● ●
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1311- ● ●
542 BRACKET
(B) 		8-98232-788-0 01 1 1311- ● ●
542 BRACKET
(A) 		8-98236-728-0 01 1 1311- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 01 1 1311- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 01 1 1311- ● ●
557 CATALYST ASM 8-98204-940-1 01 1 1311- ● ●
558 FILTER ASM 8-98204-942-0 01 1 1311- ● ●
560 GASKET; DPD 8-97611-080-0 01 1 1311- ● ●
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1311- ● ●
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1311- ● ●
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1311- ● ●
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1311- ● ●
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1311- ● ●
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1311- ● ●
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1311- ● ●
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1311- ● ●
605 PLATE; NUT 8-98148-511-0 01 1 1311- ● ●
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1311- ● ●
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1311- ● ●
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1311- ● ●
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1311- ● ●
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1311- ● ●
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1311- ● ●
634 GASKET; MIXER 8-98118-422-1 01 1 1311- ● ●
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1311- ● ●
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1311- ● ●
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1311- ● ●
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1311- ● ●
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1311- ● ●
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1311- ● ●
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1311- ● ●
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1311- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
