Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#130051) — 292 parça

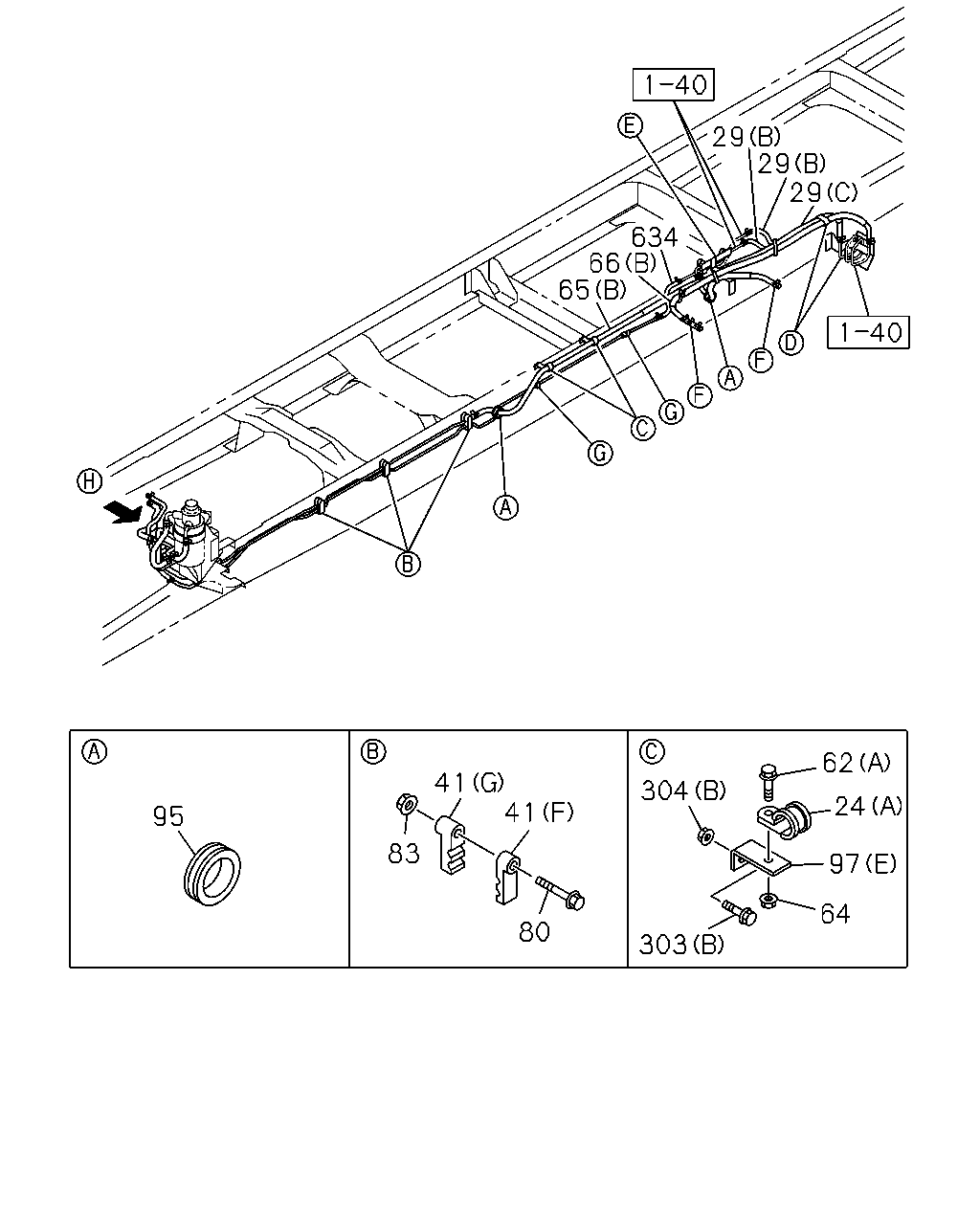

41 83 41 80 304 303 64 97 24 62 95 29 29 29 634 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=21 L=24	8-98019-191-0	02	1	1311-	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=21 L=24	8-98019-191-0	02	1	1311-		●
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1311-	●	●
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-		●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-		●
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-		●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1311-	●
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1311-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1311-		●
65	HOSE; FUEL,DELIVERY PIPE (B) L=1550	8-98183-313-0	01	1	1311-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) (B) L=1550	8-98183-313-0	01	1	1311-		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (B) L=600	8-98234-314-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (B)	8-98249-049-0	01	1	1311-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B)	8-98249-049-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98249-048-0	01	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1311-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X50 FLANGE	0-28050-850-0	03	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	02	1	1311-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1311-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1311-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	05	1	1311-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1311-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1311-	●	●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1311-	●	●
97	BRACKET; CLIP (E) L=55	1-47476-177-0	02	1	1311-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=55	1-47476-177-0	02	1	1311-		●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1311-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98239-701-0	01	1	1311-		●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1311-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-669-1	01	1	1311-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98234-233-0	01	1	1311-		●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-		●
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1311-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1311-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) (B) M10 FLANGE	0-91180-210-0	02	1	1311-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	1311-		●
634	HOSE; RUBBER RETURN L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1311-		●

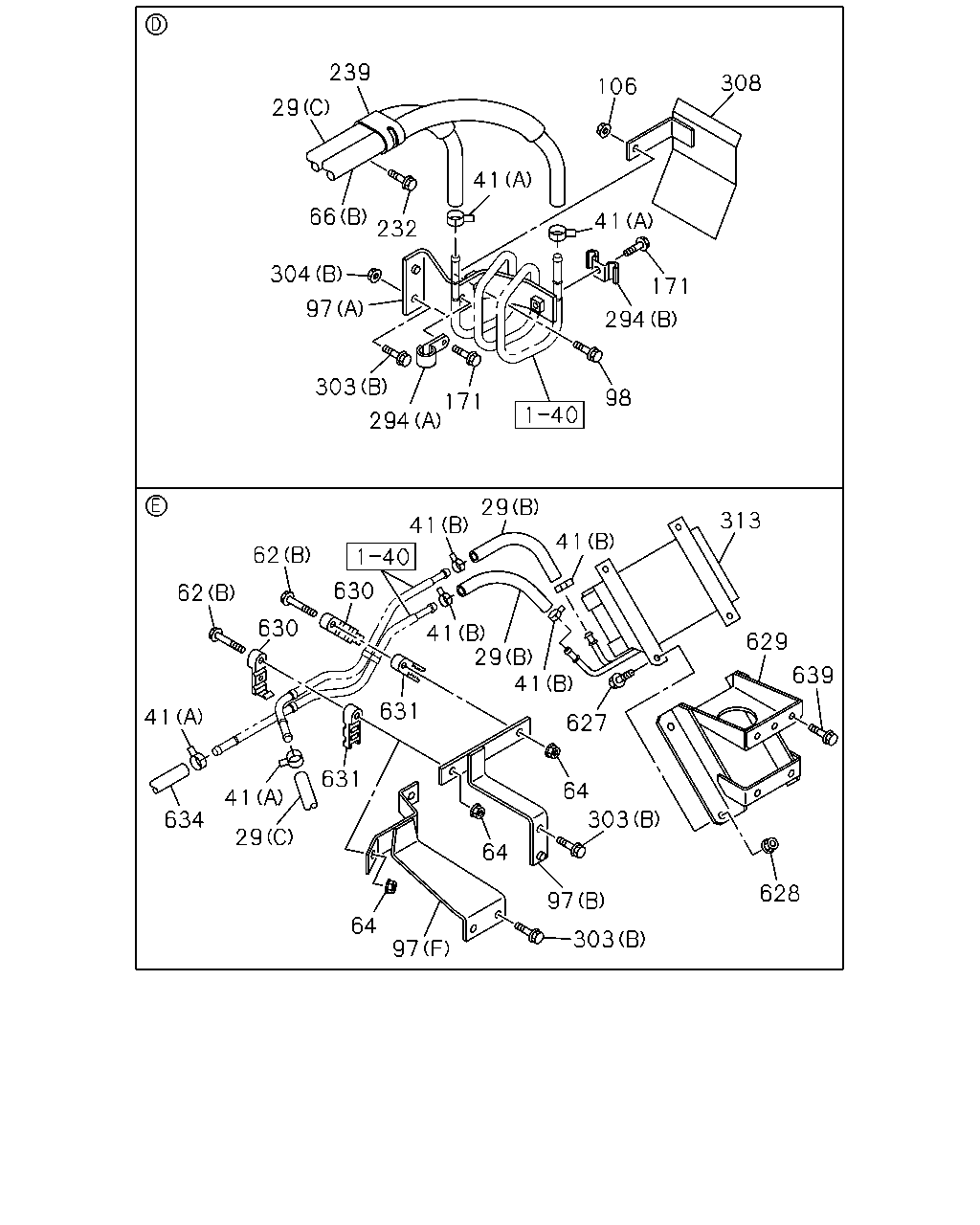

41 41 41 41 66 29 47 41 41 65 80 41 83 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-		●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-		●
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1311-	●	●
47	PIPE; FUEL,RETURN (A) L=2568	8-98245-734-0	01	1	1311-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) (A) L=2568	8-98245-734-0	01	1	1311-		●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=1514	8-98245-732-0	01	1	1311-		●
65	HOSE; FUEL,DELIVERY PIPE (B) L=1550	8-98183-313-0	01	1	1311-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) (B) L=1550	8-98183-313-0	01	1	1311-		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (B) L=600	8-98234-314-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (B)	8-98249-049-0	01	1	1311-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B)	8-98249-049-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98249-048-0	01	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1311-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X50 FLANGE	0-28050-850-0	03	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	02	1	1311-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1311-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1311-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	05	1	1311-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1311-		●

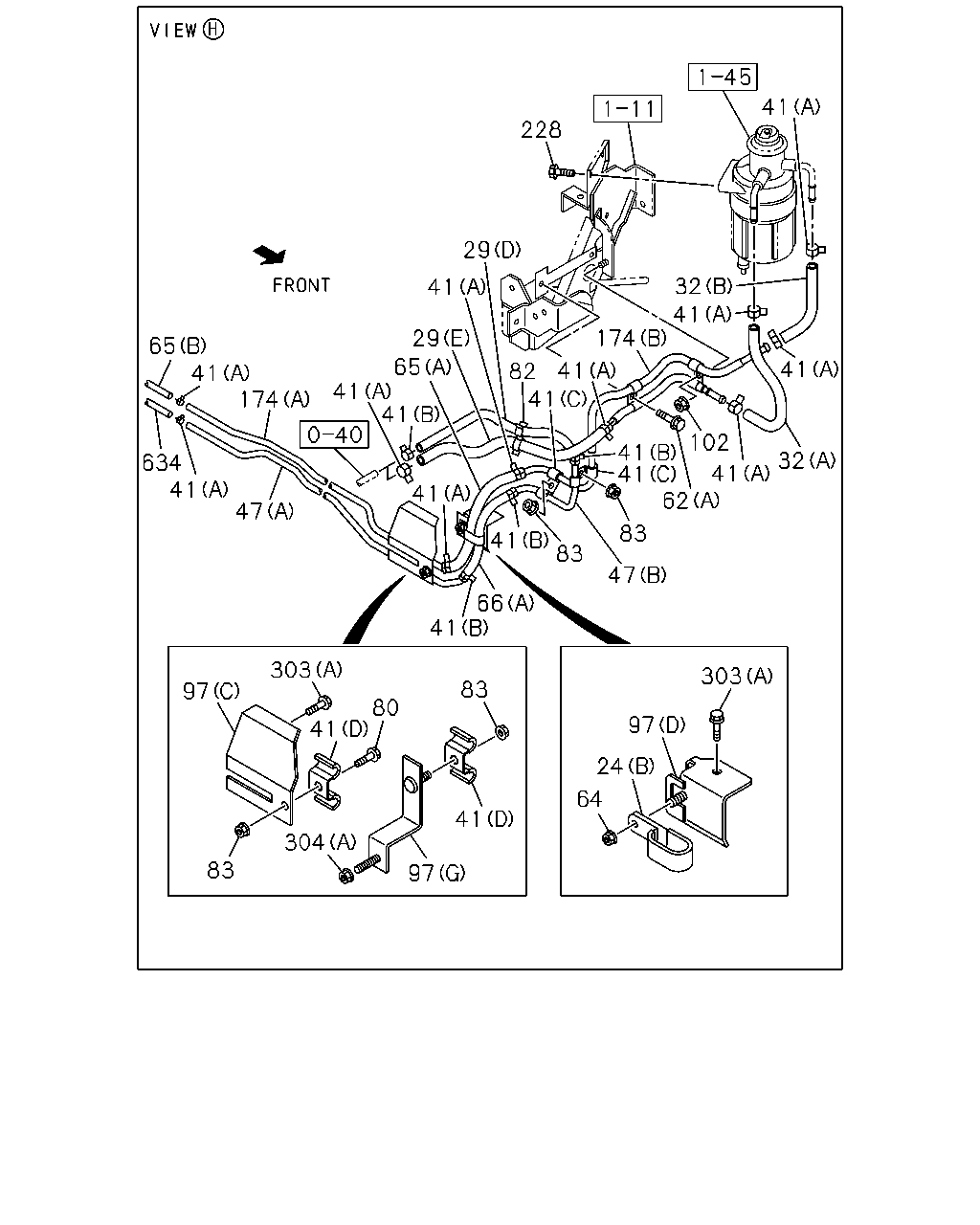

228 29 41 29 65 41 174 41 65 634 47 41 41 41 66 41 41 41 82 41 174 32 41 41 41 32 41 102 41 41 83 47 83 303 97 24 64 83 41 80 303 97 83 41 304 97 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (A) ID=21 L=24	8-98019-191-0	02	1	1311-	●
24	CLIP; FUEL HOSE WHEEL BASE 4900MM(49W) (A) ID=21 L=24	8-98019-191-0	02	1	1311-		●
24	CLIP; FUEL HOSE (B)	8-98203-791-0	01	1	1311-	●	●
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-		●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
32	PIPE; DELIVERY,FUEL TANK (A)	8-98204-102-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-		●
47	PIPE; FUEL,RETURN (C)	8-98009-438-1	01	1	1311-	●	●
47	PIPE; FUEL,RETURN (A) L=2568	8-98245-734-0	01	1	1311-	●
47	PIPE; FUEL,RETURN WHEEL BASE 4900MM(49W) (A) L=2568	8-98245-734-0	01	1	1311-		●
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1311-	●	●
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=1514	8-98245-732-0	01	1	1311-		●
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-		●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1311-	●
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1311-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1311-		●
65	HOSE; FUEL,DELIVERY PIPE (B) L=1550	8-98183-313-0	01	1	1311-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 4900MM(49W) (B) L=1550	8-98183-313-0	01	1	1311-		●
65	HOSE; FUEL,DELIVERY PIPE (A) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (B) L=600	8-98234-314-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (B)	8-98249-049-0	01	1	1311-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B)	8-98249-049-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98249-048-0	01	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1311-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X50 FLANGE	0-28050-850-0	03	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X25 FLANGE	0-28650-825-0	02	1	1311-	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	02	1	1311-		●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	02	1	1311-		●
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1311-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	05	1	1311-	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	05	1	1311-		●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1311-	●	●
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	03	1	1311-		●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1311-	●	●
97	BRACKET; CLIP (E) L=55	1-47476-177-0	02	1	1311-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=55	1-47476-177-0	02	1	1311-		●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1311-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98239-701-0	01	1	1311-		●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1311-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-669-1	01	1	1311-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98234-233-0	01	1	1311-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98245-728-0	01	1	1311-	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 4900MM(49W) (A)	8-98245-728-0	01	1	1311-		●
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1311-	●	●
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) (A)	8-98245-727-0	01	1	1311-		●
228	BOLT; BRKT,SEDIMENTER M10X20 FLANGE	0-28651-020-0	02	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-		●
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1311-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1311-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) (B) M10 FLANGE	0-91180-210-0	02	1	1311-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	1311-		●
634	HOSE; RUBBER RETURN L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1311-		●

106 308 41 171 294 98 171 303 97 304 66 29 239 41 232 313 629 639 41 29 41 41 29 41 627 303 64 628 97 64 631 630 62 62 41 41 29 634 64 631 630 294 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (A) L=80 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
29	HOSE; FUEL (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) (B) L=170 SERVICED BY L=3000	0-01558-300-0	02	1	1311-		●
29	HOSE; FUEL (C)	8-98249-051-0	01	1	1311-	●	●
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1311-	●	●
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1311-	●	●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B) L=250 SERVICED BY L=3000	0-01558-300-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (H) L=250	5-09707-030-1	03	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=10 & 10	1-09709-241-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (F) ID=10 & 10	1-09709-241-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=10 & 10	1-09709-243-0	03	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (G) ID=10 & 10	1-09709-243-0	03	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 4900MM(49W) (E) ID=11 H=20 L=20	8-98033-780-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	02	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	06	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1311-	●	●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	02	1	1311-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	02	1	1311-		●
62	BOLT; CLIP FIX (B) M8X50 FLANGE	0-28050-850-0	02	1	1311-	●	●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-	●
62	BOLT; CLIP FIX WHEEL BASE 4900MM(49W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-		●
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1311-	●
64	NUT; CLIP WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1311-		●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
64	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	02	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (B)	8-98249-049-0	01	1	1311-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 4900MM(49W) (B)	8-98249-049-0	01	1	1311-		●
66	HOSE; FUEL,RETURN PIPE (A) L=230 SERVICED BY L=3000	0-01558-300-0	01	1	1311-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98249-048-0	01	1	1311-		●
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1311-	●	●
97	BRACKET; CLIP (E) L=55	1-47476-177-0	02	1	1311-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (E) L=55	1-47476-177-0	02	1	1311-		●
97	BRACKET; CLIP (B)	8-98239-701-0	01	1	1311-	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) (B)	8-98239-701-0	01	1	1311-		●
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1311-	●	●
97	BRACKET; CLIP (C)	8-98245-737-0	01	1	1311-	●	●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (G)	1-47477-669-1	01	1	1311-		●
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98234-233-0	01	1	1311-		●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1311-	●	●
106	NUT; FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	1311-	●	●
171	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1311-	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
239	CLIP; FUEL PIPE ID=24 & 24 L=49	1-09701-018-0	01	1	1311-	●	●
294	CLIP; FUEL PIPE (A) ID=11 L=16	0-95235-025-0	01	1	1311-	●	●
294	CLIP; FUEL PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1311-	●	●
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1311-		●
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (A) M8X30 FLANGE	0-28650-830-0	01	1	1311-		●
303	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	01	1	1311-	●	●
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1311-		●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1311-	●	●
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1311-	●
304	NUT; BRKT WHEEL BASE 4900MM(49W) (B) M10 FLANGE	0-91180-210-0	02	1	1311-		●
304	NUT; BRKT WHEEL BASE 3700MM(37W) (A) M8 FLANGE	0-91180-108-0	01	1	1311-		●
308	BRACKET; FUEL PIPE	8-98249-019-0	01	1	1311-	●	●
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1311-	●	●
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1311-	●	●
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1311-	●	●
629	BRACKET; FUEL CLR	8-98224-320-1	01	1	1311-	●	●
630	CLIP; UPR ID=10 & 10	1-09709-241-0	02	1	1311-	●	●
631	CLIP; LWR ID=10 & 10	1-09709-243-0	02	1	1311-	●	●
634	HOSE; RUBBER RETURN L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W) L=280 SERVICED BY L=3000	0-01859-300-0	01	1	1311-		●
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) L=200 SERVICED BY L=3000	0-01859-300-0	01	1	1311-		●
639	BOLT; BRKT,FUEL CLR M10X30 FLANGE	0-28651-030-0	04	1	1311-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
