◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#130050) — 25 parça

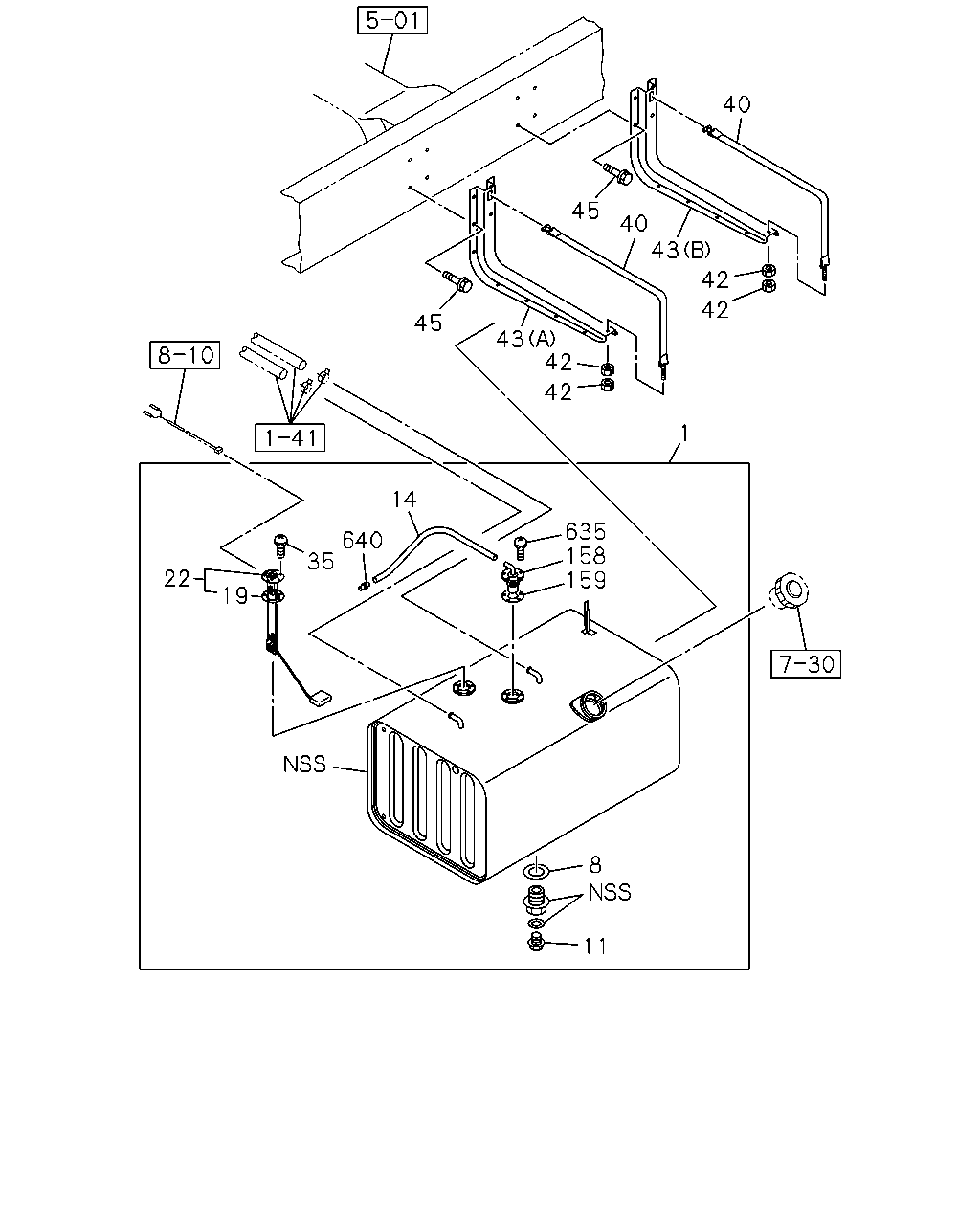

çizim 385348
40 43 42 40 45 42 45 42 43 42 22 14 640 35 635 158 159 8 11 1 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
820X500X400 140L 		8-98224-123-0 01 1 1311- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=30 		8-98067-041-0 01 1 1311- ● ●
11 PLUG; DRAIN,FUEL TANK
M18 		8-98068-006-0 01 1 1311- ● ●
14 HOSE; BREATHER,OUTLET
L=430 		8-98131-037-0 01 1 1311- ● ●
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1311- ● ●
22 UNIT; FUEL TANK 8-98099-319-0 01 1 1311- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1311- ● ●
40 BELT; SUPPORT,FUEL TANK
L=925 		8-98049-769-1 02 1 1311- ● ●
42 NUT; SUPPORT BELT
M10 		0-91110-510-0 04 1 1311- ● ●
43 BRACKET; FUEL TANK
(A) 		8-98127-229-0 01 1 1311- ● ●
43 BRACKET; FUEL TANK
(B) 		8-98127-230-0 01 1 1311- ● ●
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 08 1 1311- ● ●
158 VALVE; ROLL OVER & FLOAT 8-98095-223-0 01 1 1311- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 01 1 1311- ● ●
635 SCREW; ROLL OVER & FLOAT VALVE
M5X10 W/LK WASHER 		0-36220-510-0 05 1 1311- ● ●
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1311- ● ●

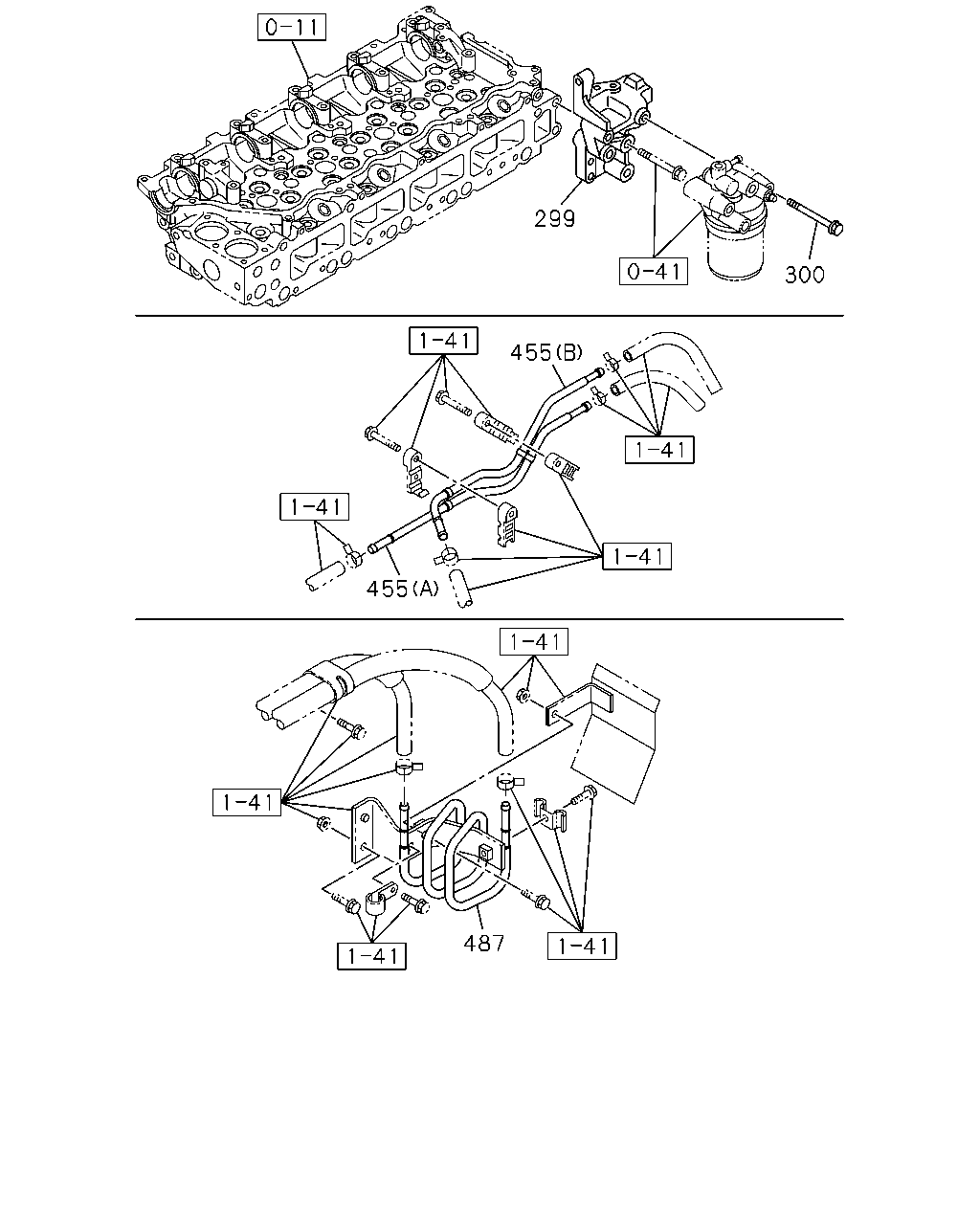

çizim 386287
299 300 455 455 487
BalonParca AdiParca NoAdetTipApplied Date A B
299 BRACKET; FUEL FILTER 8-98092-459-3 01 1 1311- ● ●
300 BOLT; BRKT TO BODY
M10X100 FLANGE 		0-28151-000-0 02 1 1311- ● ●
455 PIPE; FUEL,RETURN
(A) L=357 		8-98254-476-0 01 1 1311- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W) (A) L=357 		8-98254-476-0 01 1 1311- ●
455 PIPE; FUEL,RETURN
(B) L=373 		8-98254-477-0 01 1 1311- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 4900MM(49W) (B) L=373 		8-98254-477-0 01 1 1311- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) (A) L=331 		8-98248-979-0 01 1 1311- ●
455 PIPE; FUEL,RETURN
WHEEL BASE 3700MM(37W) (B) L=384 		8-98248-980-0 01 1 1311- ●
487 PIPE; FUEL HOSE
L=901 		8-98249-017-0 01 1 1311- ● ●
