◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11560 - FSR-RHD(EU)SPACE EU6 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#130039) — 38 parça

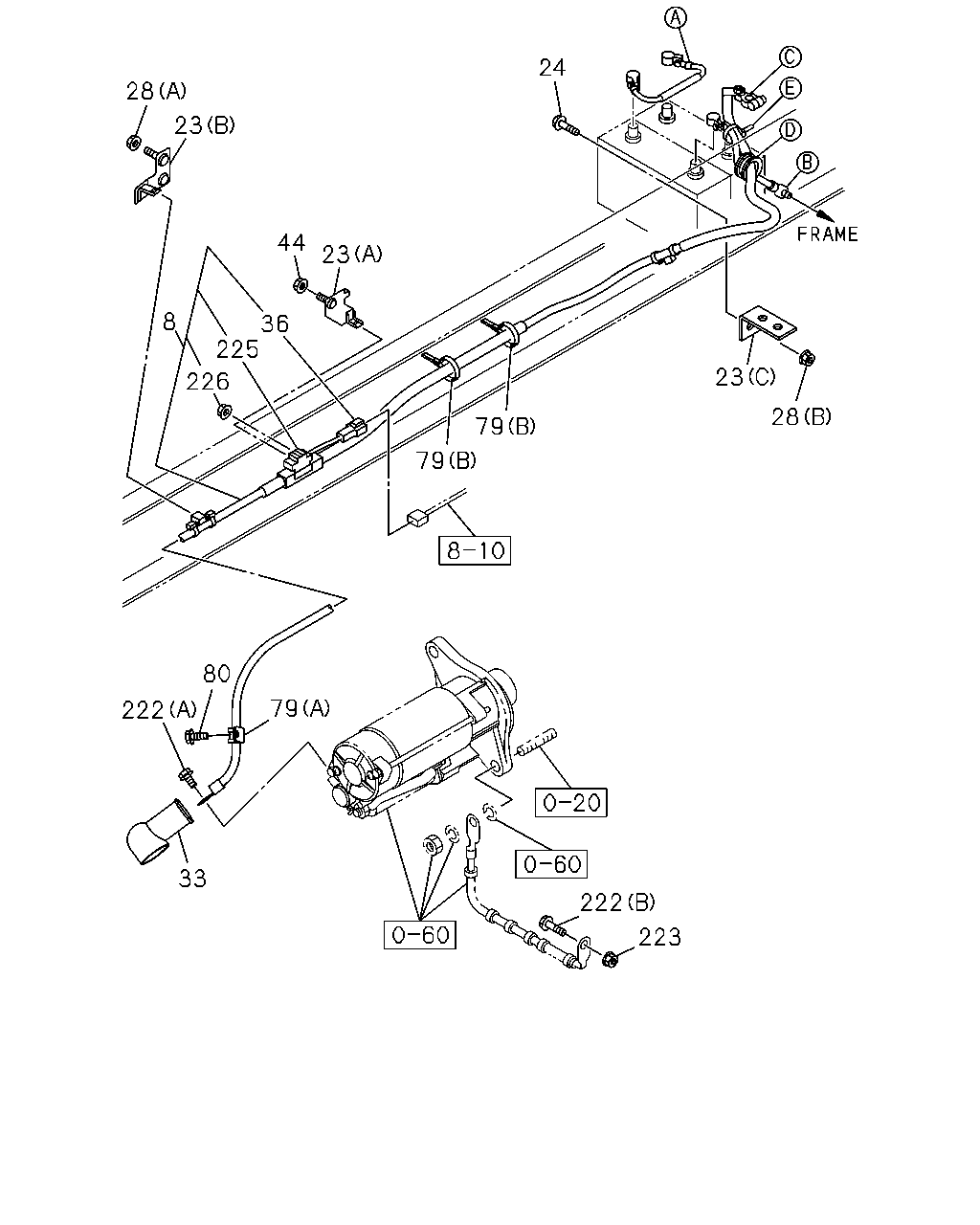

çizim 385268
44 36 225 226 23 23 28 8 222 33 79 80 222 223 28 23 24 79 79
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98222-853-1 01 1 1311-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-652-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98222-854-0 01 1 1311-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-653-0 01 1 1503- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=62 		1-21464-170-2 01 1 1311- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1311- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98116-577-0 01 1 1311- ● ●
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1311- ● ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
28 NUT; BRKT TO FRAME
(A) M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1311- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1311-1502 ● ●
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1311- ● ●
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1311- ● ●
79 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 1311- ● ●
80 BOLT; BATTERY CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
222 BOLT; EARTH CABLE
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ● ●
222 BOLT; EARTH CABLE
(B) M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1311- ● ●
223 NUT; EARTH CABLE
M14 FLANGE 		0-91180-114-0 01 1 1311- ● ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1311-1502 ● ●
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1311-1502 ● ●
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503- ● ●
çizim 385273
107 217 13 1 2 11 10 112 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1311- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240 		8-98232-608-0 01 1 1311- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 1311- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98222-853-1 01 1 1311-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-652-0 01 1 1503- ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98222-854-0 01 1 1311-1502 ● ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> 		8-98295-653-0 01 1 1503- ● ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1311- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1311- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1311- ● ●
107 CLIP; BAND
BATTERY 115E41L<8MA> L=140 		5-09707-031-1 01 1 1311- ● ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1311-1408 ● ●
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409- ● ●
217 CLIP; BAND,CABLE
L=250 		1-09707-126-0 01 1 1311- ● ●
