Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶

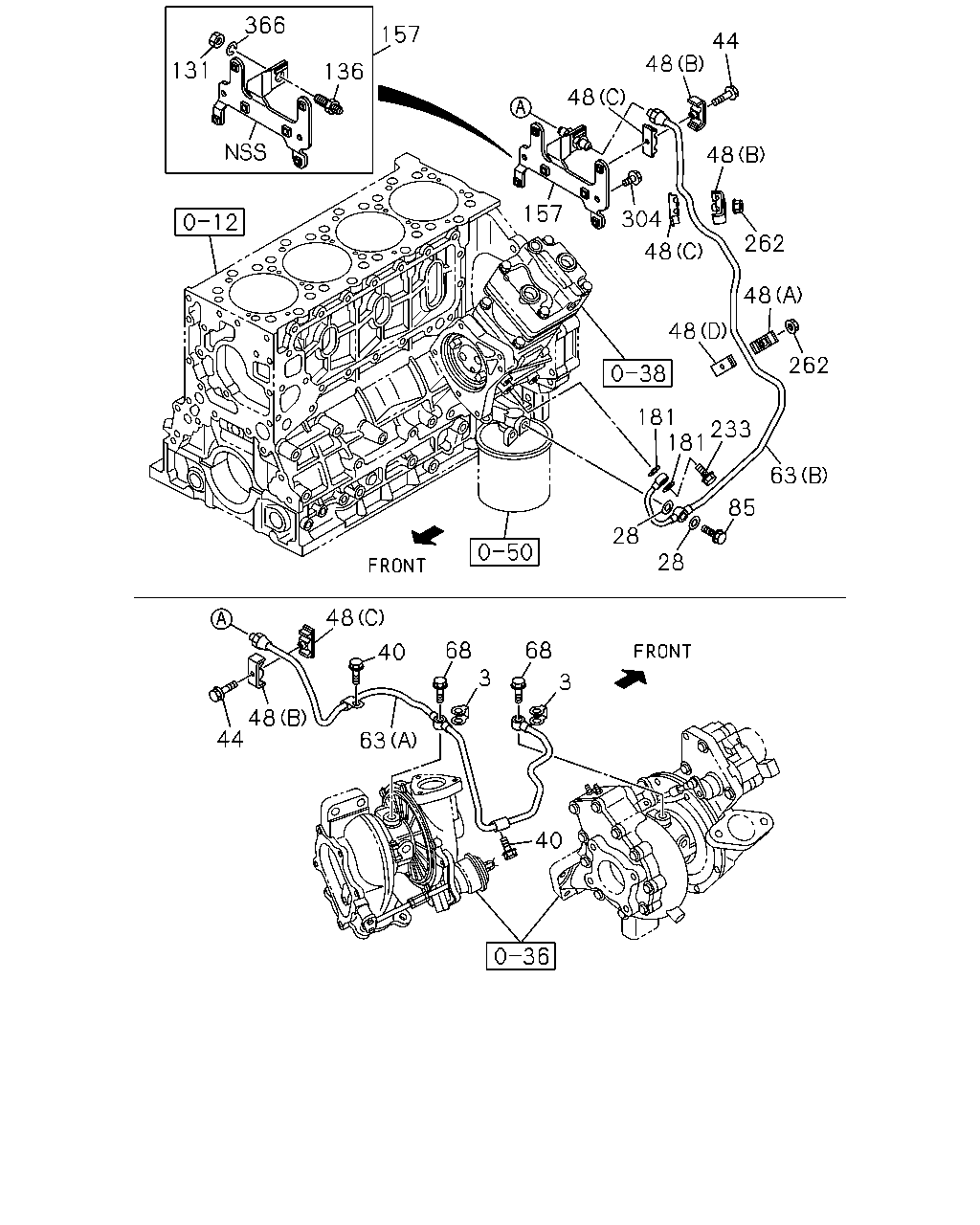

0-52 — OIL AND VACUUM PIPING; ENGINE
(#130035) — 20 parça
131
366
136
157
48
48
44
48
157
304
48
262
48
262
48
181
233
181
85
63
28
28
68
3
3
68
63
40
48
48
44
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2
8-98158-135-0
02
1
1311-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
02
1
1311-
40
BOLT; OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1311-
44
BOLT; CLIP,OIL PIPE
M6X35 FLANGE
0-28050-635-0
02
1
1311-
48
CLIP; OIL PIPE
(A) ID=9 & 9 L=25
1-09701-180-0
01
1
1311-
48
CLIP; OIL PIPE
(B) ID=7 & 9 L=25
1-09701-228-3
03
1
1311-
48
CLIP; OIL PIPE
(C) ID=7 & 9 L=25
1-09701-229-2
03
1
1311-
48
CLIP; OIL PIPE
(D) ID=9 & 9 L=25
8-94393-280-3
01
1
1311-
63
PIPE; OIL,TURBOCHARGER FEED
(A)
8-98107-155-1
01
1
1311-
63
PIPE; OIL,TURBOCHARGER FEED
(B)
8-98169-372-0
01
1
1311-
68
BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE
M10X27
8-98164-400-0
02
1
1311-
85
BOLT; EYE,OIL PIPE FIX
M10X28
8-98037-823-0
01
1
1311-
131
NUT; UNION
M16
0-91111-516-0
01
1
1311-
136
UNION
M16 L=65 STRAIGHT
0-92123-110-0
01
1
1311-
157
BRACKET; OIL PIPE
8-98107-383-2
01
1
1311-
181
GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
02
1
1311-
233
BOLT; EYE
M10X22
1-09675-028-0
01
1
1311-
262
NUT; CLIP,OIL PIPE
M6 FLANGE
0-91180-106-0
02
1
1311-
304
BOLT; BRKT,OIL PIPE
M8X16 FLANGE
0-28050-816-0
01
1
1311-
366
WASHER; LK
ID=16.2
0-91510-816-0
01
1
1311-
