0-40 — FUEL INJECTION SYSTEM (#130030) — 90 parça

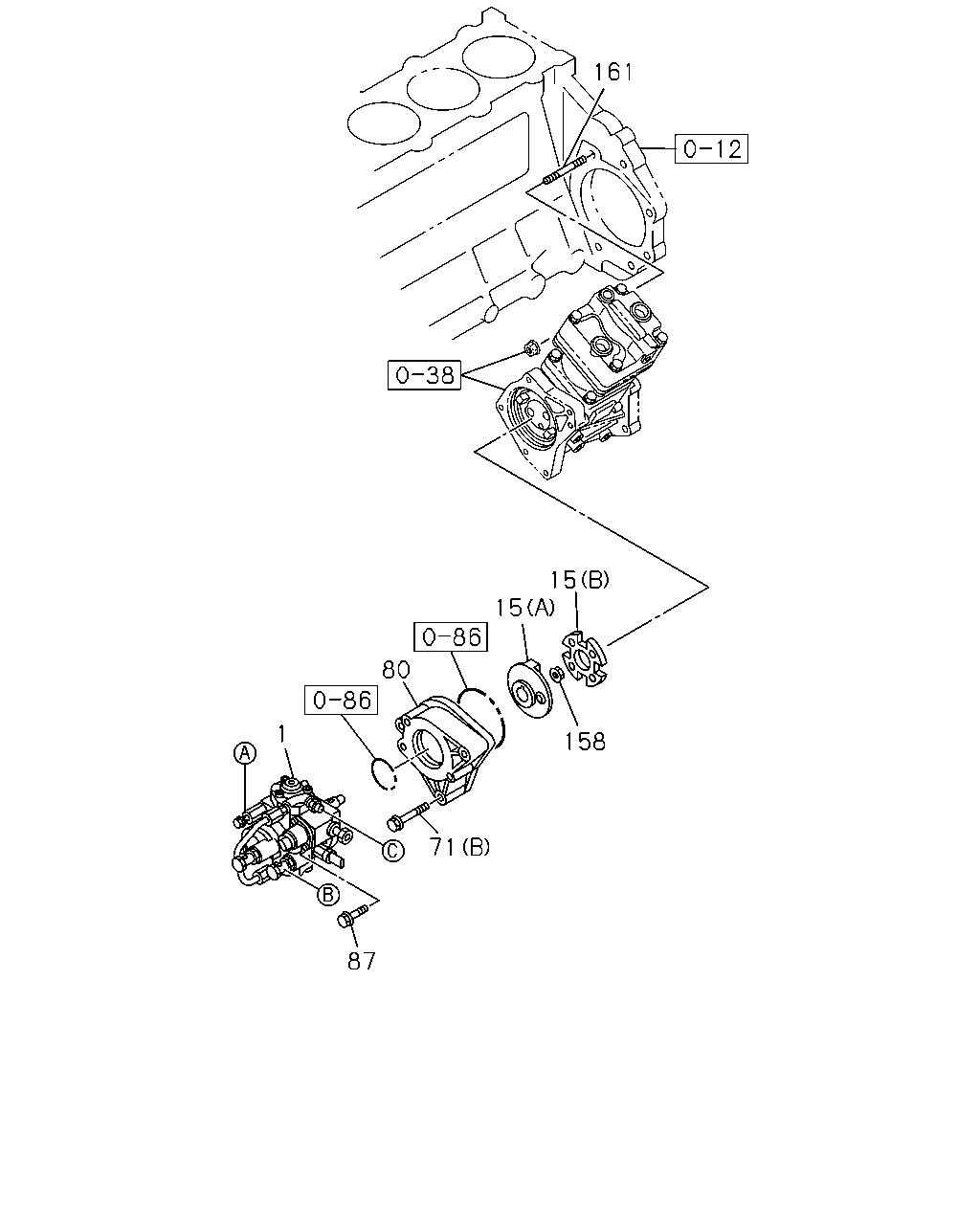

çizim 385169
161 15 15 158 71 87 1 80
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98081-772-3 01 1 1311-
15 COUPLING ASM; INJ PUMP
(A) 		8-97306-054-0 01 1 1311-
15 COUPLING ASM; INJ PUMP
(B) SEE FIG-NO 0-87 FOR COMPONENT. 		8-97306-059-1 01 1 1311-
71 BOLT; BRKT
(A) M8X30 FLANGE 		0-28050-830-0 01 1 1311-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1311-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1311-
71 BOLT; BRKT
(C) M10X12 FLANGE 		0-28151-012-0 01 1 1311-
80 BRACKET; PUMP 8-98061-699-0 01 1 1311-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1311-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1311-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1311-
çizim 385180
424 1 445 216 199 199 369 369 366 216 368 368 1 199 382 199 205 365
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-98081-772-3 01 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1311-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1311-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1311-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1311-
216 BOLT; EYE
(B) 		8-98207-288-0 01 1 1311-
365 BOLT; EYE,OIL INLET 8-98200-752-0 01 1 1311-
366 BOLT; EYE,OIL OUTLET 5-15759-003-0 01 1 1311-
368 GASKET; EYE BOLT,OIL INLET 1-15619-507-0 02 1 1311-
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-507-0 02 1 1311-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1311-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1311-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1311-

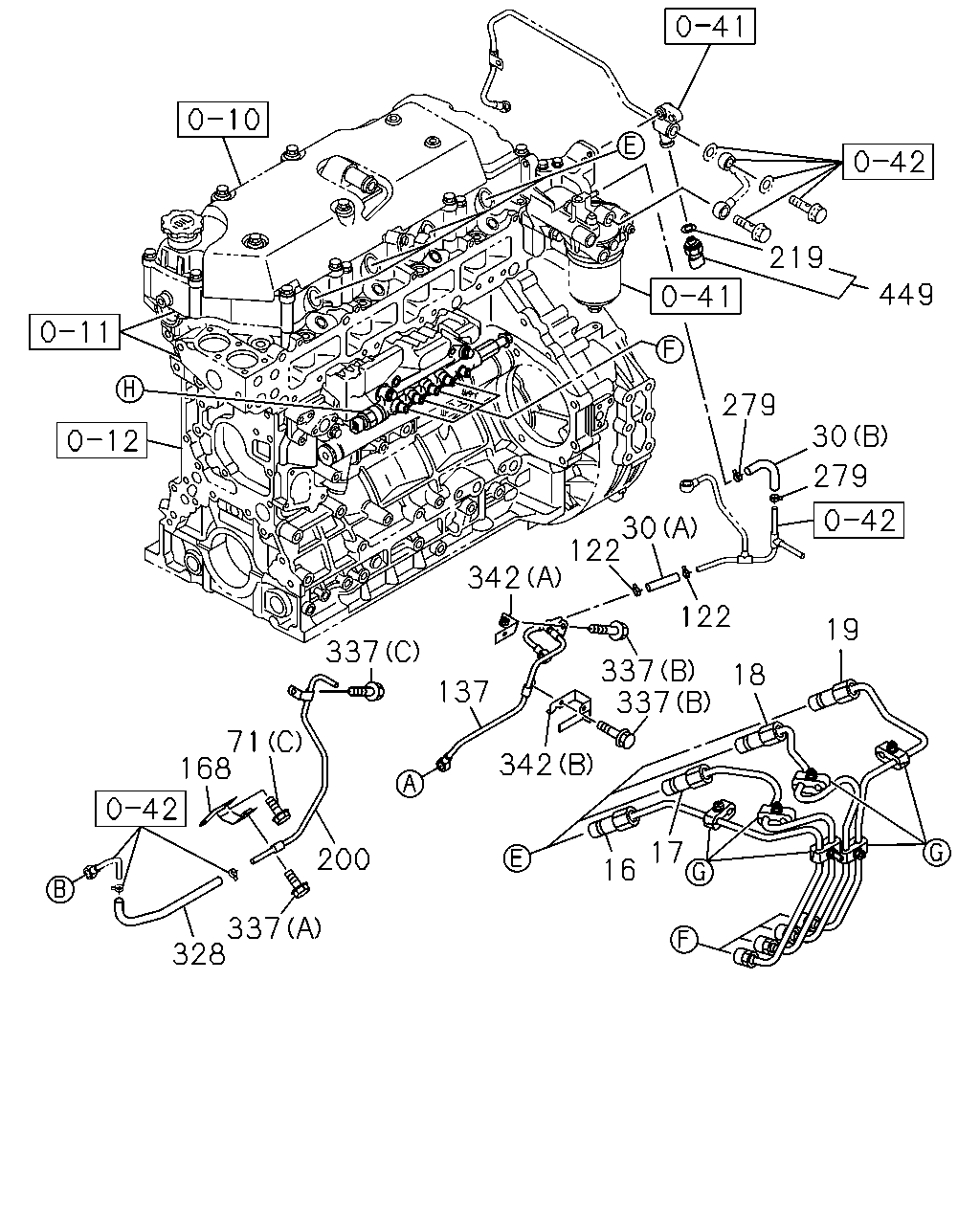

çizim 385184
342 122 337 337 122 18 279 30 279 449 19 17 16 342 137 337 30 219 168 328 337 200 71
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98083-078-1 01 1 1311-1502
16 PIPE; INJ NO.1 8-98242-419-0 01 1 1503-
17 PIPE; INJ NO.2 8-98126-473-1 01 1 1311-1502
17 PIPE; INJ NO.2 8-98242-420-0 01 1 1503-
18 PIPE; INJ NO.3 8-98083-080-1 01 1 1311-1502
18 PIPE; INJ NO.3 8-98242-421-0 01 1 1503-
19 PIPE; INJ NO.4 8-98083-081-1 01 1 1311-1502
19 PIPE; INJ NO.4 8-98242-422-0 01 1 1503-
30 HOSE; RUBBER,FUEL LEAK
(A) L=60 SERVICED BY L=3000 		0-01558-300-0 01 1 1311-
30 HOSE; RUBBER,FUEL LEAK
(B) 		8-98128-912-0 01 1 1311-
71 BOLT; BRKT
(A) M8X30 FLANGE 		0-28050-830-0 01 1 1311-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1311-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1311-
71 BOLT; BRKT
(C) M10X12 FLANGE 		0-28151-012-0 01 1 1311-
122 CLIP; LEAK OFF PIPE
ID=11.5 		8-97375-638-0 02 1 1311-
137 PIPE ASM; LEAK OFF 8-98107-385-3 01 1 1311-
168 BRACKET; FUEL PIPE 8-98107-389-1 01 1 1311-
200 PIPE; FUEL FEED 8-98169-373-0 01 1 1311-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 1311-1312
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1401-
279 CLIP; FUEL HOSE
ID=11.5 		8-97375-638-0 02 1 1311-
328 HOSE; RUBBER,FUEL 8-98242-513-2 01 1 1311-
337 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1311-
337 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1311-
337 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1311-
342 BRACKET; CLIP,LEAK OFF
(A) 		8-98107-392-2 01 1 1311-
342 BRACKET; CLIP,LEAK OFF
(B) 		8-98134-976-3 01 1 1311-
449 SENSOR KIT; FUEL FILTER PRESSURE 5-87311-231-0 01 1 1311-
çizim 385188
110 68 68 9 282 169 71 71 290 289 199 211 216 283 210 199
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 06 1 1311-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 06 1 1311-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 06 1 1311-
71 BOLT; BRKT
(A) M8X30 FLANGE 		0-28050-830-0 01 1 1311-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1311-
71 BOLT; BRKT
(B) M10X60 FLANGE 		0-28051-060-0 03 1 1311-
71 BOLT; BRKT
(C) M10X12 FLANGE 		0-28151-012-0 01 1 1311-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 06 1 1311-
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		1-15619-507-0 02 1 1311-
199 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-97602-218-0 04 1 1311-
210 PIPE; INJ,C/R 8-98106-195-1 01 1 1311-
211 RAIL ASM; COMMON 8-98081-768-1 01 1 1311-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1311-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1311-
216 BOLT; EYE
(B) 		8-98207-288-0 01 1 1311-
282 BRACKET; COMMON RAIL 8-98092-440-1 01 1 1311-
283 BOLT; COMMON RAIL
M10X35 FLANGE 		0-28151-035-0 02 1 1311-
289 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1311-
290 SENSOR; PRESS 8-98138-738-0 01 1 1311-

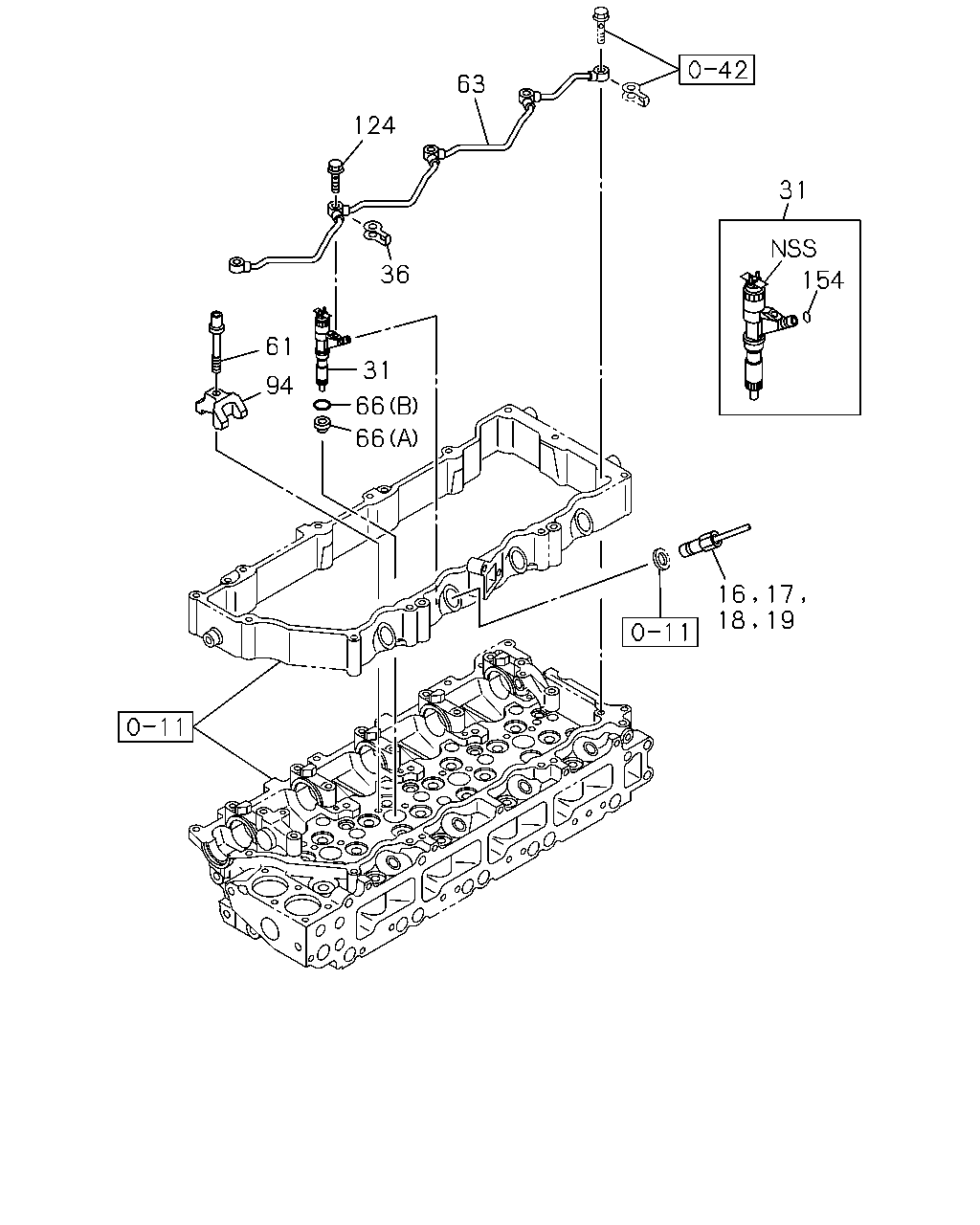

çizim 385191
124 63 36 61 94 31 66 66 16 17 18 19 31 154
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98083-078-1 01 1 1311-1502
16 PIPE; INJ NO.1 8-98242-419-0 01 1 1503-
17 PIPE; INJ NO.2 8-98126-473-1 01 1 1311-1502
17 PIPE; INJ NO.2 8-98242-420-0 01 1 1503-
18 PIPE; INJ NO.3 8-98083-080-1 01 1 1311-1502
18 PIPE; INJ NO.3 8-98242-421-0 01 1 1503-
19 PIPE; INJ NO.4 8-98083-081-1 01 1 1311-1502
19 PIPE; INJ NO.4 8-98242-422-0 01 1 1503-
31 NOZZLE ASM; INJ 8-98197-185-1 04 1 1311-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1311-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1311-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-98072-612-1 01 1 1311-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1311-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10 		8-97216-082-0 04 1 1311-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1311-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1311-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 04 1 1311-
