Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

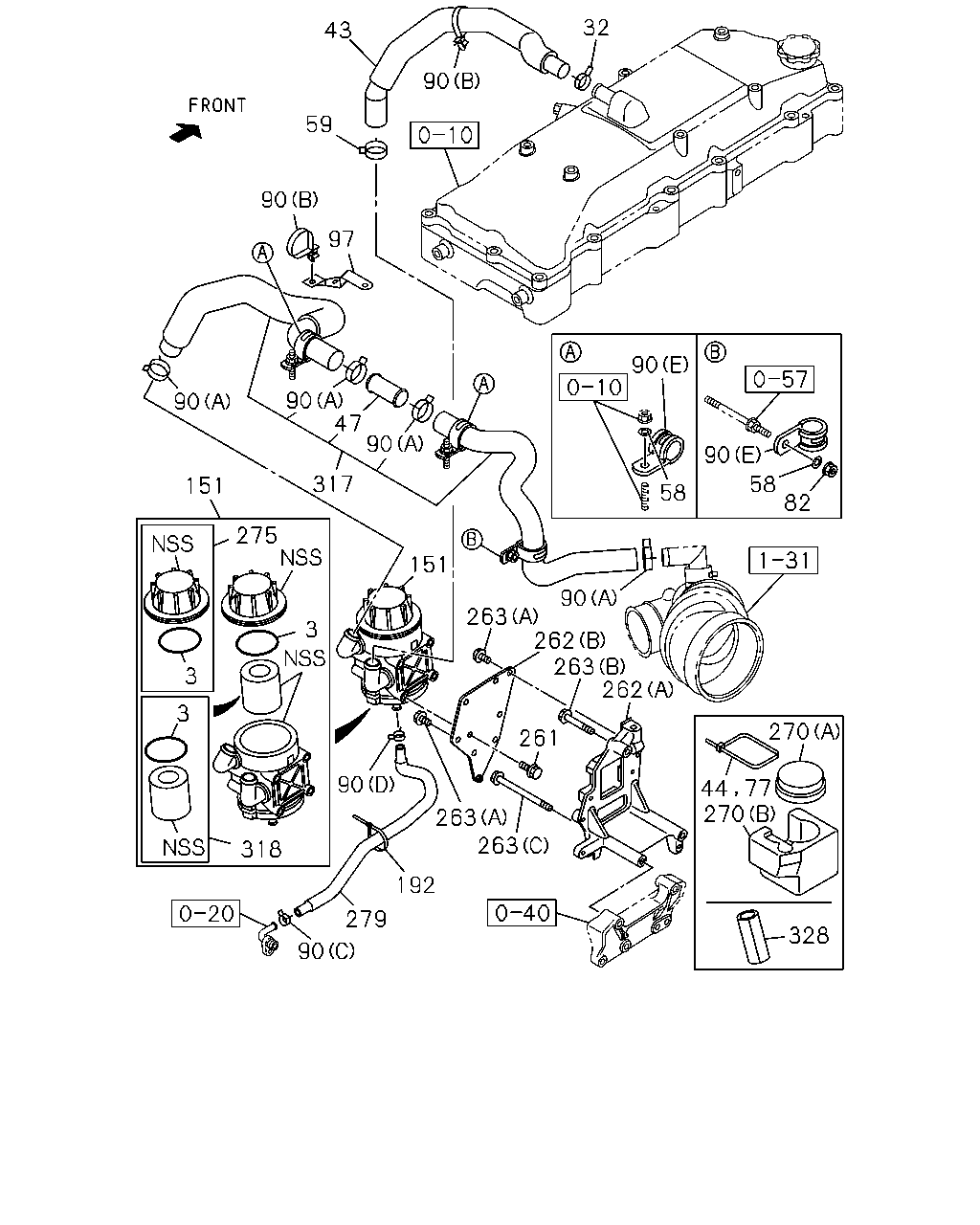

0-28 — VENTILATION SYSTEM
(#130020) — 30 parça
43
90
32
59
90
97
90
90
317
151
151
90
90
82
58
58
275
3
3
3
318
90
90
192
279
263
263
261
263
262
262
263
44
270
77
270
328
90
90
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1311-
32
CLIP; VENT HOSE
ID=21
8-94242-034-0
01
1
1311-
43
HOSE; PCV
8-98110-986-1
01
1
1311-
44
CLIP; HOSE,PCV
L=202
8-98143-872-0
02
1
1311-
47
PIPE ASM; PCV
ID=25.4 L=60
8-98135-894-0
01
1
1311-
58
WASHER
ID=8.4 OD=22
0-91610-708-0
03
1
1311-
59
CLIP; HOSE
ID=29.5
8-97354-979-0
01
1
1311-
77
CLIP; PCV HOSE
L=700
1-09707-190-0
02
1
1311-
82
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1311-
90
CLIP; RUBBER HOSE
(A) ID=28.5
1-09707-150-0
04
1
1311-
90
CLIP; RUBBER HOSE
(B) L=212
8-94107-652-0
02
1
1311-
90
CLIP; RUBBER HOSE
(C) ID=11
8-94238-570-0
01
1
1311-
90
CLIP; RUBBER HOSE
(D) ID=13
8-94238-571-0
01
1
1311-
90
CLIP; RUBBER HOSE
(E) ID=33 L=30
8-97619-250-0
03
1
1311-
97
BRACKET; HOSE
8-98150-670-1
01
1
1311-
151
SEPARATOR; OIL,PCV
8-98108-362-0
01
1
1311-
192
CLIP; BAND
L=140
5-09707-031-1
01
1
1311-
261
BOLT; SEPARETOR
M8X20 FLANGE
0-28050-820-0
04
1
1311-
262
BRACKET; OIL SEPARETOR
(A)
8-98097-614-1
01
1
1311-
262
BRACKET; OIL SEPARETOR
(B)
8-98206-329-1
01
1
1311-
263
BOLT; BRKT,OIL SEPARETOR
(A) M8X20 FLANGE
0-28050-820-0
04
1
1311-
263
BOLT; BRKT,OIL SEPARETOR
(B) M8X50 FLANGE
0-28050-850-0
01
1
1311-
263
BOLT; BRKT,OIL SEPARETOR
(C) M8X140 FLANGE
0-28055-814-0
02
1
1311-
270
COVER; VENTILATOR
(A)
8-98046-874-0
01
1
1311-
270
COVER; VENTILATOR
(B)
8-98153-677-0
01
1
1311-
275
CAP; PCV
8-97606-319-0
01
1
1311-
279
HOSE; RUBBER,OIL DRAIN
8-98106-270-1
01
1
1311-
317
HOSE; RUBBER,OIL SEPARATOR
8-98131-807-2
01
1
1311-
318
ELEMENT KIT; PCV
8-98106-579-0
01
1
1311-
328
INSULATOR; PCV
8-98235-630-0
01
1
1311-
