6-35 — FRONT DOOR TRIM (#13002) — 49 parça

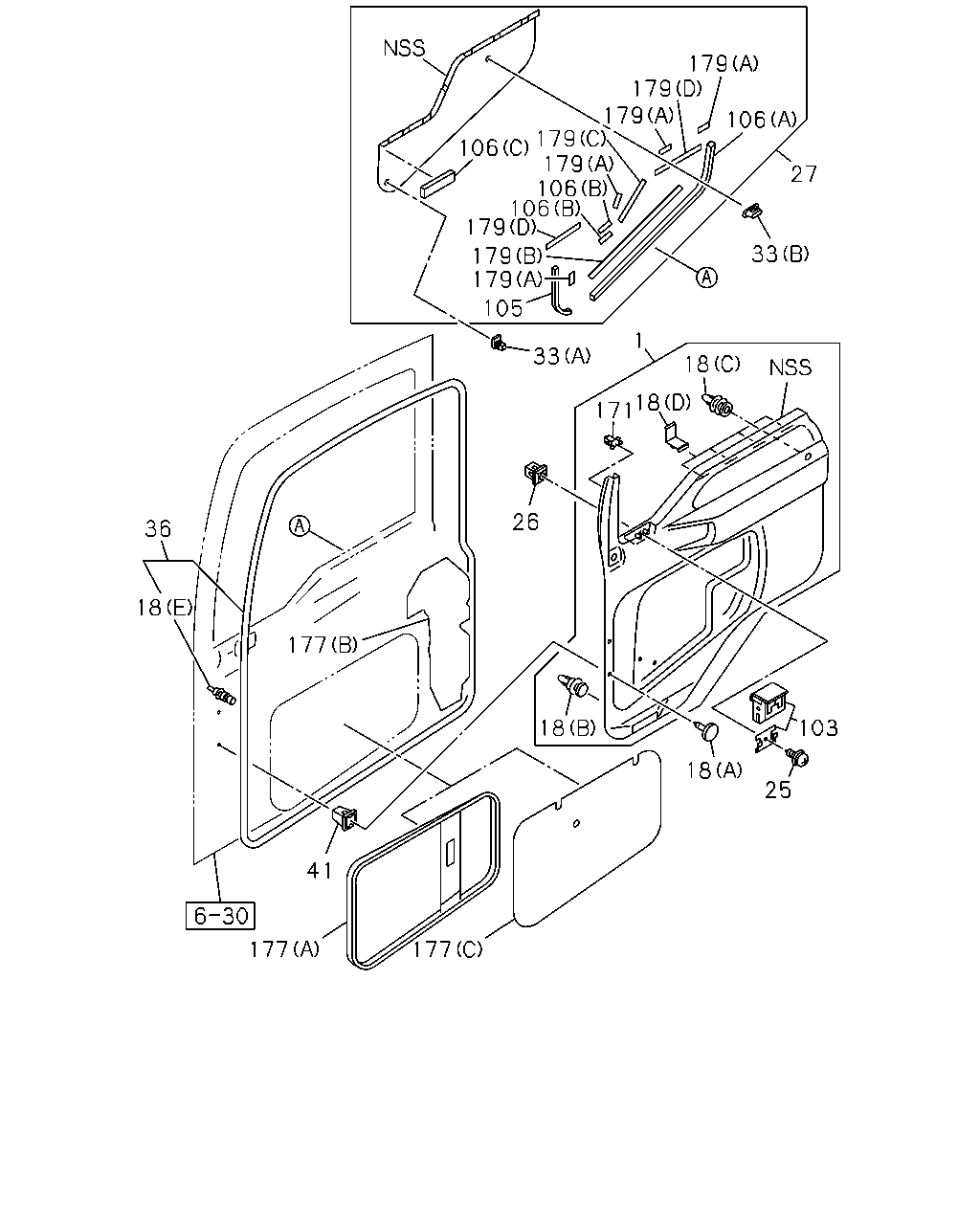

çizim 91729
106 179 179 179 179 106 27 179 179 106 106 33 18 179 105 179 171 18 26 18 18 103 25 177 177 41 18 36 177 33 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73337-509-0 01 1 0611-0702
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73337-513-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73338-539-0 01 1 0611-0702
1 PAD; TRIM,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-73337-516-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73337-510-0 01 1 0611-0702
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73337-514-1 01 1 0703-
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73338-538-0 01 1 0611-0702
1 PAD; TRIM,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-73337-515-1 01 1 0703-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0611-
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0611-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0611-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0611-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0611-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0611-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0611-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0611-
27 PANEL; ORNAMENT,DOOR 1-76218-096-7 01 1 0611-
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 0611-1210
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211-
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0611-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0611-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0611-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0611-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0611-
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0611-
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0611-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0611-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 0611-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0611-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 0611-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0611-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0611-
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0611-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0611-
177 SEAL; WATER,DOOR
AUTO DOOR LOCK<AU4> (A) 		1-76778-052-2 01 1 0611-
177 SEAL; WATER,DOOR
AUTO DOOR LOCK<AU4> (A) 		1-76778-035-6 01 1 0611-
177 SEAL; WATER,DOOR
EXC. AUTO DOOR LOCK<AU4> (C) 		1-76778-047-3 02 1 0611-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0611-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 04 1 0611-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0611-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 01 1 0611-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0611-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 01 1 0611-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0611-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 02 1 0611-
