Isuzu WW
▶
TRUCKS
▶
FSR
▶
11560 - FSR-RHD(EU)SPACE EU6
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#130016) — 27 parça
◀

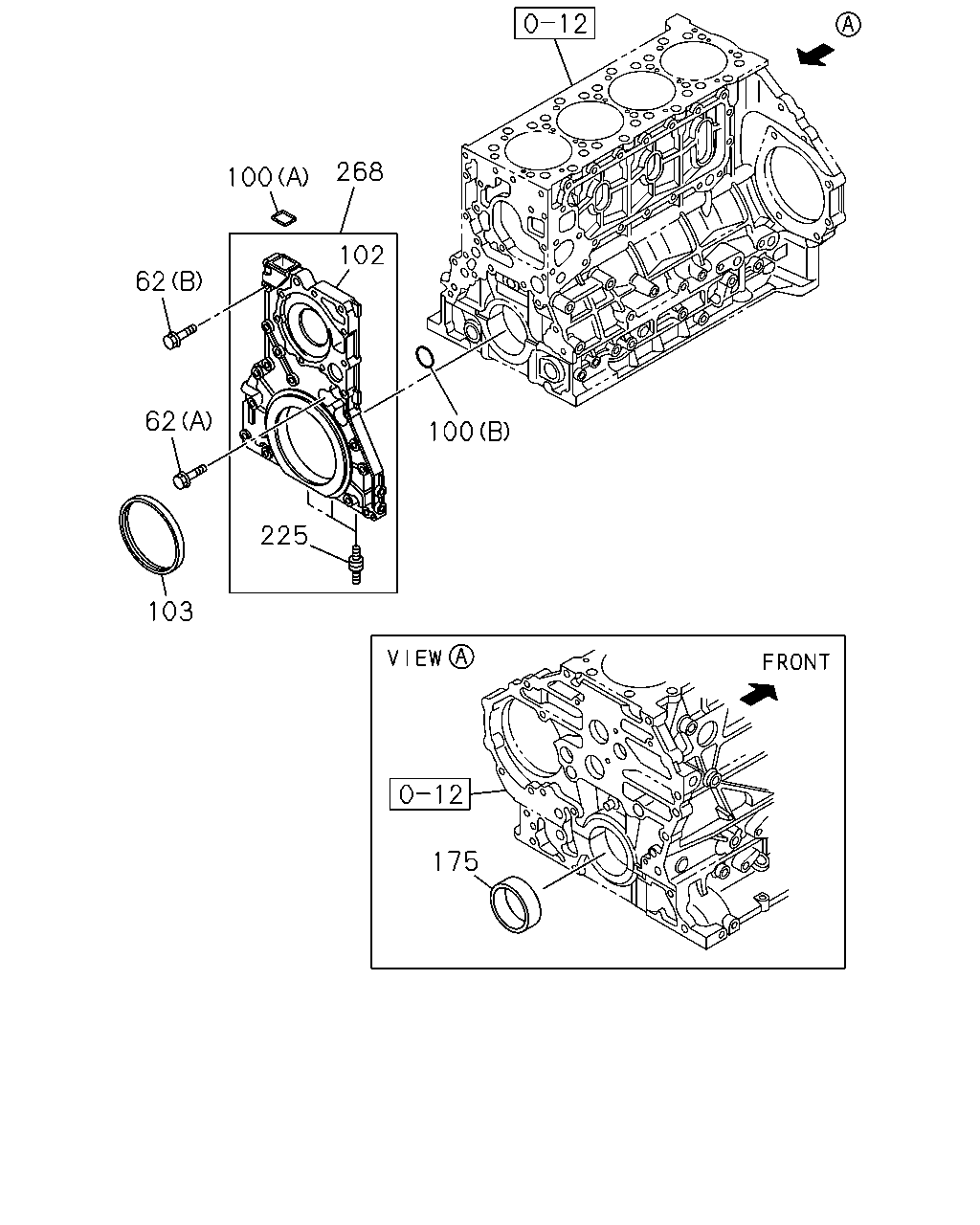

[020A] FRONT COVER (9 parça)

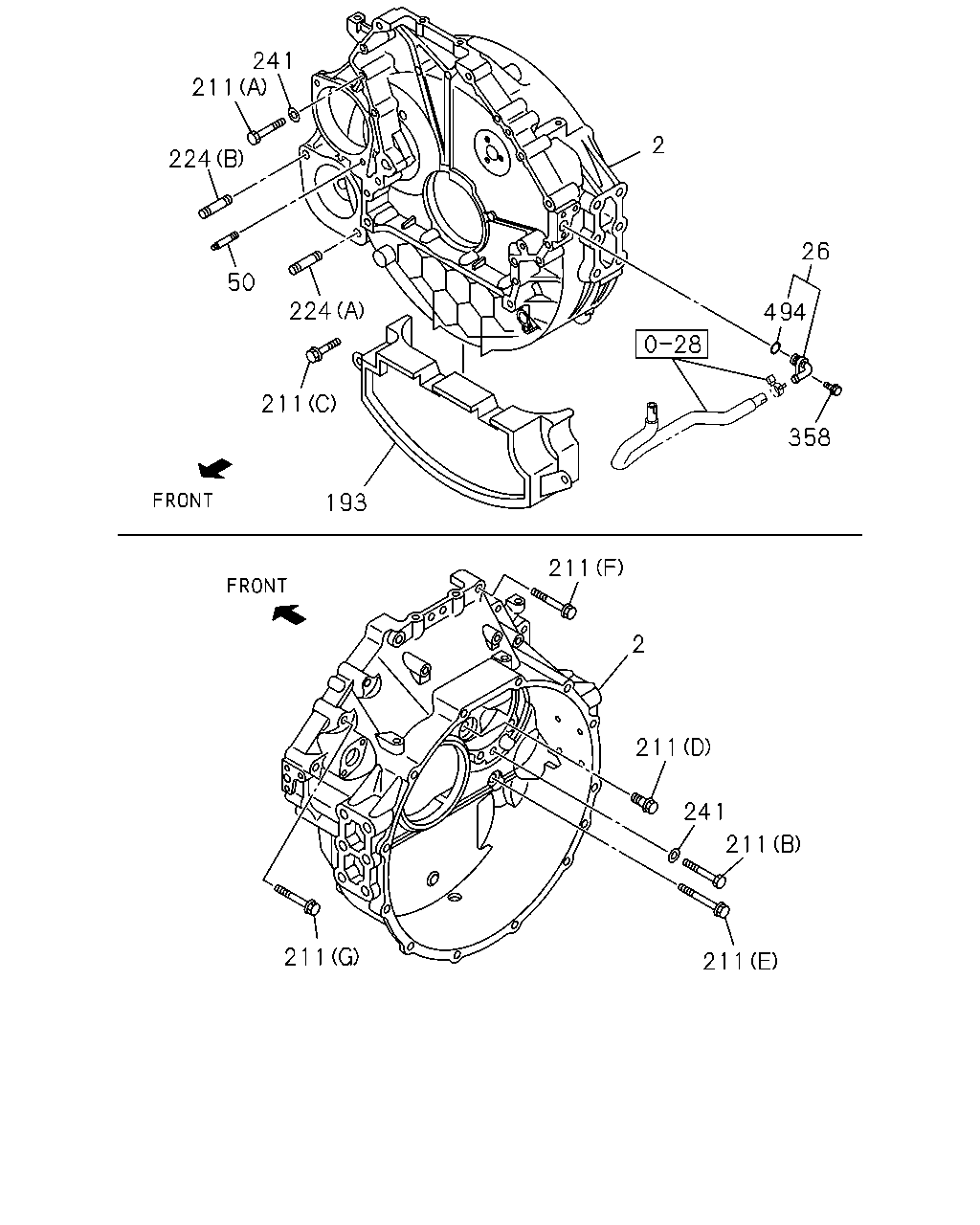

[020A] FLYWHEEL HOUSING (18 parça)
▶
175
100
225
103
62
62
100
268
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
BOLT; COVER
(A) M8X25 FLANGE
0-28650-825-0
02
1
1311-
62
BOLT; COVER
(B) M8X35 FLANGE
0-28650-835-0
12
1
1311-
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94391-310-0
01
1
1311-
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.1
8-97028-748-1
01
1
1311-
102
RETAINER; FRT
8-98042-285-0
01
1
1311-
103
SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137
8-97329-780-0
01
1
1311-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1311-
225
STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
1311-
268
COVER; FRT
8-98042-284-0
01
1
1311-
241
211
224
50
211
224
193
211
211
211
2
241
211
211
26
494
358
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-98181-097-3
01
1
1311-
26
ADAPTER
8-98147-285-0
01
1
1311-1502
26
ADAPTER
8-98293-024-0
01
1
1503-
50
STUD
M10X25 L=48.5
0-49241-025-0
01
1
1311-
193
SPACER; STAY TO OIL,PAN
8-98152-264-2
01
1
1311-
211
BOLT; HSG
(A) M12X60
0-16856-260-0
01
1
1311-
211
BOLT; HSG
(B) M12X70
0-16956-270-0
01
1
1311-
211
BOLT; HSG
(C) M10X50 FLANGE
0-28151-050-0
01
1
1311-
211
BOLT; HSG
(D) M14X27 FLANGE
8-94393-995-0
01
1
1311-
211
BOLT; HSG
(F) M12X63
8-98146-305-0
02
1
1311-
211
BOLT; HSG
(G) M12X75
8-98164-907-0
02
1
1311-
211
BOLT; HSG
(E) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
06
1
1311-
224
STUD; STARTER
(A) M14X35 L=56
0-44011-435-0
01
1
1311-
224
STUD; STARTER
(B) M14X35 L=76
8-98151-687-0
01
1
1311-
241
WASHER; PL,HSG
ID=12.5 OD=22
8-94393-140-1
02
1
1311-
358
BOLT; ADAPTER
M6X12 FLANGE
0-28050-612-0
01
1
1311-1502
358
BOLT; ADAPTER
M6X16 FLANGE
0-28050-616-0
01
1
1503-
494
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
9-09566-212-0
01
1
1311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
