Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11412 - FORWARD 1100/1200
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#130007) — 36 parça
◀

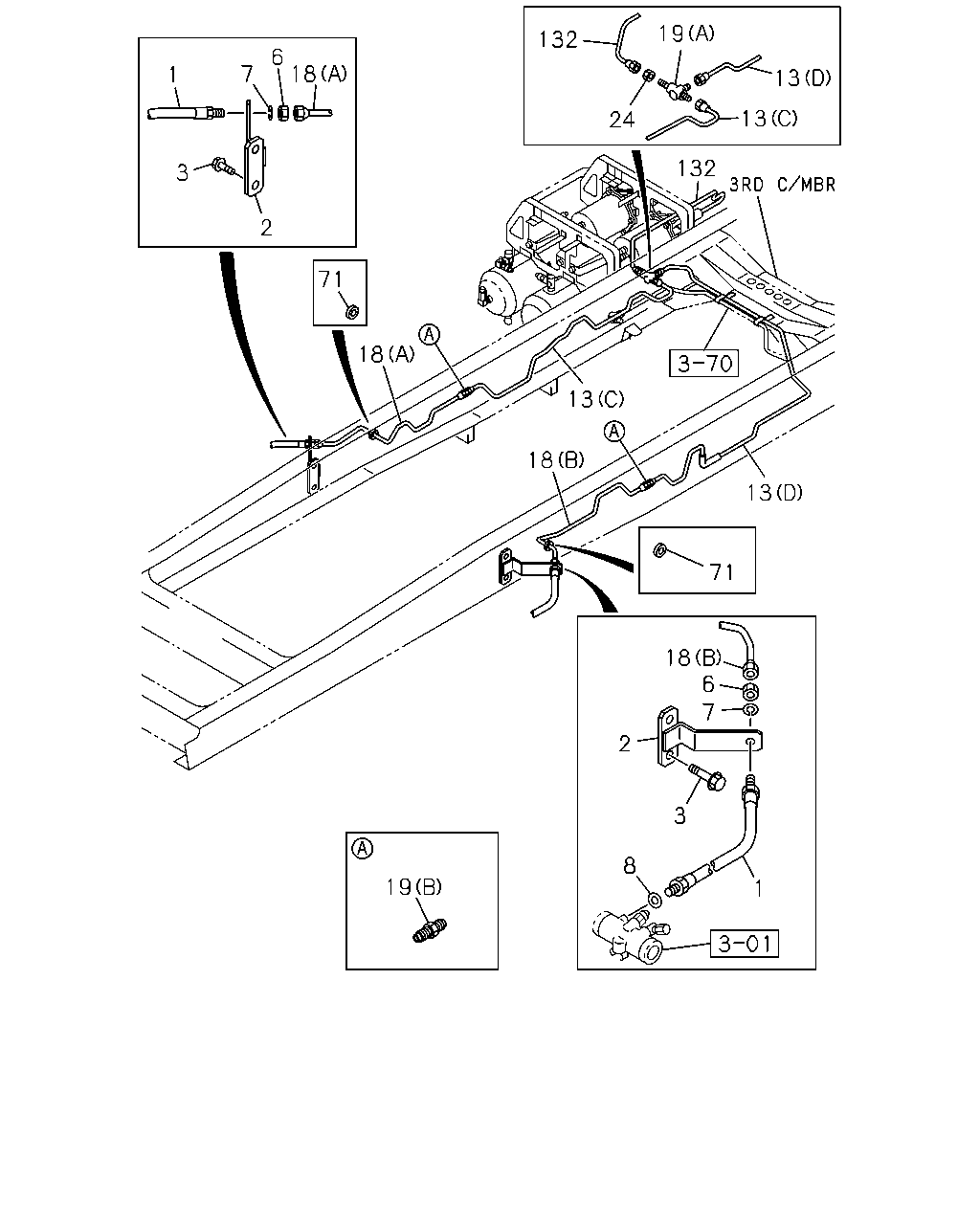

[352A] 4HK1 (19 parça)

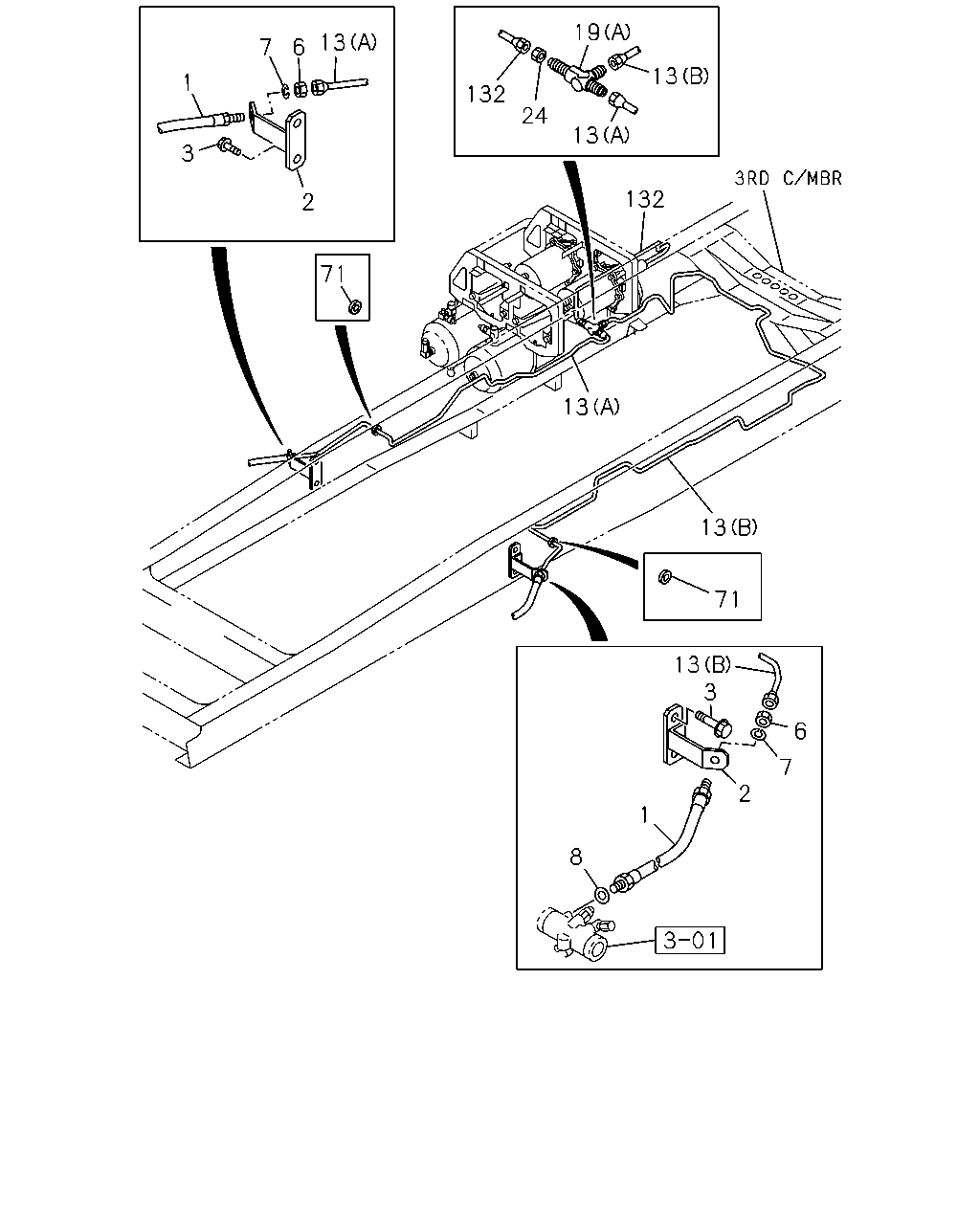

[352A] 6HK1 (17 parça)
▶
19
132
3
13
24
132
13
18
13
71
18
6
7
2
3
8
1
19
18
71
2
3
1
7
6
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610
0-05212-610-0
02
1
1311-
2
BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS)
8-98180-131-0
02
1
1311-
2
BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98177-524-0
02
1
1311-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE
0-28650-825-0
04
1
1311-
6
NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
02
1
1311-
7
WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2
0-91510-512-0
02
1
1311-
8
GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17
9-09920-472-0
02
1
1311-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=1250 SERVICED BY L=1250
1-47428-733-0
01
1
1311-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2385 SERVICED BY L=2500
1-47428-742-0
01
1
1311-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606
8-98126-034-0
01
1
1311-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400
1-47428-746-0
01
1
1311-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (A) L=643 SERVICED BY L=650
1-47428-726-0
01
1
1311-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
4HK1-TCS ENG(RJS) (B) L=737 SERVICED BY L=800
1-47428-728-0
01
1
1311-
19
UNION; OIL PIPE
4HK1-TCS ENG(RJS) (B) M12 L=40
0-92113-006-0
02
1
1311-
19
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY
0-92138-906-0
01
1
1311-
24
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
01
1
1311-
71
GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17
9-09956-092-1
02
1
1311-
132
PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) L=943
8-98229-713-0
01
1
1311-
132
PIPE; OIL,BRK,HYD UNIT
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=895 SERVICED BY L=900
1-47428-729-0
01
1
1311-
13
6
7
1
2
3
71
132
19
24
13
13
132
13
13
71
13
3
6
7
2
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610
0-05212-610-0
02
1
1311-
2
BRACKET; FLEX HOSE,FRT BRK
4HK1-TCS ENG(RJS)
8-98180-131-0
02
1
1311-
2
BRACKET; FLEX HOSE,FRT BRK
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98177-524-0
02
1
1311-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE
0-28650-825-0
04
1
1311-
6
NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
02
1
1311-
7
WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2
0-91510-512-0
02
1
1311-
8
GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17
9-09920-472-0
02
1
1311-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (C) L=1250 SERVICED BY L=1250
1-47428-733-0
01
1
1311-
13
PIPE; OIL,UNION TO UNION
4HK1-TCS ENG(RJS) (D) L=2385 SERVICED BY L=2500
1-47428-742-0
01
1
1311-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606
8-98126-034-0
01
1
1311-
13
PIPE; OIL,UNION TO UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400
1-47428-746-0
01
1
1311-
19
UNION; OIL PIPE
4HK1-TCS ENG(RJS) (B) M12 L=40
0-92113-006-0
02
1
1311-
19
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M12 3WAY
0-92138-906-0
01
1
1311-
24
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
01
1
1311-
71
GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17
9-09956-092-1
02
1
1311-
132
PIPE; OIL,BRK,HYD UNIT
4HK1-TCS ENG(RJS) L=943
8-98229-713-0
01
1
1311-
132
PIPE; OIL,BRK,HYD UNIT
6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=895 SERVICED BY L=900
1-47428-729-0
01
1
1311-
