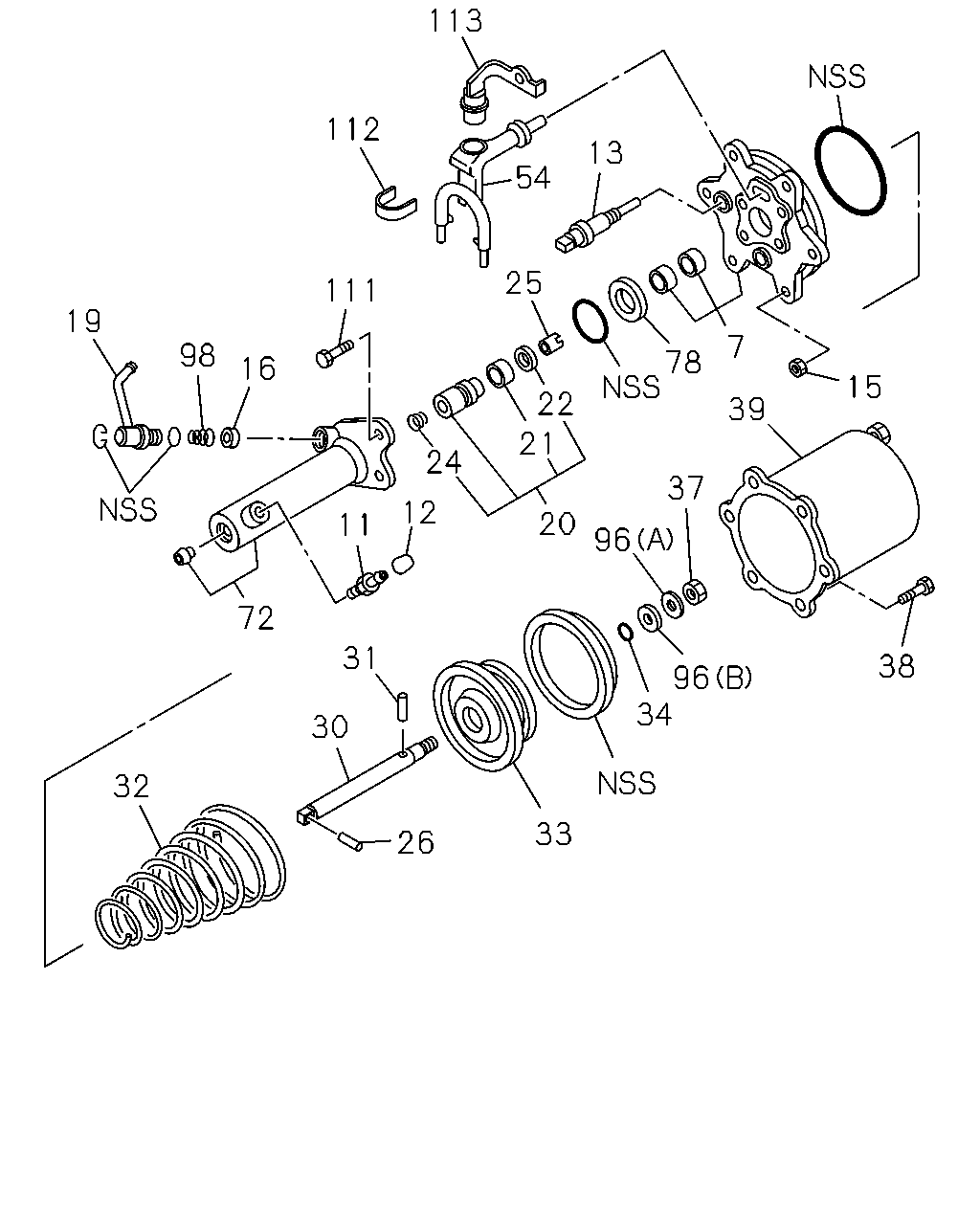

3-33 — AIR MASTER (#130006) — 43 parça

113 112 54 13 25 111 98 19 16 11 72 32 30 31 12 21 24 22 20 26 33 34 96 96 38 15 39 37 78 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	PLATE; END,AIR MASTER ASM PART: A = 1-47800-663-1	1-47841-084-0	01	1	-
11	PLUG; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83331-704-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
13	SWITCH; WARNING,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-206-0	01	1	-
15	NUT; END PLATE TO SHELL,AIR MASTER M10 FLANGE ASM PART: A = 1-47800-663-1	8-97096-430-0	07	1	-
16	VALVE ASM ASM PART: A = 1-47800-663-1	1-47812-024-0	01	1	-
19	CONNECTOR; END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-204-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-663-1	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-663-1	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-663-1	1-47812-023-0	01	1	-
26	PIN; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-039-0	01	1	-
30	ROD; PUSH,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-107-0	01	1	-
31	PIN; STRAIGHT ASM PART: A = 1-47800-663-1	1-47829-108-0	01	1	-
32	SPRING; CYL SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-109-0	01	1	-
33	PLATE; PISTON,SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-106-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-663-1	9-09561-111-0	01	1	-
37	NUT; PUSH ROD,SHELL,AIR MASTER M12 ASM PART: A = 1-47800-663-1	9-99111-412-0	01	1	-
38	BOLT; END PLATE TO SHELL,AIR MASTER ASM PART: A = 1-47800-663-1	9-83315-078-0	06	1	-
39	SHELL; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-138-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
72	CYLINDER; AIR MASTER ASM PART: A = 1-47800-663-1	1-47811-139-0	01	1	-
78	COLLAR; AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-110-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-663-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-663-1	1-47829-053-0	01	1	-
98	SPRING; VALVE ASM PART: A = 1-47800-663-1	1-47819-205-0	01	1	-
111	BOLT; CYL,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-203-0	03	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-188-0	01	1	-
113	HOLDER; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-207-0	01	1	-

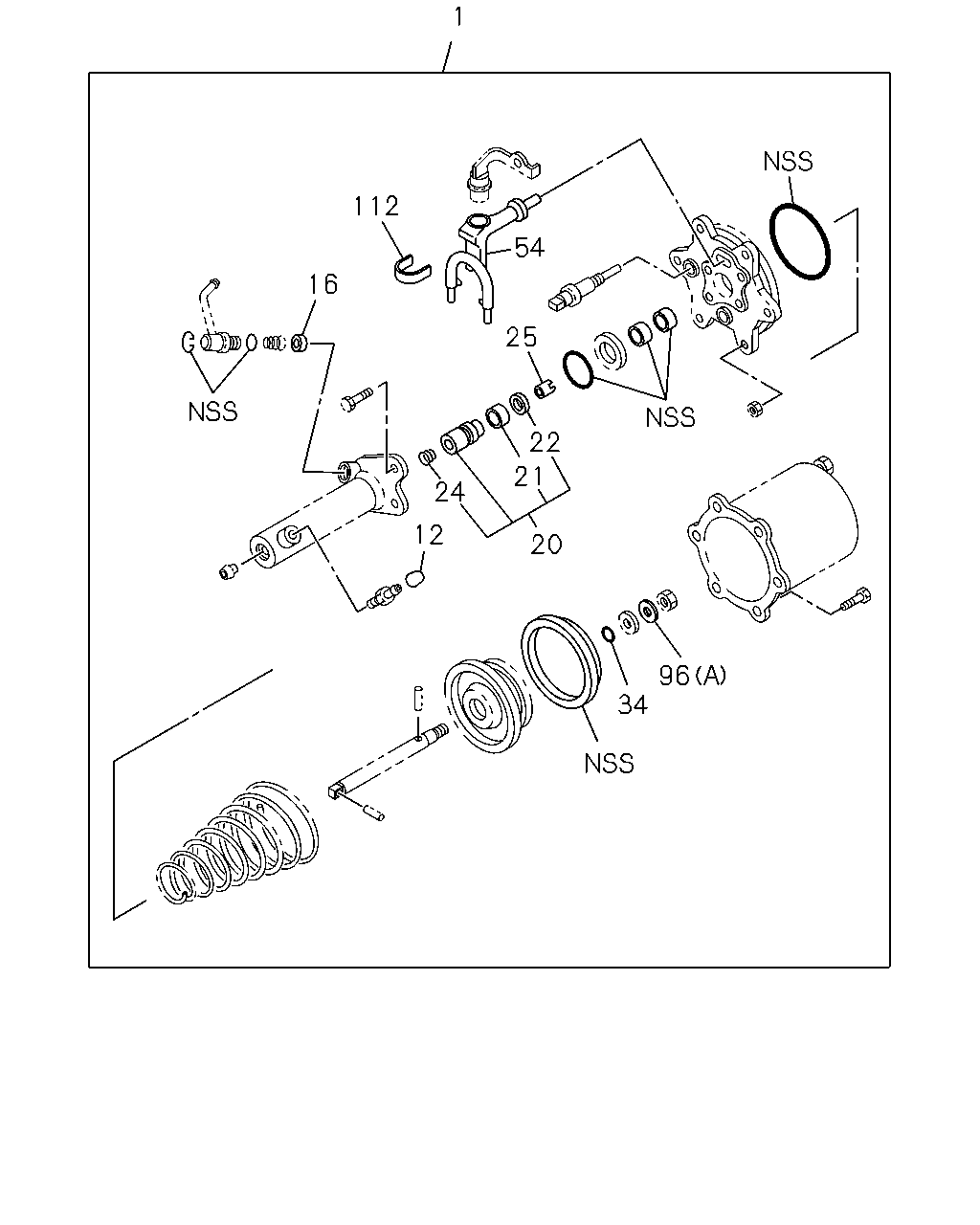

1 112 54 16 25 22 21 24 12 20 96 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; AIR MASTER 1 YEAR ASM PART: A = 1-47800-663-1	1-85576-208-0	01	1	-
12	PROTECTOR; CAP,AIR MASTER ASM PART: A = 1-47800-663-1	9-83335-044-0	01	1	-
16	VALVE ASM ASM PART: A = 1-47800-663-1	1-47812-024-0	01	1	-
20	PISTON ASM; HYDRAULIC ASM PART: A = 1-47800-663-1	1-47812-022-0	01	1	-
21	GASKET; CUP ASM PART: A = 1-47800-663-1	1-47821-041-0	01	1	-
22	RING; PISTON,HYDRAULIC ASM PART: A = 1-47800-663-1	9-83325-077-0	01	1	-
24	SPRING; HYD PISTON,AIR MASTER ASM PART: A = 1-47800-663-1	1-47829-111-0	01	1	-
25	SEAL; VALVE ASM PART: A = 1-47800-663-1	1-47812-023-0	01	1	-
34	GASKET ID=11.0 ASM PART: A = 1-47800-663-1	9-09561-111-0	01	1	-
54	COVER; EXH,END PLATE,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-187-0	01	1	-
96	WASHER (A) ASM PART: A = 1-47800-663-1	1-47829-032-0	01	1	-
96	WASHER (B) ASM PART: A = 1-47800-663-1	1-47829-053-0	01	1	-
112	CLAMP; EXH COVER,AIR MASTER ASM PART: A = 1-47800-663-1	1-47819-188-0	01	1	-
