◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#130) — 118 parça
çizim 27565
70 77 84 85 89 91 93 297 92
BalonParca AdiParca NoAdetTipApplied Date A B
70 TOOL; SETTING,OIL SEAL 8-94396-856-0 01 1 9202- ● ●
77 TOOL; SETTING,CYL LINER 8-94396-816-0 01 1 9202- ● ●
84 REPLACER; VALVE SEAL 8-94396-815-0 01 1 9202- ● ●
85 REPLACER ASM; VALVE SPR 8-94396-861-0 01 1 9202- ● ●
89 TOOL; PISTON RING 1-85221-029-0 01 1 9202- ● ●
91 REPLACER ASM; CYL LINER 8-94396-849-0 01 1 9202- ● ●
92 ANKLE; REPLACER,CYL LINER 8-94396-821-0 01 1 9202- ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9202- ● ●
297 CUTTER; SEAL,OIL PAN 8-94393-112-0 01 1 9202- ● ●

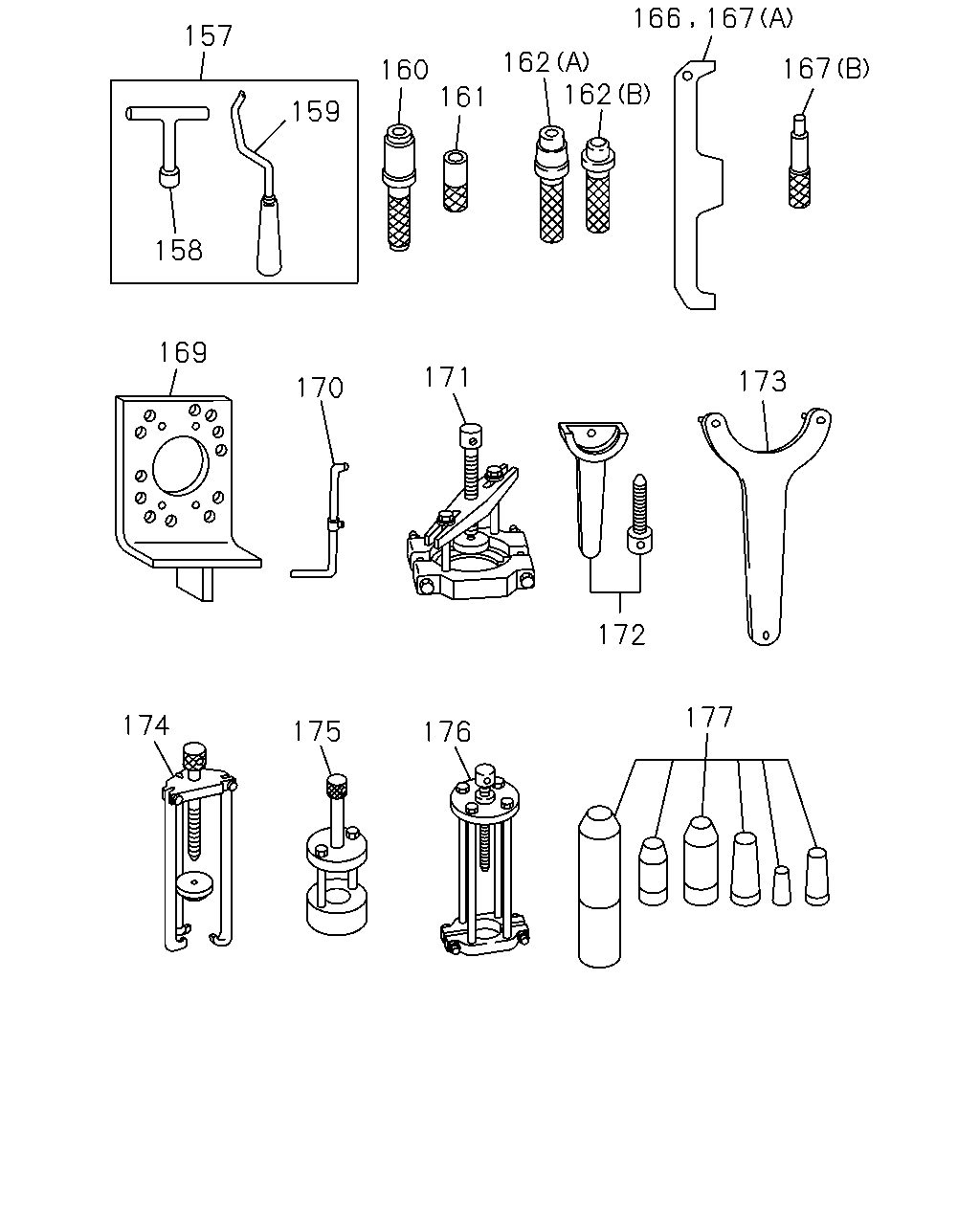

çizim 92539
157 158 159 160 161 162 162 166 167 167 169 170 171 172 173 174 175 176 177
BalonParca AdiParca NoAdetTipApplied Date A B
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 9202- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9202- ● ●
159 REMOVER; RETURN SPR 9-85231-555-0 01 1 9202- ● ●
160 REMOVER; NEEDLE BRG
L=215 		1-85238-007-0 01 1 9202- ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 9202- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=200 		1-85238-005-0 01 1 9202- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=175 		1-85238-006-0 01 1 9202- ● ●
166 ALIGNER; CLU RELEASE LEVER
ISUZU M/T<X9A> L=460 		9-85241-420-0 01 1 9202- ● ●
167 ALIGNER; CLU PILOT
ISUZU M/T<X9A> (B) L=185 		1-85253-008-0 01 1 9202- ● ●
167 ALIGNER; CLU PILOT
ISUZU M/T<X9A> (A) 		1-85253-014-0 01 1 9202- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9202- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9202- ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9202- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9202- ● ●
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 9202- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9202- ● ●
175 PULLER ASM; COOLER,MAINSHAFT 1-85210-020-0 01 1 9202-9310 ● ●
175 PULLER ASM; COOLER,MAINSHAFT 1-85210-038-0 01 1 9311- ● ●
176 PULLER ASM; COUNTER SHAFT MAIN 9-85210-169-0 01 1 9202- ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9202- ● ●
çizim 92712
178 179 180 182 186 186 208 193 208 193 230 232 237 296
BalonParca AdiParca NoAdetTipApplied Date A B
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9202- ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9202- ● ●
180 PULLER; FRT & RR HUB
M20 		9-85210-187-0 01 1 9202- ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9202- ● ●
186 ADJUSTER; BRAKE
RR TIRE 8.25-16<92X> (A) 		1-85269-007-0 01 1 9202-9311 ● ●
186 ADJUSTER; BRAKE
RR TIRE 8.25-16<92X> (B) 		1-85269-008-0 01 1 9312- ● ●
193 JACK ASM
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7TON 		1-85510-005-2 01 1 9202-9503 ● ●
193 JACK ASM
RR TIRE 8.25-16<92X> (A) 7TON 		1-85510-005-2 01 1 9202-9503 ● ●
193 JACK ASM
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7TON 		1-85510-005-2 01 1 9504- ● ●
193 JACK ASM
AUSTRALIA EQUIPMENT(RR3) RR TIRE 8.25-16<92X> (A) 7TON 		1-85510-005-2 01 1 9504- ● ●
193 JACK ASM
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 7TON 		1-85510-017-0 01 1 9504- ● ●
193 JACK ASM
RR TIRE 8.25-16<92X> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 7TON 		1-85510-017-0 01 1 9504- ● ●
208 HANDLE; JACK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=680 		1-85515-004-0 01 1 9202-9405 ● ●
208 HANDLE; JACK
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=600 		1-85515-008-0 01 1 9406- ● ●
208 HANDLE; JACK
RR TIRE 8.25-16<92X> (B) L=580 		1-85515-005-1 01 1 9202- ● ●
230 PUMP; GREASE
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-85556-007-2 01 1 9202- ● ●
230 PUMP; GREASE
RR TIRE 8.25-16<92X> 		1-85556-007-2 01 1 9202- ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<SG4> 		1-09360-245-1 01 1 9202- ● ●
237 BAG; TOOL
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		8-94367-102-0 01 1 9202- ● ●
237 BAG; TOOL
RR TIRE 8.25-16<92X> 		8-94367-102-0 01 1 9202- ● ●
296 REPLACER; SLINGER 8-94396-858-0 01 1 9202- ● ●
çizim 92790
110 115 118 125 126 128 129 129 130 130 130 130 136 141 141 141 143 144 149
BalonParca AdiParca NoAdetTipApplied Date A B
110 CAP; VALVE
RR TIRE 8.25-16<92X> 		9-85163-906-1 01 1 9202- ● ●
115 PLIER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		5-85171-001-0 01 1 9202- ● ●
115 PLIER
RR TIRE 8.25-16<92X> 		5-85171-001-0 01 1 9202- ● ●
118 WRENCH; OIL FILTER
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		1-85221-097-0 01 1 9202- ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9202- ● ●
126 WRENCH; FRT HUB BRG NUT
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=257 B=63 		9-85111-373-0 01 1 9202- ● ●
126 WRENCH; FRT HUB BRG NUT
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=257 B=54 		1-85111-011-0 01 1 9202- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9202- ● ●
129 PULLER ASM; PITMAN ARM
POWER STEERING(N40) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		9-85210-147-0 01 1 9202- ● ●
129 PULLER ASM; PITMAN ARM
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 		9-85210-147-0 01 1 9202- ● ●
129 PULLER ASM; PITMAN ARM
EXC. POWER STEERING(N40),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 		9-85210-170-0 01 1 9202- ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9202- ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9202- ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9202- ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9202- ● ●
136 TOOL; PILOT,A/T
A/T<X9D> L=120 		1-85221-021-0 01 1 9202- ●
136 TOOL; PILOT,A/T
A/T<X9D> L=75 		1-85221-022-0 01 1 9202- ●
141 HANDLE; WRENCH
(C) OD=25 L=480 		1-85116-011-0 01 1 9202- ● ●
141 HANDLE; WRENCH
(B) OD=19 L=400 		9-85114-306-0 01 1 9202- ● ●
141 HANDLE; WRENCH
(A) OD=16 L=300 		9-85114-307-0 01 1 9202- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-011-0 01 1 9202- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-012-0 01 1 9202- ● ●
149 PLATE; PILOT BRG PULLER 1-85219-009-0 01 1 9202- ● ●
çizim 92819
9 12 13 17 23 22 21 20 19 1 1 29 29 29 29 268 274 271 209 61 57 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> RR TIRE 7.50-20<91X>,RR TIRE 8.25-20<93X>,RR TIRE 9.00-20<94X> (A) 		9-23110-018-0 01 1 9202- ● ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> RR TIRE 8.25-16<92X> (B) L=280 		1-85515-007-0 01 1 9202- ● ●
9 WRENCH; WHEEL PIN
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) B=41X21 L=440 		1-85113-015-0 01 1 9202- ● ●
9 WRENCH; WHEEL PIN
RR TIRE 8.25-16<92X> B=41X21 L=440 		1-85113-015-0 01 1 9202- ● ●
12 HANDLE; WRENCH,WHEEL PIN
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=25 L=480 		1-85116-011-0 01 1 9202- ● ●
13 WRENCH; MONKEY
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-85117-003-1 01 1 9202-9304 ● ●
13 WRENCH; MONKEY
RR TIRE 8.25-16<92X> 		1-85117-003-1 01 1 9202-9304 ● ●
13 WRENCH; MONKEY
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=255 		1-85117-002-1 01 1 9305- ● ●
13 WRENCH; MONKEY
RR TIRE 8.25-16<92X> L=255 		1-85117-002-1 01 1 9305- ● ●
17 HAMMER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		9-85121-406-0 01 1 9202- ● ●
17 HAMMER
RR TIRE 8.25-16<92X> 		9-85121-406-0 01 1 9202- ● ●
19 WRENCH; 7X8
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 8X10 		9-99592-108-0 01 1 9506- ● ●
19 WRENCH; 7X8
AUSTRALIA EQUIPMENT(RR3) RR TIRE 8.25-16<92X> 8X10 		9-99592-108-0 01 1 9506- ● ●
19 WRENCH; 7X8
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 7X8 		9-09592-107-0 01 1 9202-9505 ● ●
19 WRENCH; 7X8
RR TIRE 8.25-16<92X> 7X8 		9-09592-107-0 01 1 9202-9505 ● ●
19 WRENCH; 7X8
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 7X8 		9-09592-107-0 01 1 9506- ● ●
19 WRENCH; 7X8
RR TIRE 8.25-16<92X> EXC. AUSTRALIA EQUIPMENT(RR3) 7X8 		9-09592-107-0 01 1 9506- ● ●
20 WRENCH; 10X12
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 10X12 		9-09592-110-0 01 1 9202- ● ●
20 WRENCH; 10X12
RR TIRE 8.25-16<92X> 10X12 		9-09592-110-0 01 1 9202- ● ●
21 WRENCH; 14X17
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14X17 		9-09592-114-0 01 1 9202- ● ●
21 WRENCH; 14X17
RR TIRE 8.25-16<92X> 14X17 		9-09592-114-0 01 1 9202- ● ●
22 WRENCH; 19X22
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 19X22 		9-99592-119-0 01 1 9202- ● ●
22 WRENCH; 19X22
RR TIRE 8.25-16<92X> 19X22 		9-99592-119-0 01 1 9202- ● ●
23 WRENCH; 24X27
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 24X27 		9-09592-124-0 01 1 9202- ● ●
23 WRENCH; 24X27
RR TIRE 8.25-16<92X> 24X27 		9-09592-124-0 01 1 9202- ● ●
29 DRIVER; SCREW
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) <-> L=285 		1-85151-004-0 01 1 9506- ● ●
29 DRIVER; SCREW
AUSTRALIA EQUIPMENT(RR3) RR TIRE 8.25-16<92X> <-> L=285 		1-85151-004-0 01 1 9506- ● ●
29 DRIVER; SCREW
AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) <+>,<-> L=160 		8-94242-798-1 01 1 9506- ● ●
29 DRIVER; SCREW
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) <+> L=190 		9-09595-522-0 01 1 9202- ● ●
29 DRIVER; SCREW
RR TIRE 8.25-16<92X> <+> L=190 		9-09595-522-0 01 1 9202- ● ●
29 DRIVER; SCREW
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) <-> L=190 		9-09595-726-0 01 1 9202-9505 ● ●
29 DRIVER; SCREW
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) <-> L=190 		9-09595-726-0 01 1 9506- ● ●
29 DRIVER; SCREW
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) <-> L=320 		9-09595-729-0 01 1 9202-9505 ● ●
29 DRIVER; SCREW
RR TIRE 8.25-16<92X> <-> L=320 		9-09595-729-0 01 1 9202-9505 ● ●
29 DRIVER; SCREW
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) <-> L=320 		9-09595-729-0 01 1 9506- ● ●
29 DRIVER; SCREW
RR TIRE 8.25-16<92X> EXC. AUSTRALIA EQUIPMENT(RR3) <-> L=320 		9-09595-729-0 01 1 9506- ● ●
57 TOOL; SETTING CRANK GEAR
ID=134.5 		8-94396-819-0 01 1 9202- ● ●
61 PULLER ASM; PILOT BRG 9-85210-157-0 01 1 9202- ● ●
82 PULLER ASM; CR/SHF GEAR 8-94396-818-0 01 1 9202- ● ●
209 CLIP; JACK HANDLE
ID=12 		1-73638-008-2 02 1 9202- ● ●
268 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9202- ●
268 SCREW; CLIP
M5X16 W/PL WASHER 		1-09981-532-0 02 1 9202- ●
271 CLIP; TIRE HANGER
ID=14 		1-73638-009-2 02 1 9202- ● ●
274 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9202- ●
274 SCREW; CLIP
M5X16 W/PL WASHER 		1-09981-532-0 02 1 9202- ●
