◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 11047 - EXR LHD EURO4 WITH 2STEPS ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#12988) — 274 parça

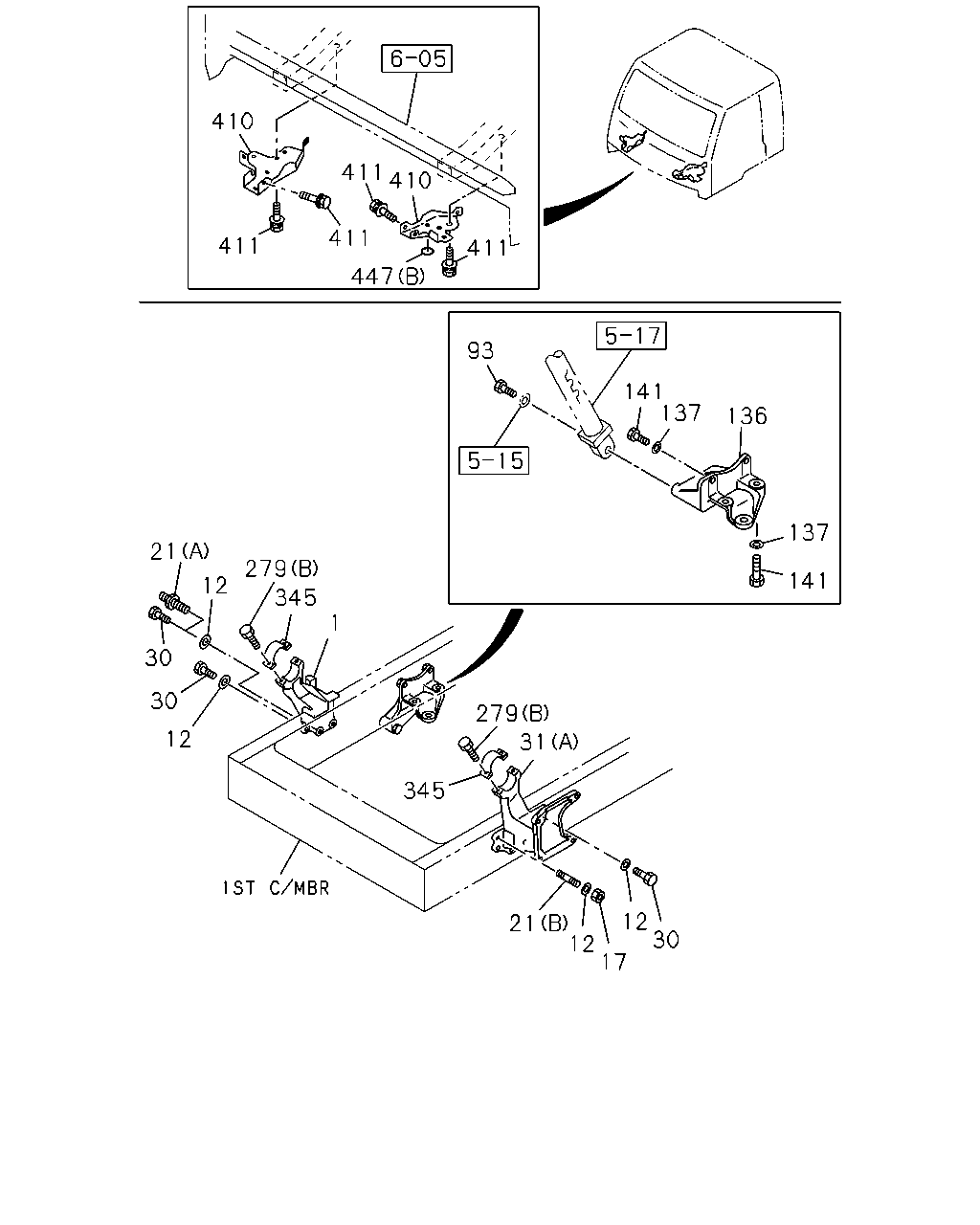

çizim 91035
410 411 410 411 411 411 447 93 141 137 136 137 21 27 141 12 345 1 30 30 279 31 12 345 12 30 21 12 17
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 1-53453-306-1 01 1 0611-
12 WASHER; LK,BRKT
ID=16.2 		1-09503-223-0 11 1 0611-
12 WASHER; LK,BRKT
ID=15 		9-09651-069-0 02 1 0611-1201
12 WASHER; LK,BRKT
ID=15 		8-98010-627-1 02 1 1202-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 0611-
21 STUD; BRKT,CAB TILT
(A) M10X20,M16X50 L=81 		1-09029-069-0 02 1 0611-
21 STUD; BRKT,CAB TILT
(B) M16X50 L=74 		1-09300-117-0 01 1 0611-
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0611-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0611-
30 BOLT; CAB FRT FOOT
M14X60 		0-20951-460-0 02 1 0611-
30 BOLT; CAB FRT FOOT
M16X50 		0-20951-650-0 05 1 0611-
30 BOLT; CAB FRT FOOT
M16X45 		9-92061-645-0 03 1 0611-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0611-
31 BRACKET; CAB
(D) 		1-53453-281-2 01 1 0611-
31 BRACKET; CAB
(B) 		1-53458-673-1 01 1 0611-
31 BRACKET; CAB
(C) 		8-97606-793-0 01 1 0611-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 0611-
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0611-
136 BRACKET; OIL CYL 1-53458-903-0 01 1 0611-
137 WASHER; PL,BRKT
ID=15 		9-09651-069-0 04 1 0611-1201
137 WASHER; PL,BRKT
ID=15 		8-98010-627-1 04 1 1202-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 0611-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0611-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0611-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0611-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
279 BOLT
(G) M8X20 FLANGE 		0-28650-820-0 05 1 0611-
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0611-
345 CAP; CAB 1-53458-336-3 02 1 0611-
410 REINFORCEMENT; CAB TILT 1-62570-864-0 01 1 0611-
410 REINFORCEMENT; CAB TILT 1-62570-939-0 01 1 0611-
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0611-0904
411 BOLT; REINFORCEMENT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
411 BOLT; REINFORCEMENT
M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0611-
447 SEAL
(A) OD=45 BLACK 		1-76798-017-0 02 1 0611-
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 0611-
çizim 91385
202 202 203 69 72 204 205 65 204 203 70
BalonParca AdiParca NoAdetTipApplied Date
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 0611-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0611-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0611-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-492-1 01 1 0611-
70 BRACKET; S/ABS,CAB FRT SUSP 1-53458-493-1 01 1 0611-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0611-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0611-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0611-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0611-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0611-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0611-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0611-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0611-
çizim 91387
202 294 202 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202
BalonParca AdiParca NoAdetTipApplied Date
173 MEMBER; CAB MTG RR 8-97613-977-0 01 1 0611-
174 OUTRIGGER 8-97614-275-1 01 1 0611-
174 OUTRIGGER 1-53456-278-3 01 1 0611-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
201 ABSORBER ASM; SHOCK,RR MTG 1-51630-728-1 02 1 0611-
202 NUT; S/ABS
(C) M10 FLANGE 		0-91150-110-0 02 1 0611-1007
202 NUT; S/ABS
(C) M10 FLANGE 		0-91180-110-0 02 1 1008-
202 NUT; S/ABS
(A) M10 		9-09110-410-0 04 1 0611-
202 NUT; S/ABS
(B) M10 		9-09111-410-0 06 1 0611-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 10 1 0611-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 0611-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 12 1 0611-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 08 1 0611-
294 MEMBER; FLOATING 8-97613-760-1 01 1 0611-

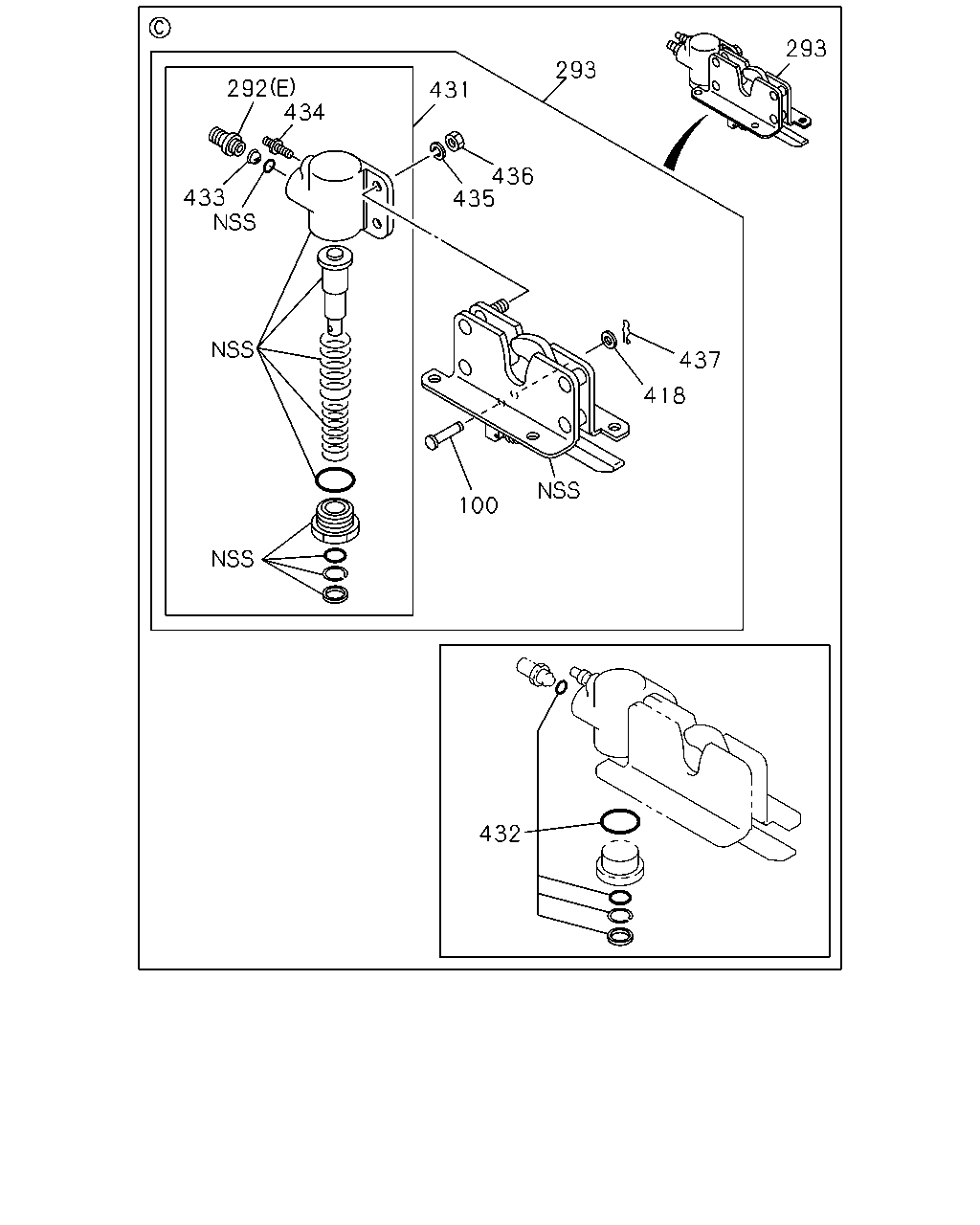

çizim 91388
293 93 292 434 431 436 435 433 437 418 100 432
BalonParca AdiParca NoAdetTipApplied Date
93 BOLT; PIN
M10X30 		1-09000-283-0 01 1 0611-
100 PIN; JOINT 1-53458-831-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
293 RATCH; CAB SUSP,RR 1-53458-918-0 01 1 0611-
418 WASHER; PL,PIN 1-53458-059-0 01 1 0611-
431 CYLINDER; AIR,RATCH 1-53457-013-0 01 1 0611-
432 REPAIR KIT; AIR CYL 1-85579-052-0 01 1 0611-
433 FILTER; AIR CYL 1-53458-048-0 01 1 0611-
434 SCREW; AIR BLEEDER 1-53458-529-0 01 1 0611-
435 WASHER; LK,AIR CYL
ID=10.2 		9-09150-510-0 02 1 0611-
436 NUT; AIR CYL 1-53458-528-0 02 1 0611-
437 PIN; SNAP 1-53458-526-0 01 1 0611-

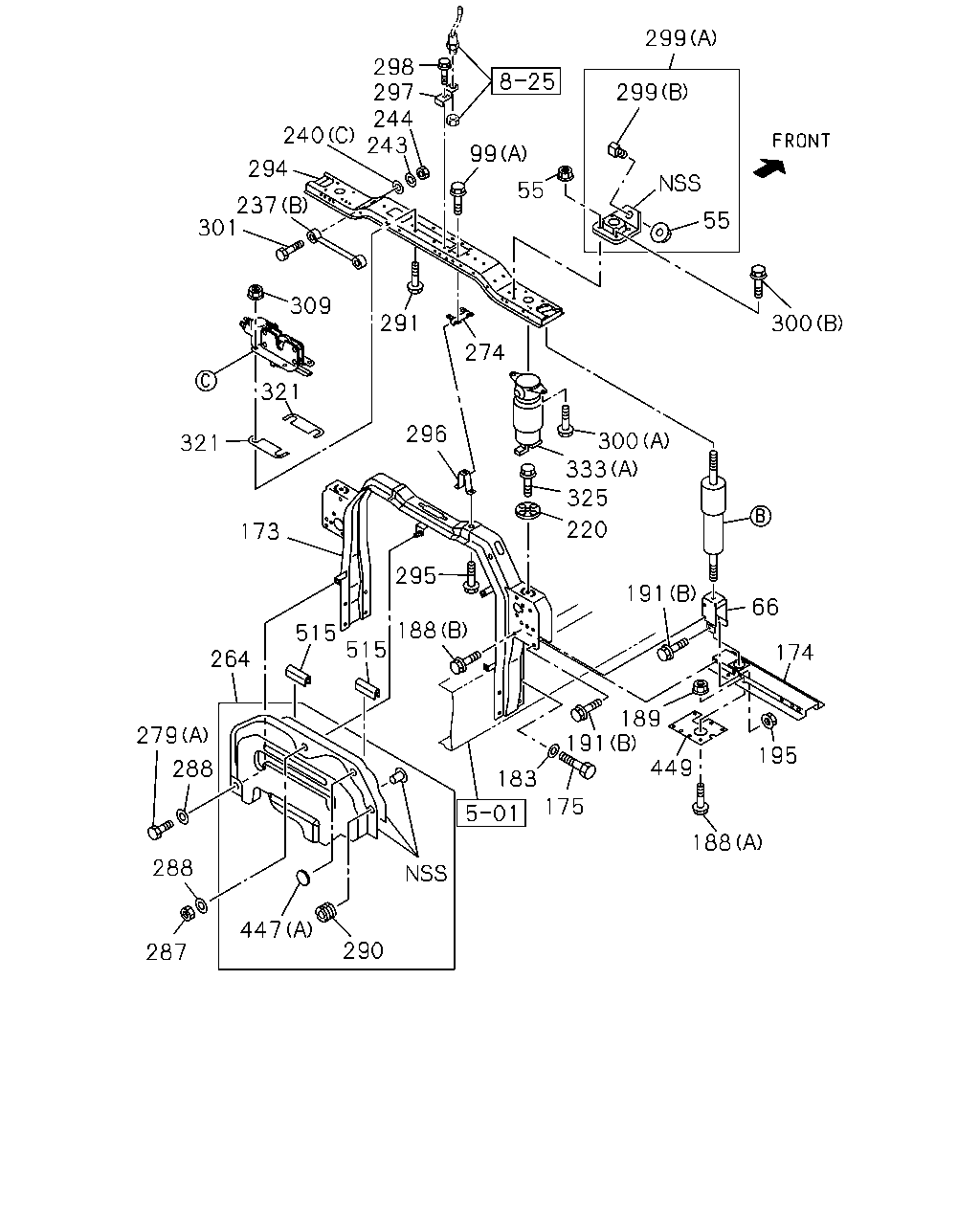

çizim 106510
299 298 297 244 243 299 240 99 294 55 237 301 55 309 291 300 274 321 296 300 321 333 325 220 173 295 191 66 188 515 515 174 264 189 191 279 195 449 288 183 175 188 288 447 290 287
BalonParca AdiParca NoAdetTipApplied Date
55 NUT; RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0611-
66 BRACKET; S/ABS 1-53458-755-2 01 1 0611-
66 BRACKET; S/ABS 1-53458-786-0 01 1 0611-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0611-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
173 MEMBER; CAB MTG RR 8-97613-977-0 01 1 0611-
174 OUTRIGGER 8-97614-275-1 01 1 0611-
174 OUTRIGGER 1-53456-278-3 01 1 0611-1003
174 OUTRIGGER 8-98158-646-0 01 1 1004-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 0611-
183 WASHER; PL,MEMBER
ID=15 		9-09651-069-0 08 1 0611-1201
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1202-
188 BOLT; OUTRIGGER
(A) M10X20 FLANGE 		0-28651-020-0 04 1 0611-
188 BOLT; OUTRIGGER
(B) M10X25 FLANGE 		0-28651-025-0 08 1 0611-
189 NUT; OUTRIGGER
M10 FLANGE 		0-91180-210-0 04 1 0611-
191 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0611-
191 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 07 1 0611-
195 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0611-
220 GUIDE; SPR 1-53458-648-1 02 1 0611-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0611-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0611-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0611-
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0611-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0611-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0611-
243 WASHER; LK,LATERAL ROD
ID=12.2 		0-91510-512-0 02 1 0611-
244 NUT; LATERAL ROD
M12 		0-91110-512-0 02 1 0611-
264 PANEL; BACK 1-53194-511-2 01 1 0611-
274 PIN 1-53458-996-0 01 1 0611-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0611-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0611-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0611-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
279 BOLT
(G) M8X20 FLANGE 		0-28650-820-0 05 1 0611-
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0611-
287 NUT
M8 FLANGE 		0-91180-108-0 01 1 0611-
288 WASHER; PL
ID=8.4 OD=26 		0-91614-808-0 03 1 0611-
290 RUBBER; MTG 1-53459-702-1 03 1 0611-
291 BOLT; RATCH
M10X25 FLANGE 		0-28651-025-0 04 1 0611-
294 MEMBER; FLOATING 8-97613-760-1 01 1 0611-
295 BOLT; STOPPER,UPR
M10X20 FLANGE 		0-28651-020-0 02 1 0611-
296 STOPPER; UPR 1-53458-973-1 01 1 0611-
297 BRACKET; LIMIT SW 1-53458-782-0 01 1 0611-
298 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
299 RUBBER; MTG
(B) 		1-53366-155-0 02 1 0611-
299 RUBBER; MTG
(A) 		1-53366-194-0 02 1 0611-
300 BOLT; MTG RUBBER
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0611-
300 BOLT; MTG RUBBER
(A) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0611-
301 PIN; LATERAL ROD
M12X57.5 		1-53459-498-1 02 1 0611-
309 NUT
M10 FLANGE 		0-91180-210-0 04 1 0611-
321 SHIM; FRT CAB MTG 1-53458-629-1 04 1 0611-
325 BOLT; GUIDE NUT
M8X20 FLANGE 		0-28650-820-0 02 1 0611-
333 SPRING
(B) 		1-52110-142-4 02 1 0611-
333 SPRING
(A) 		1-52110-143-4 02 1 0611-
447 SEAL
(A) OD=45 BLACK 		1-76798-017-0 02 1 0611-
447 SEAL
(B) OD=25 BLACK 		1-76798-019-0 03 1 0611-
449 BRACKET; OUTRIGGER 1-53456-279-0 01 1 0611-
515 FINISHER; BACK PANEL
L=150 		1-76710-004-0 01 1 0611-
515 FINISHER; BACK PANEL
L=300 		1-76710-006-0 01 1 0611-

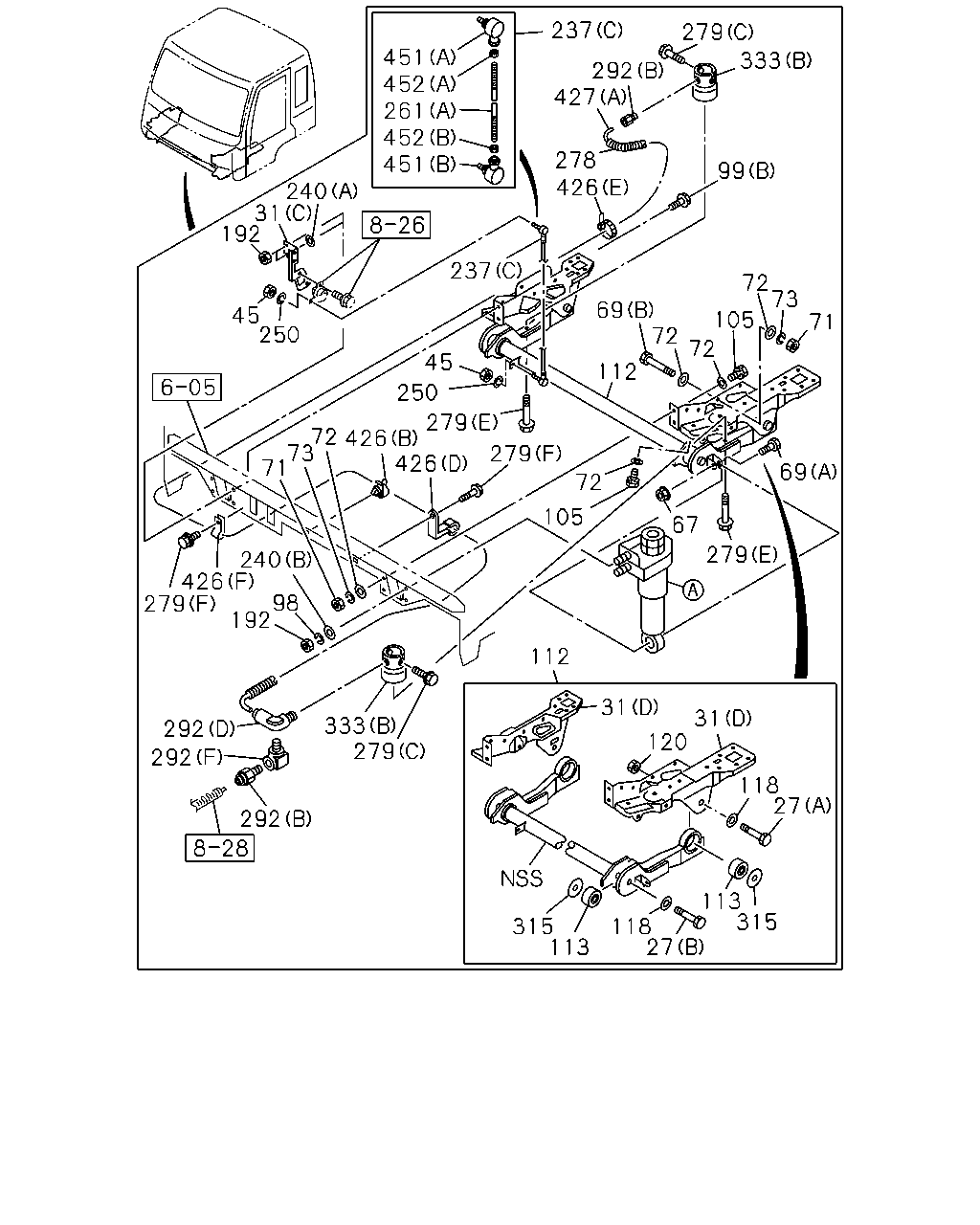

çizim 106519
237 279 451 452 261 452 451 333 292 427 278 426 99 240 31 192 237 72 73 45 250 69 72 105 71 72 45 112 250 279 73 426 71 279 69 72 105 67 279 240 426 279 98 192 112 31 31 120 333 279 292 118 27 292 292 113 315 315 113 118 27 72 426
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
(B) M18X120 		1-09000-442-1 02 1 0611-
27 BOLT; BUSHING
(A) M18X90 		9-91066-890-0 02 1 0611-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0611-
31 BRACKET; CAB
(D) 		1-53453-281-2 01 1 0611-
31 BRACKET; CAB
(B) 		1-53458-673-1 01 1 0611-
31 BRACKET; CAB
(C) 		8-97606-793-0 01 1 0611-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 0611-
45 NUT
M5 		0-91110-505-0 02 1 0611-
45 NUT
M5 		0-91110-505-0 02 1 0611-
67 NUT; S/ABS,CAB FRT SUSPENSION
M12 FLANGE 		0-91180-212-0 02 1 0611-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(A) M12X60 		0-20801-260-0 02 1 0611-
69 BOLT; S/ABS,CAB FRT SUSPENSION
(B) M10X105 		1-79198-008-1 08 1 0611-
71 NUT; BRKT TO CAB FRAME
M10 		1-09984-142-0 06 1 0611-
72 WASHER; PL,BRKT TO FRAME
ID=10.5 OD=26 T=2.6 		1-09985-184-0 23 1 0611-
73 WASHER; LK,BRKT TO CAB FRAME
ID=10 		1-09985-185-0 12 1 0611-
98 WASHER; LK,BRKT
ID=10 		1-09985-185-0 04 1 0611-
99 BOLT; BRKT
(B) M10X30 W/SP WASHER 		1-09980-546-0 02 1 0611-
99 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
105 BOLT; BRKT TO CAB FRAME
M10X30 W/SP WASHER 		1-09980-546-0 15 1 0611-
112 ARM ASM; LINK,CAB FRT SUSP 8-97612-498-1 01 1 0611-
113 BUSHING; RUBBER,FLOATING LINK ARM,W/PI 1-53458-714-0 04 1 0611-
118 WASHER; PL,STOPPER RUBBER,LINK ARM
ID=19 OD=30 		1-09503-279-0 04 1 0611-
120 NUT; STOPPER RUBBER,LINK ARM
M18 		0-91110-518-0 02 1 0611-
192 NUT; BRKT FIX
M10 		1-09984-142-0 04 1 0611-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0611-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0611-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0611-
240 WASHER; PL,BRKT
(C) ID=12.5 OD=22 		0-91610-512-0 02 1 0611-
240 WASHER; PL,BRKT
(A) ID=10.5 OD=18 		1-09985-173-0 01 1 0611-
240 WASHER; PL,BRKT
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 04 1 0611-
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 0611-
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 0611-
261 ROD; LINK
(A) 		0-84100-506-0 01 1 0611-
261 ROD; LINK
(B) 		9-08410-514-0 01 1 0611-
278 COVER
L=1200 SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0611-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0611-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0611-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0611-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
279 BOLT
(G) M8X20 FLANGE 		0-28650-820-0 05 1 0611-
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
315 WASHER; CAB MTG
ID=34.5 		1-53458-281-1 04 1 0611-
333 SPRING
(B) 		1-52110-142-4 02 1 0611-
333 SPRING
(A) 		1-52110-143-4 02 1 0611-
426 CLIP
(G) ID=7 L=20 		0-95234-635-0 02 1 0611-
426 CLIP
(F) ID=11 L=16 		0-95235-025-0 01 1 0611-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0611-
426 CLIP
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0611-
426 CLIP
(D) ID=11 H=20 L=20 		5-09700-351-0 01 1 0611-0707
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
426 CLIP
(E) L=140 		5-09707-031-1 01 1 0611-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0611-
427 TUBE
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0611-
427 TUBE
(B) L=440 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0611-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0611-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0611-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0611-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0611-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0611-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0611-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0611-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0611-

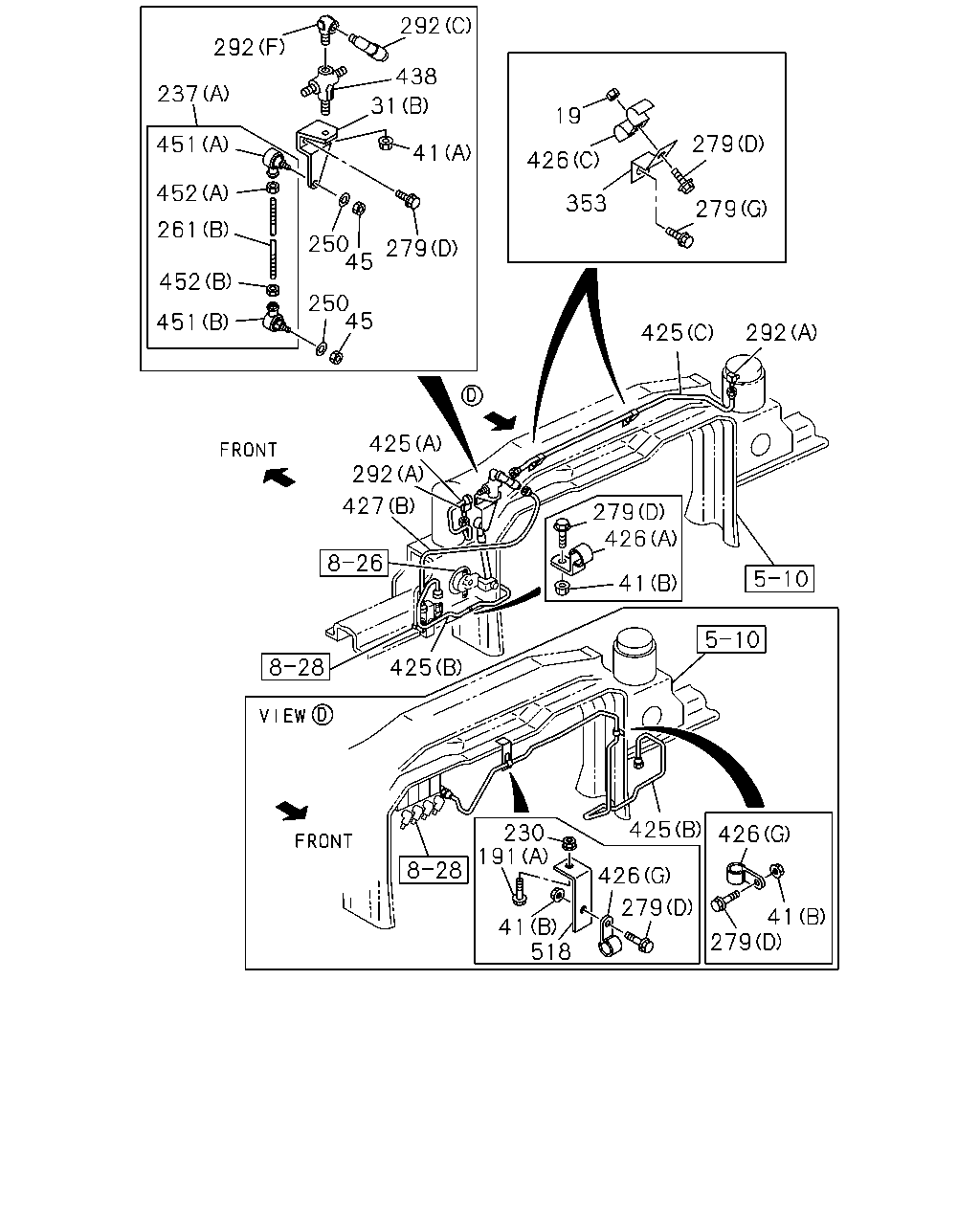

çizim 106586
292 292 438 237 31 19 279 451 41 426 452 353 279 261 250 45 279 452 250 45 451 292 425 425 292 427 279 426 41 425 425 230 191 426 426 279 41 279 41 518
BalonParca AdiParca NoAdetTipApplied Date
19 NUT
M8 		0-91110-508-0 02 1 0611-
31 BRACKET; CAB
(D) 		1-53453-225-3 01 1 0611-
31 BRACKET; CAB
(D) 		1-53453-281-2 01 1 0611-
31 BRACKET; CAB
(B) 		1-53458-673-1 01 1 0611-
31 BRACKET; CAB
(C) 		8-97606-793-0 01 1 0611-
31 BRACKET; CAB
(A) 		1-44226-177-3 01 1 0611-
41 NUT
(B) M8 FLANGE 		0-91180-108-0 03 1 0611-
41 NUT
(A) M12 FLANGE 		0-91180-212-0 01 1 0611-
45 NUT
M5 		0-91110-505-0 02 1 0611-
45 NUT
M5 		0-91110-505-0 02 1 0611-
191 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0611-
191 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 07 1 0611-
230 NUT
M8 FLANGE 		0-91180-108-0 01 1 0611-
237 ROD ASM; LATERAL
(A) 		1-33670-407-0 01 1 0611-
237 ROD ASM; LATERAL
(C) 		1-33671-987-0 01 1 0611-
237 ROD ASM; LATERAL
(B) 		1-53458-343-0 01 1 0611-
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 0611-
250 WASHER; LK
ID=5.1 		0-91510-505-0 02 1 0611-
261 ROD; LINK
(A) 		0-84100-506-0 01 1 0611-
261 ROD; LINK
(B) 		9-08410-514-0 01 1 0611-
279 BOLT
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0611-
279 BOLT
(E) M8X60 FLANGE 		0-28050-860-0 02 1 0611-
279 BOLT
(B) M12X40 FLANGE 		0-28061-240-0 04 1 0611-
279 BOLT
(D) M8X20 FLANGE 		0-28650-820-0 04 1 0611-
279 BOLT
(G) M8X20 FLANGE 		0-28650-820-0 05 1 0611-
279 BOLT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
279 BOLT
(F) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 02 1 0611-
292 CONNECTOR; CAB SUSPENSION
(C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(D) 		1-09661-577-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(E) M12 		1-53458-941-0 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
292 CONNECTOR; CAB SUSPENSION
(F) PT1/8 ELBOW 		8-94338-418-1 01 1 0611-
353 BRACKET 1-47478-232-0 02 1 0611-
425 PIPE ASM; AIR
(B) L=1645 SERVICED BY L=1700 		1-47428-821-0 01 1 0611-
425 PIPE ASM; AIR
(C) L=1376 		1-49119-625-0 01 1 0611-
425 PIPE ASM; AIR
(A) L=357 		1-49121-862-0 01 1 0611-
426 CLIP
(G) ID=7 L=20 		0-95234-635-0 02 1 0611-
426 CLIP
(F) ID=11 L=16 		0-95235-025-0 01 1 0611-
426 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0611-
426 CLIP
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0611-
426 CLIP
(D) ID=11 H=20 L=20 		5-09700-351-0 01 1 0611-0707
426 CLIP
(D) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
426 CLIP
(E) L=140 		5-09707-031-1 01 1 0611-
426 CLIP
(B) ID=9.5 		5-09709-020-0 01 1 0611-
427 TUBE
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0611-
427 TUBE
(B) L=440 SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0611-
438 UNION
M12X2 & PT1/8 3WAY 		1-09656-655-0 01 1 0611-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0611-
451 JOINT; BALL
(B) 		1-09760-103-2 01 1 0611-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0611-
451 JOINT; BALL
(A) 		1-09760-104-2 01 1 0611-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0611-
452 NUT; BALL JOINT
(A) M5 		0-91110-505-0 01 1 0611-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0611-
452 NUT; BALL JOINT
(B) M5 LH THREAD 		9-09840-277-0 01 1 0611-
518 BRACKET; CLIP
L=75 		1-47477-119-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
