5-01 — FRAME AND OTHER PARTS
(#12987) — 72 parça
◀

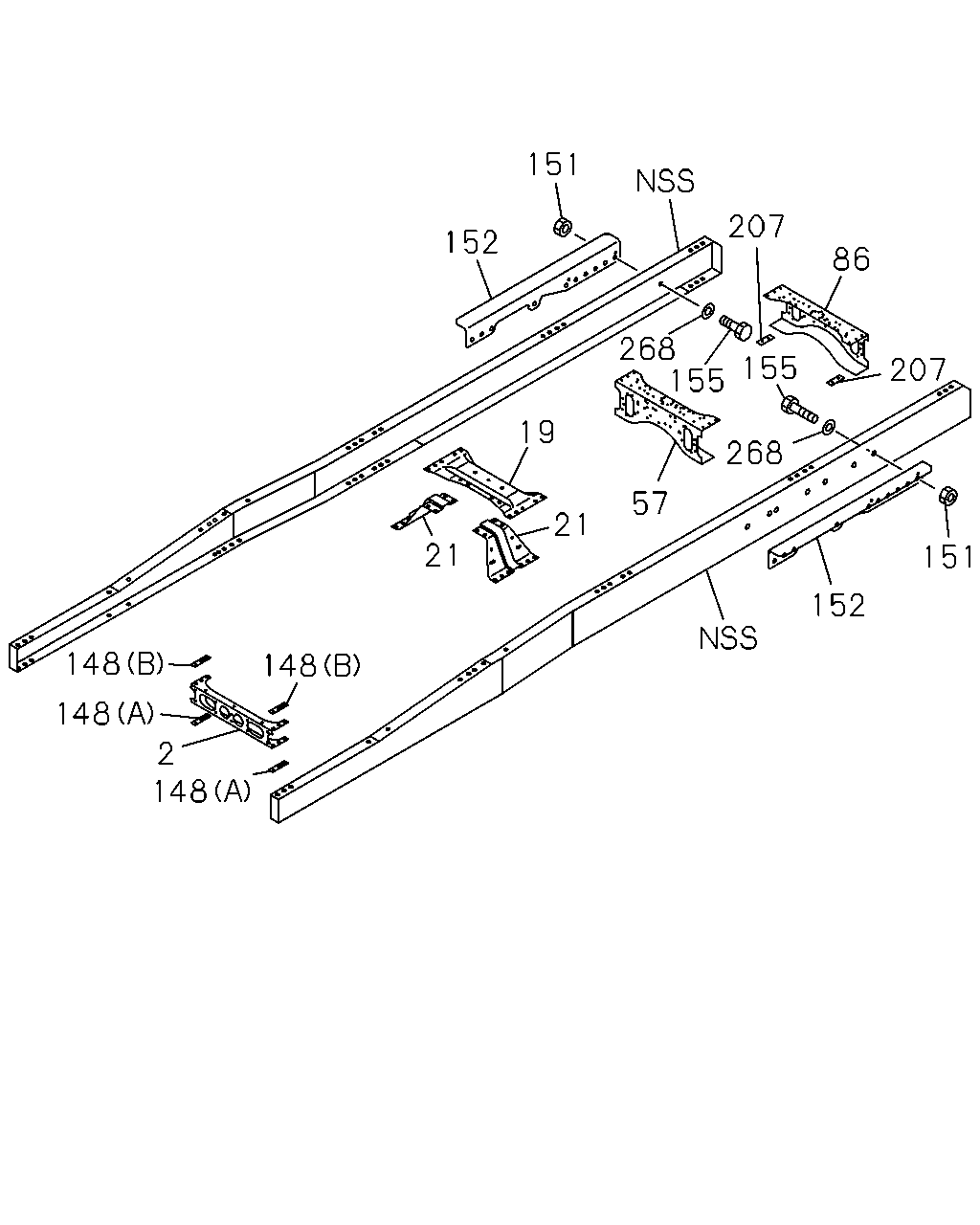

[501A] CROSS MEMBER AND OUTRIGGER (17 parça)

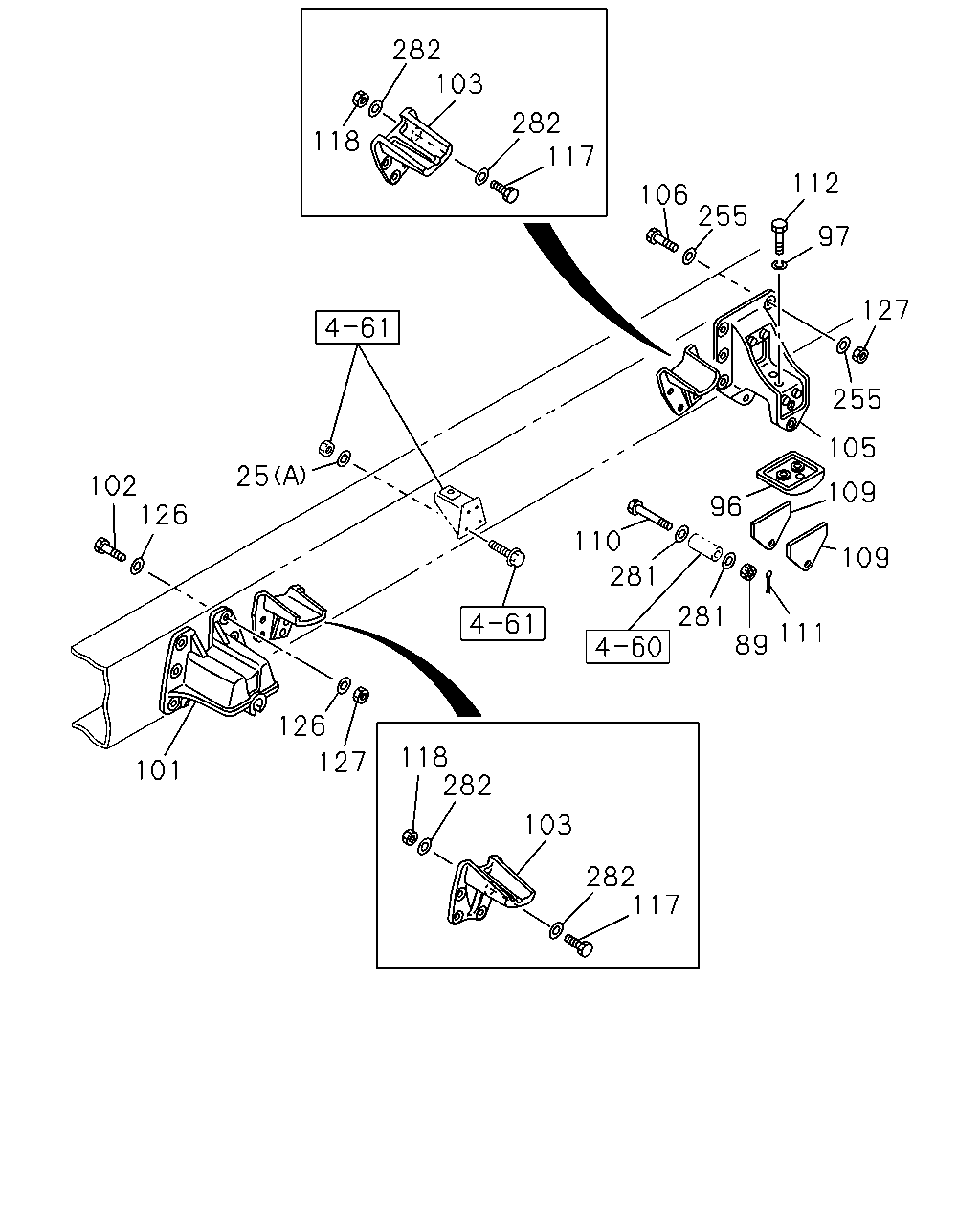

[501A] BRACKET REAR (27 parça)

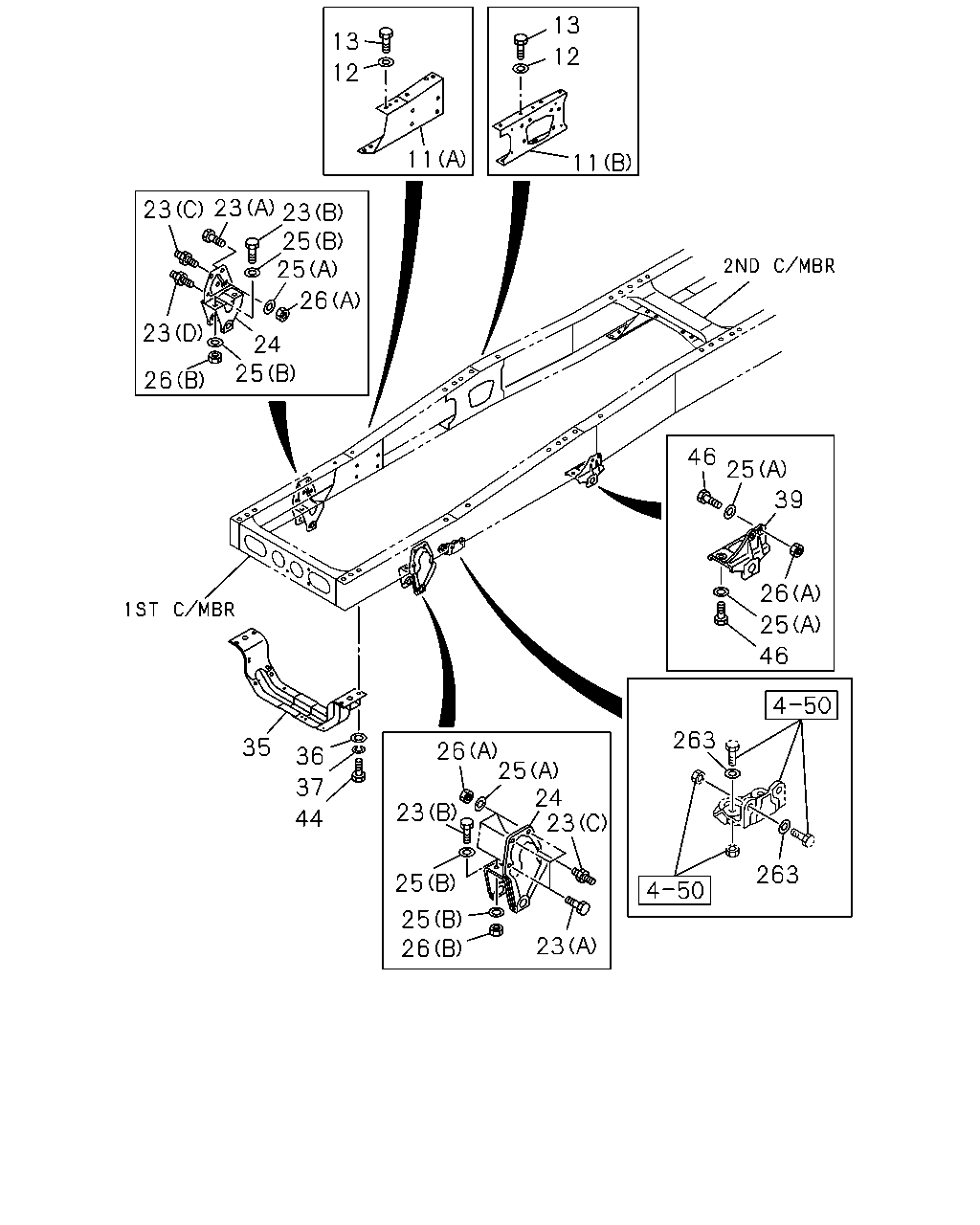

[501A] BRACKET FRONT AND UNDER MEMBER (28 parça)
▶
151
207
152
86
268
155
268
155
207
19
57
21
21
151
152
148
148
148
2
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98057-315-3
01
1
0611-
19
MEMBER; CROSS,2ND
1-53174-265-0
01
1
0611-1202
19
MEMBER; CROSS,2ND
8-98098-303-0
01
1
1203-
21
GUSSET; 2ND CROSS
1-53164-226-0
01
1
0611-1202
21
GUSSET; 2ND CROSS
8-98202-398-0
01
1
1203-
21
GUSSET; 2ND CROSS
1-53164-227-0
01
1
0611-1202
21
GUSSET; 2ND CROSS
8-98202-399-0
01
1
1203-
57
MEMBER; CROSS,RR SUSP FRT
1-53181-319-8
01
1
0611-
86
MEMBER; CROSS,RR SUSP RR
1-53181-319-8
01
1
0611-
148
SPACER; C/MBR
(B)
1-53168-400-1
02
1
0611-
148
SPACER; C/MBR
(A)
1-53168-403-1
02
1
0611-
151
NUT; OUTRIGGER
M16
0-91110-516-0
20
1
0611-
152
OUTRIGGER
1-53456-298-3
01
1
0611-
152
OUTRIGGER
1-53456-299-3
01
1
0611-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
20
1
0611-
207
SPACER; 4TH C/MBR
1-53168-171-1
02
1
0611-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
20
1
0611-
282
103
282
117
118
112
106
255
97
127
255
105
25
102
126
109
96
110
109
281
281
111
89
126
118
282
127
101
103
282
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0611-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0611-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
89
NUT; LEAF SPR STOPPER
M14 SLOTTED
0-91116-514-0
02
1
0611-
96
PAD; RR SPR
1-53359-047-0
02
1
0611-
97
WASHER; LK,PAD
ID=14.2
0-91510-514-0
04
1
0611-
101
BRACKET; RR SPR,FRT
1-53353-081-2
02
1
0611-
102
BOLT; BRKT,RR SPR
M14X50
0-20951-450-0
12
1
0611-
103
STOPPER; SUB SPR
1-53356-057-0
04
1
0611-
105
BRACKET; RR SPR,RR
1-53354-066-2
02
1
0611-
106
BOLT; BRKT
M14X50
0-20951-450-0
12
1
0611-
109
SHIM; RR SPR
T=4.5
1-53359-061-1
02
1
0611-
109
SHIM; RR SPR
T=3.2
1-53359-062-1
02
1
0611-
110
BOLT; LEAF SPR STOPPER
1-09000-007-0
02
1
0611-
111
PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28
0-81123-028-0
02
1
0611-
112
BOLT; PAD
M14X35
0-20951-435-0
04
1
0611-
117
BOLT; STOPPER
M14X40
0-20951-440-0
16
1
0611-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0611-
126
WASHER; PL,BRKT
ID=15
9-09651-069-0
24
1
0611-1201
126
WASHER; PL,BRKT
ID=15
8-98010-627-1
24
1
1202-
127
NUT; BRKT
M14
0-91110-514-0
24
1
0611-
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
24
1
0611-1201
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
24
1
1202-
281
WASHER; LEAF SPR STOPPER
ID=15 OD=30
9-09160-614-0
04
1
0611-
282
WASHER; PL,STOPPER
ID=15
9-09651-069-0
16
1
0611-1201
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
16
1
1202-
13
13
12
12
11
11
23
25
25
23
26
24
25
26
46
25
39
26
25
46
263
35
26
25
24
23
36
37
23
44
263
25
25
26
23
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0611-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0611-
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0611-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0611-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
02
1
0611-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
02
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
02
1
0611-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
04
1
0611-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
08
1
0611-
23
BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100
1-09029-075-0
02
1
0611-
23
BOLT; BRKT,SPR
(D) M12X25,M14X45 L=81
1-09029-103-0
02
1
0611-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0611-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0611-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0611-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
24
1
0611-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
24
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0611-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0611-
35
MEMBER; UNDER
1-53174-263-2
01
1
0611-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0611-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0611-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0611-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0611-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0611-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0611-
263
WASHER; PL,SUB FRAME
ID=15
9-09651-069-0
04
1
0611-1201
263
WASHER; PL,SUB FRAME
ID=15
8-98010-627-1
04
1
1202-
