Isuzu WW
▶
TRUCKS
▶
EXR
▶
11047 - EXR LHD EURO4 WITH 2STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

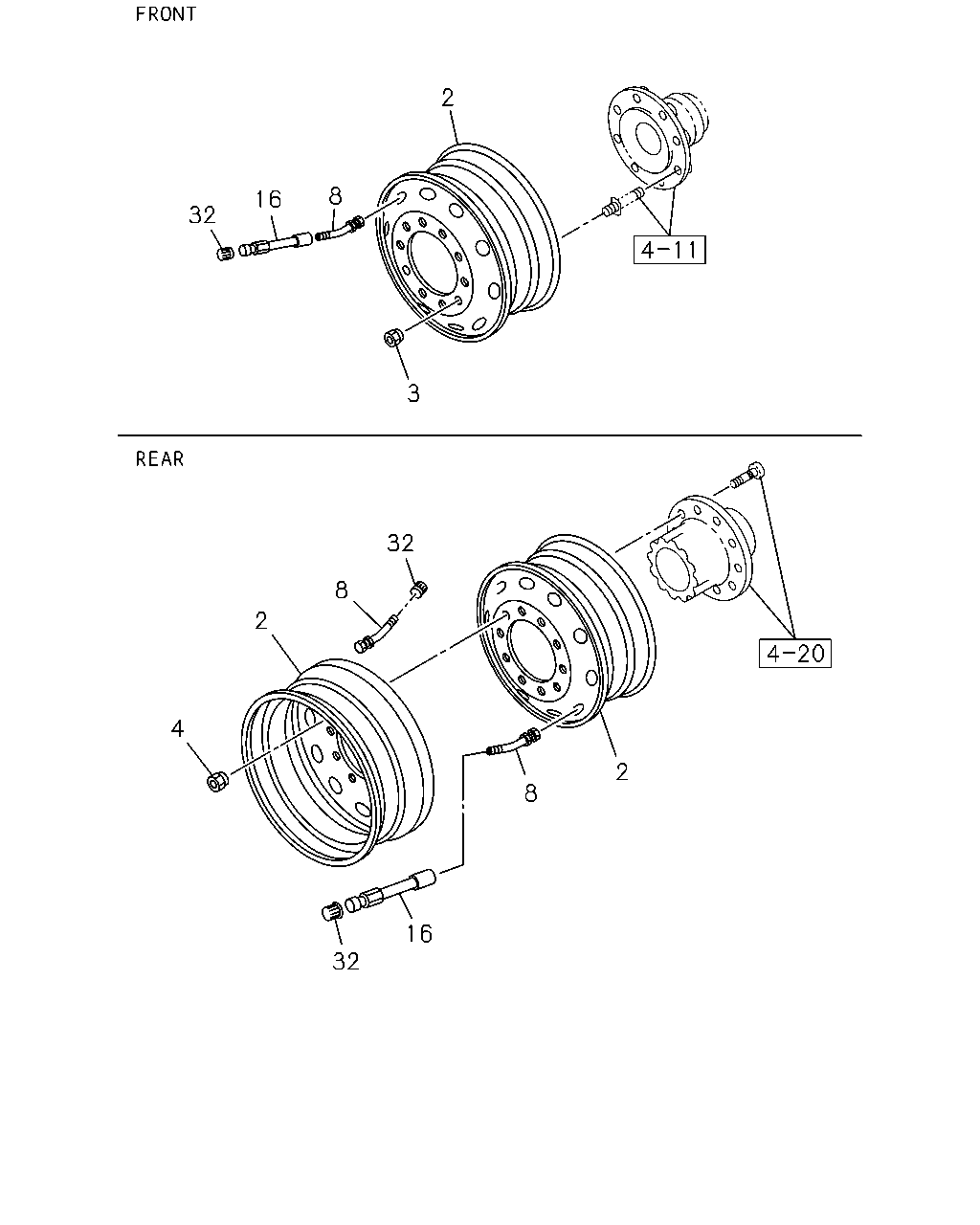

4-80 — ROAD WHEEL
(#12986) — 20 parça
2
8
16
32
3
32
8
2
4
2
8
16
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR
1-42350-730-0
06
1
0611-1205
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR
8-98217-247-0
06
1
1206-1407
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR
8-98281-497-0
06
1
1408-
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42350-730-0
01
1
0611-1205
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
8-98217-247-0
01
1
1206-1407
2
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
8-98281-497-0
01
1
1408-
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-050-1
20
1
0611-0907
3
NUT; WHEEL,FRT AXLE
M22X1.5
1-42333-055-0
20
1
0908-
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-050-1
20
1
0611-0907
4
NUT; WHEEL,RR AXLE
M22X1.5
1-42333-055-0
20
1
0908-
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR
1-42370-020-3
06
1
0611-1205
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR
1-42370-048-0
06
1
1206-1407
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT,REAR
1-42370-019-3
06
1
1408-
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-020-3
01
1
0611-1205
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-048-0
01
1
1206-1407
8
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE
1-42370-019-3
01
1
1408-
16
HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170
1-42370-024-0
02
1
0611-1003
16
HOLDER; TIRE VALVE,DISC WHEEL
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170
8-98167-052-0
02
1
1004-
32
CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
1-42374-001-0
06
1
0611-
32
CAP; VALVE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
1-42374-001-0
01
1
0611-
