Isuzu WW
▶
TRUCKS
▶
EXR
▶
11047 - EXR LHD EURO4 WITH 2STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

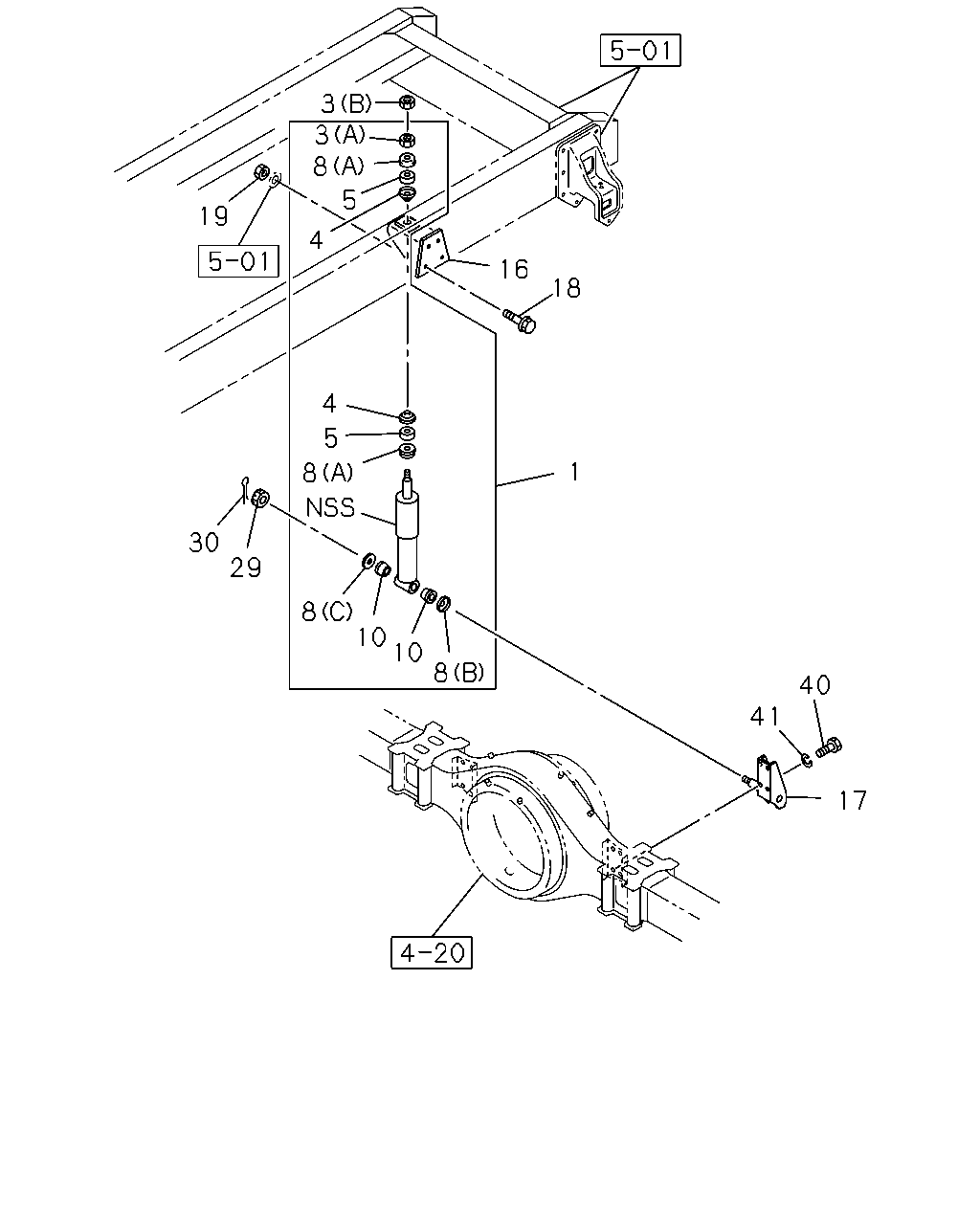

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#12984) — 18 parça
3
3
8
5
19
4
16
18
4
5
1
8
30
29
8
10
10
8
40
41
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
1-51630-602-0
02
1
0611-
3
NUT; S/ABS
(B) M18
0-91111-518-0
02
1
0611-
3
NUT; S/ABS
(A) M18
9-99111-418-0
02
1
0611-
4
WASHER; CENTER,S/ABS
1-51631-072-0
04
1
0611-
5
BUSHING; RUBBER,S/ABS,UPR
1-51631-073-0
04
1
0611-
8
WASHER; S/ABS
(A)
1-51631-071-0
04
1
0611-
8
WASHER; S/ABS
(B)
1-51631-074-0
02
1
0611-
8
WASHER; S/ABS
(C)
1-51631-075-0
02
1
0611-
10
BUSHING; RUBBER,S/ABS
1-51631-076-0
04
1
0611-
16
BRACKET; S/ABS,RR
1-51681-372-2
02
1
0611-
17
BRACKET; S/ABS LWR
1-51681-717-0
01
1
0611-
17
BRACKET; S/ABS LWR
1-51681-716-0
01
1
0611-
18
BOLT; S/ABS BRKT
M14X40
0-20951-440-0
08
1
0611-
19
NUT; S/ABS BRKT
M14
0-91110-514-0
08
1
0611-
29
NUT; LK,S/ABS,RR SUSP
M24
9-99116-424-0
02
1
0611-
30
PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45
0-81125-045-0
02
1
0611-
40
BOLT; LWR BRKT
M14X30
0-20851-430-0
08
1
0611-
41
WASHER; LK
ID=14.2
0-91510-614-0
08
1
0611-
