Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#1298) — 419 parça

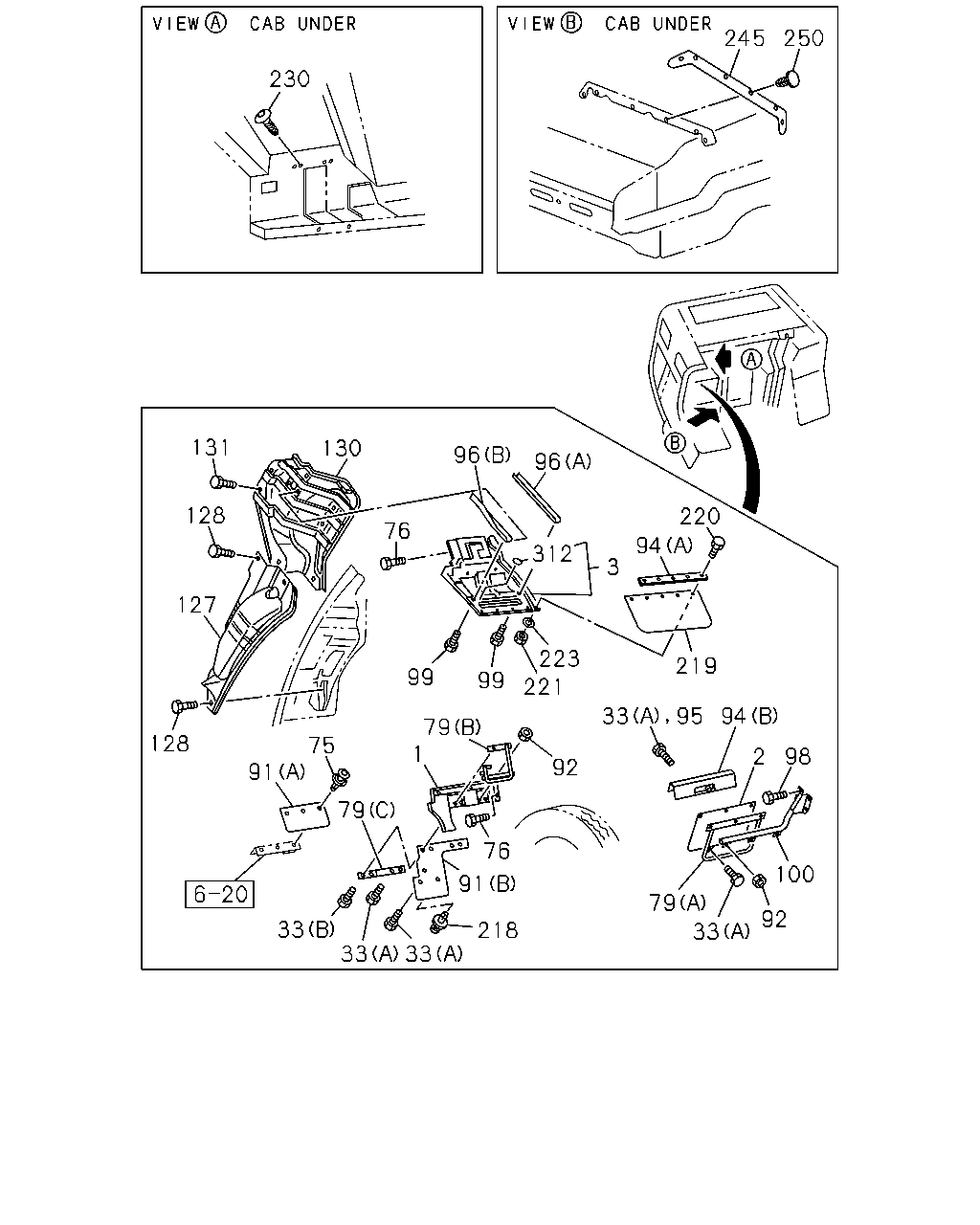

245 250 230 131 130 96 96 128 220 76 312 94 3 127 223 219 99 99 221 33 95 94 79 1 128 75 2 98 92 91 79 76 100 91 79 92 33 33 218 3 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-584-2	01	1	9202-	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-		●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9308-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-530-2	01	1	9308-		●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR	1-79938-707-3	01	1	9202-	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9202-9302		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9303-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9303-		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-		●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-		●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9202-	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-		●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (A)	1-79930-986-0	01	1	9308-9401	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER (A)	1-79931-131-0	01	1	9402-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
94	RETAINER; FLAP RUBBER (A)	1-79930-586-0	01	1	9202-	●
94	RETAINER; FLAP RUBBER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-586-0	01	1	9202-		●
94	RETAINER; FLAP RUBBER (B)	1-79930-649-1	01	1	9202-	●
94	RETAINER; FLAP RUBBER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-79930-649-1	01	1	9202-		●
95	BOLT; STAY TO RET M6X16 W/LK&PL WASHER	1-09980-492-0	03	1	9202-	●
95	BOLT; STAY TO RET 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	03	1	9202-		●
96	STAY; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79938-643-1	01	1	9202-	●	●
96	STAY; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-79938-645-1	01	1	9202-	●	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	04	1	9202-9204	●	●
98	BOLT; STAY TO BRKT (B) M8X30 FLANGE	0-28080-830-0	04	1	9205-	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) M8X30 FLANGE	0-28080-830-0	04	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (A) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (A) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (B) M8X30 FLANGE	0-28010-830-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (B) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (C) M10X25	0-28011-025-0	04	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (C) M10X25 FLANGE	0-28081-025-0	04	1	9205-		●
99	BOLT; STAY TO MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9202-	●	●
100	STAY; UPR,MUD GUARD	1-53497-407-0	01	1	9202-	●
100	STAY; UPR,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53497-407-0	01	1	9202-		●
100	STAY; UPR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-332-1	01	1	9202-		●
127	APRON; FRT	1-79938-623-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-623-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9208-		●
127	APRON; FRT	1-79938-621-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-621-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-417-0	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-104-0	01	1	9208-		●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-418-0	01	1	9208-9304		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-857-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-108-0	01	1	9208-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9202-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9202-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
219	FLAP; MUD GUARD	1-79930-650-0	01	1	9202-	●
219	FLAP; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-650-0	01	1	9202-		●
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50000-616-0	05	1	9202-9204	●
220	BOLT; RET,MUD GUARD 6SA1 STD ENG(06L) M6X16 W/LK WASHER	0-50000-616-0	05	1	9202-9204		●
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50080-616-0	05	1	9205-	●
220	BOLT; RET,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK WASHER	0-50080-616-0	05	1	9205-		●
221	NUT; COVER,MUD GUARD RR	8-94238-948-0	05	1	9202-	●
221	NUT; COVER,MUD GUARD RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	8-94238-948-0	05	1	9202-		●
223	WASHER; PL,RET	8-94238-949-0	05	1	9202-	●
223	WASHER; PL,RET 6SA1 STD ENG(06L),6SA1TC ENG(28L)	8-94238-949-0	05	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9202-	●
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9202-	●	●
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9202-		●
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-79938-858-0	01	1	9202-	●	●
250	FASTENER; SHUTTER 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-09987-189-0	06	1	9202-	●	●
312	SEAL; DUMMY HOLE	1-76778-007-0	02	1	9202-	●
312	SEAL; DUMMY HOLE 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-76778-007-0	02	1	9202-		●

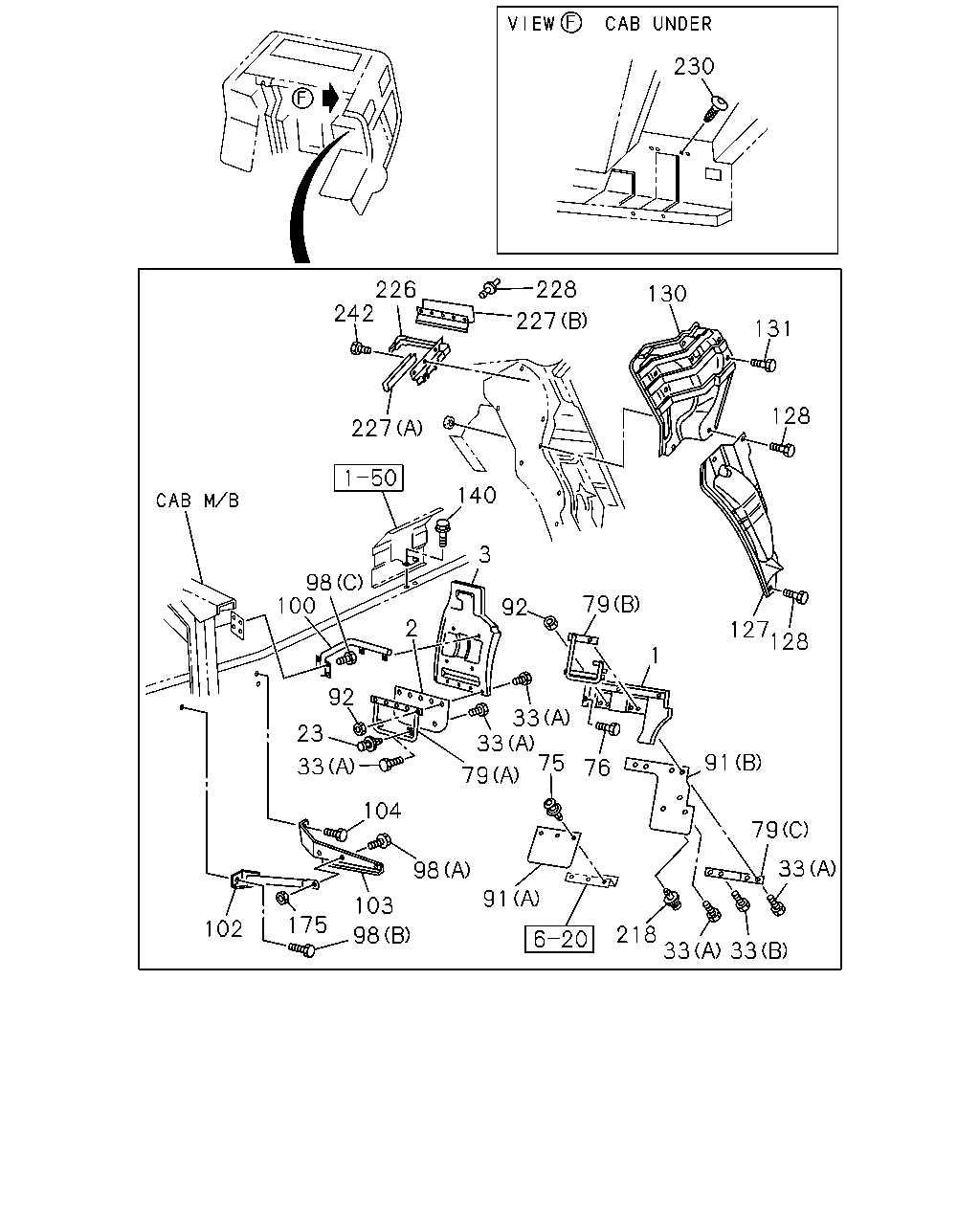

230 228 226 242 130 227 131 128 227 140 3 98 100 79 92 2 127 128 1 92 33 33 75 23 91 33 76 79 104 79 33 98 91 103 175 102 218 33 98 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-584-2	01	1	9202-	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-		●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9308-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-530-2	01	1	9308-		●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR	1-79938-707-3	01	1	9202-	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9202-9302		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9303-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9303-		●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401	●	●
23	FASTENER; MUD COVER 6HE1 STD ENG(46L)	1-09470-001-0	02	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-		●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-		●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9202-	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-		●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (A)	1-79930-986-0	01	1	9308-9401	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER (A)	1-79931-131-0	01	1	9402-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L) M8X30 FLANGE	0-28010-830-0	04	1	9202-9204	●	●
98	BOLT; STAY TO BRKT (B) M8X30 FLANGE	0-28080-830-0	04	1	9205-	●
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B) M8X30 FLANGE	0-28080-830-0	04	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (A) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (A) M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (B) M8X30 FLANGE	0-28010-830-0	01	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (B) M8X30 FLANGE	0-28080-830-0	01	1	9205-		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (C) M10X25	0-28011-025-0	04	1	9202-9204		●
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (C) M10X25 FLANGE	0-28081-025-0	04	1	9205-		●
100	STAY; UPR,MUD GUARD	1-53497-407-0	01	1	9202-	●
100	STAY; UPR,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53497-407-0	01	1	9202-		●
100	STAY; UPR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-332-1	01	1	9202-		●
102	STAY; LWR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-360-1	01	1	9202-		●
103	BRACKET ASM; RR MUD FLAP 6HE1 STD ENG(46L)	1-53497-380-1	01	1	9202-		●
104	BOLT; BRKT 6HE1 STD ENG(46L)	0-28011-025-0	02	1	9202-9204		●
104	BOLT; BRKT 6HE1 STD ENG(46L) M10X25 FLANGE	0-28081-025-0	02	1	9205-		●
127	APRON; FRT	1-79938-623-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-623-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9208-		●
127	APRON; FRT	1-79938-621-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-621-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-417-0	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-104-0	01	1	9208-		●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-418-0	01	1	9208-9304		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-857-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-108-0	01	1	9208-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9202-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9202-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
140	BOLT; SIDE PANEL 6HE1 STD ENG(46L) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204		●
140	BOLT; SIDE PANEL 6HE1 STD ENG(46L) M8X20 FLANGE	0-28080-820-0	02	1	9205-		●
175	NUT; STAY FIX 6HE1 STD ENG(46L) M8	9-09110-408-0	01	1	9202-		●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9202-	●
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9202-		●
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=342	1-79938-765-0	01	1	9202-	●	●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9202-		●
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9202-	●
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9202-	●	●
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9202-		●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD 6HE1 STD ENG(46L) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-		●

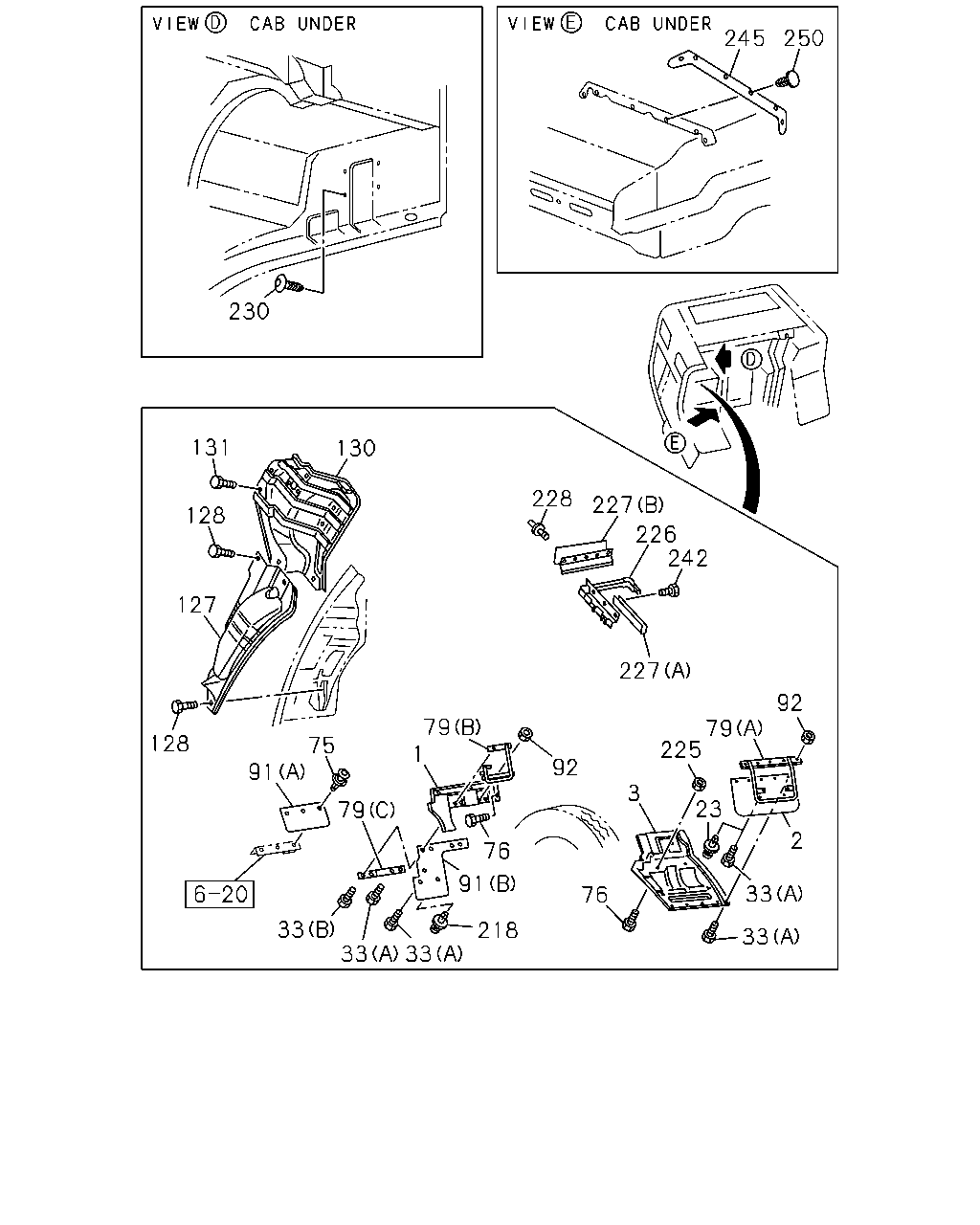

245 250 230 131 130 228 227 128 226 242 127 227 92 79 1 79 225 128 75 92 91 3 23 79 2 76 91 33 76 33 33 218 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-584-2	01	1	9202-	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-		●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9308-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-530-2	01	1	9308-		●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR	1-79938-707-3	01	1	9202-	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9202-9302		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9303-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9303-		●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401	●	●
23	FASTENER; MUD COVER 6HE1 STD ENG(46L)	1-09470-001-0	02	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-		●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-		●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9202-	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-		●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (A)	1-79930-986-0	01	1	9308-9401	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER (A)	1-79931-131-0	01	1	9402-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
127	APRON; FRT	1-79938-623-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-623-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9208-		●
127	APRON; FRT	1-79938-621-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-621-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-417-0	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-104-0	01	1	9208-		●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-418-0	01	1	9208-9304		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-857-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-108-0	01	1	9208-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9202-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9202-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9202-9209	●	●
225	NUT; MUD GUARD 6SA1TC ENG(28L),6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9210-9304		●
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9305-	●	●
225	NUT; MUD GUARD 6HE1 STD ENG(46L) M8	9-09110-408-0	04	1	9305-		●
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9202-	●
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9202-		●
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=342	1-79938-765-0	01	1	9202-	●	●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9202-		●
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9202-	●
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9202-	●	●
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9202-		●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD 6HE1 STD ENG(46L) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-		●
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-79938-858-0	01	1	9202-	●	●
250	FASTENER; SHUTTER 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-09987-189-0	06	1	9202-	●	●

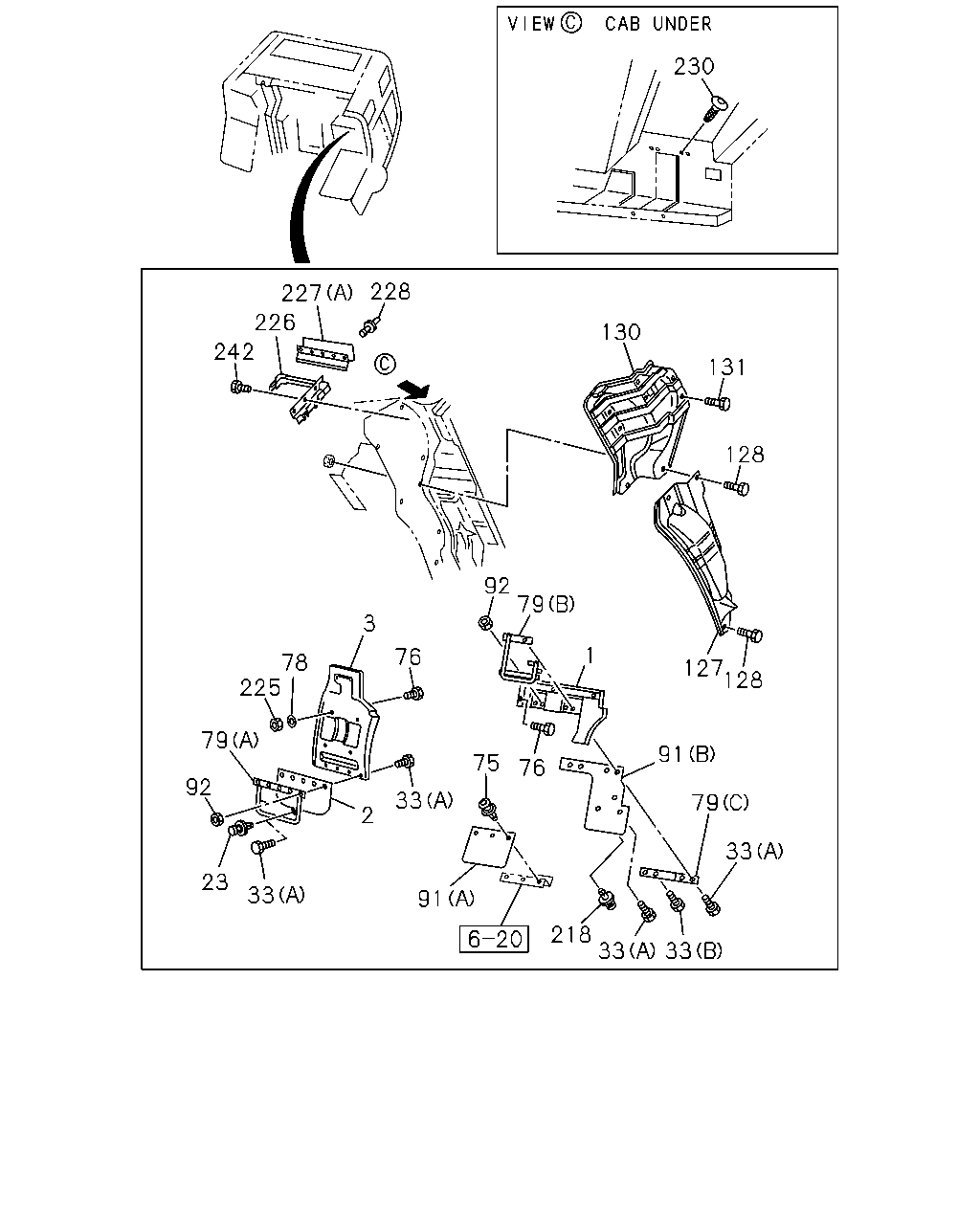

230 228 227 226 130 242 131 128 92 79 3 1 76 78 225 127 128 79 91 75 76 92 33 79 2 33 23 33 91 218 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9202-	●	●
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-584-2	01	1	9202-	●
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-584-2	01	1	9202-		●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	01	1	9308-	●	●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-530-2	01	1	9308-		●
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L)	1-79930-825-0	01	1	9202-9307		●
3	GUARD; MUD,RR	1-79938-707-3	01	1	9202-	●
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9202-		●
3	GUARD; MUD,RR 6SA1 STD ENG(06L)	1-79938-714-0	01	1	9202-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9202-		●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9202-9302		●
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9303-	●	●
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-711-1	01	1	9303-		●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401	●	●
23	FASTENER; MUD COVER 6HE1 STD ENG(46L)	1-09470-001-0	02	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9202-9209		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-	●
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9210-		●
33	BOLT; MUD COVER (B) M6X16 W/LK WASHER	0-50040-616-0	04	1	9202-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9202-9310	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9311-	●	●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401		●
33	BOLT; MUD COVER (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER 6HE1 STD ENG(46L) (A) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-		●
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9202-	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-	●	●
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9202-		●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9202-	●	●
78	WASHER; PL,MUD GUARD 6SA1TC ENG(28L) ID=8.4 OD=22	9-09160-708-0	02	1	9305-	●	●
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9202-	●
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9202-		●
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-984-0	01	1	9311-	●	●
79	RETAINER; MUD COVER (A)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (A)	1-79930-986-0	01	1	9308-9401	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-986-0	01	1	9308-9401		●
79	RETAINER; MUD COVER (A)	1-79931-131-0	01	1	9402-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79931-131-0	01	1	9402-		●
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9202-9310	●	●
79	RETAINER; MUD COVER (B)	1-79930-985-0	01	1	9311-	●	●
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (A)	1-79930-824-0	01	1	9202-9307		●
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9202-	●	●
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	05	1	9202-	●	●
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9202-		●
92	NUT; MUD COVER M6	9-09110-406-0	04	1	9202-9310	●	●
127	APRON; FRT	1-79938-623-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-623-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9208-		●
127	APRON; FRT	1-79938-621-3	01	1	9202-9207	●	●
127	APRON; FRT	1-79938-621-3	01	1	9208-	●
127	APRON; FRT EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-417-0	01	1	9208-		●
127	APRON; FRT ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-104-0	01	1	9208-		●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-627-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-627-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9202-9207	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9202-9207		●
130	PANEL; SHUTTER NOISE	1-79938-625-5	01	1	9208-	●
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L),6SA1TC ENG(28L) EXC. ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-625-5	01	1	9208-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-418-0	01	1	9208-9304		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-418-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>	1-53192-857-0	01	1	9305-		●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT ECE<SLK>,ANTI NOISE EQUIPMENTVAR2<TAK>	1-53192-108-0	01	1	9208-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9202-		●
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9202-		●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER	1-09470-001-0	10	1	9311-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9202-9209	●	●
225	NUT; MUD GUARD 6SA1TC ENG(28L),6HE1 STD ENG(46L) M8	9-09110-408-0	02	1	9210-9304		●
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9305-	●	●
225	NUT; MUD GUARD 6HE1 STD ENG(46L) M8	9-09110-408-0	04	1	9305-		●
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9202-	●
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9202-		●
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9202-		●
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=342	1-79938-765-0	01	1	9202-	●	●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9202-		●
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9202-		●
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9202-	●
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9202-		●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9202-	●	●
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9202-		●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD 6HE1 STD ENG(46L) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
