4-10 — FRONT AXLE (#12970) — 193 parça

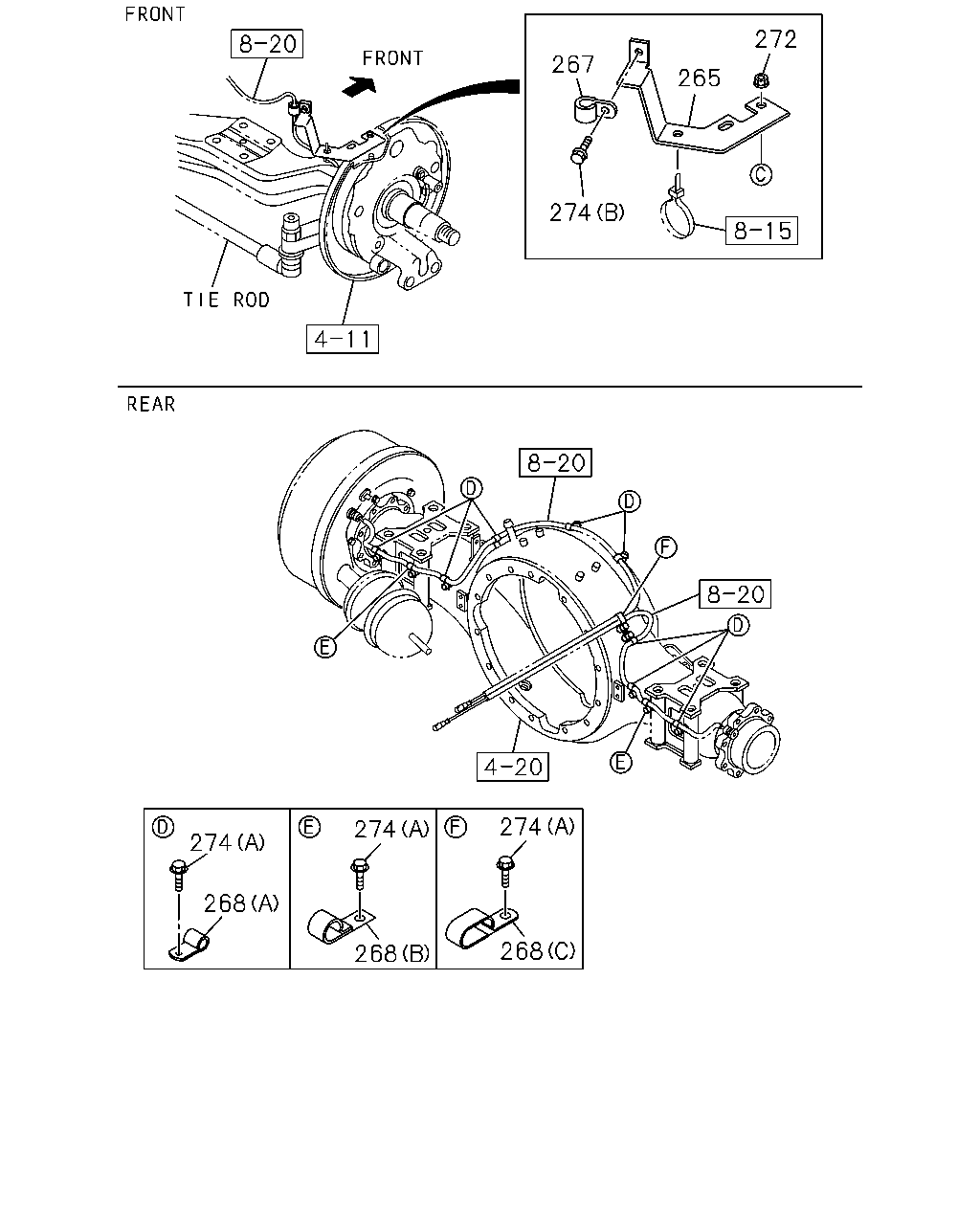

çizim 91801
272 267 265 274 274 274 274 268 268 268
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-505-0 01 1 0611-
265 BRACKET; CLIP I BEAM 1-82698-506-0 01 1 0611-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 0611-
268 CLIP; HARNESS
(A) ID=11 L=20 		0-95235-035-0 08 1 0611-
268 CLIP; HARNESS
(C) ID=11X2 L=20 		0-95325-035-0 01 1 0611-
268 CLIP; HARNESS
(B) ID=11 L=30 		1-09700-511-0 02 1 0611-
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 0611-
274 BOLT; CLIP
(A) M8X10 FLANGE 		0-28050-810-0 11 1 0611-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0611-

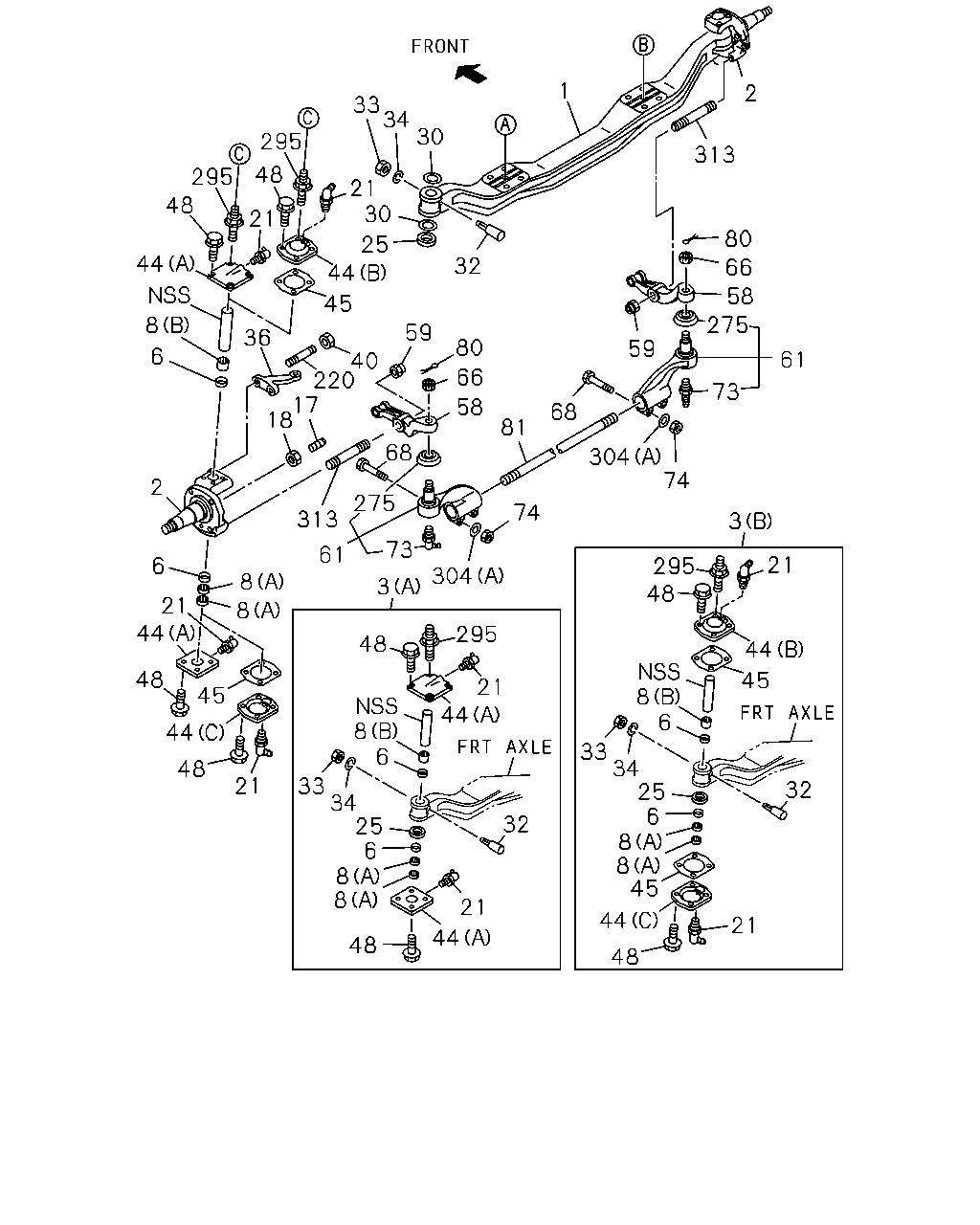

çizim 106438
1 2 33 34 30 295 313 295 21 30 48 48 21 80 25 44 32 66 44 58 275 45 36 8 59 80 59 6 61 40 220 17 18 66 73 58 68 81 68 304 74 2 275 74 313 3 73 61 21 6 295 48 304 8 3 21 44 8 295 48 44 8 6 48 45 21 44 45 8 6 44 33 34 25 6 8 8 45 48 32 21 33 34 25 6 8 8 32 44 21 44 21 48 48
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-170-2 01 1 0611-0805
1 AXLE; FRT 8-98116-056-4 01 1 0806-
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 0611-
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 0611-
3 KING PIN SET
(A) 		1-87831-111-7 02 1 0611-0801
3 KING PIN SET
(A) 		1-87831-349-2 02 1 0802-
3 KING PIN SET
(B) 		1-87831-349-0 02 1 0712-
6 SEAL; KING PIN 9-09926-024-0 04 1 0611-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0611-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0611-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0611-0705
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 0706-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 0611-
18 NUT; STOPPER BOLT,KNUCKLE
HEXAGON M18 		0-91110-518-0 02 1 0611-
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-1 01 1 0611-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0611-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0611-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0611-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0611-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0611-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0611-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0611-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0611-0704
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0705-
44 COVER; KING PIN
(C) 		8-98100-655-0 02 1 0802-
44 COVER; KING PIN
(A) 		1-43175-025-0 04 1 0611-0801
44 COVER; KING PIN
(B) 		8-98100-654-0 02 1 0802-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 0802-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 0611-
58 ARM; TIE ROD 1-43134-049-4 01 1 0611-
58 ARM; TIE ROD 1-43135-049-4 01 1 0611-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0611-0704
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0705-
61 ROD END; TIE ROD 1-43150-856-0 01 1 0611-1009
61 ROD END; TIE ROD 8-98105-073-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-100-0 01 1 1307-
61 ROD END; TIE ROD 1-43150-857-0 01 1 0611-1009
61 ROD END; TIE ROD 8-98105-074-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-101-0 01 1 1307-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0611-0805
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0611-0709
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 0710-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1010-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0611-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0611-
81 ROD; TIE 1-43151-154-0 01 1 0611-
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0611-0704
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 0705-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0611-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		1-09049-014-1 04 1 0611-0704
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 0705-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0611-0709
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0611-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-
313 STUD; TIE ROD ARM 1-09300-119-2 04 1 0611-0704
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 0705-

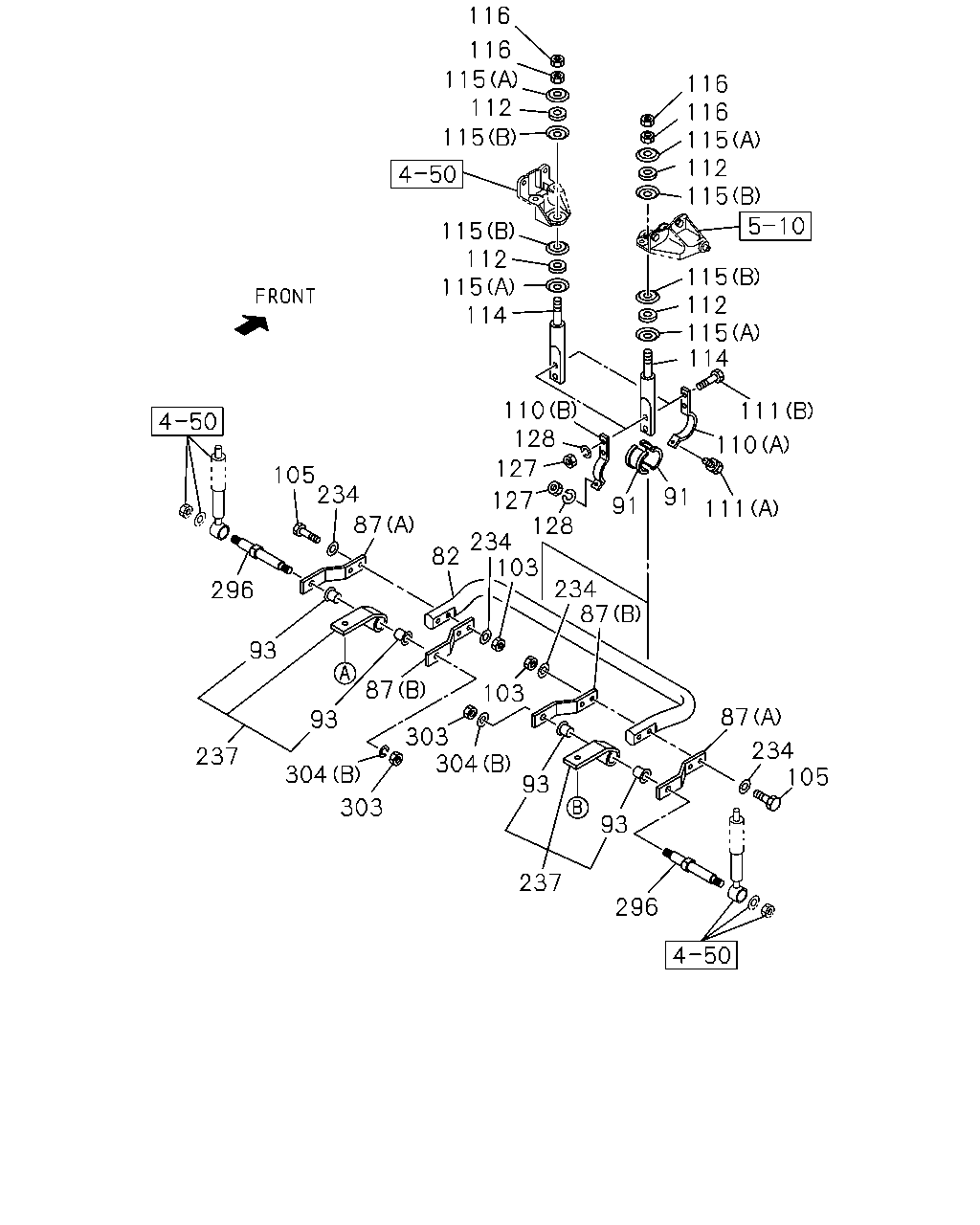

çizim 106440
116 116 115 112 116 116 115 112 115 115 115 112 115 114 115 112 115 114 110 128 111 110 127 105 234 91 127 128 91 111 87 234 82 103 234 87 296 93 87 103 87 93 303 304 234 105 237 304 3 303 93 237 296
BalonParca AdiParca NoAdetTipApplied Date
3 KING PIN SET
(A) 		1-87831-111-7 02 1 0611-0801
3 KING PIN SET
(A) 		1-87831-349-2 02 1 0802-
3 KING PIN SET
(B) 		1-87831-349-0 02 1 0712-
82 BAR; STAB,FRT SUSP 1-51771-136-1 01 1 0611-
87 BRACKET; STABILIZER
(A) 		1-51781-083-1 02 1 0611-0912
87 BRACKET; STABILIZER
(A) 		8-98012-958-0 02 1 1001-
87 BRACKET; STABILIZER
(B) 		1-51781-084-1 02 1 0611-0912
87 BRACKET; STABILIZER
(B) 		8-98012-959-0 02 1 1001-
91 BUSHING; RUBBER,STAB BAR 1-51779-087-1 04 1 0611-
93 BUSHING; STABILIZER 1-51689-015-3 04 1 0611-
103 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0611-
105 BOLT; BRKT FIX
M14X70 		9-91066-470-0 04 1 0611-0910
105 BOLT; BRKT FIX
M14X70 		0-10956-470-0 04 1 0911-
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 0611-
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 0611-
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20801-230-0 02 1 0611-0910
111 BOLT; CLAMP TO ROD
(A) M12X30 		0-20851-230-0 02 1 0911-
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20801-250-0 04 1 0611-0910
111 BOLT; CLAMP TO ROD
(B) M12X50 		0-20851-250-0 04 1 0911-
112 BUSHING; ROD 9-51631-039-0 04 1 0611-
114 ROD; STAB BAR 1-51773-072-2 02 1 0611-
115 WASHER; CENTER,STAB TO FRAME
(A) ID=16.5 		9-51631-040-0 04 1 0611-
115 WASHER; CENTER,STAB TO FRAME
(B) ID=20.8 		9-51631-041-0 04 1 0611-
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 0611-
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 0611-
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-512-0 06 1 0611-0912
128 WASHER; LK,CLAMP
ID=12.2 		0-91510-812-0 06 1 1001-
234 WASHER; STAB
ID=15 		9-09651-069-0 08 1 0611-0910
234 WASHER; STAB
ID=15 		8-98010-627-1 08 1 0911-
237 SUPPORT; STAB BAR 1-51681-662-0 02 1 0611-
296 PIN; STAB 1-51682-145-2 02 1 0611-0907
296 PIN; STAB 8-98022-874-1 02 1 0908-
303 NUT; PIN
M20 		0-91110-520-0 02 1 0611-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0611-0709
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0611-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-

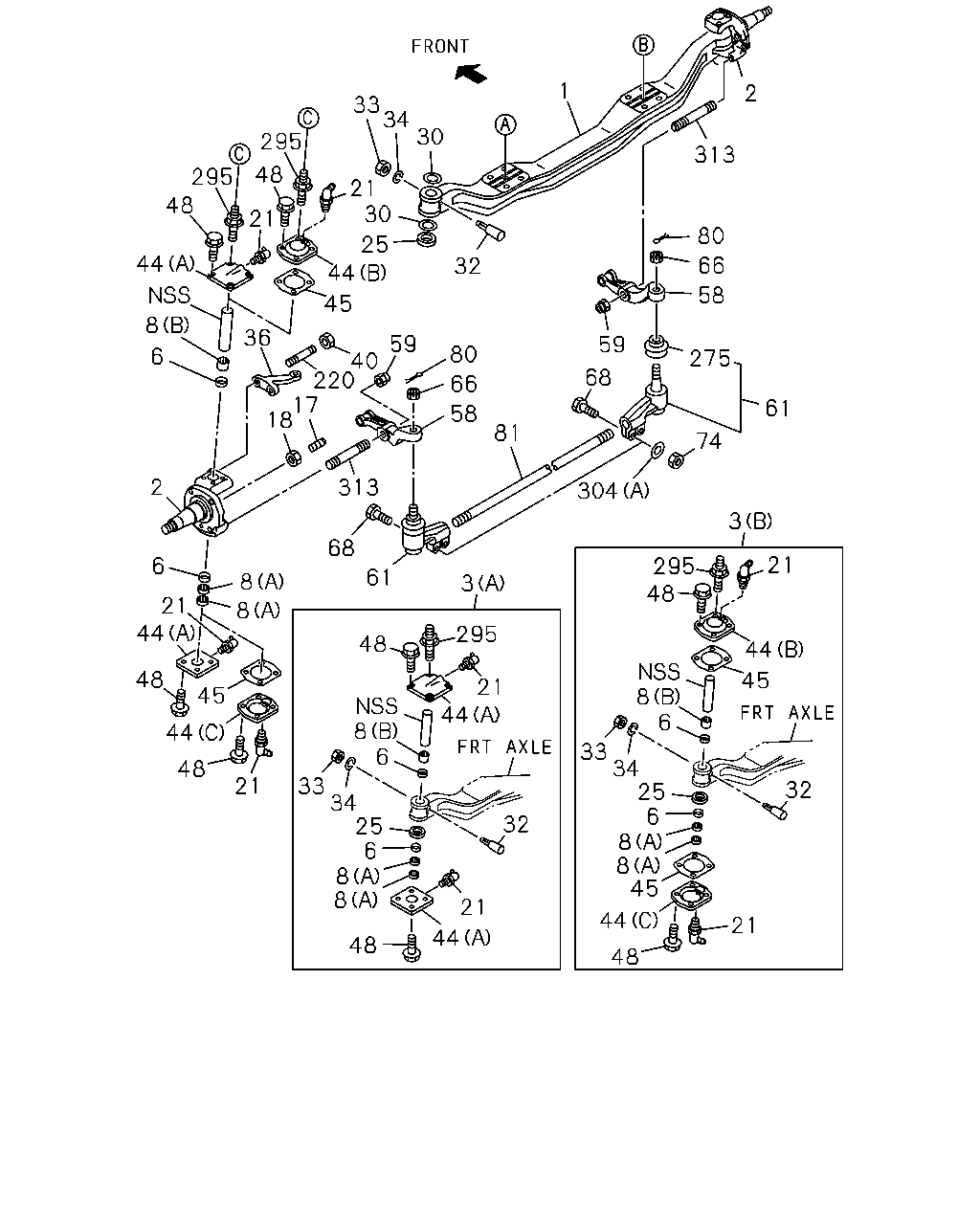

çizim 106441
1 2 33 34 30 295 313 295 21 30 48 48 21 80 25 44 66 32 44 58 45 36 8 59 59 80 6 275 40 220 17 18 68 66 61 58 81 74 2 313 304 3 68 21 6 295 48 61 8 3 21 44 8 295 48 44 8 6 48 45 21 44 45 8 6 44 33 34 25 6 8 8 45 48 32 21 33 34 25 6 8 8 32 44 21 44 21 48 48
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 1-43111-170-2 01 1 0611-0805
1 AXLE; FRT 8-98116-056-4 01 1 0806-
2 KNUCKLE; FRT AXLE 1-43131-120-1 01 1 0611-
2 KNUCKLE; FRT AXLE 1-43132-120-1 01 1 0611-
3 KING PIN SET
(A) 		1-87831-111-7 02 1 0611-0801
3 KING PIN SET
(A) 		1-87831-349-2 02 1 0802-
3 KING PIN SET
(B) 		1-87831-349-0 02 1 0712-
6 SEAL; KING PIN 9-09926-024-0 04 1 0611-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 0611-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 0611-
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-065-0 02 1 0611-0705
17 BOLT; STOPPER KNUCKLE
M18X43 		1-09009-190-0 02 1 0706-
17 BOLT; STOPPER KNUCKLE
M18X53 		1-09009-066-0 01 1 0611-
18 NUT; STOPPER BOLT,KNUCKLE
HEXAGON M18 		0-91110-518-0 02 1 0611-
18 NUT; STOPPER BOLT,KNUCKLE
OCTAGON M18 		1-09469-011-1 01 1 0611-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 0611-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 0611-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 0611-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 0611-
32 BOLT; KEY,KING PIN 1-43116-002-1 02 1 0611-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0611-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0611-
36 ARM; KNUCKLE 1-43133-083-3 01 1 0611-
40 NUT; KNUCKLE ARM
M22 		9-09844-670-1 02 1 0611-0704
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 0705-
44 COVER; KING PIN
(C) 		8-98100-655-0 02 1 0802-
44 COVER; KING PIN
(A) 		1-43175-025-0 04 1 0611-0801
44 COVER; KING PIN
(B) 		8-98100-654-0 02 1 0802-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 0802-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 0611-
58 ARM; TIE ROD 1-43134-049-4 01 1 0611-
58 ARM; TIE ROD 1-43135-049-4 01 1 0611-
59 NUT; TIE ROD ARM
M22 		9-09844-670-1 04 1 0611-0704
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 0705-
61 ROD END; TIE ROD 1-43150-856-0 01 1 0611-1009
61 ROD END; TIE ROD 8-98105-073-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-100-0 01 1 1307-
61 ROD END; TIE ROD 1-43150-857-0 01 1 0611-1009
61 ROD END; TIE ROD 8-98105-074-0 01 1 1010-1306
61 ROD END; TIE ROD 8-98228-101-0 01 1 1307-
66 NUT; TIE ROD END
M24 SLOTTED 		1-09442-020-0 02 1 0611-0805
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 0806-
68 BOLT; TIE ROD END
M12X65 		9-91061-265-0 04 1 0611-0709
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 0710-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 0611-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 0611-
81 ROD; TIE 1-43151-154-0 01 1 0611-
220 STUD; KNUCKLE ARM 1-09300-119-2 02 1 0611-0704
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 0705-
275 BOOT; ROD END,TIE 1-43159-107-0 02 1 0611-1009
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1010-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		1-09049-014-1 04 1 0611-0704
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 0705-
304 WASHER; PL
(A) ID=12.5 		9-09164-512-0 04 1 0611-0709
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 0710-
304 WASHER; PL
(B) ID=21 		9-09164-520-0 02 1 0611-0907
304 WASHER; PL
(B) ID=21 		0-91614-520-0 02 1 0908-
313 STUD; TIE ROD ARM 1-09300-119-2 04 1 0611-0704
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 0705-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
