◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#129640) — 18 parça

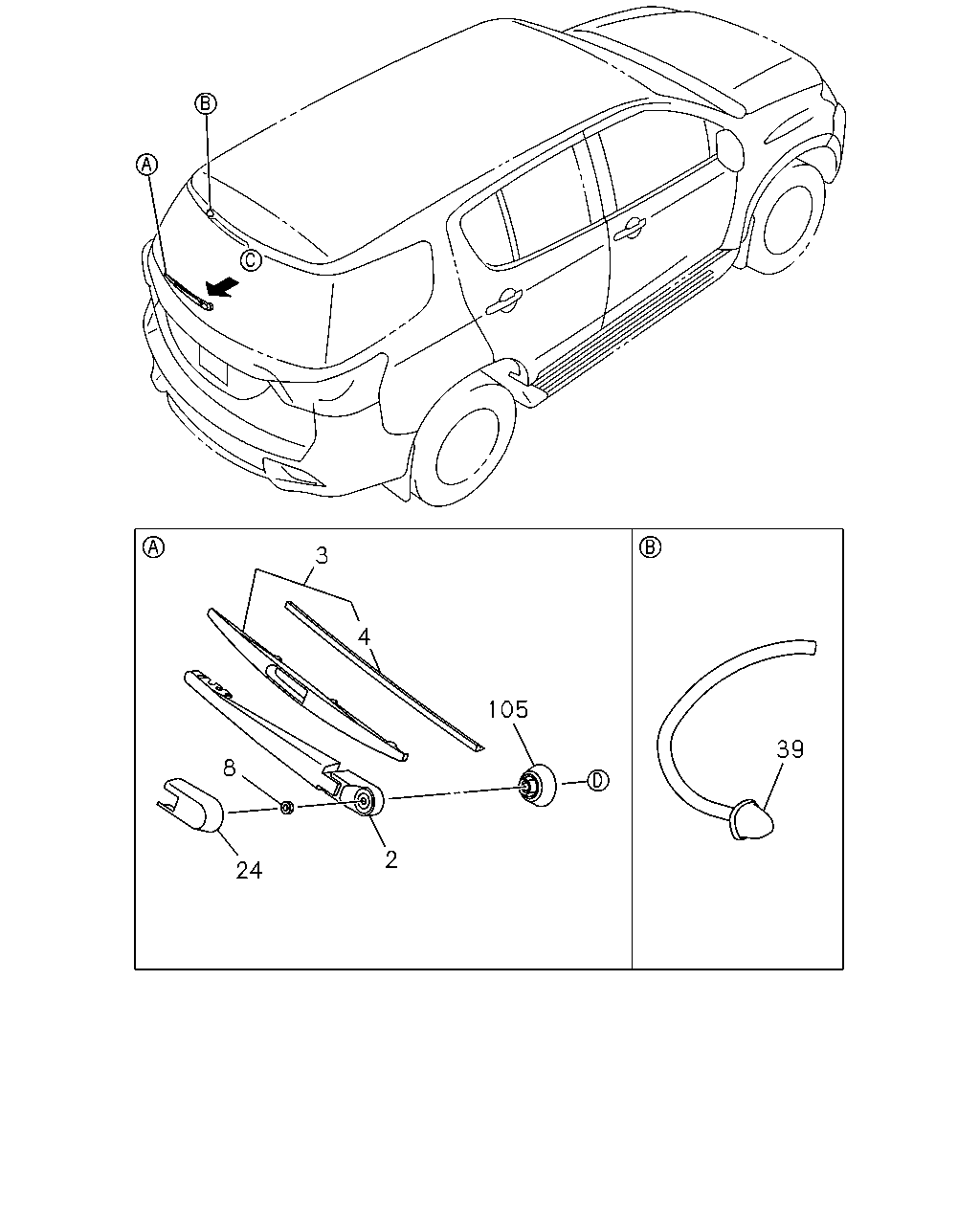

çizim 381577
3 4 105 2 24 8 39
BalonParca AdiParca NoAdetTipApplied Date A B
2 ARM ASM; REAR WIPER
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98222-258-0 01 1 1310- ●
2 ARM ASM; REAR WIPER
THA 		8-98222-258-0 01 1 1310- ●
3 BLADE ASM; REAR WIPER
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98222-259-0 01 1 1310- ●
3 BLADE ASM; REAR WIPER
THA 		8-98222-259-0 01 1 1310- ●
4 RUBBER; BLADE,RR WIPER
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98253-585-0 01 1 1310- ●
4 RUBBER; BLADE,RR WIPER
THA 		8-98253-585-0 01 1 1310- ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
RR WIPER W/INTERMITTENT<6WJ> M6 IMA 		0-91111-506-0 01 1 1310- ●
8 NUT; RR WIPER ARM TO WIPER MOTOR
M6 IMA 		0-91111-506-0 01 1 1310- ●
24 CAP; WASHER TANK,RR
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98210-717-0 01 1 1310- ●
24 CAP; WASHER TANK,RR
THA 		8-98210-717-0 01 1 1310- ●
39 NOZZLE; RR WINDSHIELD,WASHER
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98201-496-1 01 1 1310- ●
39 NOZZLE; RR WINDSHIELD,WASHER
THA 		8-98201-496-1 01 1 1310- ●
105 GROMMET; RR WIPER MOTOR
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98210-508-0 01 1 1310- ●
105 GROMMET; RR WIPER MOTOR
THA 		8-98210-508-0 01 1 1310- ●

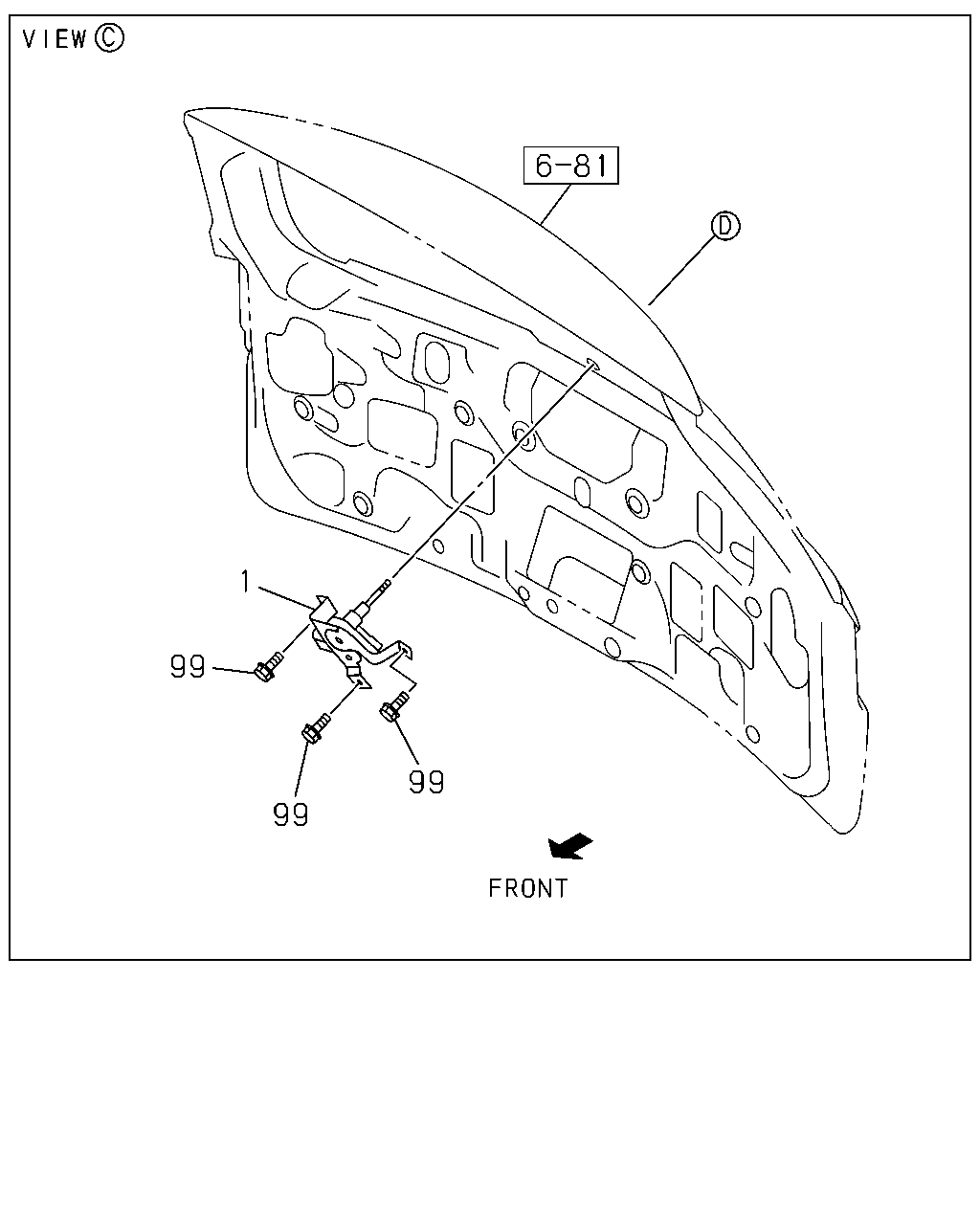

çizim 382019
99 99 99 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MOTOR ASM; RR WIPER
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98187-251-0 01 1 1310- ●
1 MOTOR ASM; RR WIPER
THA 		8-98187-251-0 01 1 1310- ●
99 BOLT; WIPER MOTOR
RR WIPER W/INTERMITTENT<6WJ> M6X23.5 W/LK&PL WASHER IMA 		8-98164-723-0 03 1 1310- ●
99 BOLT; WIPER MOTOR
M6X23.5 W/LK&PL WASHER IMA 		8-98164-723-0 03 1 1310- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
