11047 - EXR LHD EURO4 WITH 2STEPS
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#12964) — 51 parça
◀

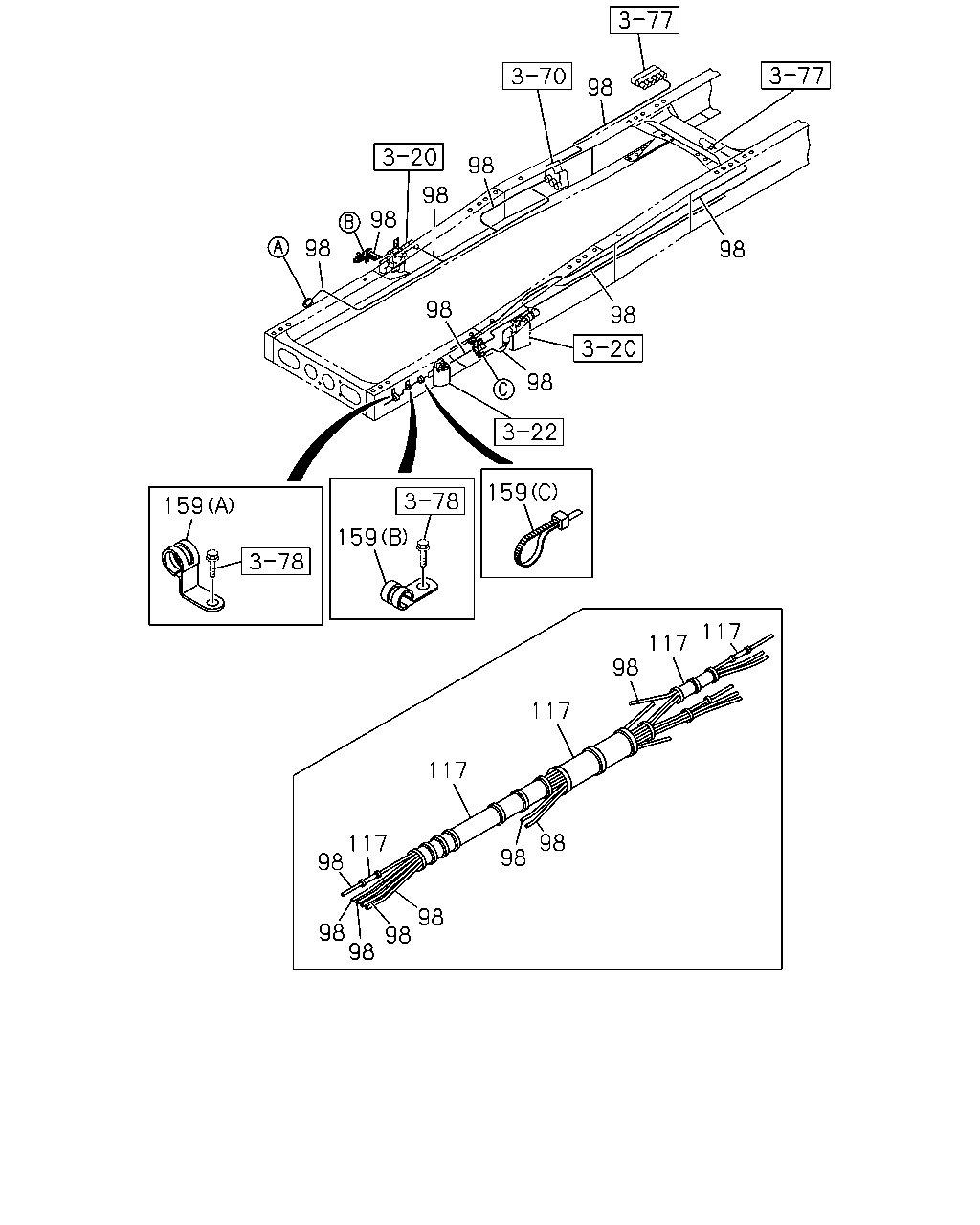

[375A] NO.1 (21 parça)

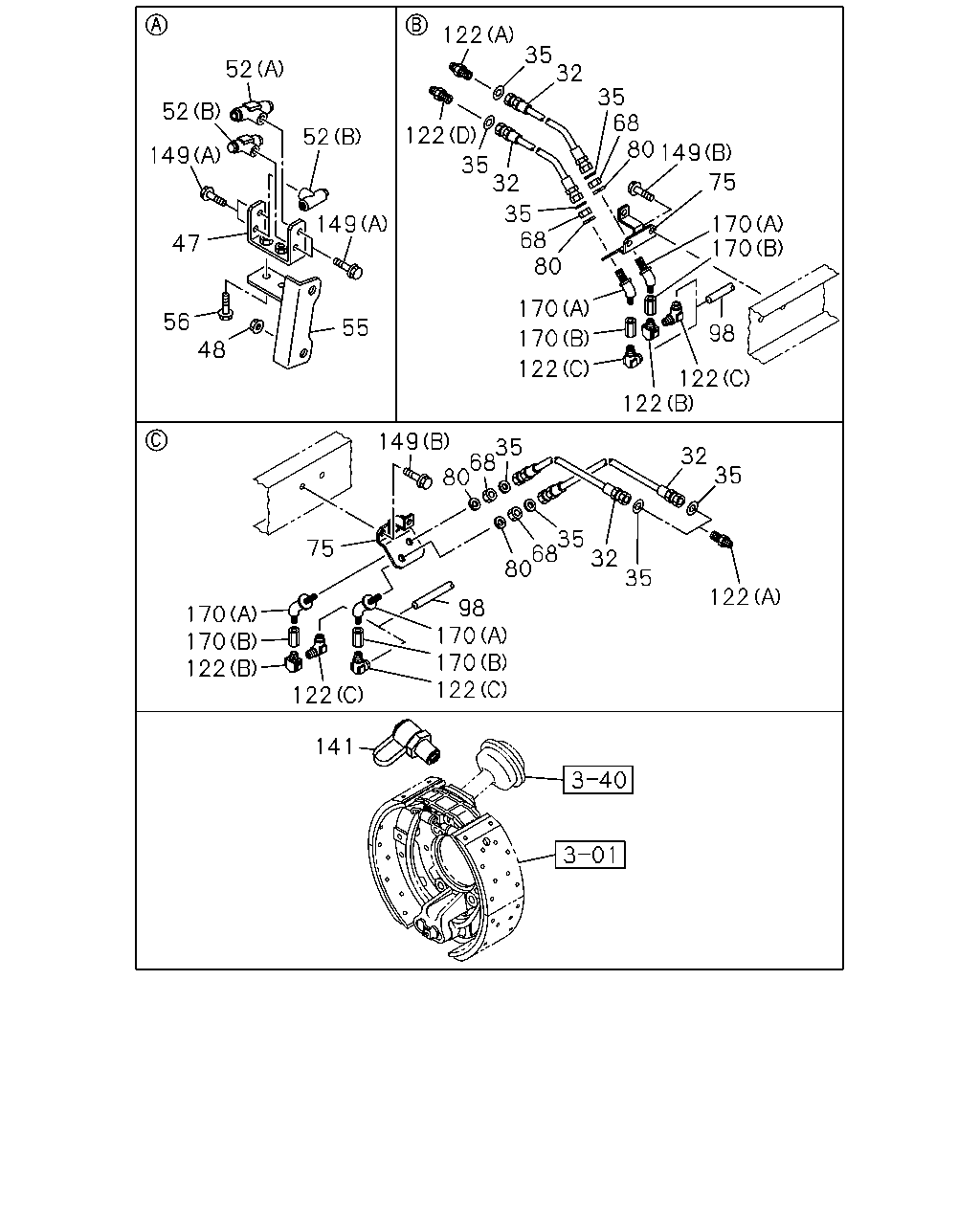

[375A] NO.2 (30 parça)
▶
98
98
98
98
98
98
98
98
98
159
159
159
117
117
98
117
117
98
117
98
98
98
98
98
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
L=200 OD=12
1-49222-062-0
02
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0611-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0611-
159
CLIP; NYLON TUBE
(A) ID=35 H=45 L=33
1-09700-947-0
01
1
0611-
159
CLIP; NYLON TUBE
(B) ID=35 L=33
1-09700-945-0
01
1
0611-
159
CLIP; NYLON TUBE
(A) ID=21 L=30 H=40
1-09700-991-1
02
1
0611-
159
CLIP; NYLON TUBE
(A) ID=31 H=30 L=35
1-09700-994-0
01
1
0611-
159
CLIP; NYLON TUBE
(A) ID=31.5 H=23 L=25
1-09701-017-0
01
1
0611-
159
CLIP; NYLON TUBE
(C) L=350
1-09707-183-0
24
1
0611-
122
35
32
52
35
68
80
149
52
122
52
149
35
32
75
35
68
80
149
170
170
47
170
56
48
55
98
170
122
122
122
149
35
68
80
32
35
35
68
32
80
35
75
122
98
170
170
122
170
170
122
122
141
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
HOSE; FLEX,FRT
0-87847-470-1
04
1
0611-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
08
1
0611-
47
BRACKET; PIPE UNION
1-47471-023-0
01
1
0611-
48
NUT; UNION BRKT
M12 FLANGE
0-91180-212-0
02
1
0611-
52
CONNECTOR; NYLON TUBE
(A)
1-09661-128-0
01
1
0611-
52
CONNECTOR; NYLON TUBE
(B) DIN8X2 & M8 2WAY
1-09661-133-0
03
1
0611-
55
BRACKET; TUBE UNION
1-47479-993-1
01
1
0611-
56
BOLT; UNION BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0611-
68
NUT; UNION
M20
0-91111-520-0
04
1
0611-
75
BRACKET; UNION
1-47471-367-0
01
1
0611-
75
BRACKET; UNION
1-47471-368-0
01
1
0611-
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
04
1
0611-
98
TUBE; NYLON
L=200 OD=12
1-49222-062-0
02
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0611-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0611-
122
CONNECTOR; FLEX HOSE
(B) PT3/8 ELBOW
1-09660-696-0
02
1
0611-
122
CONNECTOR; FLEX HOSE
(A) M20 & PT3/8
1-09660-731-1
03
1
0611-
122
CONNECTOR; FLEX HOSE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0611-
122
CONNECTOR; FLEX HOSE
(D) R3/8 & RC1/4 & M20 3WAY
1-09661-607-0
01
1
0611-
141
CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
01
1
0611-
149
BOLT; UNION
(A) M8X16 FLANGE
0-28050-816-0
04
1
0611-
149
BOLT; UNION
(B) M8X30 FLANGE
0-28650-830-0
04
1
0611-
170
UNION; FLARE
(A) M20
1-09654-199-2
04
1
0611-
170
UNION; FLARE
(B) M20 & RC3/8 STRAIGHT
1-09660-883-0
04
1
0611-
