◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#129638) — 16 parça

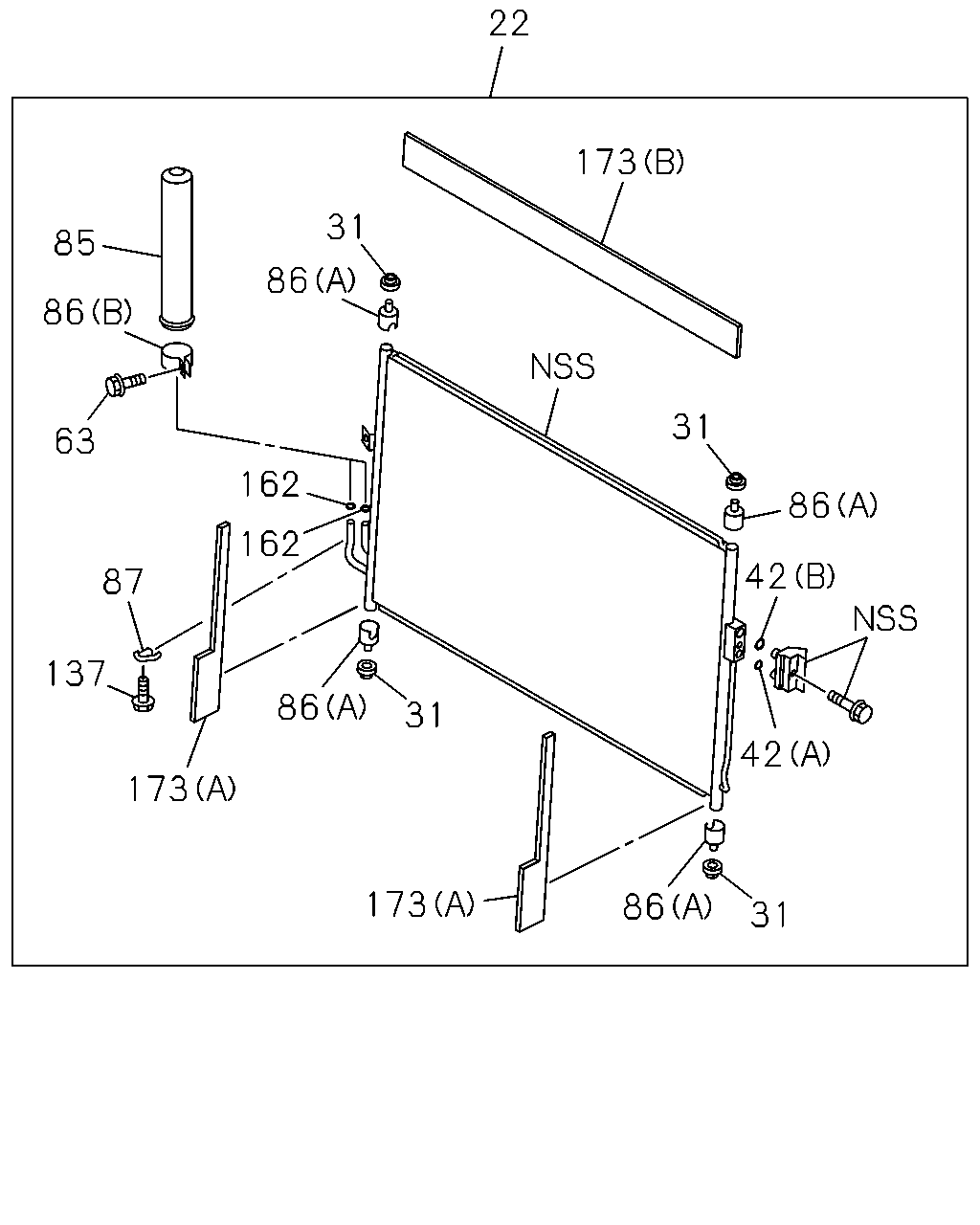

çizim 382333
22 173 31 86 42 42 31 86 173 173 86 31 162 162 87 137 86 31 85 86 63
BalonParca AdiParca NoAdetTipApplied Date A B
22 CONDENSER ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98235-191-0 01 1 1310- ●
22 CONDENSER ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98235-191-0 01 1 1310- ●
22 CONDENSER ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98052-634-3 01 1 1310- ●
31 RUBBER; MTG,CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98193-616-0 04 1 1310- ● ●
42 GASKET; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) ID=8 THA 		8-98193-614-0 01 1 1310- ● ●
42 GASKET; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) ID=12 THA 		8-98193-615-0 01 1 1310- ● ●
63 BOLT; RECEIVER TANK
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M5X16 THA 		8-98193-604-0 01 1 1310- ● ●
85 DRYER; RECEIVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-381-0 01 1 1310- ● ●
86 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98193-599-0 01 1 1310- ● ●
86 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98193-618-0 04 1 1310- ● ●
87 BRACKET; RECEIVER DRYER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98193-602-0 01 1 1310- ● ●
137 BOLT; BRKT,DRYER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X12 THA 		8-98193-603-0 01 1 1310- ● ●
162 GASKET; PIPE TO DRYER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> ID=8 THA 		8-98193-614-0 02 1 1310- ● ●
173 INSULATOR; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) THA 		8-98250-018-0 02 1 1310- ●
173 INSULATOR; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98250-018-0 02 1 1310- ●
173 INSULATOR; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98233-382-0 01 1 1310- ● ●
