8-73 — BLOWER UNIT (#129637) — 40 parça

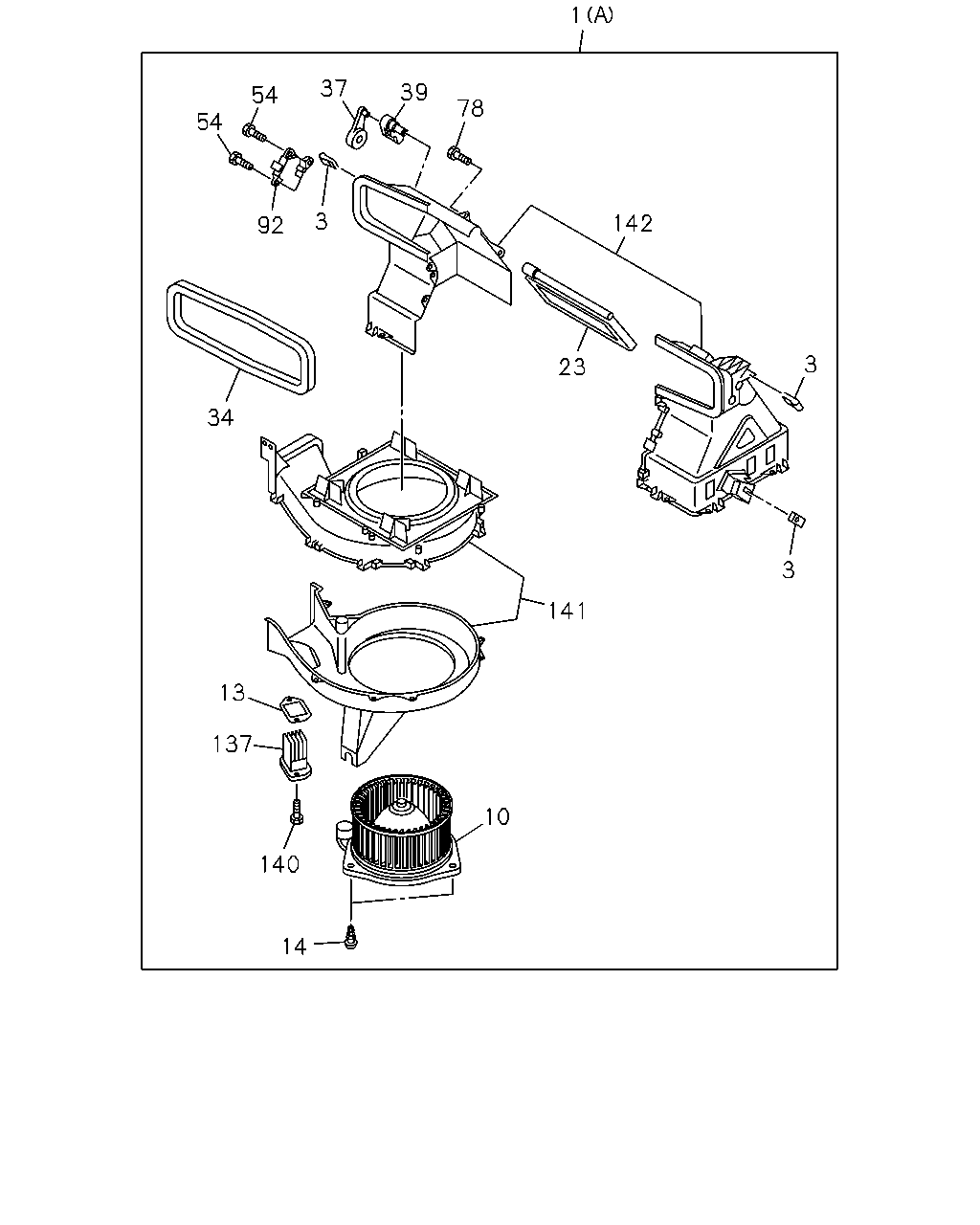

çizim 382296
1 142 3 3 23 141 10 14 140 137 13 34 92 3 37 39 78 54 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-041-1 01 1 1310- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-040-1 01 1 1310- ● ●
3 NUT; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-394-1 03 1 1310- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-427-0 01 1 1310- ● ●
13 LINING; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98157-116-1 01 1 1310- ● ●
14 SCREW; COVER TO CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 03 1 1310- ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-413-0 01 1 1310-1410 ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98294-586-0 01 1 1411- ● ●
34 LINING; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-426-1 01 1 1310- ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM<CJ2> THA 		8-98195-045-0 01 1 1310- ● ●
37 LEVER; MODE LEVER
COOLER W/FRESH AIR<C65> THA 		8-98139-417-0 01 1 1310- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-416-0 01 1 1310- ● ●
54 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-395-1 02 1 1310- ● ●
78 SCREW; CASE TO CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 01 1 1310- ● ●
92 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-424-0 01 1 1310- ● ●
137 MODULE ASM; BLOWER
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-431-1 01 1 1310- ● ●
140 SCREW; MODULE
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-421-0 02 1 1310- ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-641-0 01 1 1310- ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-640-0 01 1 1310- ● ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-643-0 01 1 1310- ● ●
142 CASE ASM
COOLER W/FRESH AIR<C65> THA 		8-98233-642-0 01 1 1310- ● ●

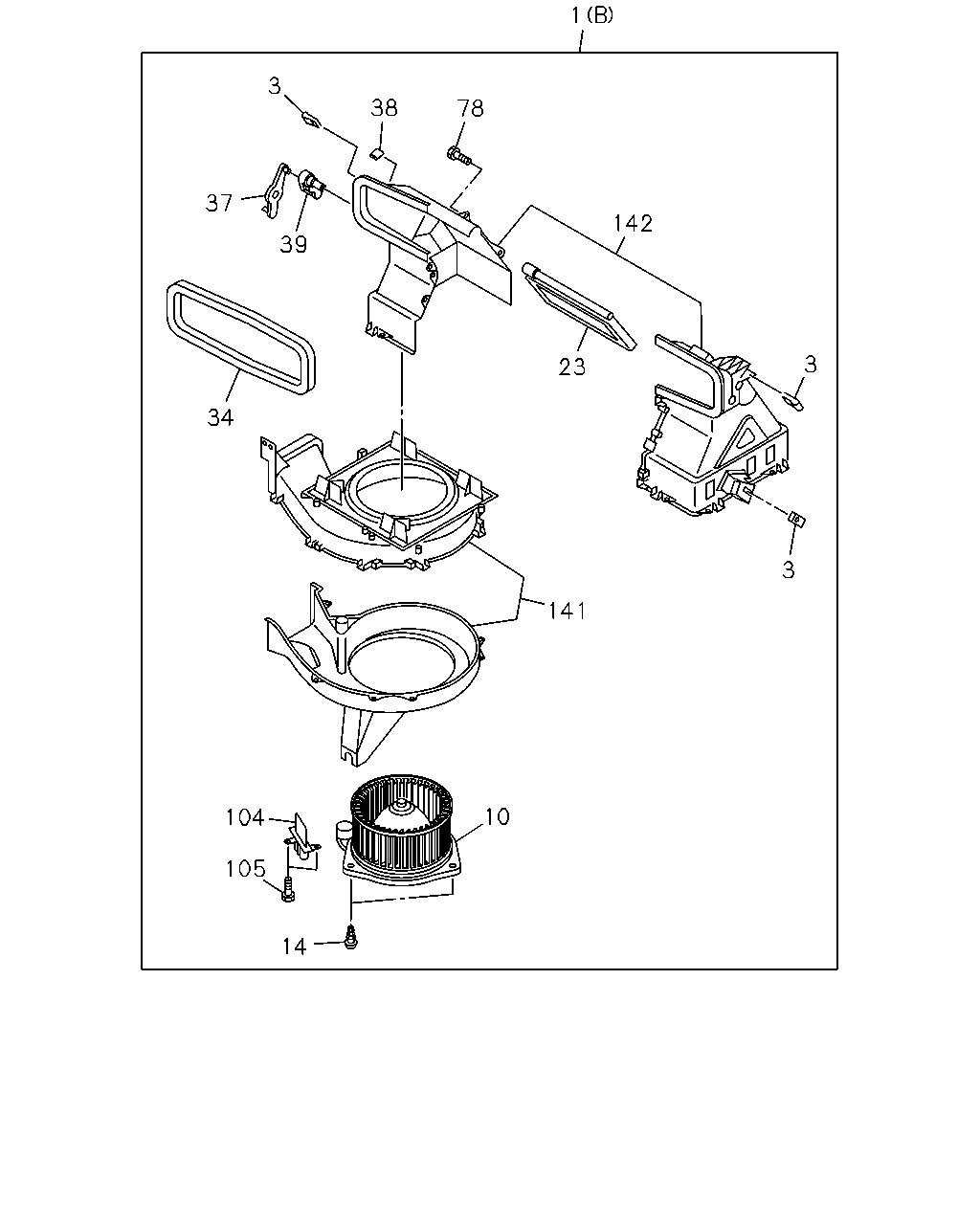

çizim 382297
14 10 141 3 3 23 142 1 78 38 3 37 39 34 104 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98233-041-1 01 1 1310- ● ●
1 BLOWER ASM
COOLER W/FRESH AIR<C65> (B) THA 		8-98233-040-1 01 1 1310- ● ●
3 NUT; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-394-1 03 1 1310- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-427-0 01 1 1310- ● ●
14 SCREW; COVER TO CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 03 1 1310- ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-413-0 01 1 1310-1410 ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98294-586-0 01 1 1411- ● ●
34 LINING; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-426-1 01 1 1310- ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM<CJ2> THA 		8-98195-045-0 01 1 1310- ● ●
37 LEVER; MODE LEVER
COOLER W/FRESH AIR<C65> THA 		8-98139-417-0 01 1 1310- ● ●
38 CLIP; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98139-422-1 01 1 1310- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-416-0 01 1 1310- ● ●
78 SCREW; CASE TO CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 01 1 1310- ● ●
104 RESISTOR; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98183-234-0 01 1 1310- ● ●
105 SCREW; RESISTOR
COOLER W/FRESH AIR<C65> THA 		8-98139-395-1 02 1 1310- ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-641-0 01 1 1310- ● ●
141 CASE ASM; BLOWER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-640-0 01 1 1310- ● ●
142 CASE ASM
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-643-0 01 1 1310- ● ●
142 CASE ASM
COOLER W/FRESH AIR<C65> THA 		8-98233-642-0 01 1 1310- ● ●
