8-72 — COOLER UNIT (#129636) — 58 parça

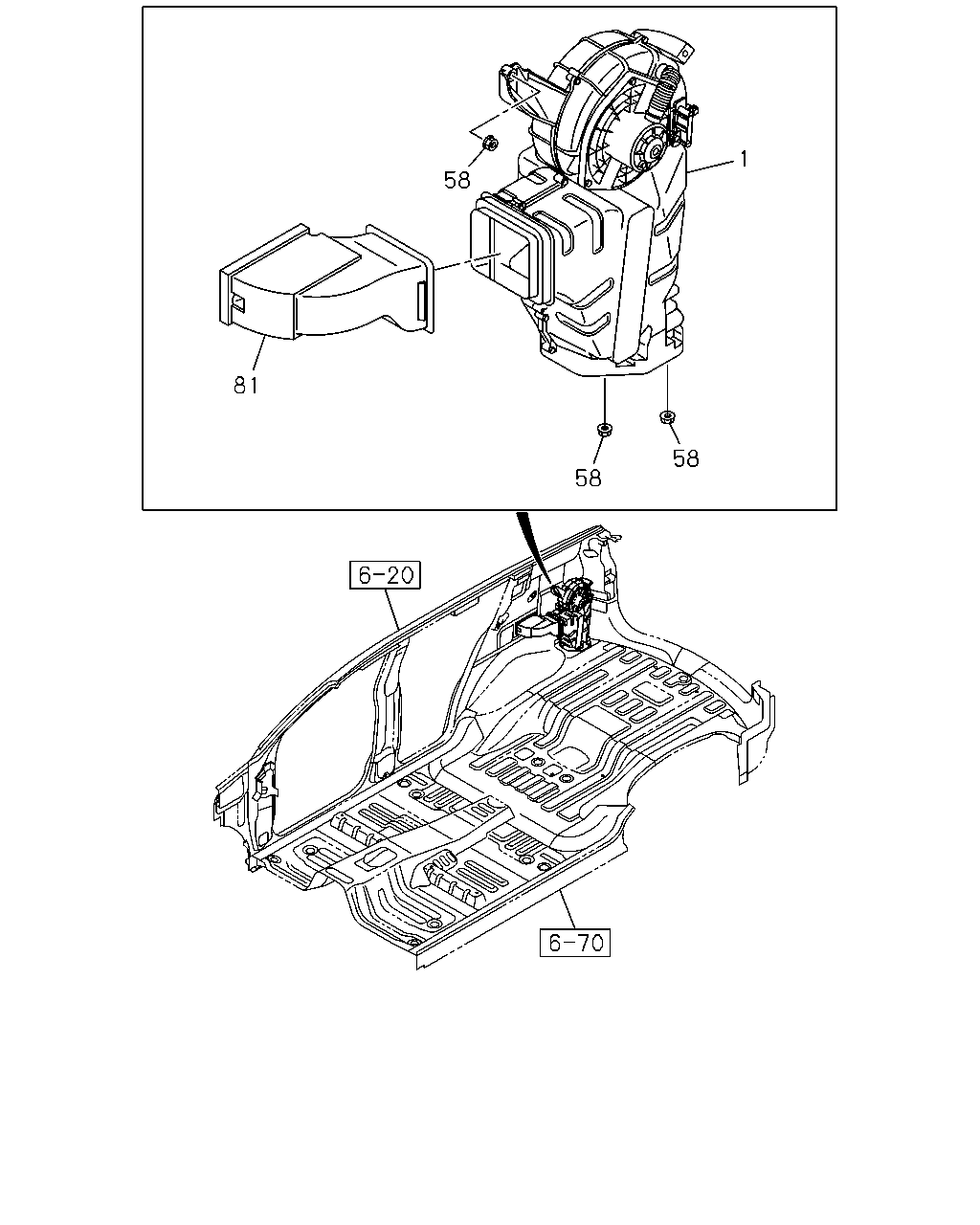

çizim 380714
81 58 58 58 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98192-297-3 01 1 1310- ●
1 COOLING UNIT; RR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98192-297-3 01 1 1310- ●
58 NUT; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> M6 FLANGE IMA 		8-98055-704-0 03 1 1310- ●
58 NUT; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6 FLANGE IMA 		8-98055-704-0 03 1 1310- ●
81 DUCT; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98192-306-1 01 1 1310- ●
81 DUCT; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98192-306-1 01 1 1310- ●

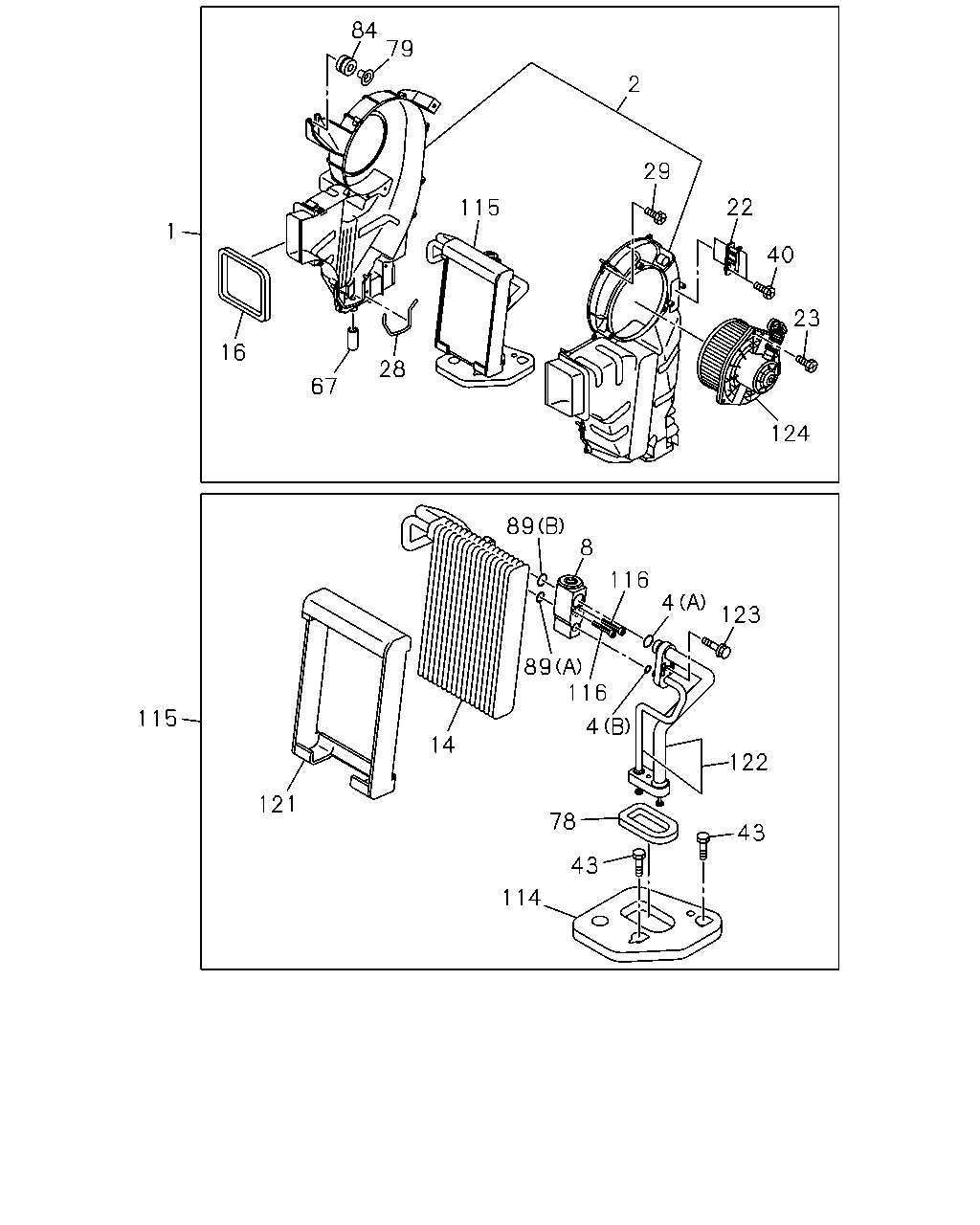

çizim 382129
115 121 14 114 78 43 122 123 4 116 8 89 4 116 89 124 23 40 22 29 2 115 28 67 16 1 84 79 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 COOLING UNIT; RR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98192-297-3 01 1 1310- ●
1 COOLING UNIT; RR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98192-297-3 01 1 1310- ●
2 CASE; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-810-0 01 1 1310- ●
2 CASE; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-810-0 01 1 1310- ●
4 GASKET; VLV TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) ID=13.6 THA 		8-98249-825-0 01 1 1310- ●
4 GASKET; VLV TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) ID=13.6 THA 		8-98249-825-0 01 1 1310- ●
4 GASKET; VLV TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) ID=6.8 THA 		8-98249-826-0 01 1 1310- ●
4 GASKET; VLV TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) ID=6.8 THA 		8-98249-826-0 01 1 1310- ●
8 VALVE; EXPANSION
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-821-0 01 1 1310- ●
8 VALVE; EXPANSION
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-821-0 01 1 1310- ●
14 EVAPORATOR; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-820-0 01 1 1310- ●
14 EVAPORATOR; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-820-0 01 1 1310- ●
16 LINING; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-817-0 01 1 1310- ●
16 LINING; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-817-0 01 1 1310- ●
22 RESISTOR; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-97321-273-0 01 1 1310- ●
22 RESISTOR; RR COOLER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-97321-273-0 01 1 1310- ●
23 SCREW; CASE TO MOTOR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-818-0 03 1 1310- ●
23 SCREW; CASE TO MOTOR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-818-0 03 1 1310- ●
28 LINING; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-815-0 01 1 1310- ●
28 LINING; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-815-0 01 1 1310- ●
29 SCREW; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-818-0 13 1 1310- ●
29 SCREW; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-818-0 13 1 1310- ●
40 SCREW; RESISTOR FIX,COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-818-0 02 1 1310- ●
40 SCREW; RESISTOR FIX,COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-818-0 02 1 1310- ●
43 BOLT; COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-830-0 02 1 1310- ●
43 BOLT; COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-830-0 02 1 1310- ●
67 HOSE; DRAIN
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-814-0 01 1 1310- ●
67 HOSE; DRAIN
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-814-0 01 1 1310- ●
78 GROMMET; COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-827-0 01 1 1310- ●
78 GROMMET; COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-827-0 01 1 1310- ●
79 COLLAR; COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-813-0 01 1 1310- ●
79 COLLAR; COOLER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-813-0 01 1 1310- ●
84 RUBBER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-812-0 01 1 1310- ●
84 RUBBER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-812-0 01 1 1310- ●
89 GASKET; EVAP TO VLV
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) ID=10.7 THA 		8-98249-823-0 01 1 1310- ●
89 GASKET; EVAP TO VLV
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) ID=10.7 THA 		8-98249-823-0 01 1 1310- ●
89 GASKET; EVAP TO VLV
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) ID=14.3 THA 		8-98249-824-0 01 1 1310- ●
89 GASKET; EVAP TO VLV
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) ID=14.3 THA 		8-98249-824-0 01 1 1310- ●
114 SEAL; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-816-0 01 1 1310- ●
114 SEAL; CASE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-816-0 01 1 1310- ●
115 EVAPORATOR ASM; COOLING UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-819-0 01 1 1310- ●
115 EVAPORATOR ASM; COOLING UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-819-0 01 1 1310- ●
116 BOLT; EXPANSION VALVE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-822-0 02 1 1310- ●
116 BOLT; EXPANSION VALVE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-822-0 02 1 1310- ●
121 INSULATOR; EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98251-842-0 01 1 1310- ●
121 INSULATOR; EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98251-842-0 01 1 1310- ●
122 PIPE ASM; EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98251-843-0 01 1 1310- ●
122 PIPE ASM; EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98251-843-0 01 1 1310- ●
123 SCREW
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-828-0 01 1 1310- ●
123 SCREW
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-828-0 01 1 1310- ●
124 BLOWER ASM
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98249-829-0 01 1 1310- ●
124 BLOWER ASM
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98249-829-0 01 1 1310- ●
