◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#129635) — 11 parça

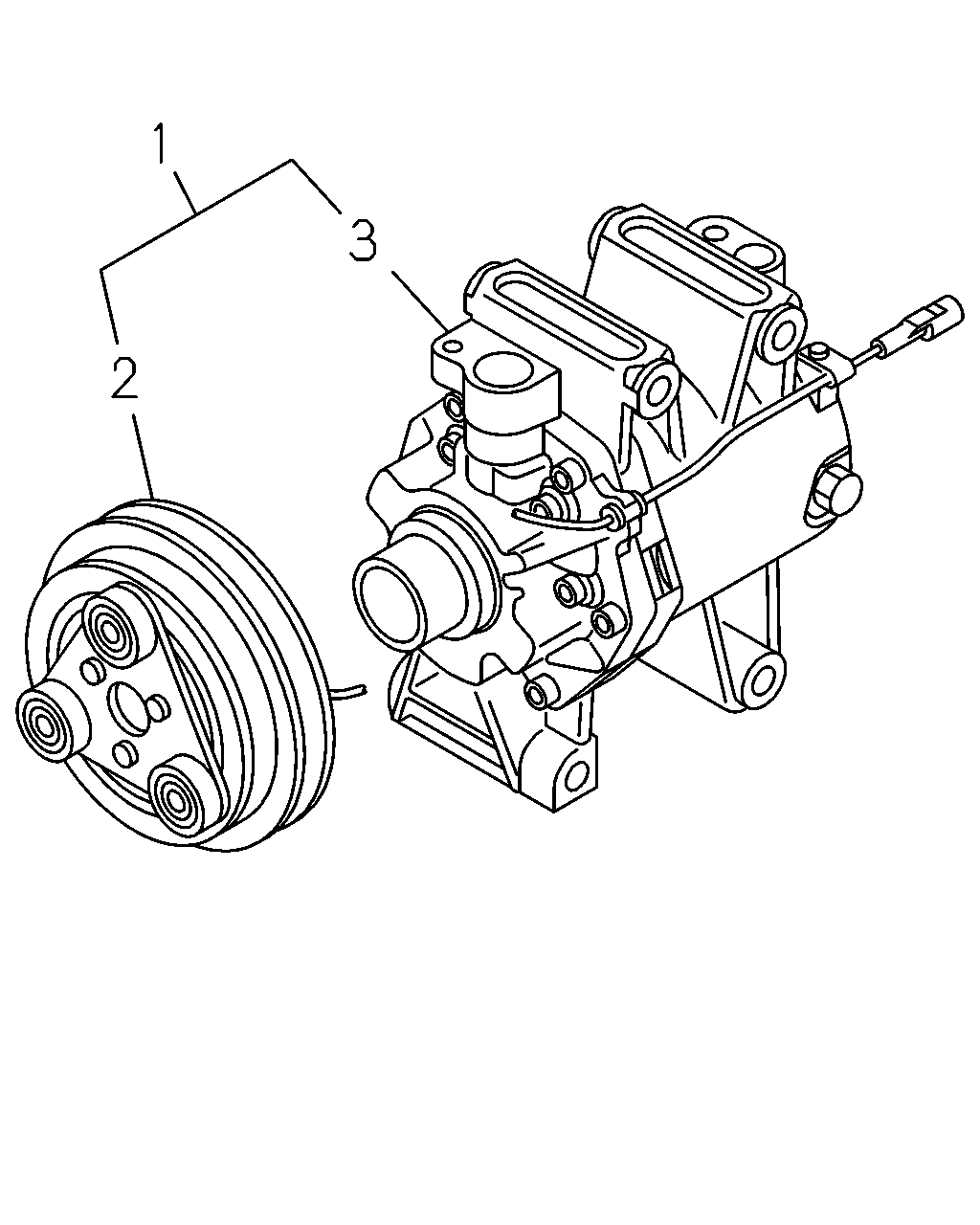

çizim 382128
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98251-192-0 01 1 1310- ●
1 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98251-192-0 01 1 1310- ●
1 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98199-293-1 01 1 1310- ●
2 CLUTCH; MAGNET,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98252-777-0 01 1 1403- ●
2 CLUTCH; MAGNET,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-97372-920-0 01 1 1310-1402 ● ●
2 CLUTCH; MAGNET,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-97372-920-0 01 1 1403- ●
2 CLUTCH; MAGNET,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-97372-920-0 01 1 1403- ●
3 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98252-180-0 01 1 1310- ●
3 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98252-180-0 01 1 1310- ●
3 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98204-876-0 01 1 1310-1402 ●
3 COMPRESSOR ASM; A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98258-534-0 01 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
