Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

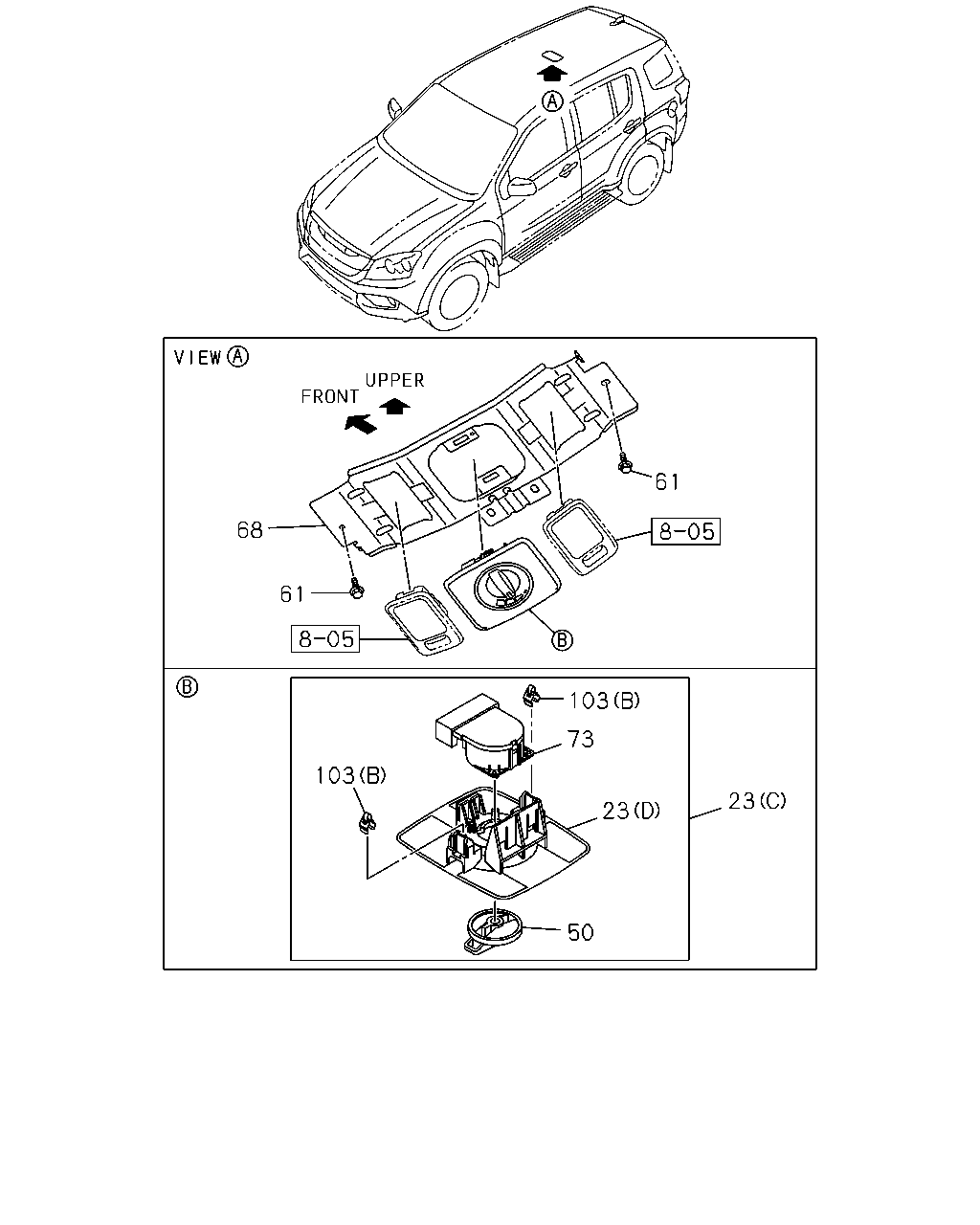

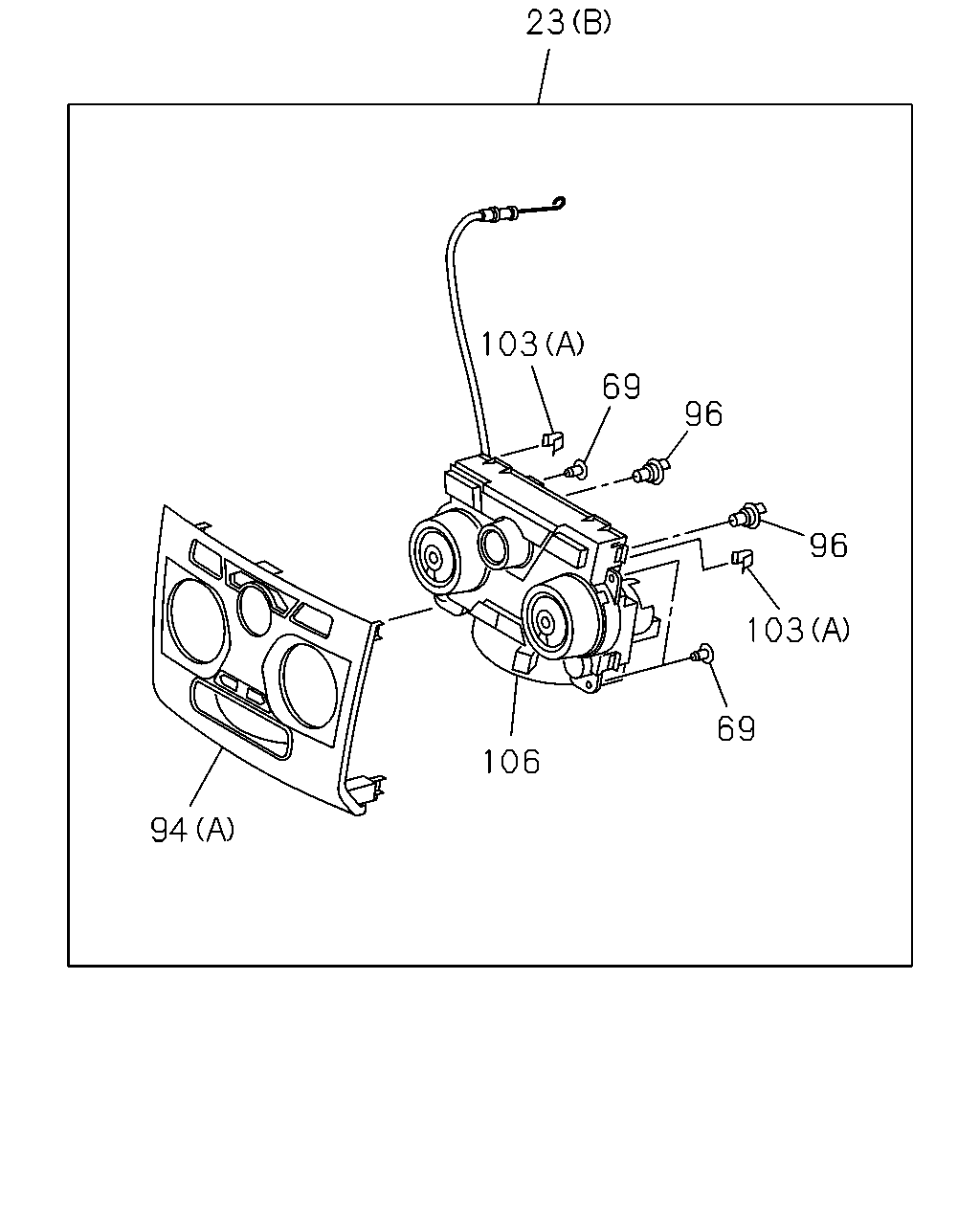

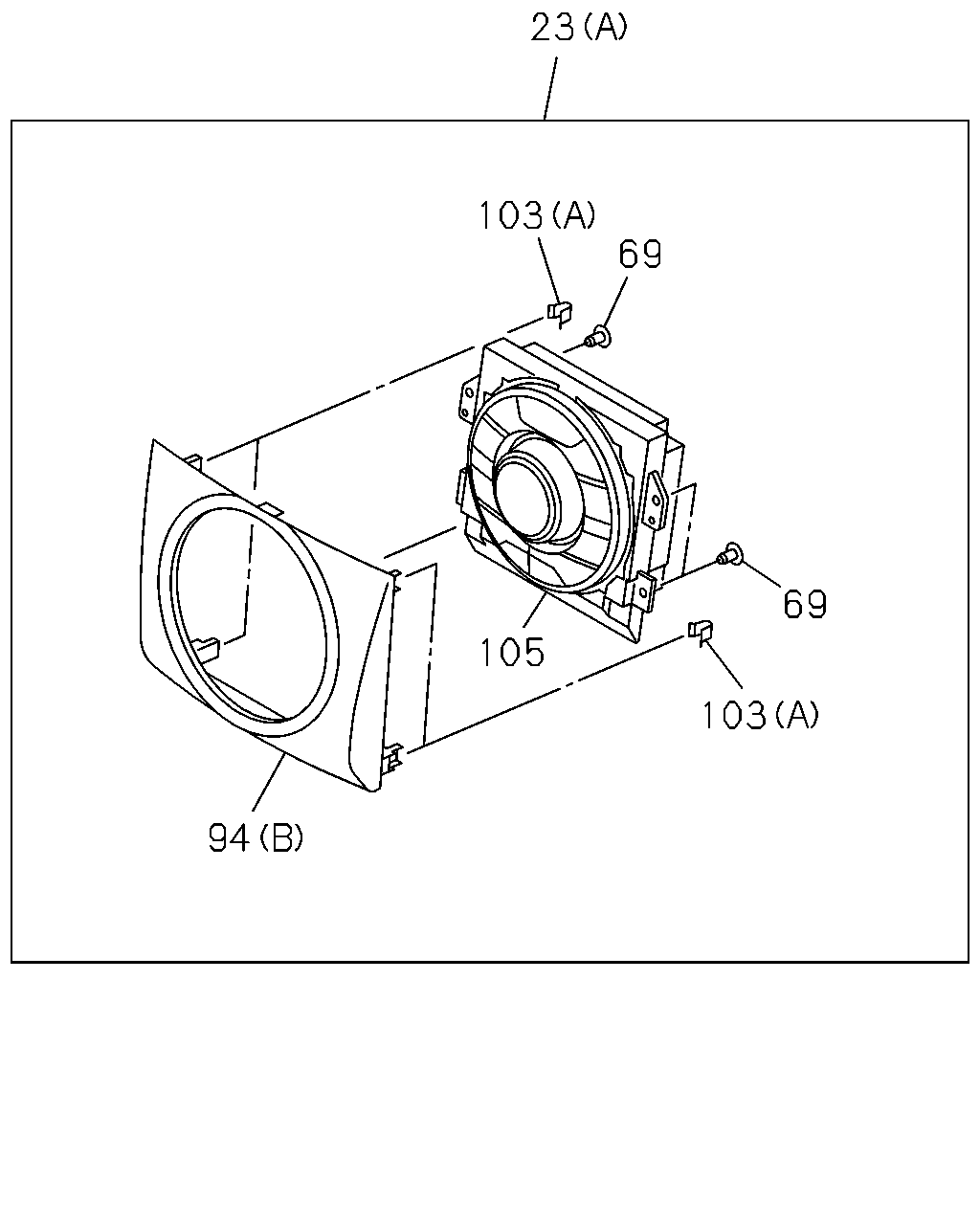

8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#129634) — 46 parça
Tümü
A - UCB5VC
B - UCS5VC
◀
[865A] COOLER W/FRESH AIR (16 parça)
[865A] REAR COOLER CONTROL (16 parça)
[865A] AUTO COOLER SYSTEM (14 parça)
▶
69
103
96
96
69
103
23
106
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (D) THA
8-98250-024-0
01
1
1310-
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (D) THA
8-98250-024-0
01
1
1310-
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> (B) THA
8-98052-641-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA
8-98166-353-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (C) THA
8-98198-067-0
01
1
1310-
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) THA
8-98198-067-0
01
1
1310-
●
69
SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M4X10 TAPPING THA
8-98164-986-0
04
1
1310-
●
●
94
PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA
8-98164-668-0
01
1
1310-
●
●
94
PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> (B) THA
8-98141-789-0
01
1
1310-
●
●
96
BULB ASM; BEZEL
COOLER W/FRESH AIR<C65> THA
8-98156-188-0
02
1
1310-
●
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) THA
8-97386-832-0
02
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA
8-97386-832-0
02
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA
8-98164-677-0
04
1
1310-
●
●
106
CONTROL SUB ASM; HTR & A/C
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> THA
8-98142-039-0
01
1
1310-
●
●
106
CONTROL SUB ASM; HTR & A/C
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> THA
8-98142-033-0
01
1
1310-
●
●
61
23
23
73
103
50
103
61
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (D) THA
8-98250-024-0
01
1
1310-
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (D) THA
8-98250-024-0
01
1
1310-
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> (B) THA
8-98052-641-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA
8-98166-353-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (C) THA
8-98198-067-0
01
1
1310-
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) THA
8-98198-067-0
01
1
1310-
●
50
KNOB; CONT PANEL
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA
8-98250-549-0
01
1
1310-
●
50
KNOB; CONT PANEL
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA
8-98250-549-0
01
1
1310-
●
61
BOLT; CONT LEVER
M6X16 FLANGE THA
0-28650-616-0
02
1
1310-
●
●
68
BRACKET; BEZEL
THA
8-98198-068-0
01
1
1310-
●
●
73
SWITCH; FAN,CONT PANEL
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA
8-97386-830-0
01
1
1310-
●
73
SWITCH; FAN,CONT PANEL
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA
8-97386-830-0
01
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) THA
8-97386-832-0
02
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA
8-97386-832-0
02
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA
8-98164-677-0
04
1
1310-
●
●
23
103
69
69
103
105
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (D) THA
8-98250-024-0
01
1
1310-
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (D) THA
8-98250-024-0
01
1
1310-
●
23
BEZEL; CONT LEVER
COOLER W/FRESH AIR<C65> EXC. KNOB DECORATION W/CHROME RING<BY9> (B) THA
8-98052-641-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
KNOB DECORATION W/CHROME RING<BY9> COOLER W/FRESH AIR<C65> (B) THA
8-98103-517-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2> (A) THA
8-98166-353-4
01
1
1310-
●
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (C) THA
8-98198-067-0
01
1
1310-
●
23
BEZEL; CONT LEVER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) THA
8-98198-067-0
01
1
1310-
●
69
SCREW; BEZEL BRKT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M4X10 TAPPING THA
8-98164-986-0
04
1
1310-
●
●
94
PANEL; BEZEL
COOLER W/FRESH AIR<C65> (A) THA
8-98164-668-0
01
1
1310-
●
●
94
PANEL; BEZEL
AUTO COOLER SYSTEM<CJ2> (B) THA
8-98141-789-0
01
1
1310-
●
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) THA
8-97386-832-0
02
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA
8-97386-832-0
02
1
1310-
●
103
CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA
8-98164-677-0
04
1
1310-
●
●
105
SWITCH ASM; A/C
AUTO COOLER SYSTEM<CJ2> THA
8-98168-138-0
01
1
1310-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
