8-60 — HEATER UNIT; FRONT (#129633) — 52 parça

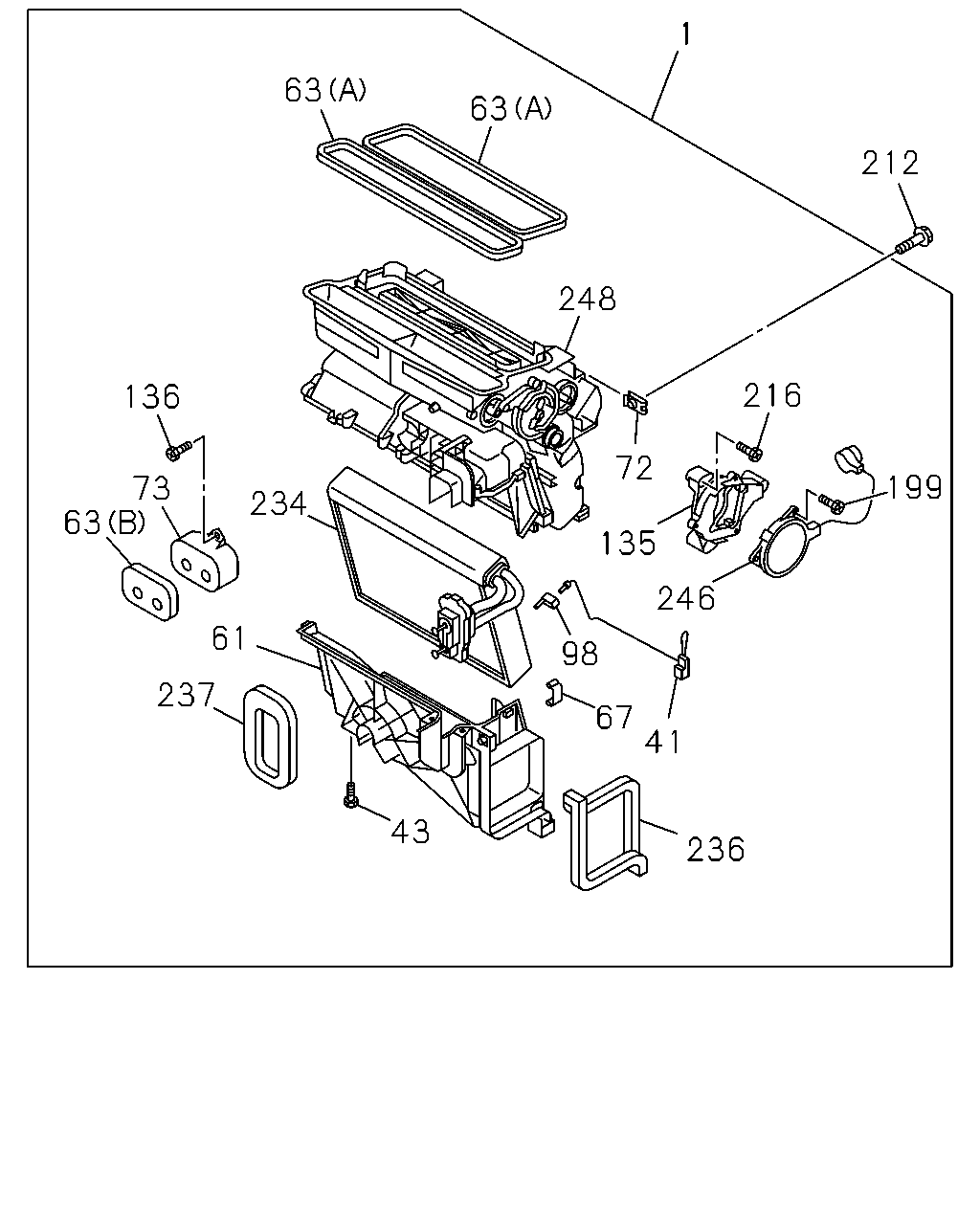

çizim 381827
1 212 199 216 72 135 246 248 63 63 136 73 63 234 61 237 43 67 98 41 236
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-035-1 01 1 1310- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-025-1 01 1 1310- ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1310- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1310- ● ●
43 SCREW; CASE,HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 15 1 1310- ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-572-0 01 1 1310- ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1310- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1310- ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98157-118-1 01 1 1310- ● ●
67 CLIP; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98157-123-0 01 1 1310- ● ●
72 NUT; CASE,HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-394-1 03 1 1310- ● ●
73 PLATE; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-591-0 01 1 1310- ● ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98157-122-0 01 1 1310- ● ●
135 COVER; HTR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1310- ● ●
136 SCREW; PLATE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 02 1 1310- ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-593-0 02 1 1310- ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ●
212 BOLT; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X20 FLANGE THA 		0-28650-620-0 05 1 1310- ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-376-1 01 1 1310- ● ●
236 GASKET; HEATER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-357-0 01 1 1310- ● ●
237 INSULATOR; EVAPORATOR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-360-1 01 1 1310- ● ●
246 ACTUATOR; MODE
COOLER W/FRESH AIR<C65> THA 		8-98139-397-1 01 1 1310- ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-570-0 01 1 1310- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-564-0 01 1 1310- ● ●

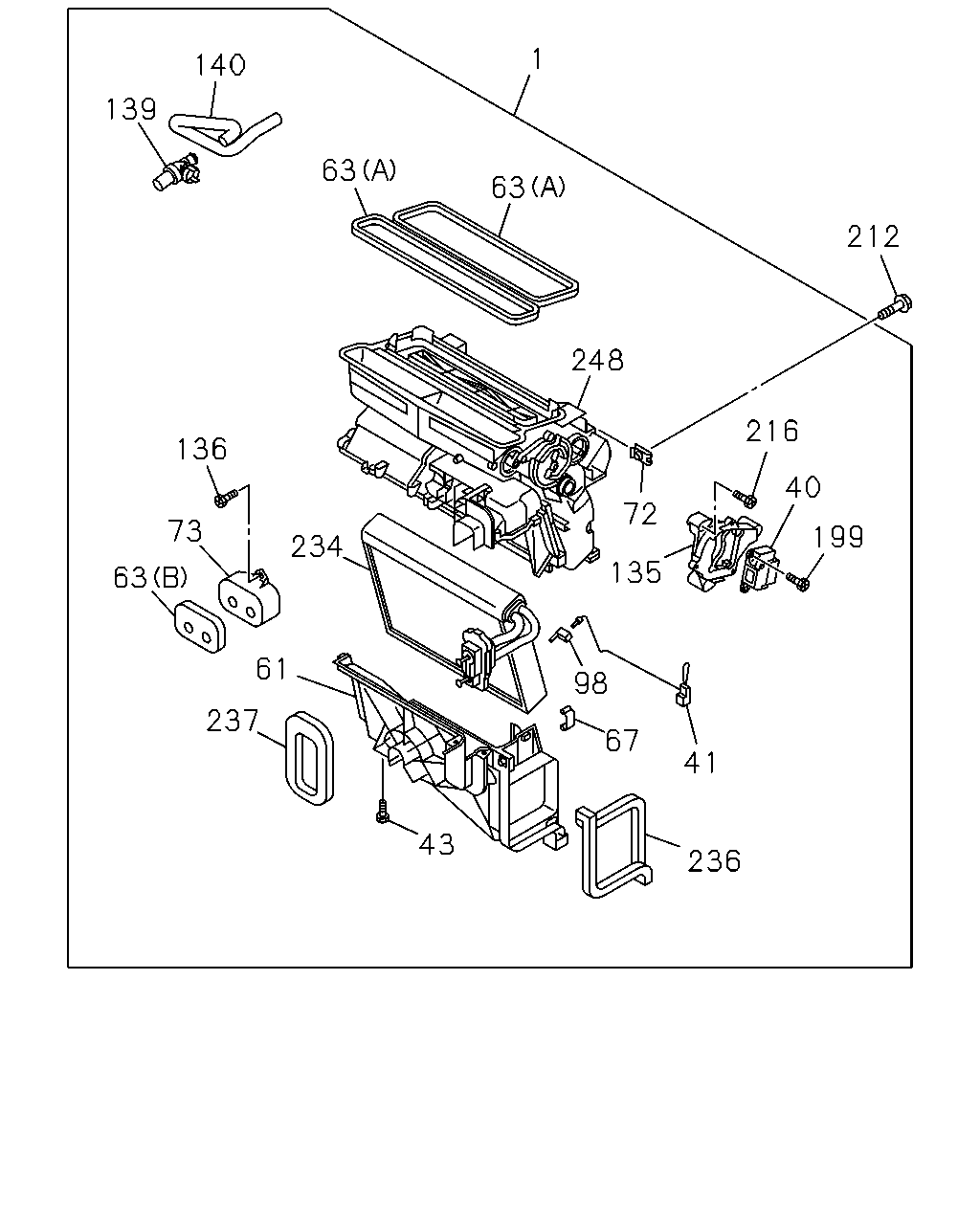

çizim 382357
1 140 139 63 63 212 248 216 40 199 72 135 41 236 43 67 98 234 61 237 63 73 136
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-035-1 01 1 1310- ● ●
1 HEATER UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-025-1 01 1 1310- ● ●
40 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-385-0 01 1 1310- ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-382-0 01 1 1310- ● ●
41 THERMOSTAT; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98157-121-0 01 1 1310- ● ●
43 SCREW; CASE,HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 15 1 1310- ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-572-0 01 1 1310- ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2> (A) THA 		8-98139-358-0 02 1 1310- ● ●
63 LINING; HTR UNIT
COOLER W/FRESH AIR<C65> (A) THA 		8-98139-358-0 01 1 1310- ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98157-118-1 01 1 1310- ● ●
67 CLIP; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98157-123-0 01 1 1310- ● ●
72 NUT; CASE,HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-394-1 03 1 1310- ● ●
73 PLATE; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-591-0 01 1 1310- ● ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98157-122-0 01 1 1310- ● ●
135 COVER; HTR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-377-0 01 1 1310- ● ●
136 SCREW; PLATE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 02 1 1310- ● ●
139 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-392-1 01 1 1310- ● ●
140 HOSE; AIR
AUTO COOLER SYSTEM<CJ2> THA 		8-98139-393-1 01 1 1310- ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-593-0 02 1 1310- ● ●
199 SCREW; ACTUATOR
COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ●
212 BOLT; HTR UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X20 FLANGE THA 		0-28650-620-0 05 1 1310- ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98233-593-0 03 1 1310- ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-376-1 01 1 1310- ● ●
236 GASKET; HEATER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-357-0 01 1 1310- ● ●
237 INSULATOR; EVAPORATOR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98139-360-1 01 1 1310- ● ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM<CJ2> THA 		8-98233-570-0 01 1 1310- ● ●
248 CASE ASM; HTR UNIT
COOLER W/FRESH AIR<C65> THA 		8-98233-564-0 01 1 1310- ● ●
