◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#129632) — 87 parça

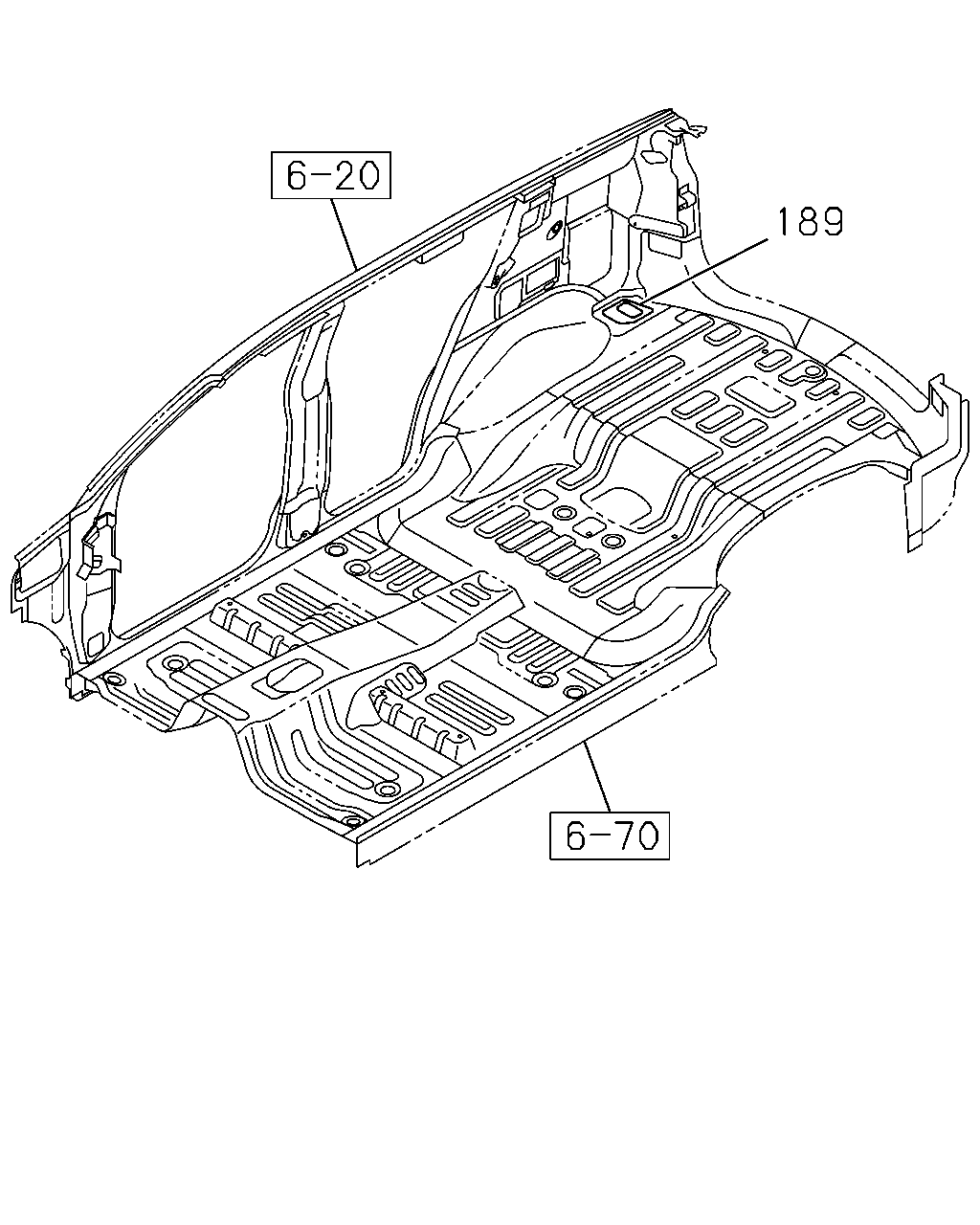

çizim 381043
189
BalonParca AdiParca NoAdetTipApplied Date A B
189 GROMMET
EXC. REAR COOLER WO/HEATER<C69> THA 		8-98192-298-0 01 1 1310- ●

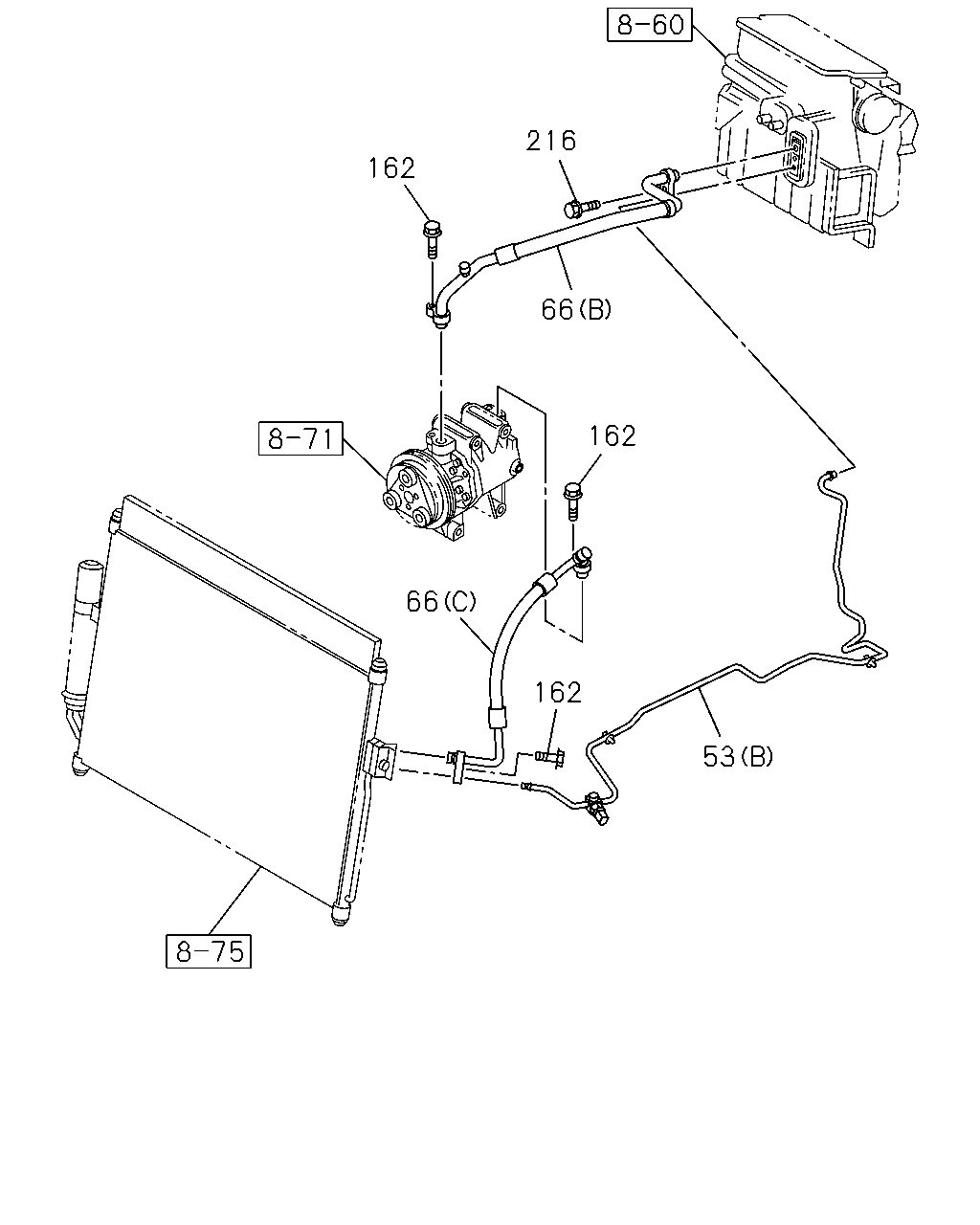

çizim 382013
216 162 66 162 66 162 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE THA 		8-98129-150-4 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) HIGH PRESSURE THA 		8-98129-345-1 01 1 1310- ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE THA 		8-98102-233-3 01 1 1310- ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M8X25 FLANGE THA 		0-28650-825-0 03 1 1310- ● ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X20 FLANGE THA 		0-28650-620-0 01 1 1310- ● ●
çizim 382190
123 146 146 122 123 202 67 147 67 66 53 66 67 67 147
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE THA 		8-98129-150-4 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) HIGH PRESSURE THA 		8-98129-345-1 01 1 1310- ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE THA 		8-98102-233-3 01 1 1310- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (D) SCAL THA 		8-97919-270-0 01 1 1310- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (D) SCAL THA 		8-97919-270-0 01 1 1310- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98164-687-0 01 1 1310- ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) THA 		8-98164-688-0 01 1 1310- ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98193-624-0 02 1 1310- ● ●
122 GASKET
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98164-690-0 01 1 1310- ● ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98164-689-0 03 1 1310- ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98164-689-0 03 1 1310- ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98164-689-0 02 1 1310- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) THA 		8-97370-357-0 01 1 1310- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-97370-357-0 01 1 1310- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98193-622-0 02 1 1310- ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98193-623-0 01 1 1310- ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98193-625-0 01 1 1310- ● ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98164-691-0 01 1 1310- ● ●

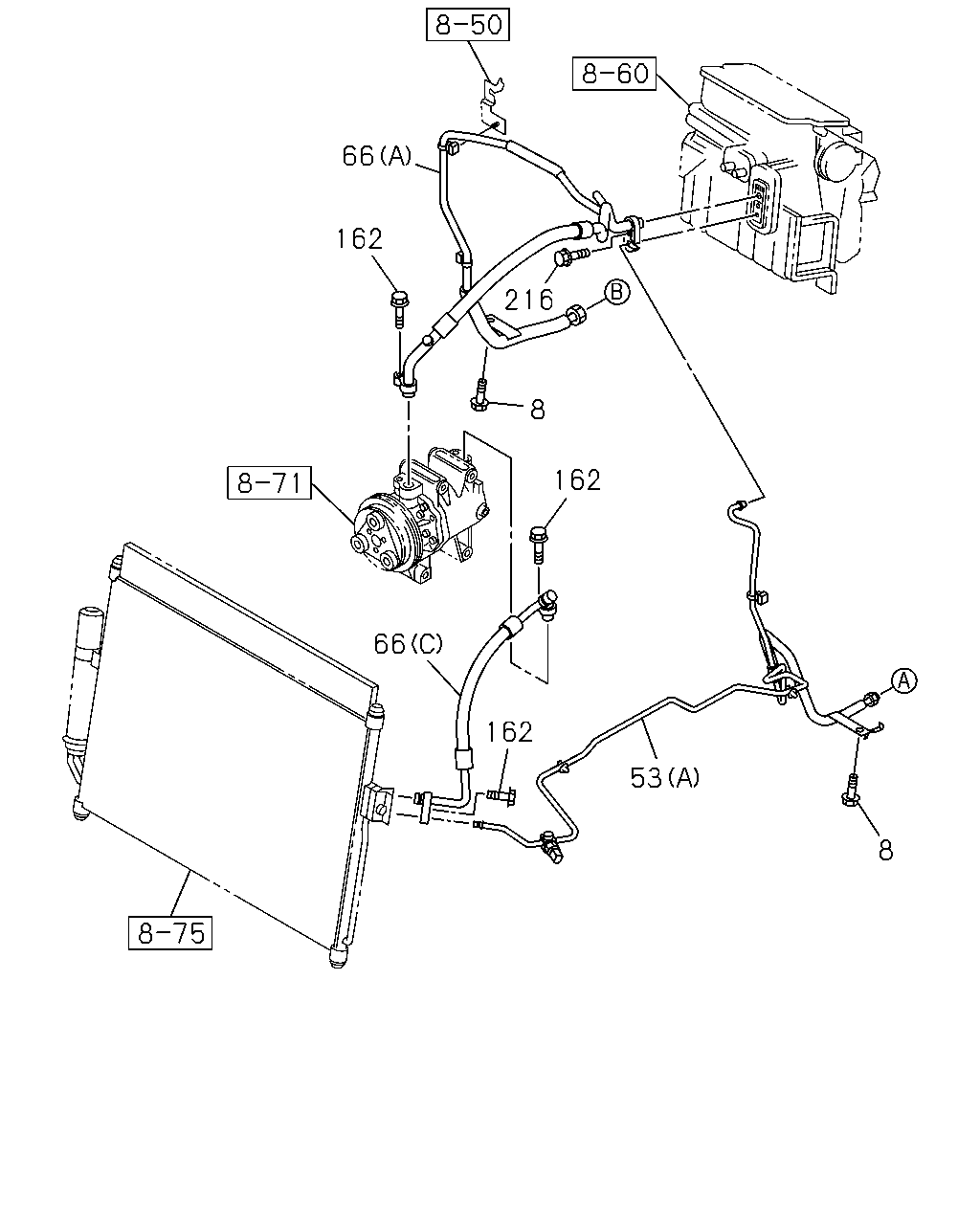

çizim 382220
66 162 216 8 53 8 162 66 162
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> M6X20 FLANGE THA 		0-28650-620-0 10 1 1310- ●
8 BOLT; CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X20 FLANGE THA 		0-28650-620-0 10 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE THA 		8-98129-150-4 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) HIGH PRESSURE THA 		8-98129-345-1 01 1 1310- ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE THA 		8-98102-233-3 01 1 1310- ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M8X25 FLANGE THA 		0-28650-825-0 03 1 1310- ● ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X20 FLANGE THA 		0-28650-620-0 01 1 1310- ● ●

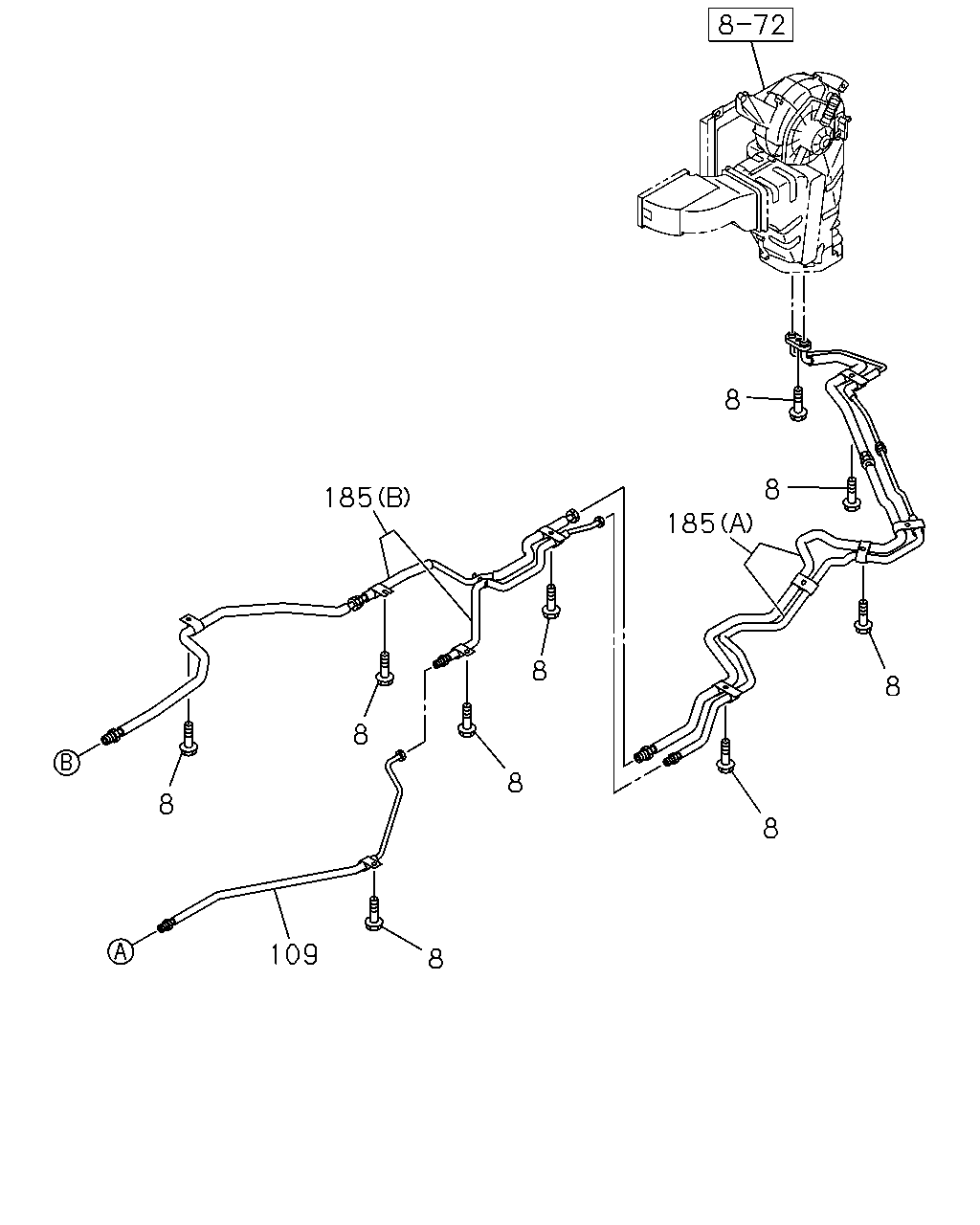

çizim 382221
8 8 8 8 8 185 8 8 109 8 185 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> M6X20 FLANGE THA 		0-28650-620-0 10 1 1310- ●
8 BOLT; CLIP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X20 FLANGE THA 		0-28650-620-0 10 1 1310- ●
109 PIPE; PIPE TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98197-727-0 01 1 1310- ●
109 PIPE; PIPE TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98197-727-0 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) THA 		8-98197-725-1 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98197-725-1 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) THA 		8-98197-726-1 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98197-726-1 01 1 1310- ●
çizim 382222
146 123 123 146 146 202 67 150 150 67 147 67 67 66 66 53 123 122 147 67
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) HIGH PRESSURE THA 		8-98197-724-1 01 1 1310- ●
53 PIPE; RECEIVER TANK TO EVAP
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE THA 		8-98129-150-4 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) LOW PRESSURE THA 		8-98197-721-1 01 1 1310- ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) HIGH PRESSURE THA 		8-98129-345-1 01 1 1310- ● ●
66 HOSE; FLEX,A/C
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE THA 		8-98102-233-3 01 1 1310- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (D) SCAL THA 		8-97919-270-0 01 1 1310- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (D) SCAL THA 		8-97919-270-0 01 1 1310- ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98164-687-0 01 1 1310- ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) THA 		8-98164-688-0 01 1 1310- ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98193-624-0 02 1 1310- ● ●
122 GASKET
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98164-690-0 01 1 1310- ● ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98164-689-0 03 1 1310- ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98164-689-0 03 1 1310- ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> EXC. REAR COOLER WO/HEATER<C69> THA 		8-98164-689-0 02 1 1310- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) THA 		8-97370-357-0 01 1 1310- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-97370-357-0 01 1 1310- ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98193-622-0 02 1 1310- ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98193-623-0 01 1 1310- ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98193-625-0 01 1 1310- ● ●
150 CLIP; HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-97370-357-0 02 1 1310- ●
150 CLIP; HOSE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-97370-357-0 02 1 1310- ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98164-691-0 01 1 1310- ● ●
çizim 382260
116 116 116 116 116 116 116 116 185 185 109
BalonParca AdiParca NoAdetTipApplied Date A B
109 PIPE; PIPE TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> THA 		8-98197-727-0 01 1 1310- ●
109 PIPE; PIPE TO PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98197-727-0 01 1 1310- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) THA 		8-97321-351-0 01 1 1310- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-97321-351-0 01 1 1310- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) THA 		8-97321-353-0 03 1 1310- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-97321-353-0 03 1 1310- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (C) SCAL THA 		8-97919-270-0 04 1 1310- ●
116 GASKET; PIPE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (C) SCAL THA 		8-97919-270-0 04 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (A) THA 		8-98197-725-1 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98197-725-1 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> (B) THA 		8-98197-726-1 01 1 1310- ●
185 PIPE; EVAP TO FLEX HOSE,PRESS LO
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98197-726-1 01 1 1310- ●
