◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#129631) — 19 parça
çizim 380846
262 99 32 262 99 14 46 25 37 47
BalonParca AdiParca NoAdetTipApplied Date A B
14 BOLT; CMPR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M10X95 FLANGE IMA 		8-94397-027-1 04 1 1310- ● ●
25 PULLEY ASM; IDLER,CMPR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98205-963-0 01 1 1310- ● ●
32 BELT; A/C CMPR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> L=1445 MITSUBOSHI THA 		8-97985-121-0 01 1 1310- ● ●
32 BELT; A/C CMPR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> L=1445 BANDO THA 		8-97985-122-0 01 1 1310- ● ●
37 BOLT; PULLEY BRKT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M8X16 FLANGE THA 		0-28050-816-0 02 1 1310- ● ●
46 BRACKET; CMPR
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98226-839-0 01 1 1310- ● ●
47 BOLT; BRKT TO BODY
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M8X25 FLANGE THA 		0-28650-825-0 04 1 1310- ● ●
99 BOLT; BRKT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X16 FLANGE THA 		0-28650-616-0 02 1 1310- ● ●
262 BRACKET; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (B) THA 		8-98103-644-0 01 1 1310- ● ●
262 BRACKET; CONDENSER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> (A) THA 		8-98103-645-0 01 1 1310- ● ●

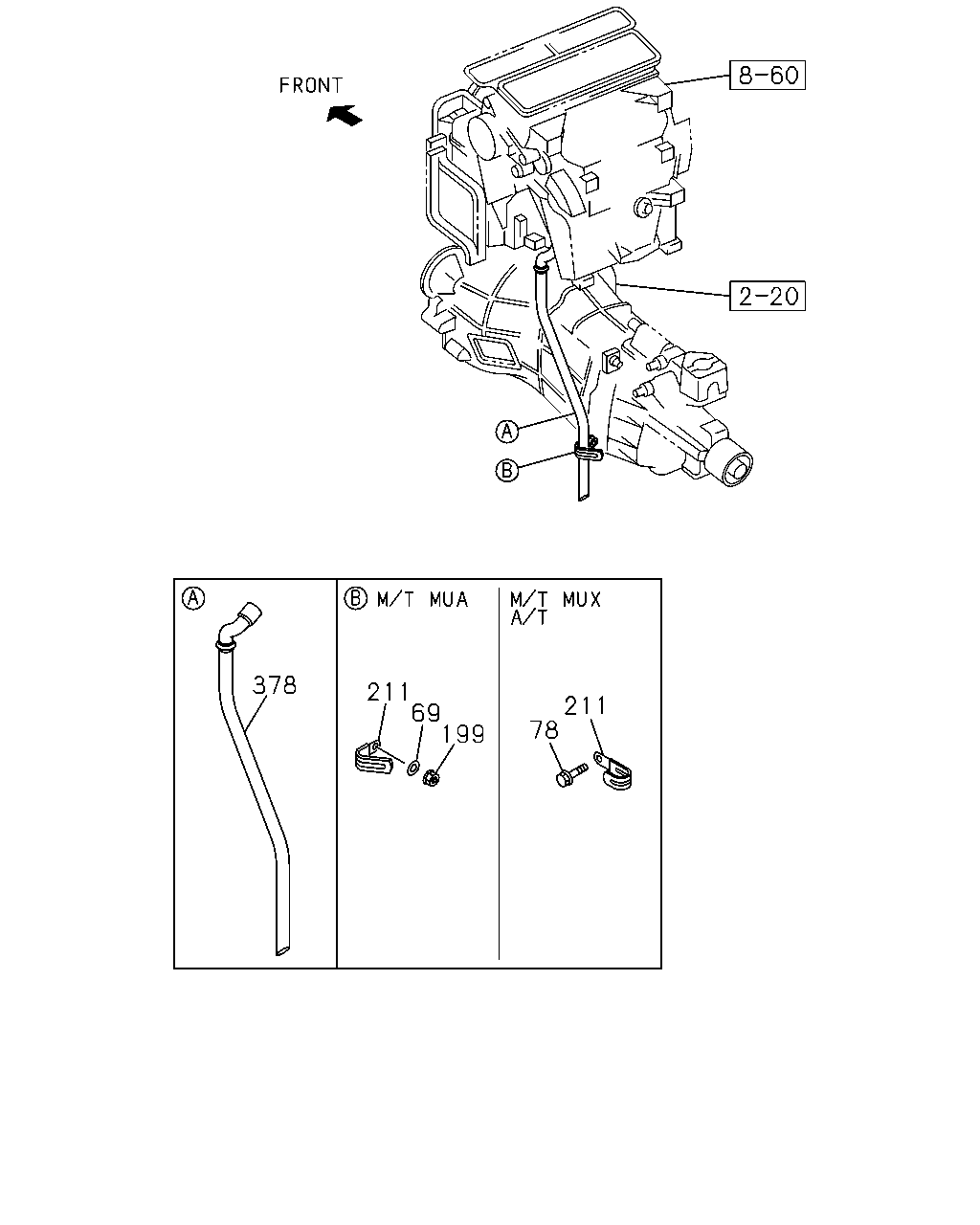

çizim 381859
378 199 69 211 211 78
BalonParca AdiParca NoAdetTipApplied Date A B
69 WASHER; PL,EVAP
M/T MUA 5 SPEED 5H<MWQ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> ID=10.5 OD=22 IMA 		0-91614-610-0 01 1 1310- ●
78 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN<MA1> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 1310- ●
78 BOLT; EVAP,A/C
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M6X12 W/LK&PL WASHER THA 		0-52000-612-0 01 1 1310- ●
199 NUT
M/T MUA 5 SPEED 5H<MWQ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> M10 FLANGE THA 		0-91180-110-0 01 1 1310- ●
211 CLIP; HOSE
A/T 5 SPEED-AISIN<MA1> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> ID=22 L=35 THA 		8-97375-643-0 01 1 1310- ●
211 CLIP; HOSE
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> ID=22 L=35 THA 		8-97375-643-0 01 1 1310- ●
211 CLIP; HOSE
M/T MUA 5 SPEED 5H<MWQ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98173-569-0 01 1 1310- ●
378 HOSE; DRAIN,EVAPORATOR
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98163-367-2 01 1 1310- ●
378 HOSE; DRAIN,EVAPORATOR
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA 		8-98163-367-2 01 1 1310- ●
