3-70 — BRAKE PIPING; AIR,AIR MASTER (#12963) — 136 parça

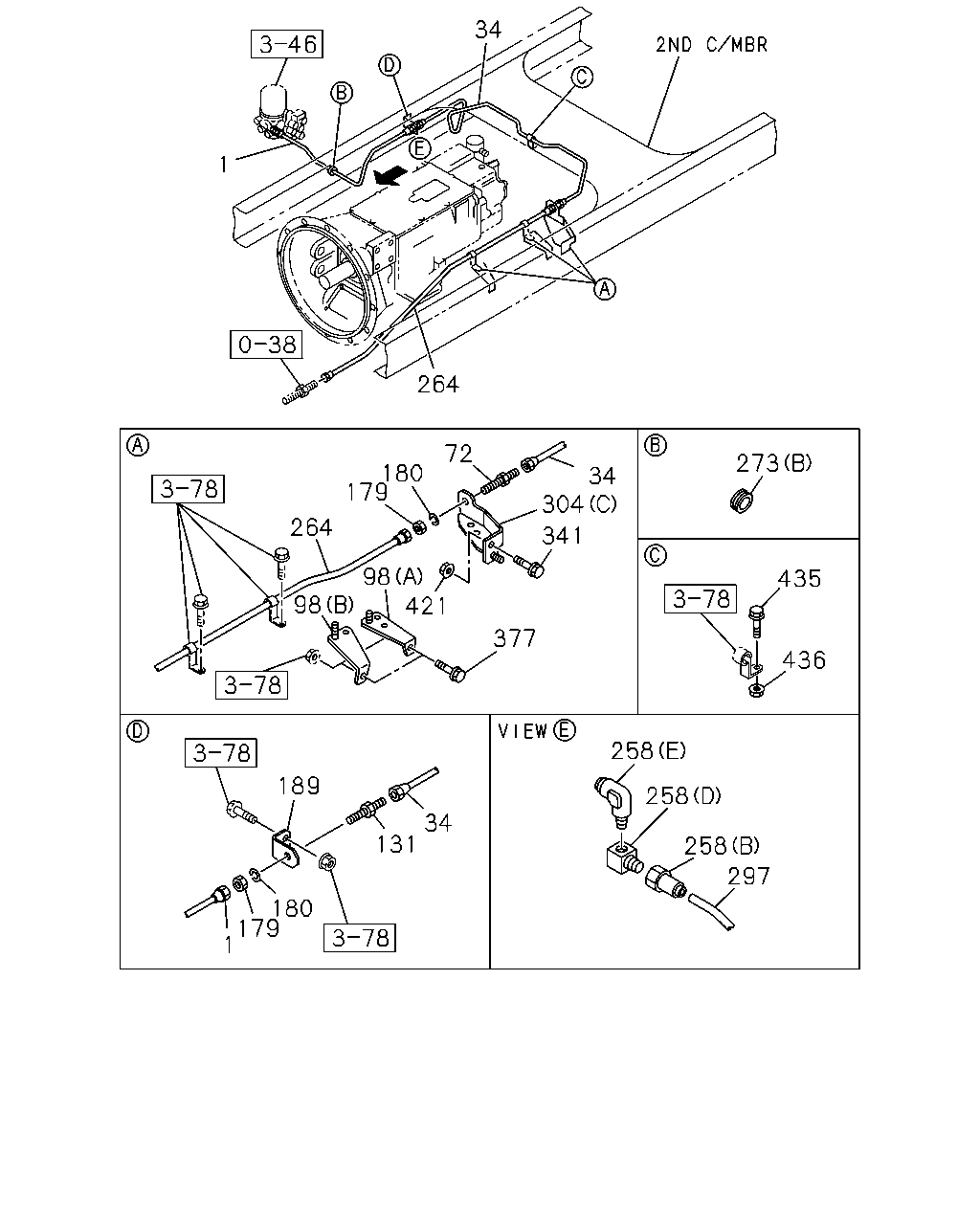

çizim 91505
34 1 264 72 273 180 179 34 304 264 341 98 98 421 435 377 436 258 189 258 34 131 258 297 180 179 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1350 		1-09363-925-0 01 1 0611-
34 PIPE; AIR
L=1114 		1-49124-668-0 01 1 0611-
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0611-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0611-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0611-
131 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 0611-
179 NUT; UNION
M22 		0-91111-522-0 02 1 0611-
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0611-
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0611-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0611-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0611-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0611-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09332-102-0 01 1 0611-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0611-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0611-
304 BRACKET; UNION
(C) 		1-47471-262-0 01 1 0611-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0611-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 0611-
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0611-0611
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0611-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0611-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0611-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611-

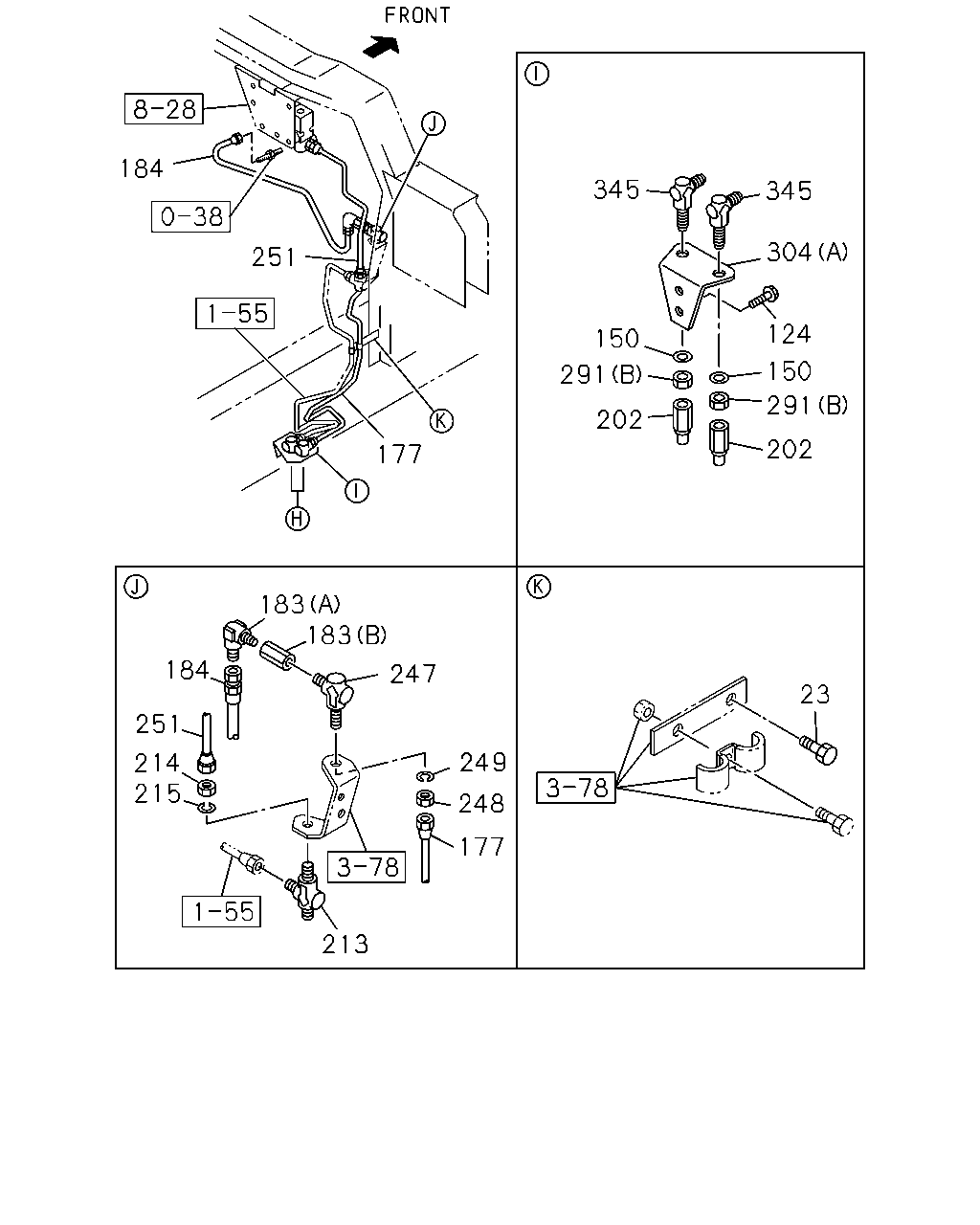

çizim 91530
184 345 345 304 251 124 150 150 291 291 202 202 177 183 183 184 247 23 251 249 214 215 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0611-
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0611-
177 PIPE; AIR,UNION TO UNION
L=807 SERVICED BY L=900 		1-47428-813-0 01 1 0611-
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0611-
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0611-
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 0611-
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0611-
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0611-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0611-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0611-
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0611-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0611-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0611-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 0611-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0611-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0611-
304 BRACKET; UNION
(C) 		1-47471-262-0 01 1 0611-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0611-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 0611-
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0611-

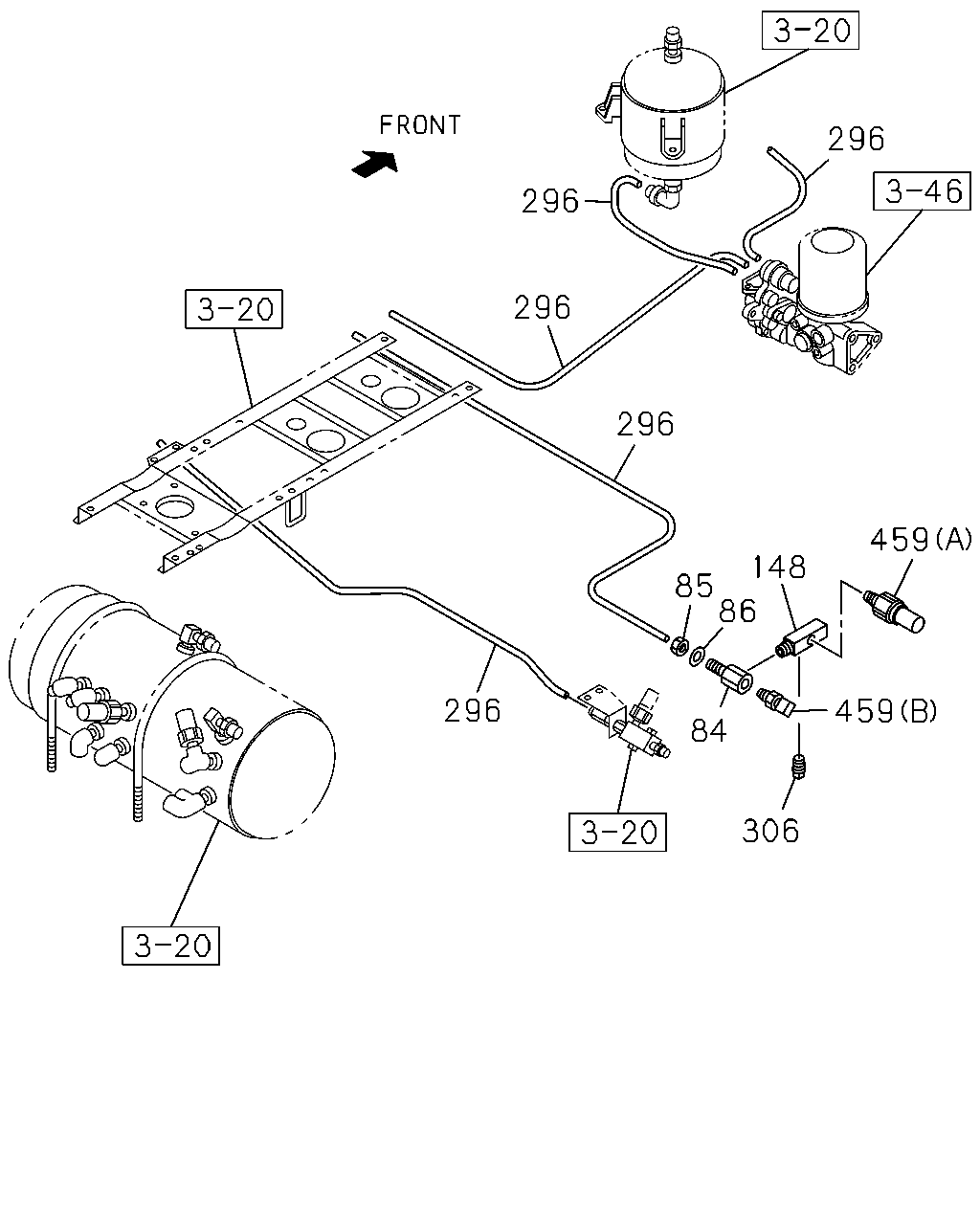

çizim 91868
296 296 296 296 459 148 85 86 296 459 84 306
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE 1-09661-092-0 01 1 0611-
85 NUT; UNION
M18 		0-91110-518-0 01 1 0611-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0611-
148 CONNECTOR; UNION 1-09661-729-0 01 1 0611-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 0611-
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 0611-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0611-

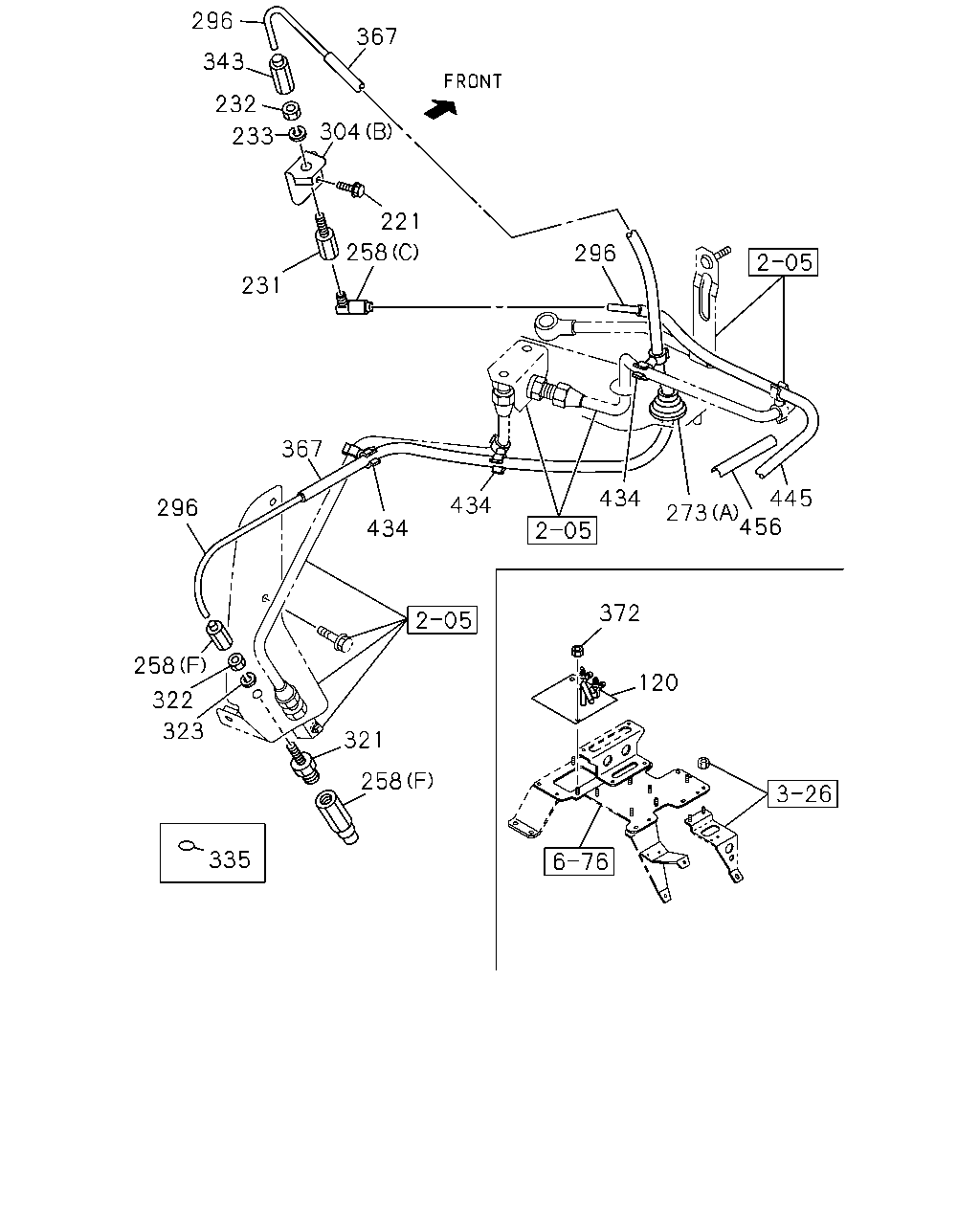

çizim 91869
296 367 343 232 304 233 221 258 296 231 367 434 445 434 296 273 456 434 372 258 120 322 323 321 258 335
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-655-0 01 1 0611-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0611-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0611-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0611-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0611-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0611-
273 GROMMET
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0611-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09332-102-0 01 1 0611-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
304 BRACKET; UNION
(C) 		1-47471-262-0 01 1 0611-
304 BRACKET; UNION
(A) 		1-47478-359-0 01 1 0611-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-71117-210-0 01 1 0611-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 0611-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0611-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 0611-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0611-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0611-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0611-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3 		8-94426-175-0 03 1 0611-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=800 		1-83129-031-1 01 1 0611-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-1 01 1 0611-

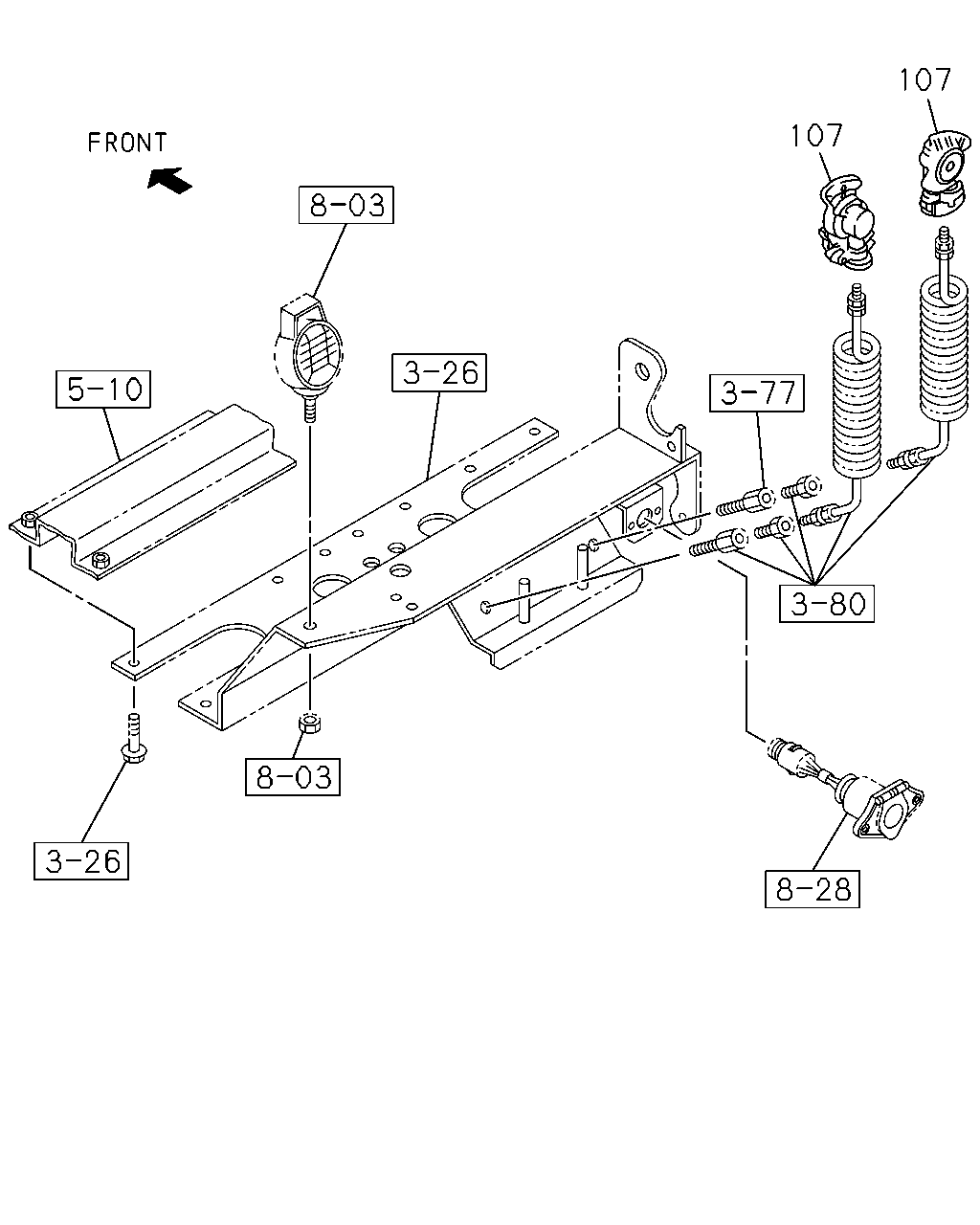

çizim 106119
107 107
BalonParca AdiParca NoAdetTipApplied Date
107 COUPLING; SERVICE
EMERGENCY 		1-47478-210-0 01 1 0611-
107 COUPLING; SERVICE
SERVICE 		1-47478-211-0 01 1 0611-

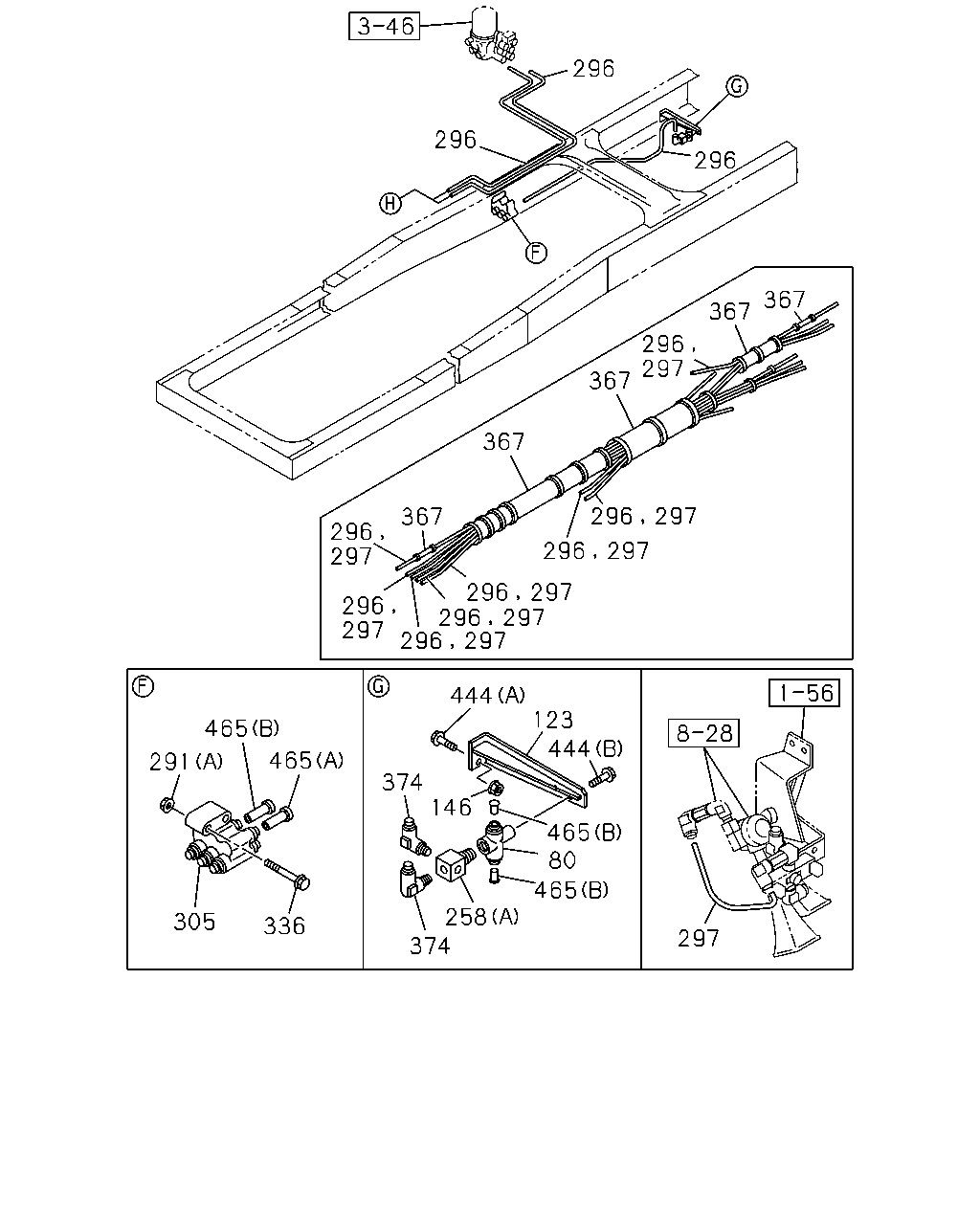

çizim 106120
296 296 296 367 367 296 297 367 367 367 296 297 296 297 444 123 465 444 465 291 374 146 465 80 465 258 305 336 297 374 296 297 296 297 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0611-
123 BRACKET; UNION 1-47479-401-0 01 1 0611-
146 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0611-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(A) PT3/8 3WAY 		1-09661-300-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0611-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0611-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0611-
291 NUT; UNION
(A) M8 FLANGE 		0-91180-108-0 02 1 0611-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0611-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0611-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0612-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0611-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0611-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0611-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0611-0906
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0611-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0611-
374 CONNECTOR
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0611-
444 BOLT; UNION
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
444 BOLT; UNION
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0611-
465 PLUG
(B) OD=8 		1-09661-616-0 01 1 0611-
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 0611-
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0611-
465 PLUG
(B) OD=8 		1-09661-616-0 02 1 0611-
