Isuzu WW
▶
SUV
▶
UCR
▶
51488 - UCR/UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

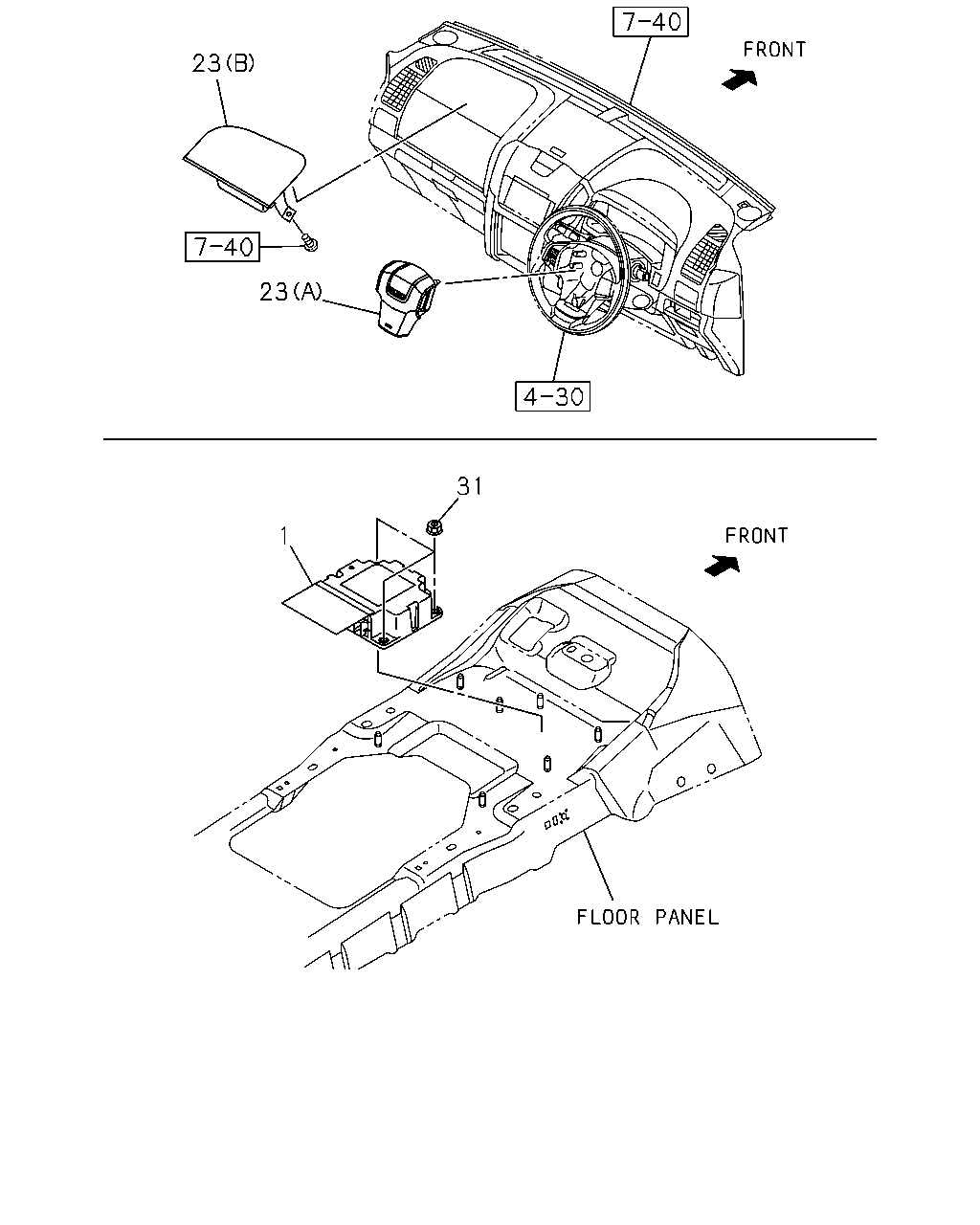

8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#129627) — 16 parça
Tümü
A - UCB5VC
B - UCS5VC
◀
[827A] AIR BAG;ROOF RAIL (8 parça)
[827A] AIR BAG;FRONT (8 parça)
▶
23
54
53
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) BLACK THA
8-97416-641-6
01
1
1310-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) BLACK THA
8-97416-642-7
01
1
1310-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA
8-98187-777-0
01
1
1310-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA
8-98187-778-0
01
1
1310-
●
●
52
BOLT; AIR BAG
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M6X20 FLANGE THA
0-28650-620-0
06
1
1310-
●
●
53
PAD; PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA
8-98232-399-0
01
1
1310-
●
●
53
PAD; PILLAR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA
8-98232-400-0
01
1
1310-
●
●
54
CLIP; PAD
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> BLACK THA
8-97416-699-0
02
1
1310-
●
●
23
23
31
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER<AK5> THA
8-98220-041-1
01
1
1310-
●
●
1
CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA
8-98220-042-1
01
1
1310-1404
●
●
1
CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA
8-98261-126-0
01
1
1405-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) BLACK THA
8-97416-641-6
01
1
1310-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) BLACK THA
8-97416-642-7
01
1
1310-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA
8-98187-777-0
01
1
1310-
●
●
23
AIR BAG UNIT
AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (C) THA
8-98187-778-0
01
1
1310-
●
●
31
NUT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M6 FLANGE THA
0-91180-206-0
03
1
1310-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
