◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#129625) — 38 parça
çizim 380763
99
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
FOG LAMP<T96> 12V YAZAKI THA 		8-97309-293-0 01 1 1310- ●
99 RELAY; FOG LAMP
12V YAZAKI THA 		8-97309-293-0 01 1 1310- ●

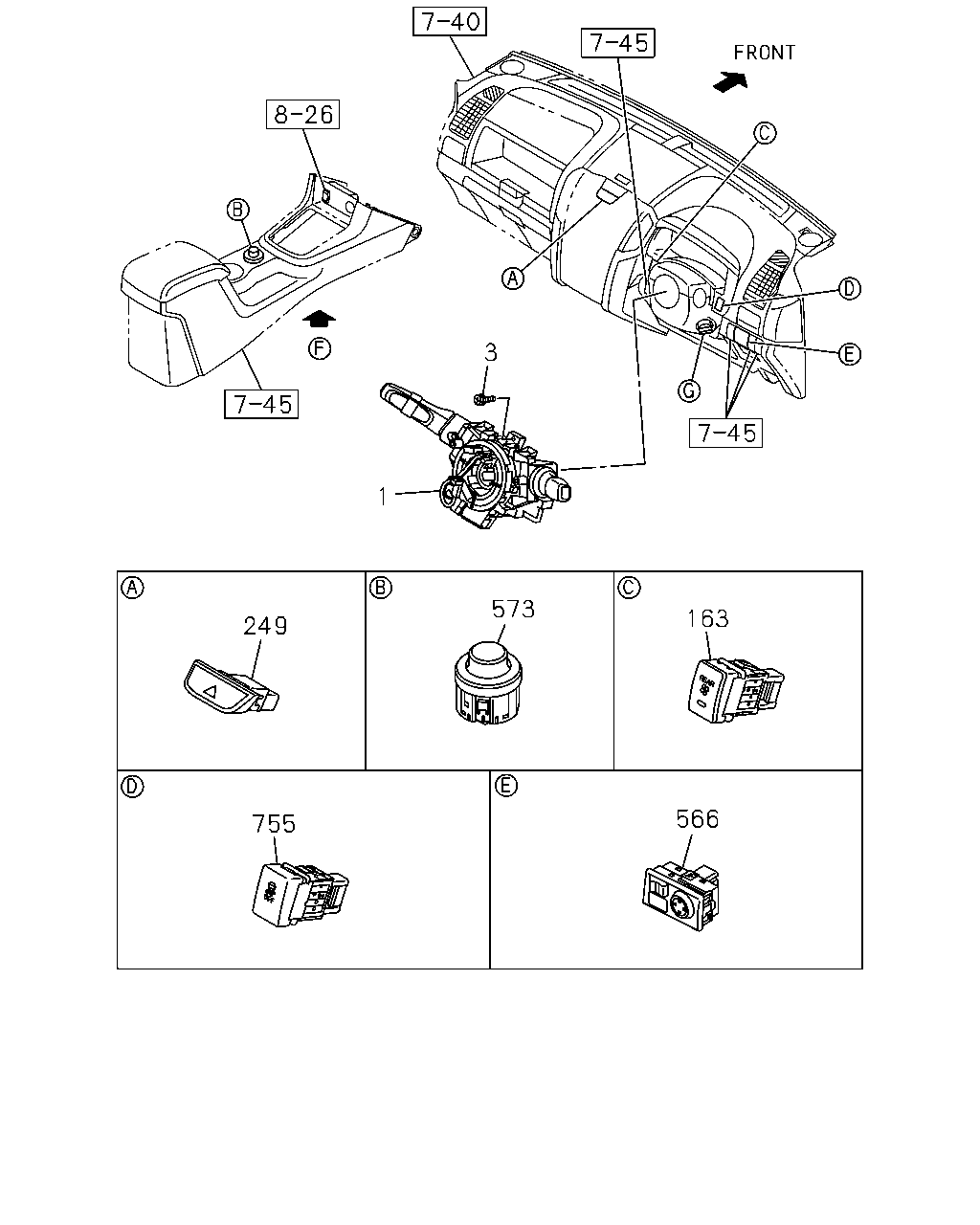

çizim 381963
566 755 573 163 249 1 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98271-709-0 01 1 1408- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> RR WIPER W/INTERMITTENT<6WJ> EXC. FOG LAMP<T96> THA 		8-98248-656-0 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> THA 		8-98248-657-0 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE<AK6> VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> THA 		8-98248-800-0 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> RR WIPER W/INTERMITTENT<6WJ> THA 		8-98191-735-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-735-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> VARIABLE DELAY PULSE WINDSHIELD WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-731-1 01 1 1310- ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98191-731-1 01 1 1310- ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER THA 		0-36230-520-0 01 1 1310- ● ●
163 SWITCH; RR COOLER
REAR COOLER WO/HEATER<C69> THA 		8-98196-980-0 01 1 1310- ●
163 SWITCH; RR COOLER
THA 		8-98196-980-0 01 1 1310- ●
249 SWITCH; HAZARD
BLACK THA 		8-97416-805-0 01 1 1310- ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3> THA 		8-98058-078-1 01 1 1310- ● ●
566 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> THA 		8-98106-392-1 01 1 1310- ● ●
573 SWITCH; 4WD
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> THA 		8-98065-836-2 01 1 1310- ●
755 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98058-081-1 01 1 1310- ● ●

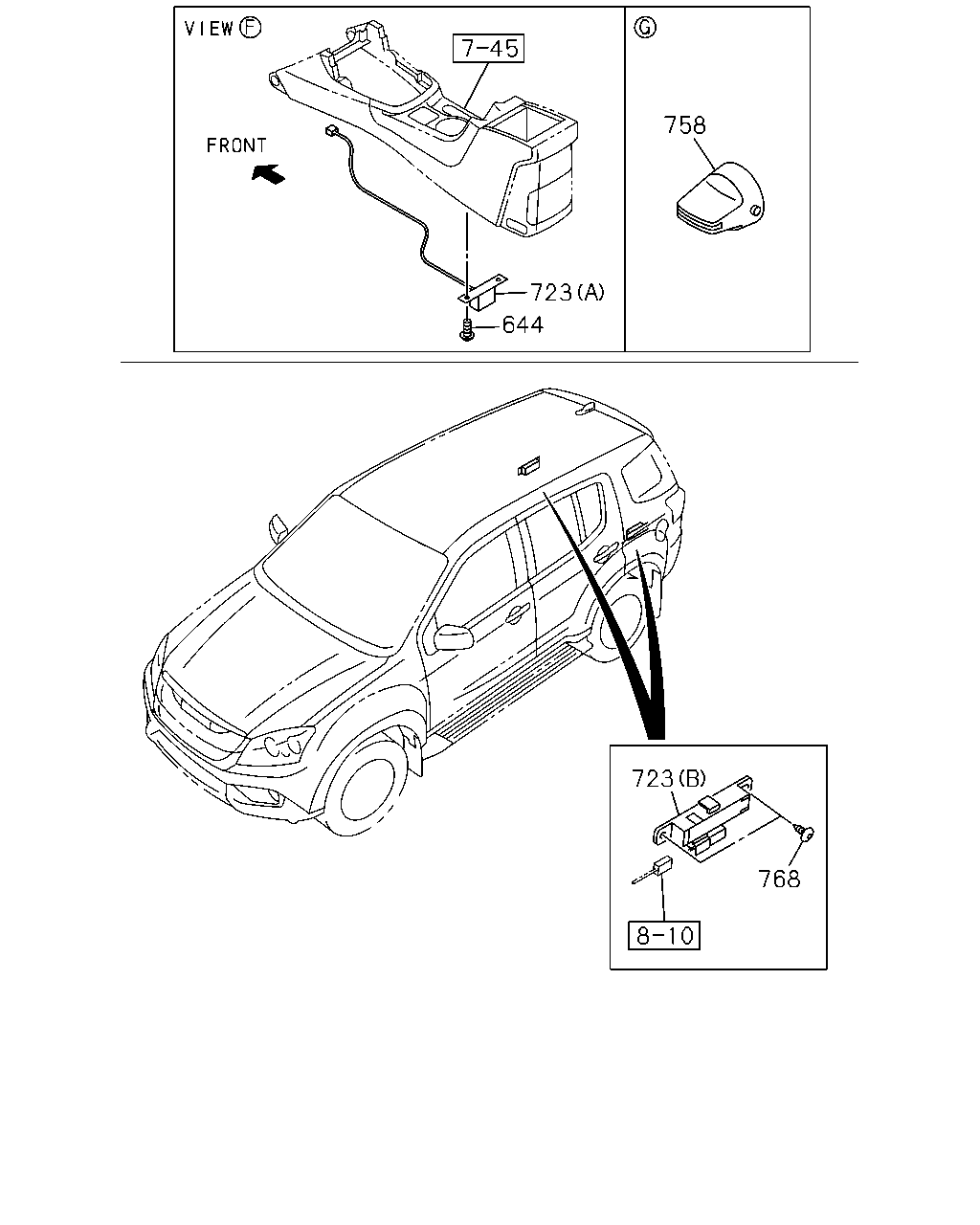

çizim 382150
758 723 644 723 768
BalonParca AdiParca NoAdetTipApplied Date A B
644 SCREW; TAPPING
PASSIVE ENTRY AND START SYSTEM<AP3> M5X16 TAPPING THA 		8-98167-449-0 02 1 1310- ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (A) THA 		8-98076-332-1 01 1 1310- ● ●
723 ANTENNA; KEYLESS ENTRY
PASSIVE ENTRY AND START SYSTEM<AP3> (B) THA 		8-98190-525-0 02 1 1310- ● ●
758 KNOB ASM; KEYLESS ENTRY
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98145-589-0 01 1 1310- ●
758 KNOB ASM; KEYLESS ENTRY
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98145-589-0 01 1 1310- ●
768 FASTENER
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-97326-594-0 04 1 1310- ● ●

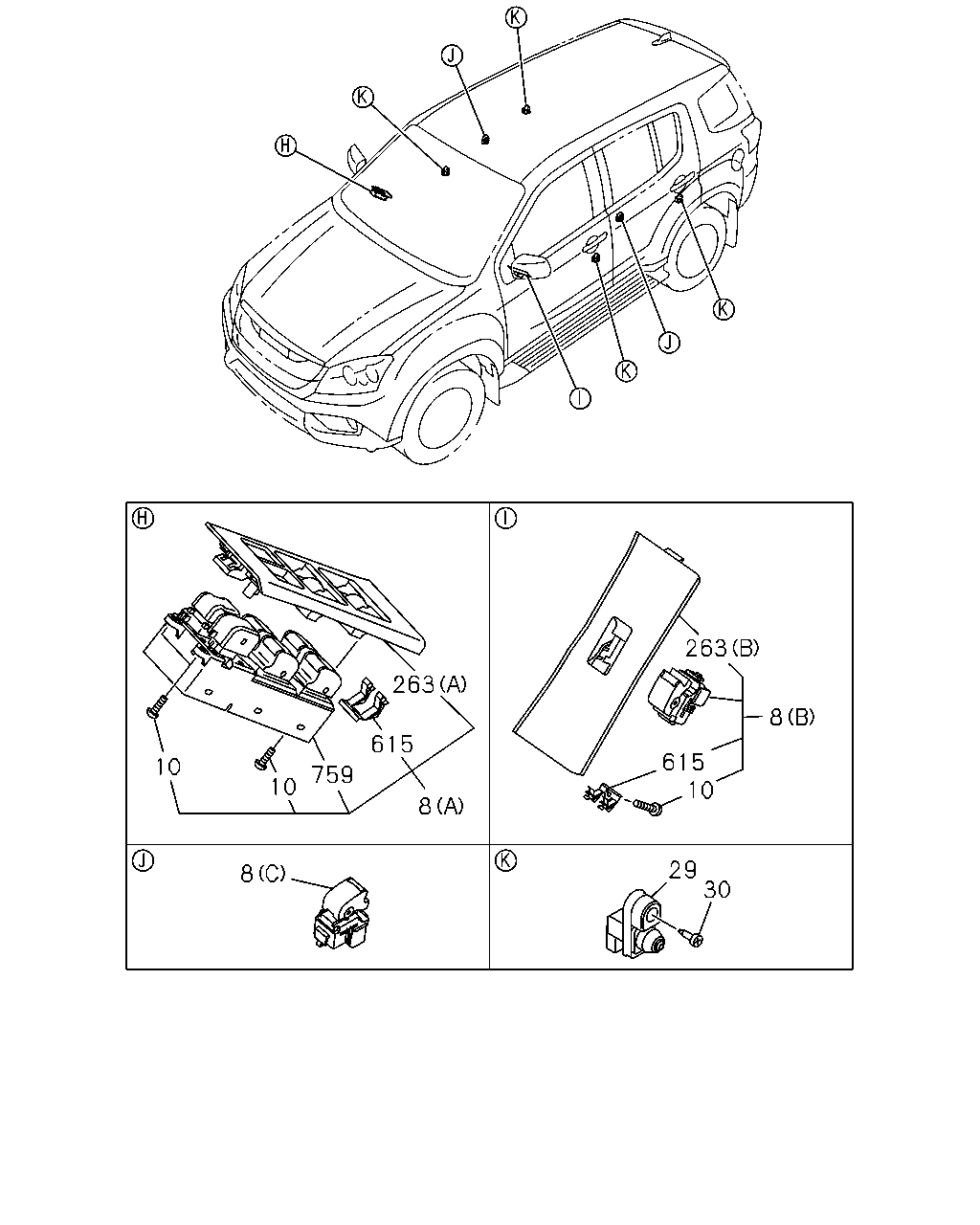

çizim 382185
30 29 8 8 759 10 10 615 263 10 615 8 263
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK THA 		8-97416-975-0 01 1 1310- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK THA 		8-97416-810-0 01 1 1310- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK THA 		8-97417-004-0 02 1 1310- ● ●
8 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK THA 		8-97416-976-0 01 1 1310- ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1310- ● ●
10 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-450-0 03 1 1310- ● ●
29 SWITCH; DOOR
THA 		8-97313-208-0 04 1 1310- ● ●
30 SCREW; DOOR SW
M5X14 IMA 		8-94120-095-0 04 1 1310- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) THA 		8-98192-244-0 01 1 1310- ● ●
263 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) THA 		8-98192-247-0 01 1 1310- ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1310- ● ●
615 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-268-0 01 1 1310- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> THA 		8-98192-251-0 01 1 1310- ● ●
759 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98192-252-0 01 1 1310- ● ●
