51488 - UCR/UCS(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#129623) — 46 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

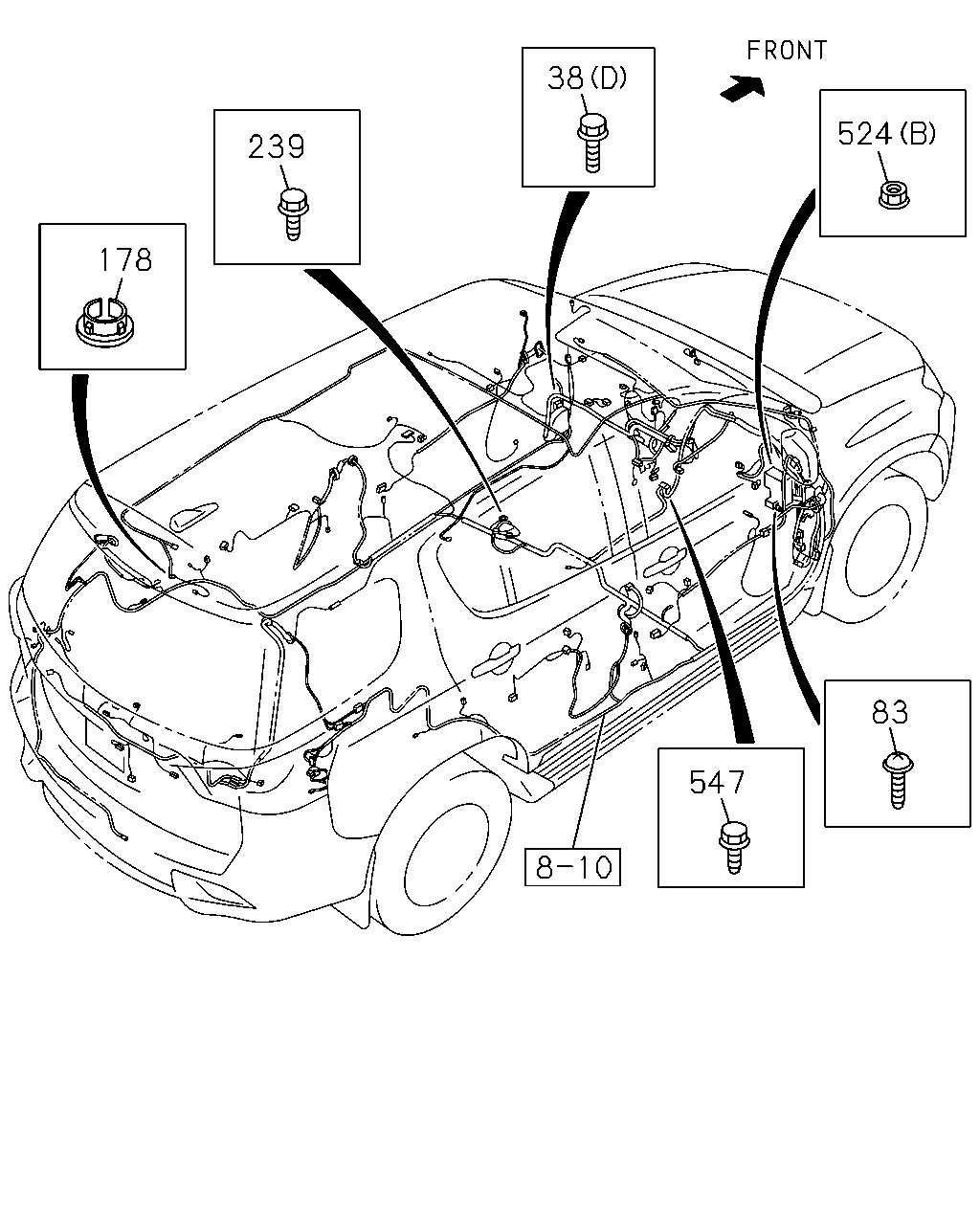

[815A] FIXING;BODY,ROOF AND CHASSIS HARNESS (13 parça)

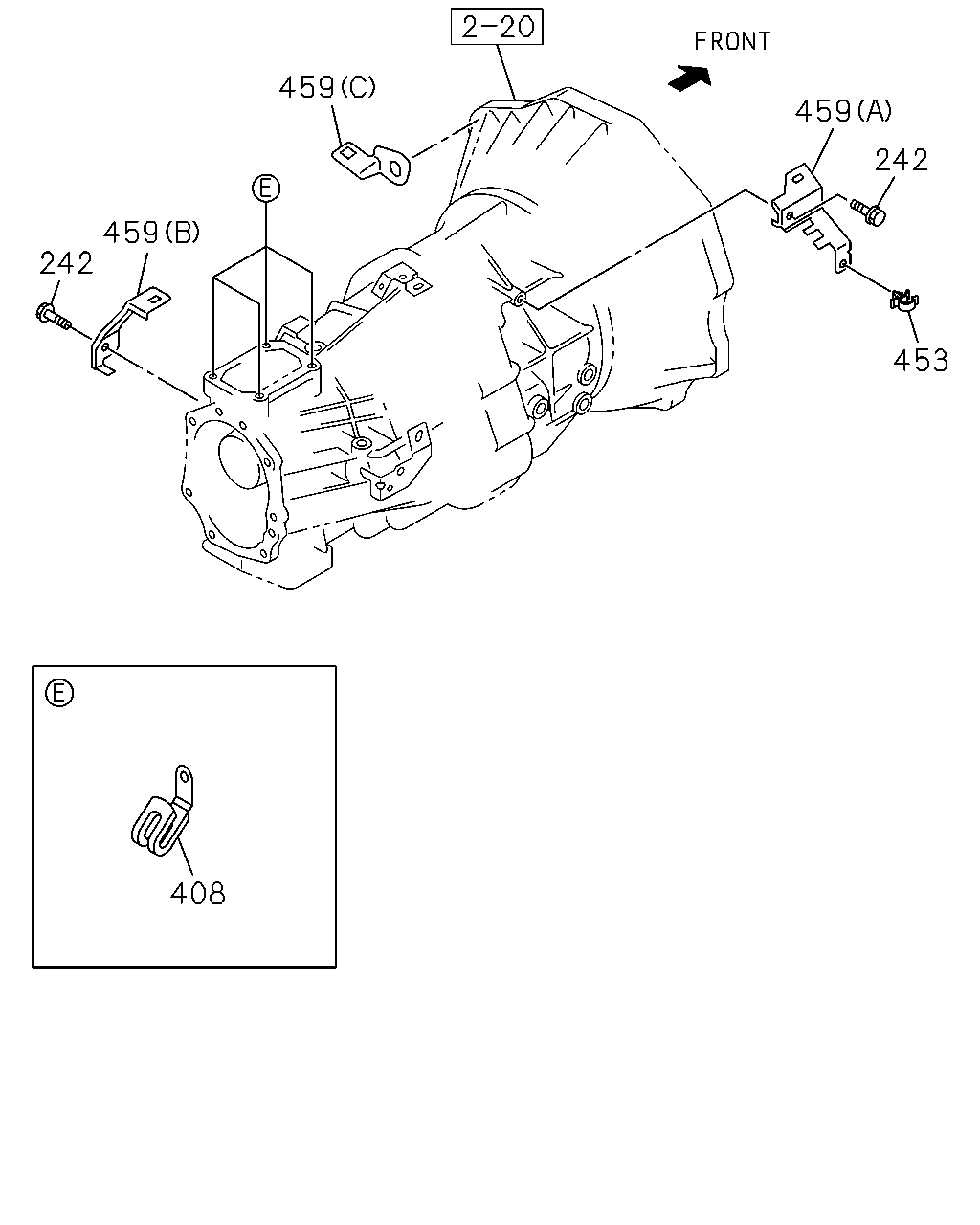

[815A] FIXING;TRANSMISSION BRACKET (10 parça)

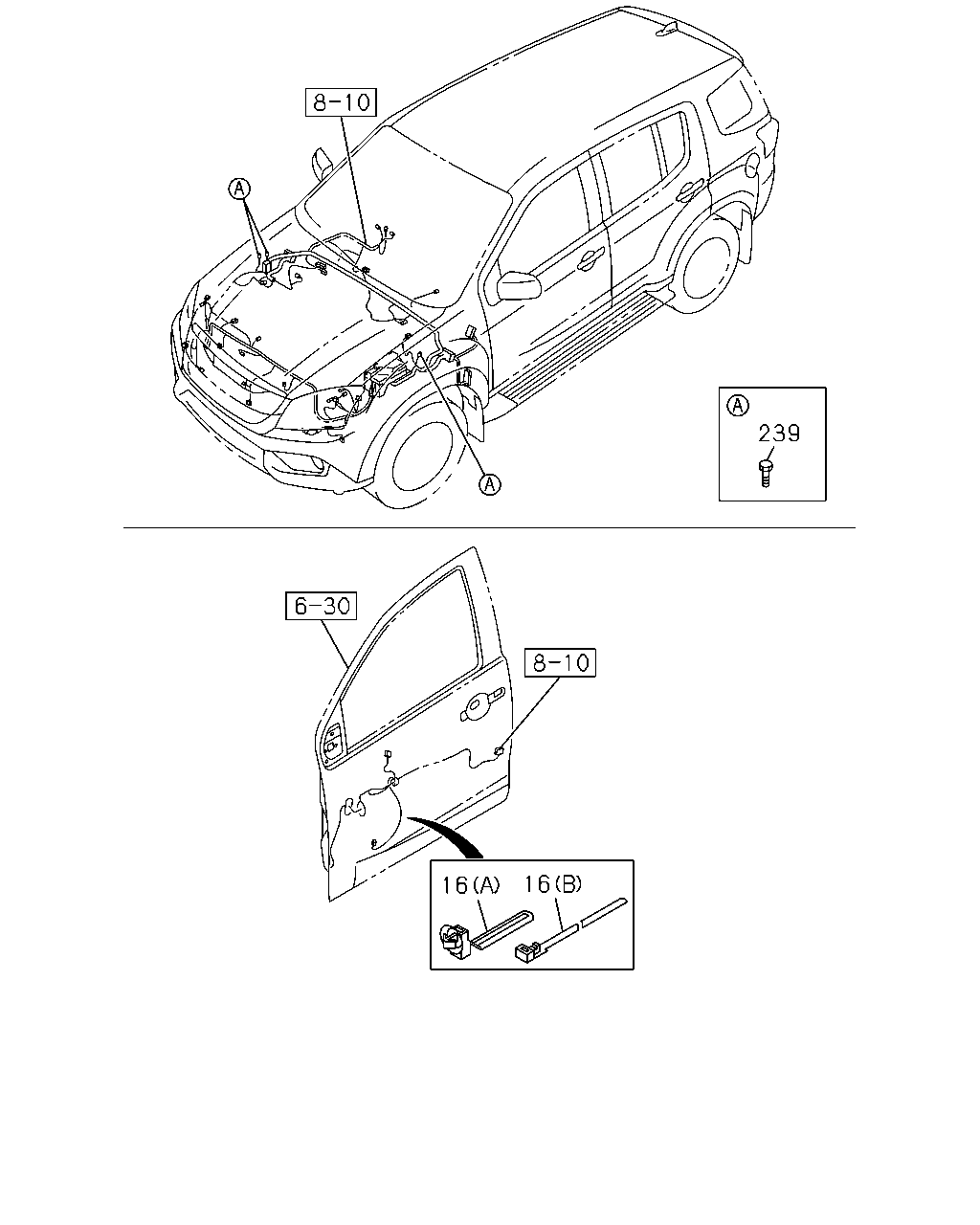

[815A] FIXING;ENGINE,CAB AND DOOR HARNESS (13 parça)

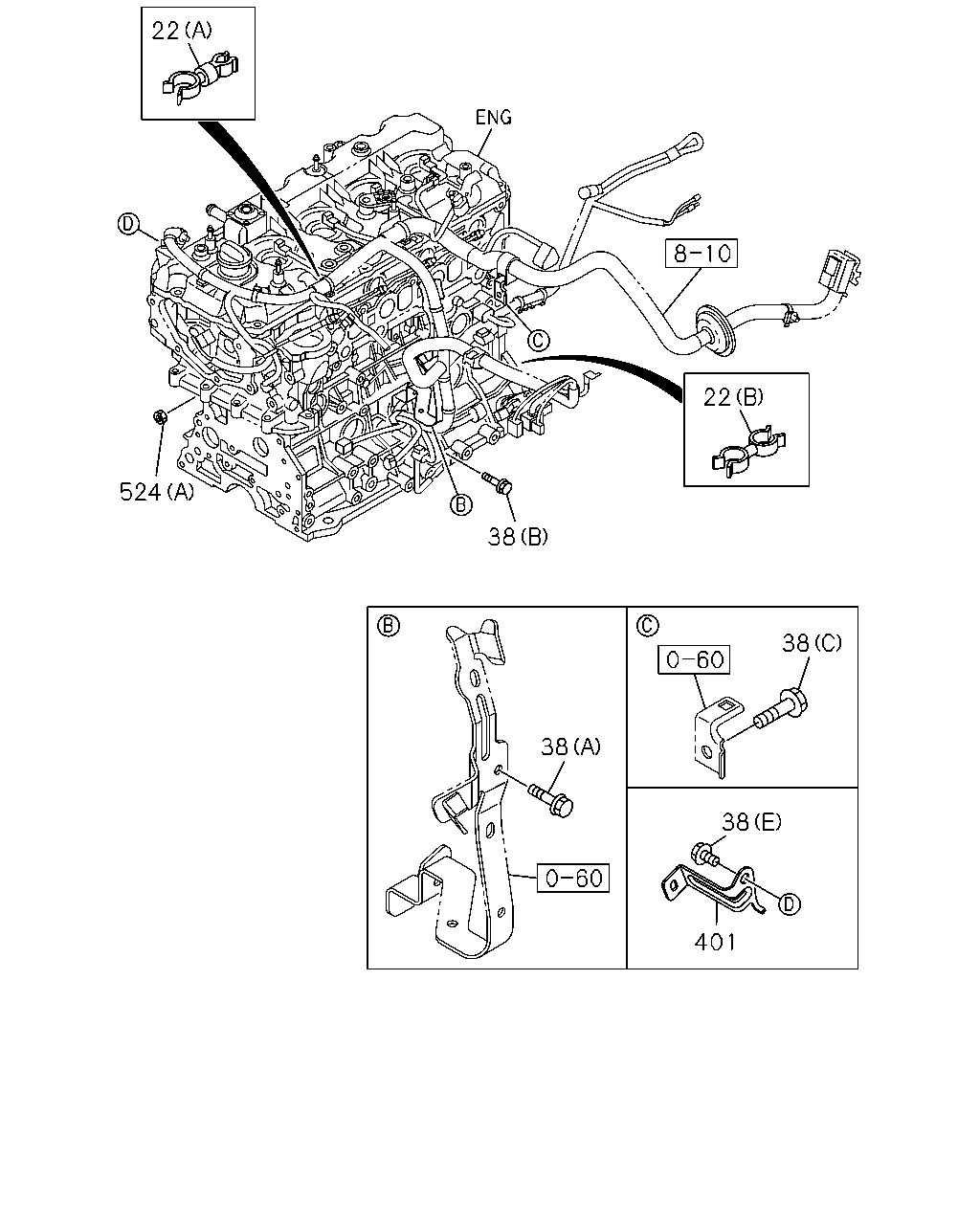

[815A] FIXING;ENGINE BRACKET (10 parça)
▶
178
239
38
524
83
547
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
38
BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA
0-28050-816-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(E) M10X12 FLANGE IMA
0-28151-012-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA
0-28650-616-0
05
1
1310-
●
●
83
SCREW; HARNESS
M5X25 TAPPING W/PL WASHER THA
0-74360-525-0
01
1
1310-
●
●
178
GROMMET; HARNESS
THA
8-97027-381-0
01
1
1310-
●
●
239
BOLT; GRAND
M6X14 W/LK&PL WASHER THA
8-97086-822-0
07
1
1310-1501
●
●
239
BOLT; GRAND
M6X14 W/PL WASHER IMA
8-98164-836-0
07
1
1502-
●
●
524
NUT; HARNESS
(A) M8 FLANGE THA
0-91180-108-0
01
1
1310-
●
●
524
NUT; HARNESS
(B) M6 FLANGE THA
0-91180-106-0
01
1
1310-
●
●
547
BOLT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M6X14 W/LK&PL WASHER THA
8-97086-822-0
01
1
1310-1501
●
●
547
BOLT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M6X14 W/PL WASHER IMA
8-98164-836-0
01
1
1502-
●
●
453
242
459
459
459
242
408
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
242
BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA
0-28050-816-0
04
1
1310-1408
●
242
BOLT; BRKT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> M8X16 FLANGE THA
0-28050-816-0
02
1
1409-
●
408
CLIP; TRANS HARNESS
4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> ID=12 VINYL CHLORIDE IMA
8-97367-984-1
04
1
1310-
●
453
CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA
5-09709-117-0
02
1
1310-1408
●
453
CLIP; CABLE HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> ID=6.5 IMA
5-09709-117-0
01
1
1409-
●
459
BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA
8-98035-740-0
02
1
1310-1408
●
459
BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (A) THA
8-98035-740-0
01
1
1409-
●
459
BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA
8-98035-741-0
02
1
1310-1408
●
459
BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> (B) THA
8-98035-741-0
01
1
1409-
●
459
BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5H<MWQ> (C) THA
8-98050-882-0
01
1
1310-
●
239
16
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
16
CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA
8-97378-707-0
01
1
1310-
●
●
16
CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA
8-97378-707-0
01
1
1310-
●
●
16
CLIP; HARNESS
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA
8-97378-707-0
01
1
1310-
●
●
16
CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155 THA
8-97173-307-0
02
1
1310-
●
●
16
CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (A) L=155 THA
8-97173-307-0
02
1
1310-
●
●
16
CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA
8-97173-307-0
02
1
1310-
●
●
16
CLIP; HARNESS
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (A) L=155 THA
8-97173-307-0
02
1
1310-
●
●
16
CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA
8-97378-707-0
03
1
1310-
●
●
16
CLIP; HARNESS
PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA
8-97378-707-0
03
1
1310-
●
●
16
CLIP; HARNESS
REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> (B) L=140 THA
8-97378-707-0
03
1
1310-
●
●
16
CLIP; HARNESS
AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> (B) L=140 THA
8-97378-707-0
03
1
1310-
●
●
239
BOLT; GRAND
M6X14 W/LK&PL WASHER THA
8-97086-822-0
07
1
1310-1501
●
●
239
BOLT; GRAND
M6X14 W/PL WASHER IMA
8-98164-836-0
07
1
1502-
●
●
38
38
401
22
22
524
38
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
CLIP; ENG HARNESS
(B) ID=7.5 & 7.5 THA
8-98212-981-0
01
1
1310-
●
●
22
CLIP; ENG HARNESS
(A) ID=11.8 & 7.5 THA
8-98212-982-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(A) M6X12 FLANGE THA
0-28050-612-0
02
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(C) M8X16 FLANGE THA
0-28050-816-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(E) M10X12 FLANGE IMA
0-28151-012-0
01
1
1310-
●
●
38
BOLT; CLIP,HARNESS
(D) M6X16 FLANGE THA
0-28650-616-0
05
1
1310-
●
●
401
BRACKET; HARNESS,GEN
THA
8-98224-801-0
01
1
1310-
●
●
524
NUT; HARNESS
(A) M8 FLANGE THA
0-91180-108-0
01
1
1310-
●
●
524
NUT; HARNESS
(B) M6 FLANGE THA
0-91180-106-0
01
1
1310-
●
●
