Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#129622) — 302 parça

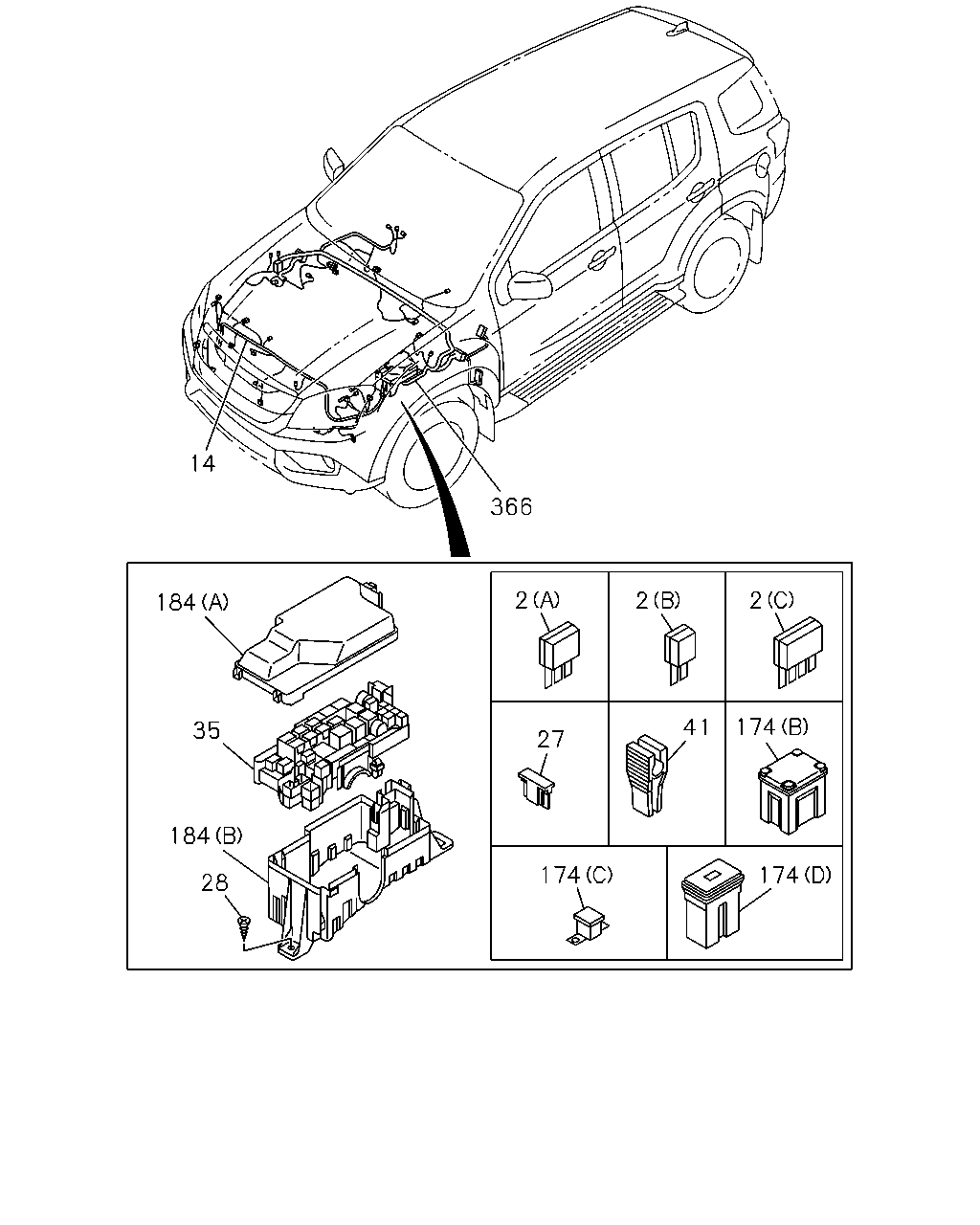

14 366 184 35 184 28 2 2 2 174 41 27 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A THA	8-94422-639-1	AR	1	1310-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94422-640-1	AR	1	1310-1406	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A THA	8-94422-640-1	01	1	1407-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 4P-1.5A THA	8-94381-730-0	AR	1	1407-	●	●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-349-1	01	1	1310-	●
14	HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-349-1	01	1	1310-		●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-348-1	01	1	1310-	●
14	HARNESS; HEADLAMP EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-348-1	01	1	1310-		●
14	HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-346-1	01	1	1310-	●
27	FUSE UNIT 5A ORANGE THA	8-98281-195-0	AR	1	1407-	●	●
27	FUSE UNIT 10A RED THA	8-98054-257-0	AR	1	1310-	●	●
27	FUSE UNIT 15A BLUE THA	8-98054-258-0	AR	1	1310-	●	●
27	FUSE UNIT 20A YELLOW THA	8-98054-259-0	AR	1	1310-	●	●
28	SCREW; FUSE BOX THA	8-97249-192-0	02	1	1310-	●	●
35	BOX; RELAY & FUSE THA	8-98113-097-0	01	1	1310-	●	●
41	PULLER; FUSE THA	8-98054-260-0	01	1	1310-	●	●
174	FUSE; SLOW BLOW (A) 20A BLUE THA	8-98079-189-0	AR	1	1310-1406	●	●
174	FUSE; SLOW BLOW (B) 30A PINK THA	8-98079-191-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN THA	8-98079-192-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (B) 50A RED THA	8-98079-193-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW THA	8-97219-407-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (D) 60A YELLOW THA	8-98197-288-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE IMA	1-82516-028-1	AR	1	1310-	●	●
184	COVER; RELAY & FUSE BOX (A) THA	8-98113-098-0	01	1	1310-	●	●
184	COVER; RELAY & FUSE BOX (B) THA	8-98113-099-0	01	1	1310-	●	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98271-910-2	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE> THA	8-98247-846-0	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE> THA	8-98281-599-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98232-993-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-995-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-997-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-999-2	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-598-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98232-985-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-987-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-989-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-991-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-089-3	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98281-593-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-093-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-097-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-101-3	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-594-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-073-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-077-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-081-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-085-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-992-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-994-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-996-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-998-2	01	1	1310-1406		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-597-1	01	1	1407-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-984-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-986-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-988-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-990-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-088-3	01	1	1310-1406		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-592-1	01	1	1407-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-092-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-096-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-100-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-072-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-076-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-080-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-084-5	01	1	1310-		●

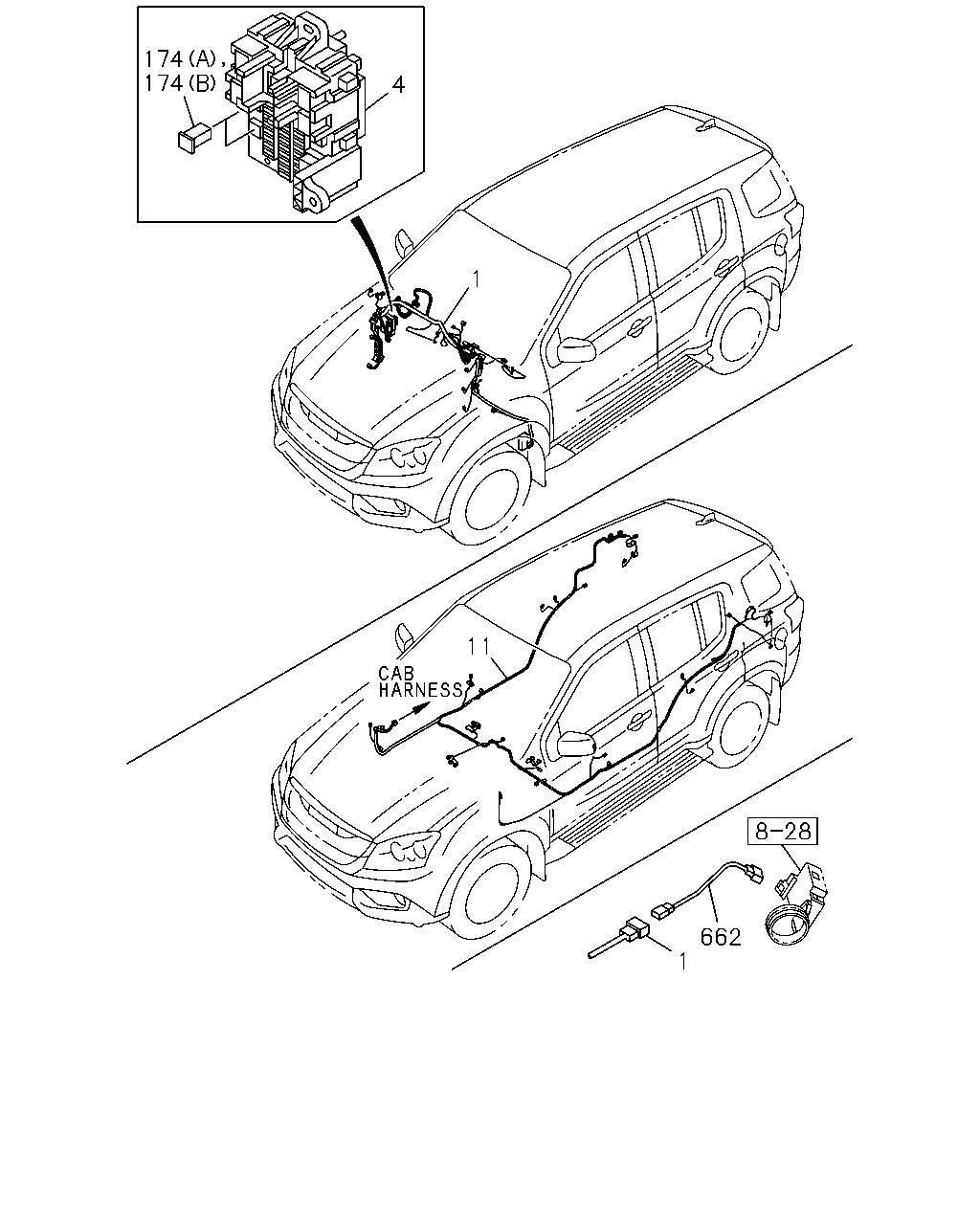

174 4 174 1 11 662 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB INTERIOR BASIC<RBA> REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-740-0	01	1	1310-1406	●
1	HARNESS; CAB INTERIOR BASIC<RBA> REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98281-589-1	01	1	1407-	●
1	HARNESS; CAB INTERIOR BASIC<RBA> REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-755-2	01	1	1310-	●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM<CJ2> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-751-2	01	1	1310-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-751-2	01	1	1310-		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM<CJ2> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-752-2	01	1	1310-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-752-2	01	1	1310-		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-753-0	01	1	1310-1406	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-753-0	01	1	1310-1406		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98281-591-1	01	1	1407-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98281-591-1	01	1	1407-		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-754-2	01	1	1310-	●
1	HARNESS; CAB REMOTE CONT DOOR LOCK<AP5> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98247-754-2	01	1	1310-		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM<CJ2> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-141-3	01	1	1310-1406	●
1	HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-141-3	01	1	1310-1406		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM<CJ2> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98281-586-1	01	1	1407-	●
1	HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> AUTO COOLER SYSTEM<CJ2> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98281-586-1	01	1	1407-		●
1	HARNESS; CAB INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> COOLER W/FRESH AIR<C65> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-147-5	01	1	1310-	●
1	HARNESS; CAB PASSIVE ENTRY AND START SYSTEM<AP3> COOLER W/FRESH AIR<C65> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-147-5	01	1	1310-		●
4	BOX ASM; FUSE,HARNESS THA	8-98166-751-0	01	1	1310-	●	●
11	HARNESS; BODY INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98271-902-1	01	1	1407-	●
11	HARNESS; BODY INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> THA	8-98271-904-1	01	1	1407-	●
11	HARNESS; BODY INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98247-842-1	01	1	1310-	●
11	HARNESS; BODY INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> THA	8-98247-963-1	01	1	1310-	●
11	HARNESS; BODY INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48>,RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-034-5	01	1	1310-	●
11	HARNESS; BODY INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-035-5	01	1	1310-	●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-028-5	01	1	1310-	●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> THA	8-98198-028-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-030-5	01	1	1310-	●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> THA	8-98198-030-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-032-5	01	1	1310-	●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-032-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98221-400-5	01	1	1310-	●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-033-5	01	1	1310-	●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-033-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98221-401-5	01	1	1310-	●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-018-5	01	1	1310-	●
11	HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> THA	8-98198-018-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-020-5	01	1	1310-	●
11	HARNESS; BODY PASSIVE ENTRY AND START SYSTEM<AP3> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> THA	8-98198-020-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-024-5	01	1	1310-	●
11	HARNESS; BODY FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-024-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98221-397-5	01	1	1310-	●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98221-398-5	01	1	1310-	●
11	HARNESS; BODY FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98221-398-5	01	1	1310-		●
11	HARNESS; BODY INTERIOR CUSTOM<RBD> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98221-399-5	01	1	1310-	●
174	FUSE; SLOW BLOW (A) 20A BLUE THA	8-98079-189-0	AR	1	1310-1406	●	●
174	FUSE; SLOW BLOW (B) 30A PINK THA	8-98079-191-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN THA	8-98079-192-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (B) 50A RED THA	8-98079-193-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW THA	8-97219-407-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (D) 60A YELLOW THA	8-98197-288-0	AR	1	1310-	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE IMA	1-82516-028-1	AR	1	1310-	●	●
662	HARNESS; IMMOBILIZER IMMOBILIZER SYSTEM<7KC> THA	8-98163-074-0	01	1	1310-	●	●

430 588

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
430	COVER ASM; SOCKET,ACCESSORY I/P MOUNT OUTLET<KC5> IMA	8-98123-123-0	01	1	1310-	●
430	COVER ASM; SOCKET,ACCESSORY IMA	8-98123-123-0	01	1	1310-		●
430	COVER ASM; SOCKET,ACCESSORY EXC. I/P MOUNT OUTLET<KC5> THA	8-98142-409-1	01	1	1310-	●
588	SEAL; LOCATION HOLE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=25 BLACK THA	1-76798-019-0	03	1	1310-	●
588	SEAL; LOCATION HOLE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> OD=25 BLACK THA	1-76798-019-0	03	1	1310-	●
588	SEAL; LOCATION HOLE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=25 BLACK THA	1-76798-019-0	03	1	1310-		●

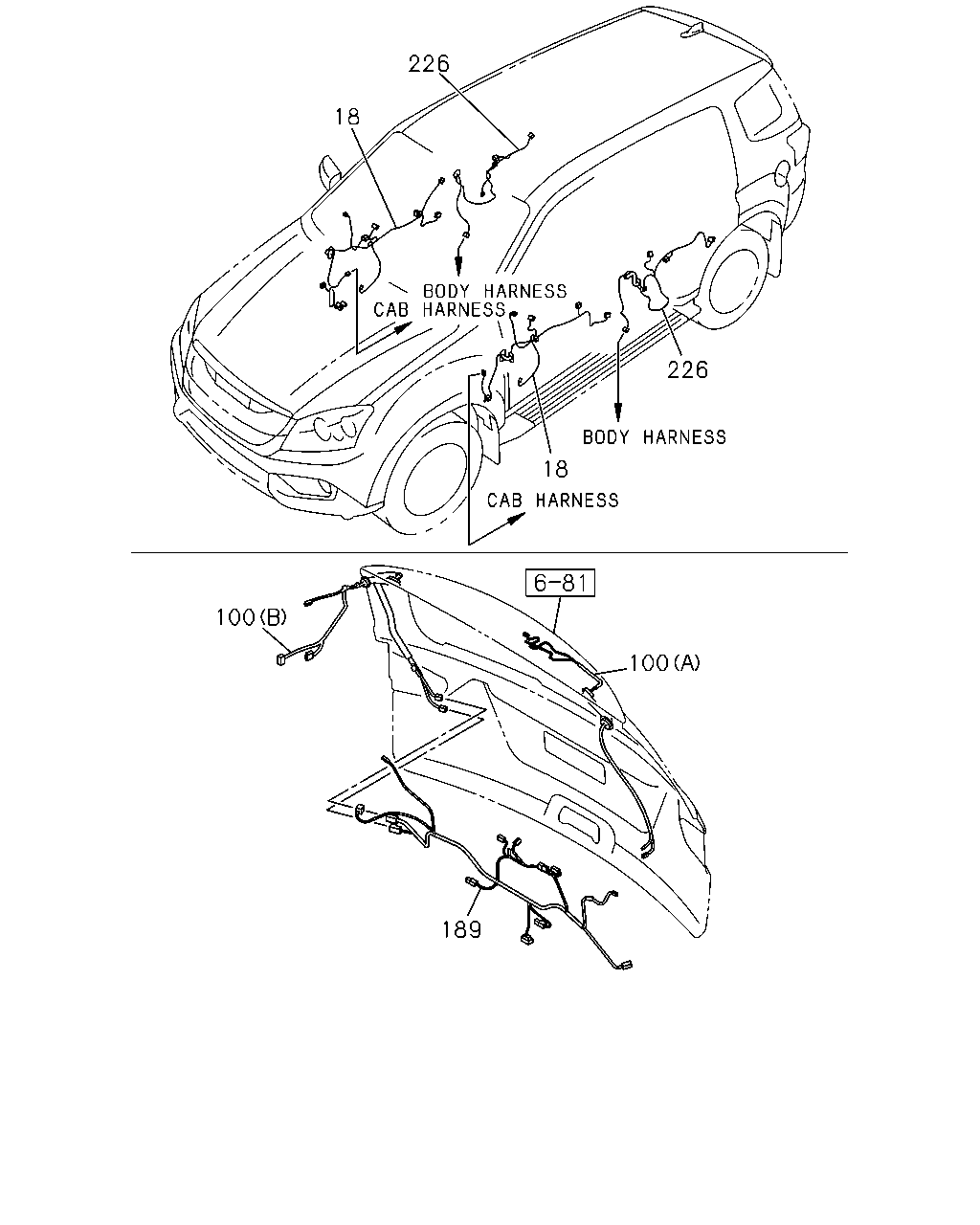

226 18 100 100 189 18 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98209-211-3	01	1	1310-	●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98209-211-3	01	1	1310-		●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98225-362-1	01	1	1310-	●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98225-362-1	01	1	1310-		●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98225-364-1	01	1	1310-	●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98225-364-1	01	1	1310-		●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-486-4	01	1	1310-	●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-486-4	01	1	1310-		●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-506-5	01	1	1310-	●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-506-5	01	1	1310-		●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-488-4	01	1	1310-	●
18	HARNESS; DOOR AIR BAG DRIVER & PASSENGER<AK5> AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-488-4	01	1	1310-		●
18	HARNESS; DOOR PASSIVE ENTRY AND START SYSTEM<AP3> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98209-213-3	01	1	1310-	●	●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98230-580-1	01	1	1310-	●	●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98230-581-1	01	1	1310-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98200-116-2	01	1	1310-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-505-3	01	1	1310-	●	●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> DOOR MIRROR POWER CHROME PLATING SIDE TURN<DE3>, DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98159-487-4	01	1	1310-	●	●
100	HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> (A) THA	8-98198-222-2	01	1	1310-	●
100	HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> (A) THA	8-98198-222-2	01	1	1310-	●
100	HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> (A) THA	8-98198-222-2	01	1	1310-		●
100	HARNESS; RR GATE INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> (B) THA	8-98200-686-1	01	1	1310-1406	●
100	HARNESS; RR GATE INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> (B) THA	8-98200-686-1	01	1	1310-1406	●
100	HARNESS; RR GATE INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> (B) THA	8-98200-686-1	01	1	1310-1406	●
100	HARNESS; RR GATE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> (B) THA	8-98200-686-1	01	1	1310-1406		●
100	HARNESS; RR GATE INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> (B) THA	8-98200-686-1	01	1	1407-	●
100	HARNESS; RR GATE INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48>,RR WIPER W/INTERMITTENT<6WJ> (B) THA	8-98200-686-1	01	1	1407-	●
100	HARNESS; RR GATE INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> (B) THA	8-98200-686-1	01	1	1407-	●
100	HARNESS; RR GATE INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> (B) THA	8-98200-686-1	01	1	1407-	●
100	HARNESS; RR GATE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> (B) THA	8-98200-686-1	01	1	1407-		●
100	HARNESS; RR GATE INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> (B) THA	8-98221-441-1	01	1	1310-1406	●
100	HARNESS; RR GATE INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> (B) THA	8-98221-441-1	01	1	1407-	●
100	HARNESS; RR GATE INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,RR WIPER W/INTERMITTENT<6WJ> (B) THA	8-98221-441-1	01	1	1407-	●
100	HARNESS; RR GATE AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48>,RR WIPER W/INTERMITTENT<6WJ> (A) THA	8-98206-101-2	01	1	1310-	●
189	HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-218-1	01	1	1310-	●
189	HARNESS; EXT PASSIVE ENTRY AND START SYSTEM<AP3> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> THA	8-98198-218-1	01	1	1310-		●
189	HARNESS; EXT AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-220-1	01	1	1310-	●
189	HARNESS; EXT AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 2ND SEAT DVD MONITOR<U48> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-220-1	01	1	1310-		●
189	HARNESS; EXT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48> THA	8-98198-221-1	01	1	1310-	●
189	HARNESS; EXT AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>,2ND SEAT DVD MONITOR<U48>,RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-217-1	01	1	1310-	●
226	HARNESS; RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-213-3	01	1	1310-	●	●
226	HARNESS; RR DOOR REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-215-3	01	1	1310-	●	●
226	HARNESS; RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-212-3	01	1	1310-	●	●
226	HARNESS; RR DOOR EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> THA	8-98198-214-3	01	1	1310-	●	●

13 366 408 547

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	HARNESS; ENG 4JK1-TCX ENG<LR0> M/T MUA 5 SPEED 5H<MWQ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98206-015-3	01	1	1310-	●
13	HARNESS; ENG A/T 5 SPEED-AISIN<MA1> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98206-415-3	01	1	1310-	●
13	HARNESS; ENG 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98206-012-2	01	1	1310-1401		●
13	HARNESS; ENG 4JJ1-TCX ENG<LS0> M/T MUX 5 SPEED 5S<MZJ> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98260-517-0	01	1	1402-		●
13	HARNESS; ENG A/T 5 SPEED-AISIN<MA1> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98206-414-2	01	1	1310-1401		●
13	HARNESS; ENG A/T 5 SPEED-AISIN<MA1> AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> THA	8-98260-518-0	01	1	1402-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98271-910-2	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE> THA	8-98247-846-0	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE> THA	8-98281-599-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98232-993-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-995-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-997-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-999-2	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-598-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98232-985-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-987-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-989-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-991-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-089-3	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98281-593-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-093-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-097-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-101-3	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-594-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-073-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-077-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-081-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-085-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-992-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-994-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-996-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-998-2	01	1	1310-1406		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-597-1	01	1	1407-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-984-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-986-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-988-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-990-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-088-3	01	1	1310-1406		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-592-1	01	1	1407-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-092-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-096-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-100-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-072-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-076-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-080-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-084-5	01	1	1310-		●
408	SOCKET ASM; ACCESSORY I/P MOUNT OUTLET<KC5> IMA	8-98123-115-0	02	1	1310-	●
408	SOCKET ASM; ACCESSORY IMA	8-98123-115-0	02	1	1310-		●
547	HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER<AK5> THA	8-98224-082-1	01	1	1310-	●	●
547	HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98224-083-2	01	1	1310-	●	●

4 750 749 758 759

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS THA	8-98166-751-0	01	1	1310-	●	●
749	RELAY; POWER WINDOW 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
750	RELAY; RR DEFOGGER 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
758	RELAY; RR WIPER 12V YAZAKI THA	8-97309-292-0	01	1	1310-	●	●
759	RELAY; RR COOLER REAR COOLER WO/HEATER<C69> 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●

366 736 738 739 741 743 742 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98271-910-2	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE> THA	8-98247-846-0	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER DELETE<AK6> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9>,STRG WHL AUDIO CONTROL SW<8NE> THA	8-98281-599-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98232-993-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-995-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-997-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-999-2	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-598-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98232-985-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-987-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-989-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-991-4	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-089-3	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98281-593-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-093-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-097-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-101-3	01	1	1310-1406	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-594-1	01	1	1407-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> THA	8-98198-073-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-077-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-081-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> ABS W/EBD BRAKE ASSIST<JE5> INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> RR WIPER W/INTERMITTENT<6WJ> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-085-5	01	1	1310-	●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-992-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-994-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-996-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-998-2	01	1	1310-1406		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-597-1	01	1	1407-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-984-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-986-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98232-988-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG<LR0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98232-990-4	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-088-3	01	1	1310-1406		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98281-592-1	01	1	1407-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> PASSIVE ENTRY AND START SYSTEM<AP3> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-092-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-096-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER<AK5> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-100-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-072-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> PASSIVE ENTRY AND START SYSTEM<AP3> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-076-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> ELECTRONIC TRACTION CONTROL<NW9> EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA	8-98198-080-5	01	1	1310-		●
366	HARNESS; CABLE,ENG ROOM 4JJ1-TCX ENG<LS0> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. PASSIVE ENTRY AND START SYSTEM<AP3>, ELECTRONIC TRACTION CONTROL<NW9> THA	8-98198-084-5	01	1	1310-		●
736	RELAY; STARTER CUT 12V YAZAKI THA	8-97309-292-0	01	1	1310-	●	●
737	RELAY; DIMMER 12V YAZAKI THA	8-97309-292-0	01	1	1310-	●	●
738	RELAY; HEADLAMP 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
739	RELAY; TAIL LAMP 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
741	RELAY; HORN 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
742	RELAY; THERMO 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
743	RELAY; A/C COMPRESSOR 12V YAZAKI THA	8-97309-293-0	01	1	1310-	●	●
745	RELAY; HEATER 12V YAZAKI THA	8-98146-834-0	01	1	1310-	●	●
746	RELAY; ECM,MAIN 12V YAZAKI THA	8-98146-834-0	01	1	1310-	●	●
747	RELAY; GLOW 12V YAZAKI THA	8-98146-837-0	01	1	1310-	●	●
748	RELAY; STARTER 12V YAZAKI THA	8-98146-837-0	01	1	1310-	●	●

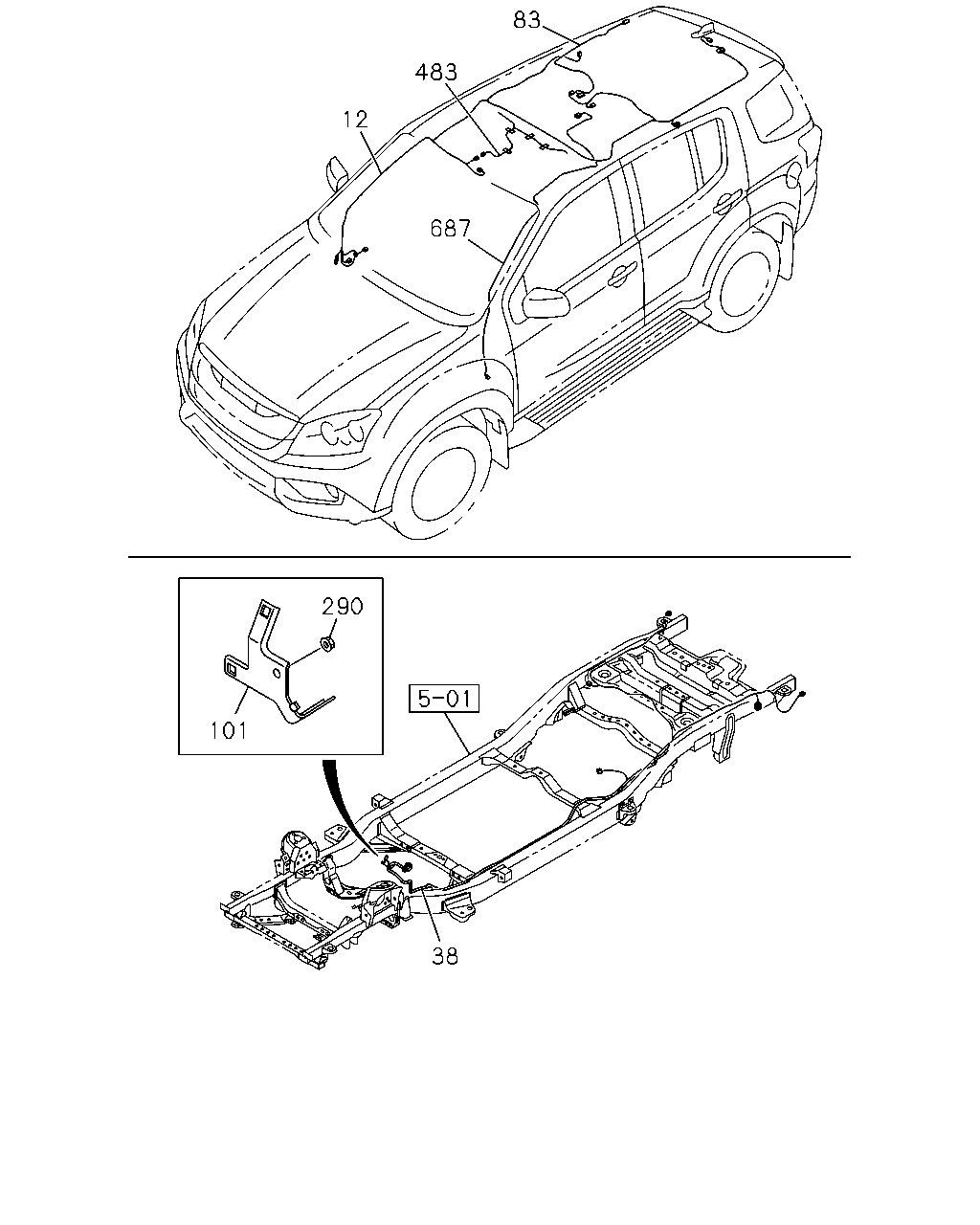

38 101 290 687 12 483 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98247-848-1	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98247-848-1	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98247-847-2	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98247-847-2	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-180-3	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-180-3	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98229-297-3	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98229-297-3	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-181-3	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-181-3	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6> THA	8-98229-296-3	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-178-4	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-178-4	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98238-469-3	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 6-SPEAKER SYSTEM BASE<UW5> THA	8-98238-469-3	01	1	1310-		●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ>,AM/FM,CLOCK, BLUE TOOTH,DVD W/DISPLAY<UVA> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-179-4	01	1	1310-	●
12	HARNESS; ROOF AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98198-179-4	01	1	1310-		●
38	HARNESS; CHAS ABS W/EBD BRAKE ASSIST<JE5> THA	8-98198-065-2	01	1	1310-	●
38	HARNESS; CHAS THA	8-98198-065-2	01	1	1310-		●
38	HARNESS; CHAS EXC. ABS W/EBD BRAKE ASSIST<JE5> THA	8-98198-063-2	01	1	1310-	●
83	HARNESS; AIR CONDITIONER REAR COOLER WO/HEATER<C69> THA	8-98198-188-2	01	1	1310-	●
83	HARNESS; AIR CONDITIONER THA	8-98198-188-2	01	1	1310-		●
101	BRACKET; HARNESS CONNECTOR THA	8-98102-999-0	01	1	1310-	●	●
290	NUT; BRKT M6 FLANGE THA	0-91180-106-0	01	1	1310-	●	●
483	HARNESS; EXT,RADIO HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98201-891-0	01	1	1310-	●
483	HARNESS; EXT,RADIO AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98201-891-0	01	1	1310-		●
687	HARNESS; VIDEO DISC PLYR 2ND SEAT DVD MONITOR<U48> THA	8-98211-400-2	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
