◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#129617) — 271 parça

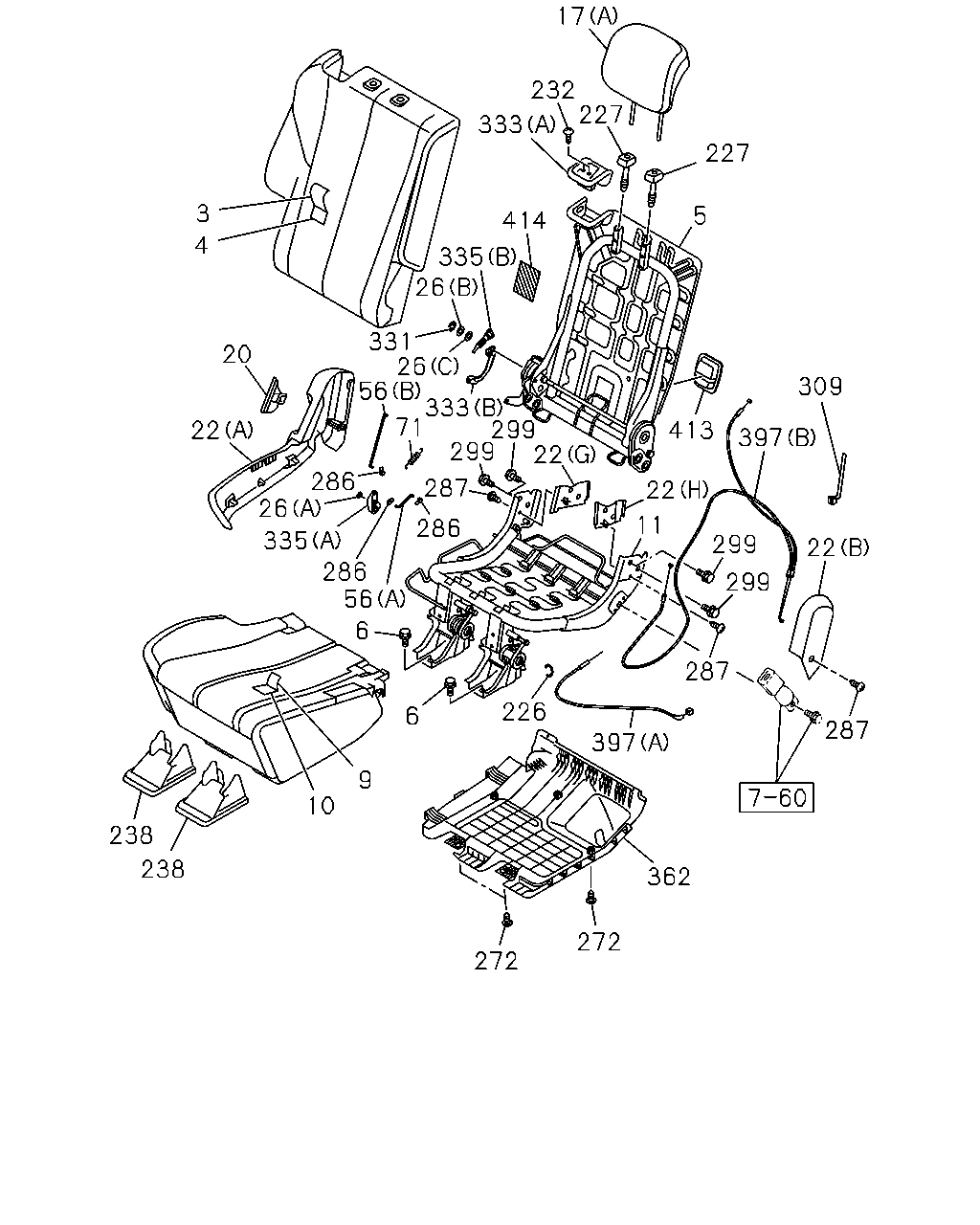

çizim 381250
272 362 272 397 287 287 226 6 6 9 10 238 238 56 286 335 286 26 286 287 299 299 333 56 71 22 20 26 331 26 335 414 5 227 227 232 17 333 309 22 299 299 397 413 22 11 22 4 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-260-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-261-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-243-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-244-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-230-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-231-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> THA 		8-98253-599-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> THA 		8-98253-600-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-598-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-597-0 01 1 1310- ● ●
5 FRAME ASM; RR SEAT BACK
THA 		8-98253-595-2 01 1 1310- ● ●
5 FRAME ASM; RR SEAT BACK
THA 		8-98253-596-2 01 1 1310- ● ●
6 BOLT; RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M12X27.5 W/PL WASHER THA 		8-98050-319-0 08 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-215-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-255-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-237-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-238-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-224-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-225-1 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> THA 		8-98253-546-0 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> THA 		8-98253-547-0 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-544-0 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-545-0 01 1 1310- ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-98253-542-1 01 1 1310- ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-98253-543-1 01 1 1310-1407 ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-98288-447-0 01 1 1408- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA 		8-97428-266-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA 		8-97428-266-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY THA 		8-97428-268-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA 		8-97428-249-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA 		8-97428-249-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK THA 		8-97428-251-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA 		8-97428-212-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA 		8-97428-212-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY THA 		8-97428-214-0 01 1 1310- ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97428-220-0 01 1 1310-1402 ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97429-755-0 01 1 1403- ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97428-221-0 01 1 1310-1402 ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97429-756-0 01 1 1403- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK THA 		8-97428-192-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK THA 		8-97428-193-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK THA 		8-97428-194-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK THA 		8-97428-195-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK THA 		8-97428-216-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK THA 		8-97428-217-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK THA 		8-97428-218-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK THA 		8-97428-219-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (E) 3RD BLACK THA 		8-97428-149-0 02 1 1310- ● ●
22 COVER; RECLINING ADJ
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (F) 3RD BLACK THA 		8-97428-150-0 02 1 1310- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) THA 		8-98271-947-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) THA 		8-98271-947-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) THA 		8-98271-948-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) THA 		8-98271-948-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) THA 		8-98253-645-0 01 1 1310- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) THA 		8-98253-645-0 01 1 1310- ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98253-632-1 01 1 1310-1402 ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98253-632-1 01 1 1310-1402 ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98271-613-0 01 1 1403- ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98271-613-0 01 1 1403- ● ●
56 WIRE; RELEASE,RR SEAT
(A) THA 		8-98253-644-0 01 1 1310- ● ●
56 WIRE; RELEASE,RR SEAT
(A) THA 		8-98253-644-0 01 1 1310- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT
THA 		8-98255-645-0 01 1 1310- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT
THA 		8-98255-645-0 01 1 1310- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> THA 		8-98220-068-0 16 1 1310- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> THA 		8-98220-068-0 21 1 1310- ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98220-068-0 12 1 1310- ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98220-068-0 17 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97428-204-0 01 1 1310-1402 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97429-754-0 01 1 1403- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97428-204-0 02 1 1310-1402 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97429-754-0 02 1 1403- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK THA 		8-97428-205-0 01 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK THA 		8-97428-205-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK THA 		8-97428-147-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK THA 		8-97428-148-0 02 1 1310- ● ●
232 SCREW; RR SEAT
THA 		8-98253-634-0 02 1 1310- ● ●
232 SCREW; RR SEAT
THA 		8-98253-634-0 02 1 1310- ● ●
238 COVER; LEG
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97424-474-1 04 1 1310- ● ●
272 SCREW; COVER
THA 		8-98253-634-0 05 1 1310- ● ●
272 SCREW; COVER
THA 		8-98253-634-0 06 1 1310- ● ●
286 COVER; HINGE
THA 		8-98253-646-0 03 1 1310- ● ●
286 COVER; HINGE
THA 		8-98253-646-0 03 1 1310- ● ●
287 SCREW; COVER
THA 		8-98253-634-0 02 1 1310- ● ●
287 SCREW; COVER
THA 		8-98253-634-0 04 1 1310- ● ●
299 BOLT; LEG
THA 		8-98253-643-0 04 1 1310- ● ●
299 BOLT; LEG
THA 		8-98253-643-0 04 1 1310- ● ●
309 CLIP; SEAT
THA 		8-98220-048-0 01 1 1310- ● ●
309 CLIP; SEAT
THA 		8-98220-048-0 01 1 1310- ● ●
331 RING; SNAP,PIN
THA 		8-98271-945-0 01 1 1403- ● ●
331 RING; SNAP,PIN
THA 		8-98271-945-0 01 1 1403- ● ●
333 LEVER ASM; RR SEAT
(B) THA 		8-98271-923-0 01 1 1403- ● ●
333 LEVER ASM; RR SEAT
(B) THA 		8-98271-924-0 01 1 1403- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK THA 		8-97428-206-0 01 1 1310- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK THA 		8-97428-206-0 01 1 1310- ● ●
335 LINK ASM; RR SEAT
(B) THA 		8-98271-616-0 01 1 1403- ● ●
335 LINK ASM; RR SEAT
(B) THA 		8-98271-617-0 01 1 1403- ● ●
335 LINK ASM; RR SEAT
(A) THA 		8-98253-647-0 01 1 1310- ● ●
335 LINK ASM; RR SEAT
(A) THA 		8-98253-648-0 01 1 1310- ● ●
362 COVER; REAR SEAT LATCH
BLACK THA 		8-97428-198-0 01 1 1310- ● ●
362 COVER; REAR SEAT LATCH
BLACK THA 		8-97428-199-0 01 1 1310- ● ●
397 CABLE; SEAT
(B) THA 		8-98253-601-0 01 1 1310- ● ●
397 CABLE; SEAT
(B) THA 		8-98253-601-0 01 1 1310- ● ●
397 CABLE; SEAT
(A) THA 		8-98253-553-0 01 1 1310- ● ●
397 CABLE; SEAT
(A) THA 		8-98253-554-0 01 1 1310- ● ●
413 COVER; TETHER
BLACK THA 		8-97428-208-0 01 1 1310- ● ●
413 COVER; TETHER
BLACK THA 		8-97428-208-0 02 1 1310- ● ●
414 INSULATOR; RR SEAT BACK
THA 		8-98253-631-0 01 1 1310- ● ●
414 INSULATOR; RR SEAT BACK
THA 		8-98253-631-0 01 1 1310- ● ●

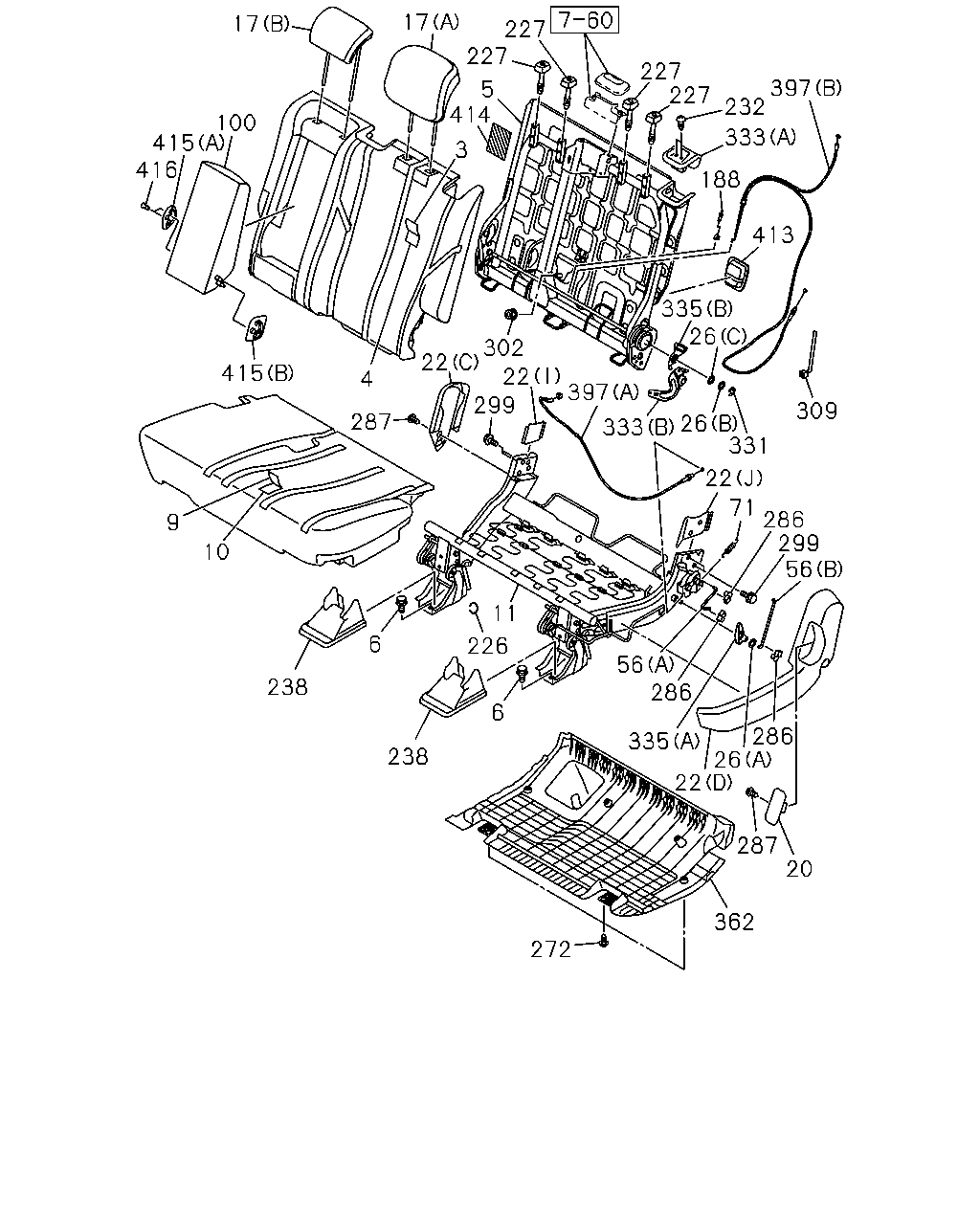

çizim 381386
17 17 5 414 3 227 227 227 227 397 232 188 333 413 335 309 26 397 22 302 22 4 287 415 416 415 100 9 10 238 6 226 11 6 238 335 286 56 56 286 71 22 331 333 26 287 20 362 272 299 299 22 286 26
BalonParca AdiParca NoAdetTipApplied Date A B
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-260-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-261-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-243-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-244-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-230-0 01 1 1310- ● ●
3 COVER; TRIM,RR SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-231-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> THA 		8-98253-599-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM LEATHER<6TB> THA 		8-98253-600-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-598-0 01 1 1310- ● ●
4 PAD; RR,SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-597-0 01 1 1310- ● ●
5 FRAME ASM; RR SEAT BACK
THA 		8-98253-595-2 01 1 1310- ● ●
5 FRAME ASM; RR SEAT BACK
THA 		8-98253-596-2 01 1 1310- ● ●
6 BOLT; RR SEAT
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> M12X27.5 W/PL WASHER THA 		8-98050-319-0 08 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-215-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-255-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-237-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-238-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-224-1 01 1 1310- ● ●
9 COVER ASM; TRIM,RR,CUSHION
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-225-1 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> THA 		8-98253-546-0 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM LEATHER<6TB> THA 		8-98253-547-0 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-544-0 01 1 1310- ● ●
10 PAD; CUSHION,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98253-545-0 01 1 1310- ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-98253-542-1 01 1 1310- ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-98253-543-1 01 1 1310-1407 ● ●
11 FRAME ASM; CUSHION,RR SEAT
THA 		8-98288-447-0 01 1 1408- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA 		8-97428-266-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY THA 		8-97428-266-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY THA 		8-97428-268-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA 		8-97428-249-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK THA 		8-97428-249-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK THA 		8-97428-251-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA 		8-97428-212-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY THA 		8-97428-212-0 01 1 1310- ● ●
17 REST; HD,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY THA 		8-97428-214-0 01 1 1310- ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97428-220-0 01 1 1310-1402 ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97429-755-0 01 1 1403- ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97428-221-0 01 1 1310-1402 ● ●
20 KNOB; RECLINING DEVICE
BLACK THA 		8-97429-756-0 01 1 1403- ● ●
22 COVER; RECLINING ADJ
(G) 2ND BLACK THA 		8-97428-192-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK THA 		8-97428-193-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK THA 		8-97428-194-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK THA 		8-97428-195-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK THA 		8-97428-216-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK THA 		8-97428-217-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK THA 		8-97428-218-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK THA 		8-97428-219-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (E) 3RD BLACK THA 		8-97428-149-0 02 1 1310- ● ●
22 COVER; RECLINING ADJ
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (F) 3RD BLACK THA 		8-97428-150-0 02 1 1310- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) THA 		8-98271-947-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(B) THA 		8-98271-947-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) THA 		8-98271-948-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(C) THA 		8-98271-948-0 01 1 1403- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) THA 		8-98253-645-0 01 1 1310- ● ●
26 WASHER; LK,RECLINING TO SEAT
(A) THA 		8-98253-645-0 01 1 1310- ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98253-632-1 01 1 1310-1402 ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98253-632-1 01 1 1310-1402 ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98271-613-0 01 1 1403- ● ●
56 WIRE; RELEASE,RR SEAT
(B) THA 		8-98271-613-0 01 1 1403- ● ●
56 WIRE; RELEASE,RR SEAT
(A) THA 		8-98253-644-0 01 1 1310- ● ●
56 WIRE; RELEASE,RR SEAT
(A) THA 		8-98253-644-0 01 1 1310- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT
THA 		8-98255-645-0 01 1 1310- ● ●
71 SPRING; HOOK,FLOOR LOCK,RR SEAT
THA 		8-98255-645-0 01 1 1310- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-262-0 01 1 1310- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-245-0 01 1 1310- ● ●
100 REST; ARM,RR SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY THA 		8-97428-232-0 01 1 1310- ● ●
188 WIRE ASM; RR SEAT
THA 		8-98253-613-1 01 1 1310- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> THA 		8-98220-068-0 16 1 1310- ● ●
226 RING; HOG
SEAT TRIM LEATHER<6TB> THA 		8-98220-068-0 21 1 1310- ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98220-068-0 12 1 1310- ● ●
226 RING; HOG
SEAT TRIM HIGH GRADE CLOTH<8LM> THA 		8-98220-068-0 17 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97428-204-0 01 1 1310-1402 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97429-754-0 01 1 1403- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97428-204-0 02 1 1310-1402 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97429-754-0 02 1 1403- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK THA 		8-97428-205-0 01 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK THA 		8-97428-205-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK THA 		8-97428-147-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK THA 		8-97428-148-0 02 1 1310- ● ●
232 SCREW; RR SEAT
THA 		8-98253-634-0 02 1 1310- ● ●
232 SCREW; RR SEAT
THA 		8-98253-634-0 02 1 1310- ● ●
238 COVER; LEG
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97424-474-1 04 1 1310- ● ●
272 SCREW; COVER
THA 		8-98253-634-0 05 1 1310- ● ●
272 SCREW; COVER
THA 		8-98253-634-0 06 1 1310- ● ●
286 COVER; HINGE
THA 		8-98253-646-0 03 1 1310- ● ●
286 COVER; HINGE
THA 		8-98253-646-0 03 1 1310- ● ●
287 SCREW; COVER
THA 		8-98253-634-0 02 1 1310- ● ●
287 SCREW; COVER
THA 		8-98253-634-0 04 1 1310- ● ●
299 BOLT; LEG
THA 		8-98253-643-0 04 1 1310- ● ●
299 BOLT; LEG
THA 		8-98253-643-0 04 1 1310- ● ●
302 NUT; RR SEAT
THA 		8-98253-635-0 01 1 1310- ● ●
309 CLIP; SEAT
THA 		8-98220-048-0 01 1 1310- ● ●
309 CLIP; SEAT
THA 		8-98220-048-0 01 1 1310- ● ●
331 RING; SNAP,PIN
THA 		8-98271-945-0 01 1 1403- ● ●
331 RING; SNAP,PIN
THA 		8-98271-945-0 01 1 1403- ● ●
333 LEVER ASM; RR SEAT
(B) THA 		8-98271-923-0 01 1 1403- ● ●
333 LEVER ASM; RR SEAT
(B) THA 		8-98271-924-0 01 1 1403- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK THA 		8-97428-206-0 01 1 1310- ● ●
333 LEVER ASM; RR SEAT
(A) BLACK THA 		8-97428-206-0 01 1 1310- ● ●
335 LINK ASM; RR SEAT
(B) THA 		8-98271-616-0 01 1 1403- ● ●
335 LINK ASM; RR SEAT
(B) THA 		8-98271-617-0 01 1 1403- ● ●
335 LINK ASM; RR SEAT
(A) THA 		8-98253-647-0 01 1 1310- ● ●
335 LINK ASM; RR SEAT
(A) THA 		8-98253-648-0 01 1 1310- ● ●
362 COVER; REAR SEAT LATCH
BLACK THA 		8-97428-198-0 01 1 1310- ● ●
362 COVER; REAR SEAT LATCH
BLACK THA 		8-97428-199-0 01 1 1310- ● ●
397 CABLE; SEAT
(B) THA 		8-98253-601-0 01 1 1310- ● ●
397 CABLE; SEAT
(B) THA 		8-98253-601-0 01 1 1310- ● ●
397 CABLE; SEAT
(A) THA 		8-98253-553-0 01 1 1310- ● ●
397 CABLE; SEAT
(A) THA 		8-98253-554-0 01 1 1310- ● ●
413 COVER; TETHER
BLACK THA 		8-97428-208-0 01 1 1310- ● ●
413 COVER; TETHER
BLACK THA 		8-97428-208-0 02 1 1310- ● ●
414 INSULATOR; RR SEAT BACK
THA 		8-98253-631-0 01 1 1310- ● ●
414 INSULATOR; RR SEAT BACK
THA 		8-98253-631-0 01 1 1310- ● ●
415 COVER; ARM REST
(A) THA 		8-98253-628-0 01 1 1310- ● ●
415 COVER; ARM REST
(B) THA 		8-98253-629-0 01 1 1310- ● ●
416 BOLT; ARM REST
THA 		8-98253-642-0 02 1 1310- ● ●

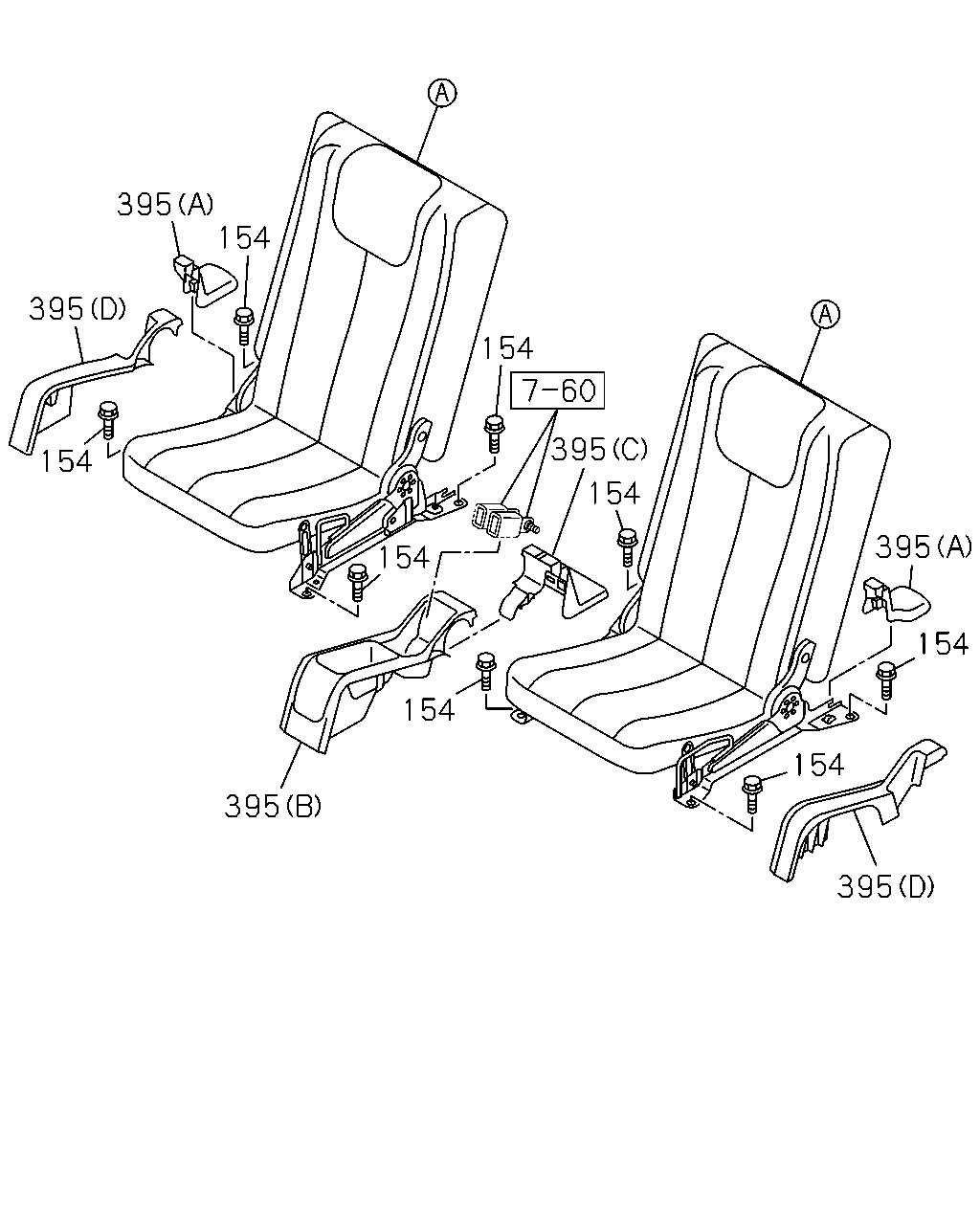

çizim 382270
395 395 154 154 395 154 154 395 154 154 154 395 395 154
BalonParca AdiParca NoAdetTipApplied Date A B
154 BOLT; STRIKER TO FLOOR
M12X27.5 W/PL WASHER THA 		8-98050-319-0 08 1 1310- ● ●
395 COVER; 3RD SEAT
(A) BLACK THA 		8-97424-468-3 01 1 1310- ● ●
395 COVER; 3RD SEAT
(A) BLACK THA 		8-97424-469-3 01 1 1310- ● ●
395 COVER; 3RD SEAT
(B) BLACK THA 		8-97424-470-2 01 1 1310- ● ●
395 COVER; 3RD SEAT
(C) BLACK THA 		8-97424-471-2 01 1 1310- ● ●
395 COVER; 3RD SEAT
(D) BLACK THA 		8-97424-472-2 01 1 1310- ● ●
395 COVER; 3RD SEAT
(D) BLACK THA 		8-97424-473-2 01 1 1310- ● ●

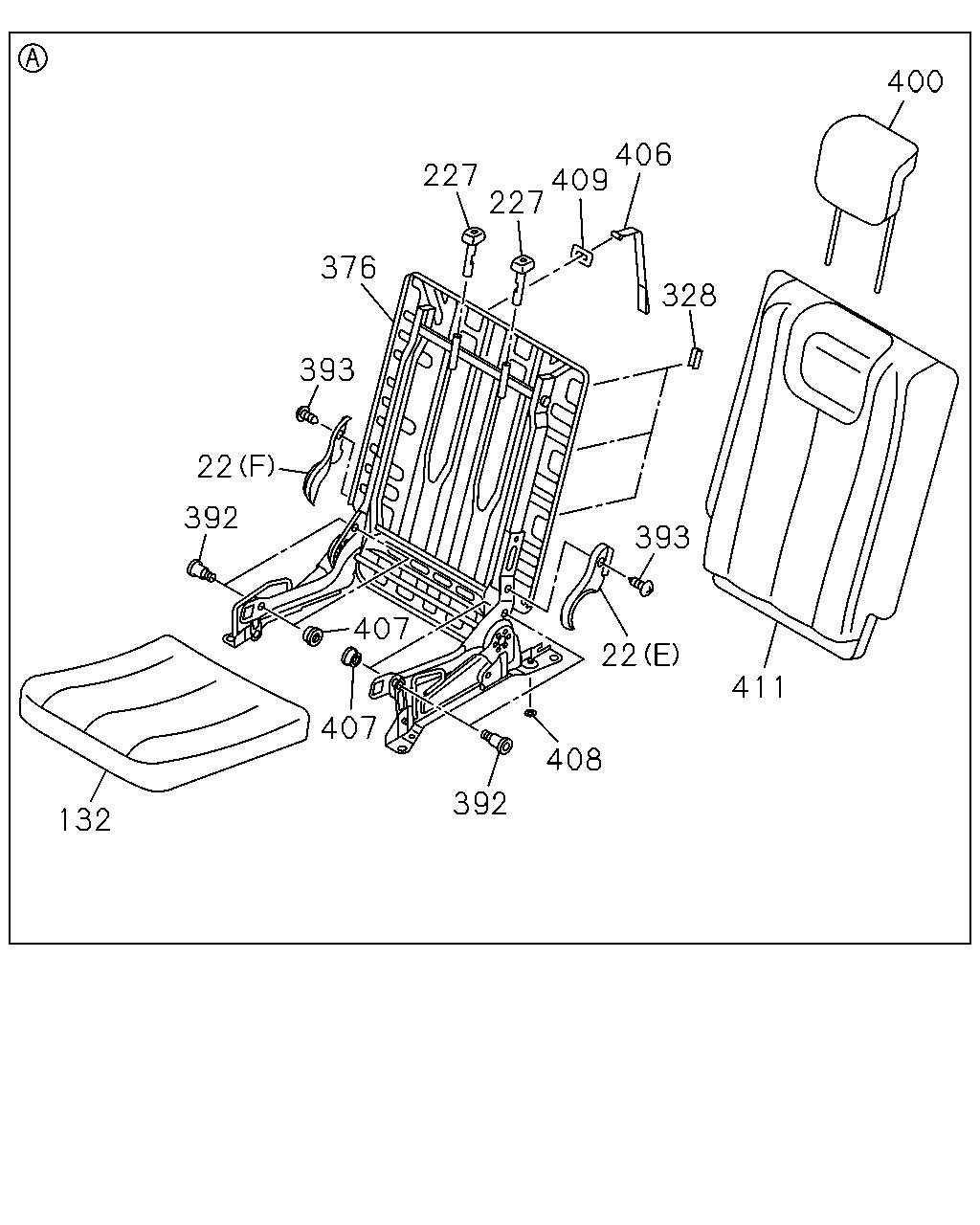

çizim 382271
400 411 406 328 393 22 408 392 407 132 407 392 22 393 376 227 227 409
BalonParca AdiParca NoAdetTipApplied Date A B
22 COVER; RECLINING ADJ
(G) 2ND BLACK THA 		8-97428-192-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(J) 2ND BLACK THA 		8-97428-193-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(H) 2ND BLACK THA 		8-97428-194-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(I) 2ND BLACK THA 		8-97428-195-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(A) 2ND BLACK THA 		8-97428-216-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(D) 2ND BLACK THA 		8-97428-217-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(B) 2ND BLACK THA 		8-97428-218-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
(C) 2ND BLACK THA 		8-97428-219-0 01 1 1310- ● ●
22 COVER; RECLINING ADJ
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (E) 3RD BLACK THA 		8-97428-149-0 02 1 1310- ● ●
22 COVER; RECLINING ADJ
SEAT TRIM LEATHER<6TB>,SEAT TRIM HIGH GRADE CLOTH<8LM> (F) 3RD BLACK THA 		8-97428-150-0 02 1 1310- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-171-0 02 1 1310- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-163-0 02 1 1310- ● ●
132 CUSHION; RR SEAT,3RD
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-157-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97428-204-0 01 1 1310-1402 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97429-754-0 01 1 1403- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97428-204-0 02 1 1310-1402 ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT FREE BLACK THA 		8-97429-754-0 02 1 1403- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK THA 		8-97428-205-0 01 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
2ND SEAT LOCK BLACK THA 		8-97428-205-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT FREE BLACK THA 		8-97428-147-0 02 1 1310- ● ●
227 HOLDER; GUIDE,RR HD REST
3RD SEAT LOCK BLACK THA 		8-97428-148-0 02 1 1310- ● ●
328 FASTENER; MAGIC
THA 		8-98253-019-0 12 1 1310- ● ●
376 FRAME ASM; 3RD SEAT BACK
THA 		8-98253-001-0 01 1 1310- ● ●
376 FRAME ASM; 3RD SEAT BACK
THA 		8-98253-002-0 01 1 1310- ● ●
392 BOLT; 3RD SEAT
THA 		8-98253-079-0 08 1 1310- ● ●
393 SCREW; 3RD SEAT
THA 		8-98253-008-0 04 1 1310- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-166-0 02 1 1310- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-158-0 02 1 1310- ● ●
400 REST; HD,3RD SEAT
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-152-0 02 1 1310- ● ●
406 STRAP
BLACK THA 		8-97428-139-0 02 1 1310- ● ●
407 COLLAR; CUSHION
FRONT THA 		8-98253-021-0 04 1 1310- ● ●
407 COLLAR; CUSHION
REAR THA 		8-98253-022-0 04 1 1310- ● ●
408 SPONGE
THA 		8-98253-023-0 02 1 1310- ● ●
409 COVER; STRAP
BLACK THA 		8-97428-151-0 02 1 1310- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-169-0 01 1 1310- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA 		8-97428-184-0 01 1 1310- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-161-0 01 1 1310- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA 		8-97428-181-0 01 1 1310- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-155-0 01 1 1310- ● ●
411 PAD & TRIM; 3RD SEAT BACK
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK THA 		8-97428-178-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
