Sayfa 7-50 - Isuzu EPC

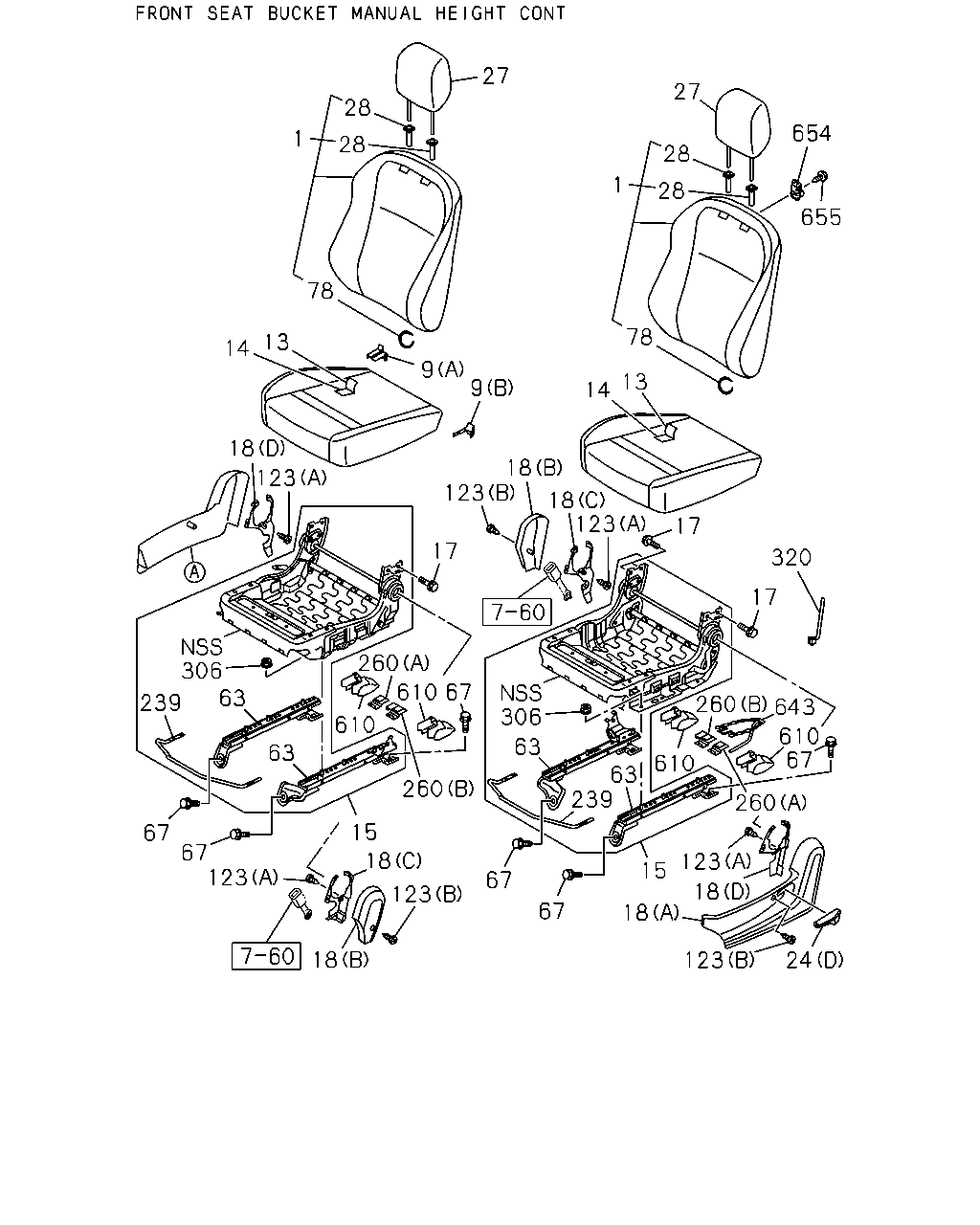

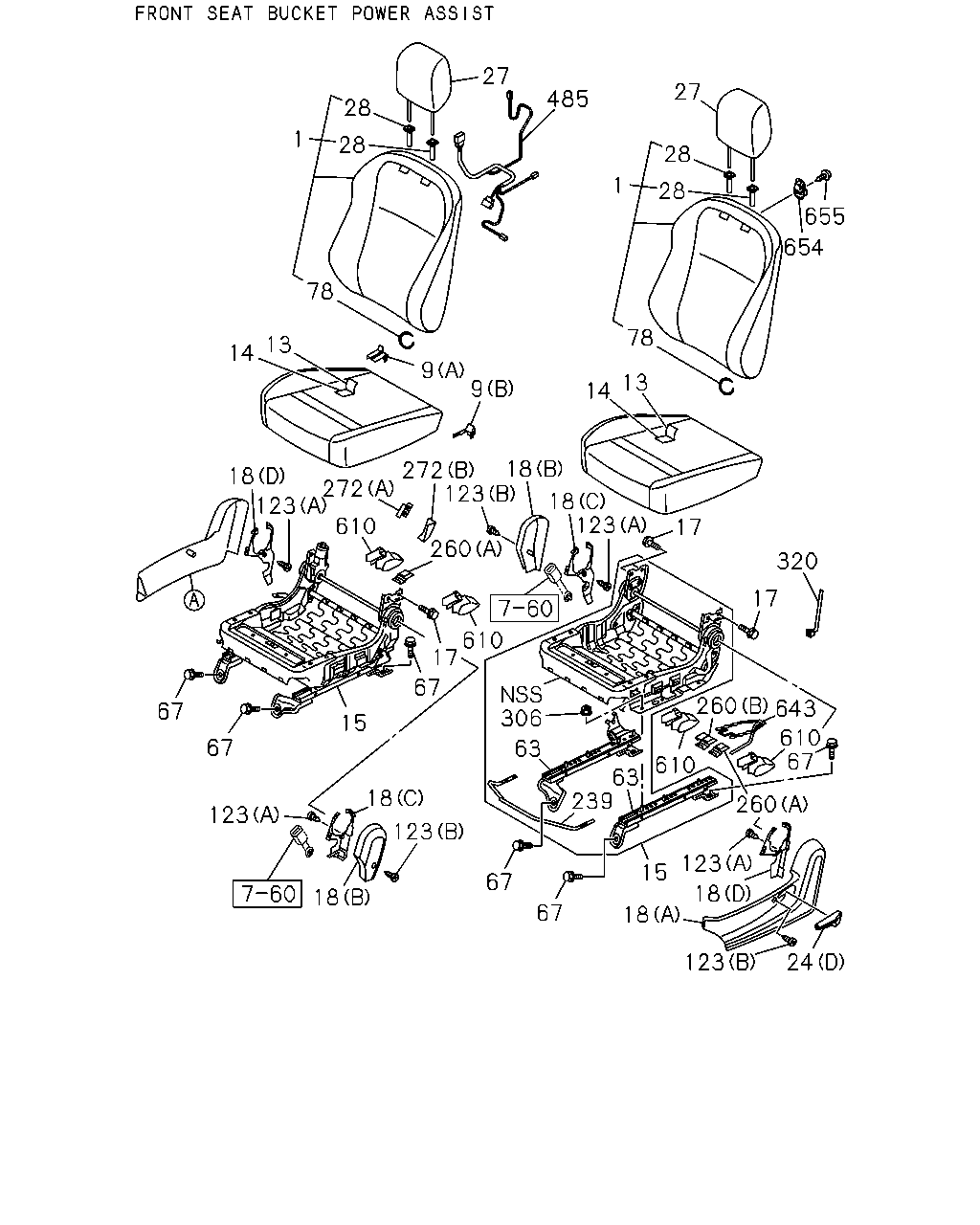

7-50 — FRONT SEAT (#129616) — 342 parça

27 485 28 28 1 78 9 9 13 14 272 272 123 18 18 123 610 260 610 17 67 15 67 67 123 18 123 18 67 67 18 123 24 18 260 67 610 643 260 17 320 13 14 78 1 27 28 28 655 654 17 18 123 306 63 239 610 63 15 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-323-0	01	1	1310-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-349-0	01	1	1310-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-324-0	01	1	1310-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-350-0	01	1	1310-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-293-0	01	1	1310-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-291-0	01	1	1310-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1310-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1310-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1310-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-311-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-310-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-314-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-313-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-564-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-711-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-560-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98187-702-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-571-1	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-718-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-568-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-569-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98187-716-3	01	1	1310-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1310-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1310-	●	●

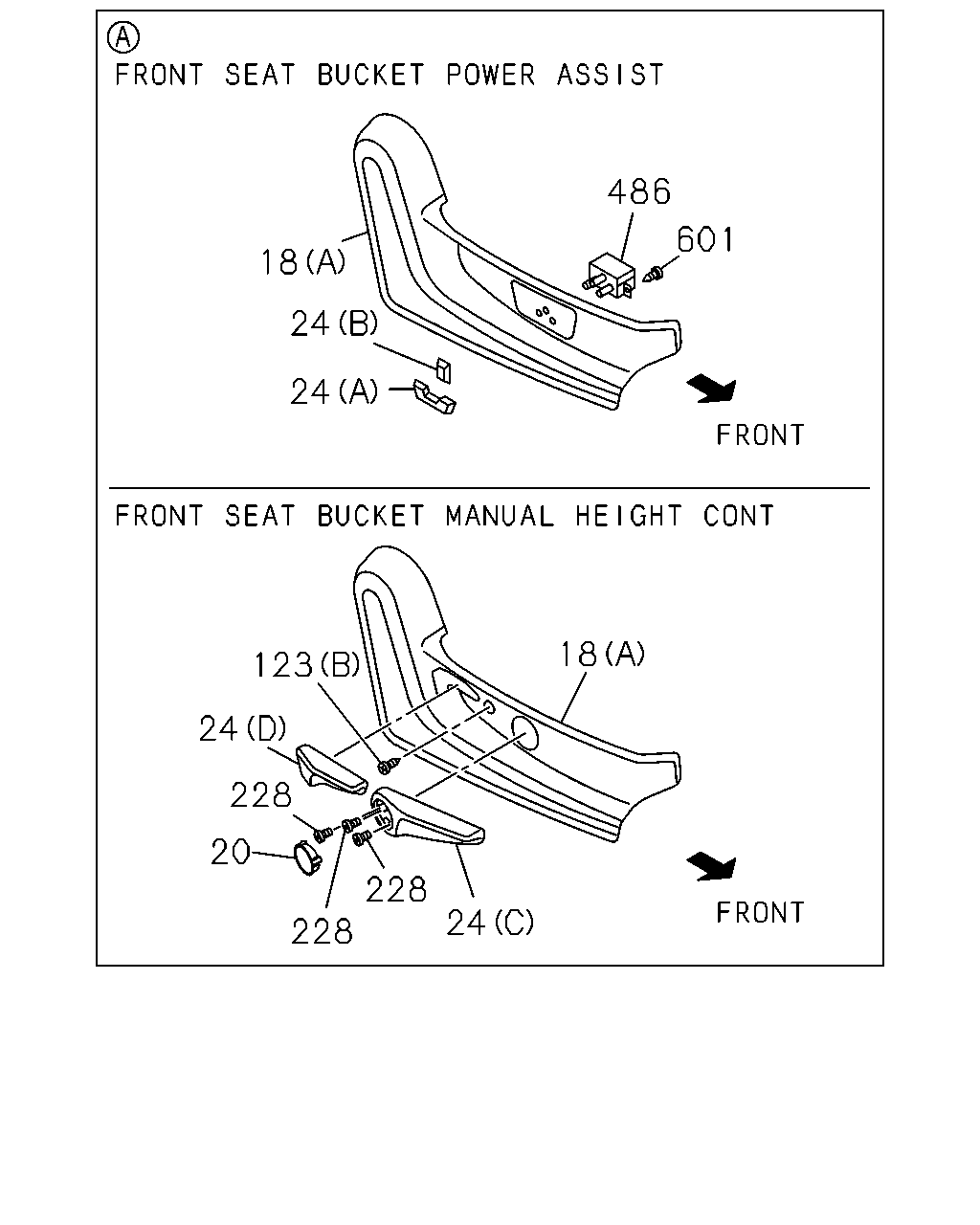

18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1310-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1310-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1310-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1310-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-645-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-645-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-664-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-664-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LOCK BLACK THA	8-97424-499-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LOCK BLACK THA	8-97424-499-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FREE BLACK THA	8-97424-500-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FREE BLACK THA	8-97424-500-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INNER THA	8-98220-096-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> OUTER THA	8-98220-097-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> OUTER THA	8-98224-186-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> INNER THA	8-98224-188-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> OUTER THA	8-98224-309-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> INNER THA	8-98224-313-1	01	1	1310-	●	●
67	BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1310-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1310-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1310-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1310-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98220-068-0	18	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1310-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1310-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1310-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1310-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA	8-98224-497-0	01	1	1310-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97428-381-0	01	1	1310-	●	●
272	COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97428-383-0	01	1	1310-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1310-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1310-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	AR	1	1310-	●	●
485	HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98224-265-0	01	1	1310-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1310-	●	●
643	SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98184-734-0	01	1	1310-	●	●
654	HOOK; STOPPER AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-637-0	01	1	1310-	●	●
655	BOLT; HOOK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> M5X15 THA	8-98224-171-0	01	1	1310-	●	●

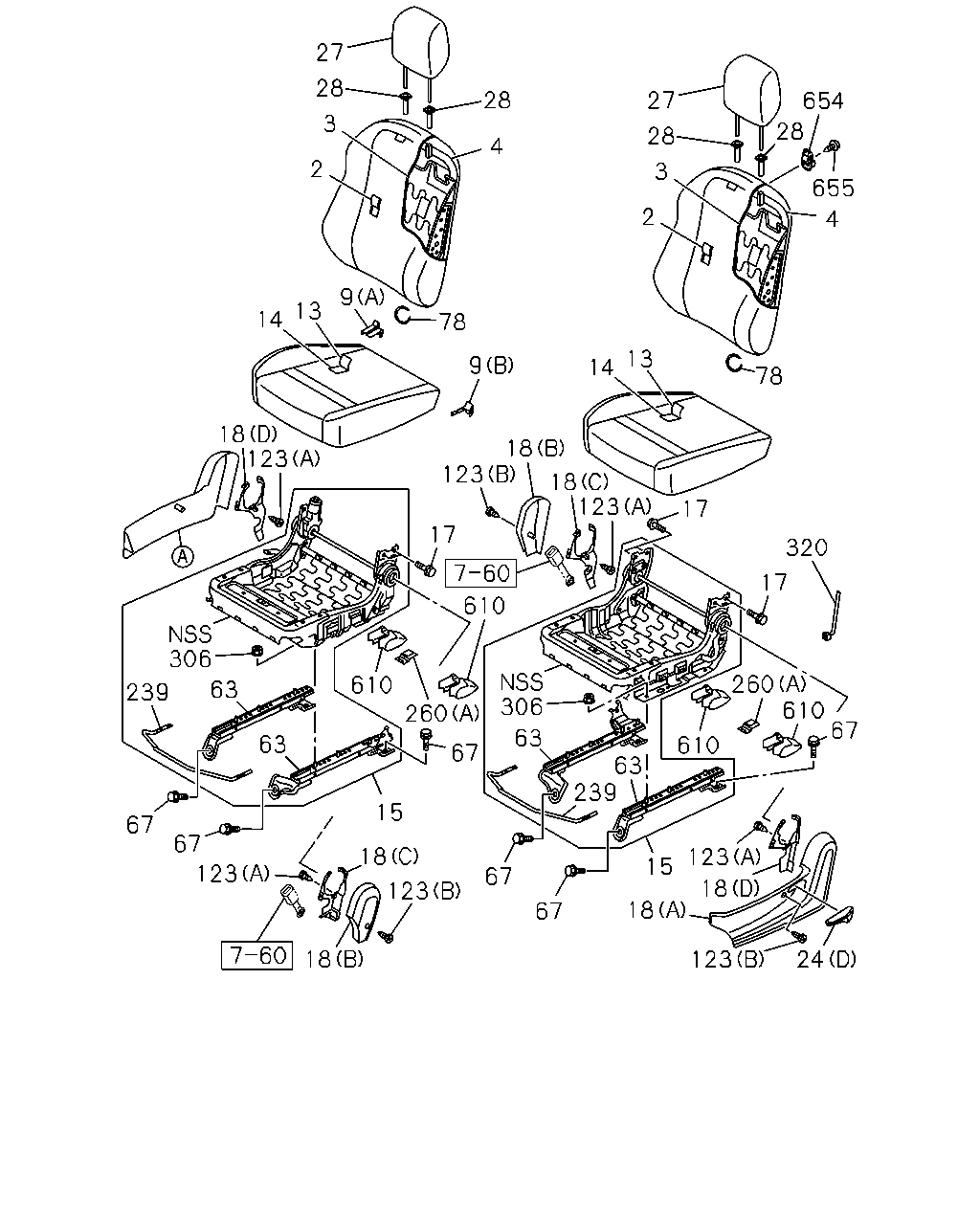

28 4 3 2 28 27 14 13 9 78 9 14 13 78 2 3 28 27 28 654 655 4 17 123 18 18 123 17 610 610 260 67 67 67 239 63 306 610 63 15 18 123 18 67 260 320 17 18 15 123 123 67 67 239 63 63 123 18 123 24 18 610 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-326-0	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-352-0	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-327-0	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-353-0	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-295-0	01	1	1310-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-294-0	01	1	1310-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-527-0	01	1	1310-	●	●
3	PAD; FRT SEAT BACK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-530-0	01	1	1310-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-526-0	01	1	1310-	●	●
3	PAD; FRT SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-525-0	01	1	1310-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-533-0	01	1	1310-	●	●
4	FRAME ASM; FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-534-0	01	1	1310-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1310-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1310-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1310-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-311-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-310-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-314-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-313-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-564-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-711-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-560-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98187-702-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-571-1	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-718-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-568-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-569-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98187-716-3	01	1	1310-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1310-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1310-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1310-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1310-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1310-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1310-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-645-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-645-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-664-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-664-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LOCK BLACK THA	8-97424-499-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LOCK BLACK THA	8-97424-499-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FREE BLACK THA	8-97424-500-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FREE BLACK THA	8-97424-500-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INNER THA	8-98220-096-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> OUTER THA	8-98220-097-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> OUTER THA	8-98224-186-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> INNER THA	8-98224-188-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> OUTER THA	8-98224-309-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> INNER THA	8-98224-313-1	01	1	1310-	●	●
67	BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1310-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1310-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1310-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1310-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98220-068-0	18	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1310-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1310-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1310-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1310-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA	8-98224-497-0	01	1	1310-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1310-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1310-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	AR	1	1310-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1310-	●	●
654	HOOK; STOPPER AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-637-0	01	1	1310-	●	●
655	BOLT; HOOK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> M5X15 THA	8-98224-171-0	01	1	1310-	●	●

1 28 28 27 1 28 28 27 654 655 78 13 14 17 123 320 17 260 643 610 67 260 123 18 15 18 123 24 610 63 239 67 67 123 18 15 18 123 67 67 63 63 239 306 260 610 610 260 67 17 123 18 18 306 63 123 18 14 13 78 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-323-0	01	1	1310-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-349-0	01	1	1310-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-324-0	01	1	1310-	●	●
1	BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-350-0	01	1	1310-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-293-0	01	1	1310-	●	●
1	BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-291-0	01	1	1310-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) OUTER BLACK THA	8-97428-377-0	01	1	1310-	●	●
9	COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) INNER BLACK THA	8-97428-379-0	01	1	1310-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) OUTER BLACK THA	8-97428-373-0	01	1	1310-	●	●
9	COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) INNER BLACK THA	8-97428-375-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-340-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-366-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-341-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-367-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-343-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-369-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-344-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97428-370-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-311-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-310-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-314-0	01	1	1310-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97428-313-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-564-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-561-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-711-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-560-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98187-702-0	01	1	1310-	●	●
14	PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-559-0	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-571-1	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98187-718-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> THA	8-98187-568-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98187-715-3	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> THA	8-98187-569-2	01	1	1310-	●	●
15	FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98187-716-3	01	1	1310-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1310-	●	●
17	BOLT; RECLINING THA	8-98220-045-0	04	1	1310-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1310-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1310-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1310-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1310-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-315-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97424-639-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY THA	8-97428-316-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK THA	8-97426-524-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-645-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-645-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-664-0	01	1	1310-	●	●
27	REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> LIGHT GRAY THA	8-97424-664-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LOCK BLACK THA	8-97424-499-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> LOCK BLACK THA	8-97424-499-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FREE BLACK THA	8-97424-500-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FREE BLACK THA	8-97424-500-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> LOCK BLACK THA	8-97424-665-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1310-	●	●
28	HOLDER; GUIDE,HD REST AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FREE BLACK THA	8-97424-666-0	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> INNER THA	8-98220-096-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> OUTER THA	8-98220-097-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> OUTER THA	8-98224-310-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> INNER THA	8-98224-312-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> OUTER THA	8-98224-186-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> INNER THA	8-98224-188-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> OUTER THA	8-98224-309-1	01	1	1310-	●	●
63	ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> INNER THA	8-98224-313-1	01	1	1310-	●	●
67	BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER THA	8-98050-319-0	08	1	1310-	●	●
78	RING; SNAP THA	8-98220-068-0	17	1	1310-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-068-0	17	1	1310-	●	●
78	RING; SNAP SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> THA	8-98220-068-0	16	1	1310-	●	●
78	RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> FRONT SEAT BACK POCKET<E91> THA	8-98220-068-0	18	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1310-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1310-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1310-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT THA	8-98220-104-0	01	1	1310-	●	●
239	HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> THA	8-98220-104-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS SEAT TRIM LEATHER<6TB> FRONT SEAT BUCKET POWER ASSIST<AQ9> (A) THA	8-98224-267-0	01	1	1310-	●	●
260	CLIP; HARNESS AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (B) THA	8-98224-497-0	01	1	1310-	●	●
306	NUT; SEAT ADJ M8 FLANGE THA	8-98220-087-0	07	1	1310-	●	●
306	NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> M8 FLANGE THA	8-98220-087-0	07	1	1310-	●	●
320	CLIP; BAND,SEAT THA	8-98220-048-0	AR	1	1310-	●	●
610	COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>,FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK THA	8-97416-785-4	04	1	1310-	●	●
643	SENSOR; REMINDER AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> THA	8-98184-734-0	01	1	1310-	●	●
654	HOOK; STOPPER AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> BLACK THA	8-97424-637-0	01	1	1310-	●	●
655	BOLT; HOOK AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> M5X15 THA	8-98224-171-0	01	1	1310-	●	●

18 24 228 228 20 228 24 123 24 24 18 486 601

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	COVER; RECLINING (B) BLACK THA	8-97424-579-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-097-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (D) BLACK THA	8-97424-607-0	01	1	1310-	●	●
18	COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (C) BLACK THA	8-97424-609-0	01	1	1310-	●	●
18	COVER; RECLINING (A) BLACK THA	8-97424-092-0	01	1	1310-	●	●
18	COVER; RECLINING (D) BLACK THA	8-97424-515-0	01	1	1310-	●	●
18	COVER; RECLINING (C) BLACK THA	8-97424-516-0	01	1	1310-	●	●
18	COVER; RECLINING (B) BLACK THA	8-97424-517-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (A) BLACK THA	8-97424-094-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-582-0	01	1	1310-	●	●
18	COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-585-0	01	1	1310-	●	●
20	CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> BLACK THA	8-97424-598-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (A) BLACK THA	8-97424-611-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) BLACK THA	8-97424-612-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT (D) BLACK THA	8-97424-518-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (D) BLACK THA	8-97424-591-0	01	1	1310-	●	●
24	KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (C) BLACK THA	8-97424-595-0	01	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING (A) M4X8 THA	8-98220-085-0	02	1	1310-	●	●
123	SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> (B) M4X10 THA	8-98220-086-0	04	1	1310-	●	●
123	SCREW; COVER,RECLINING (B) M4X10 THA	8-98220-086-0	03	1	1310-	●	●
123	SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> (B) M4X10 THA	8-98220-086-0	05	1	1310-	●	●
228	SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET<E91> M5X10 THA	8-98224-268-0	03	1	1310-	●	●
486	SWITCH; POWER SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> THA	8-98224-262-0	01	1	1310-	●	●
601	SCREW; SWITCH FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET<E91> SEAT TRIM LEATHER<6TB> M4X12 THA	8-98224-269-0	02	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
