◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#129615) — 69 parça

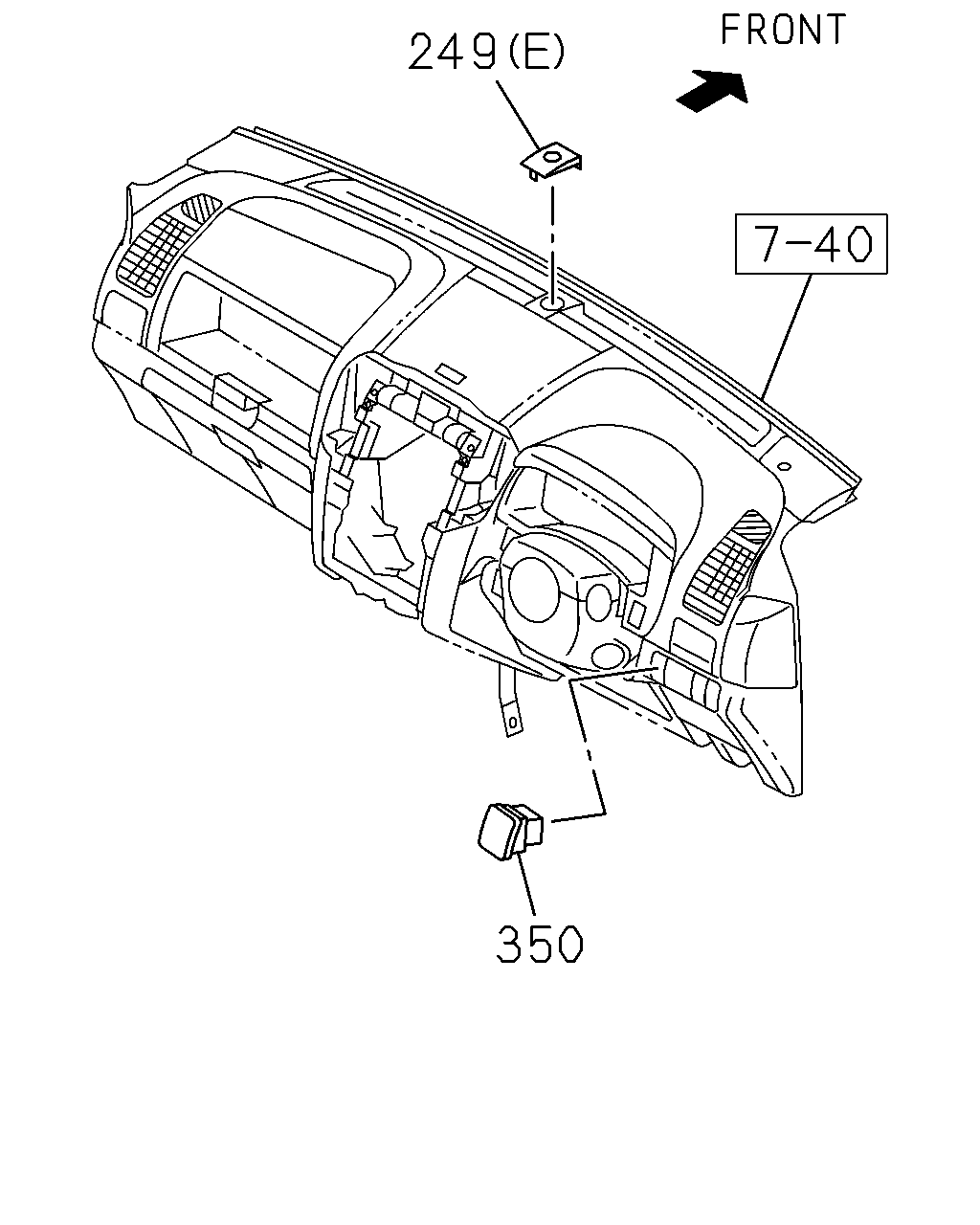

çizim 379720
350 249
BalonParca AdiParca NoAdetTipApplied Date A B
249 COVER
M/T MUA 5 SPEED 5H<MWQ> INTERIOR BASIC<RBA> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (A) BLACK THA 		8-97417-151-2 01 1 1310- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (B) BLACK THA 		8-97417-153-1 01 1 1310- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ> INTERIOR CUSTOM<RBD> (C) SILVER THA 		8-97427-523-0 01 1 1310- ●
249 COVER
M/T MUX 5 SPEED 5S<MZJ> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) SILVER THA 		8-97427-523-0 01 1 1310- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> (D) SILVER THA 		8-97427-525-0 01 1 1310- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (D) SILVER THA 		8-97427-525-0 01 1 1310- ●
249 COVER
AUTO COOLER SYSTEM<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1310- ● ●
249 COVER
COOLER W/FRESH AIR<C65> (E) BLACK THA 		8-97416-613-2 01 1 1310- ● ●
249 COVER
(F) BLACK THA 		8-97416-660-1 01 1 1310- ●
249 COVER
(G) BLACK THA 		8-97416-659-2 01 1 1310- ●
350 COVER; CONSOLE
THA 		8-98103-424-2 02 1 1310- ● ●
350 COVER; CONSOLE
THA 		8-98103-424-2 01 1 1310- ● ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> THA 		8-98103-424-2 01 1 1310- ● ●
350 COVER; CONSOLE
THA 		8-98103-424-2 01 1 1310- ● ●
350 COVER; CONSOLE
EXC. REAR COOLER WO/HEATER<C69> THA 		8-98103-424-2 01 1 1310- ●

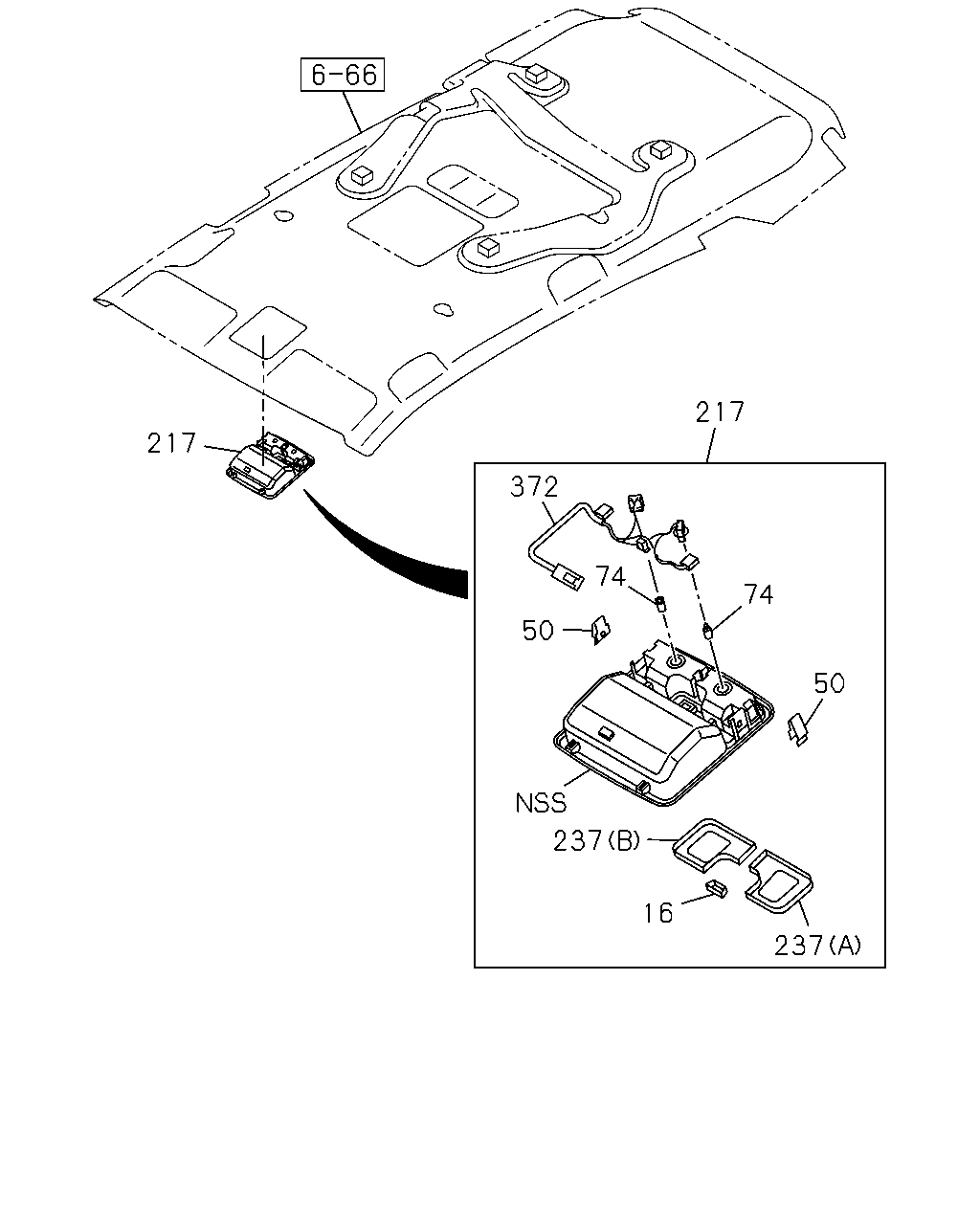

çizim 381019
217 372 50 74 50 74 217 237 16 237
BalonParca AdiParca NoAdetTipApplied Date A B
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY THA 		8-97423-261-0 01 1 1310- ●
16 KNOB ASM
GRAY THA 		8-97423-261-0 01 1 1310- ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> THA 		8-98192-891-0 02 1 1310- ●
50 CLIP; CONSOLE
THA 		8-98192-891-0 02 1 1310- ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W THA 		8-94124-595-0 02 1 1310- ●
74 BULB; CONSOLE
12V 5W THA 		8-94124-595-0 02 1 1310- ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY THA 		8-97416-690-5 01 1 1310- ●
217 CONSOLE; HEADER
GRAY THA 		8-97416-690-5 01 1 1310- ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) THA 		8-98192-893-0 01 1 1310- ●
237 LENS; HEADER CONSOLE
(A) THA 		8-98192-893-0 01 1 1310- ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) THA 		8-98192-894-0 01 1 1310- ●
237 LENS; HEADER CONSOLE
(B) THA 		8-98192-894-0 01 1 1310- ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> THA 		8-98192-890-0 01 1 1310- ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
THA 		8-98192-890-0 01 1 1310- ●

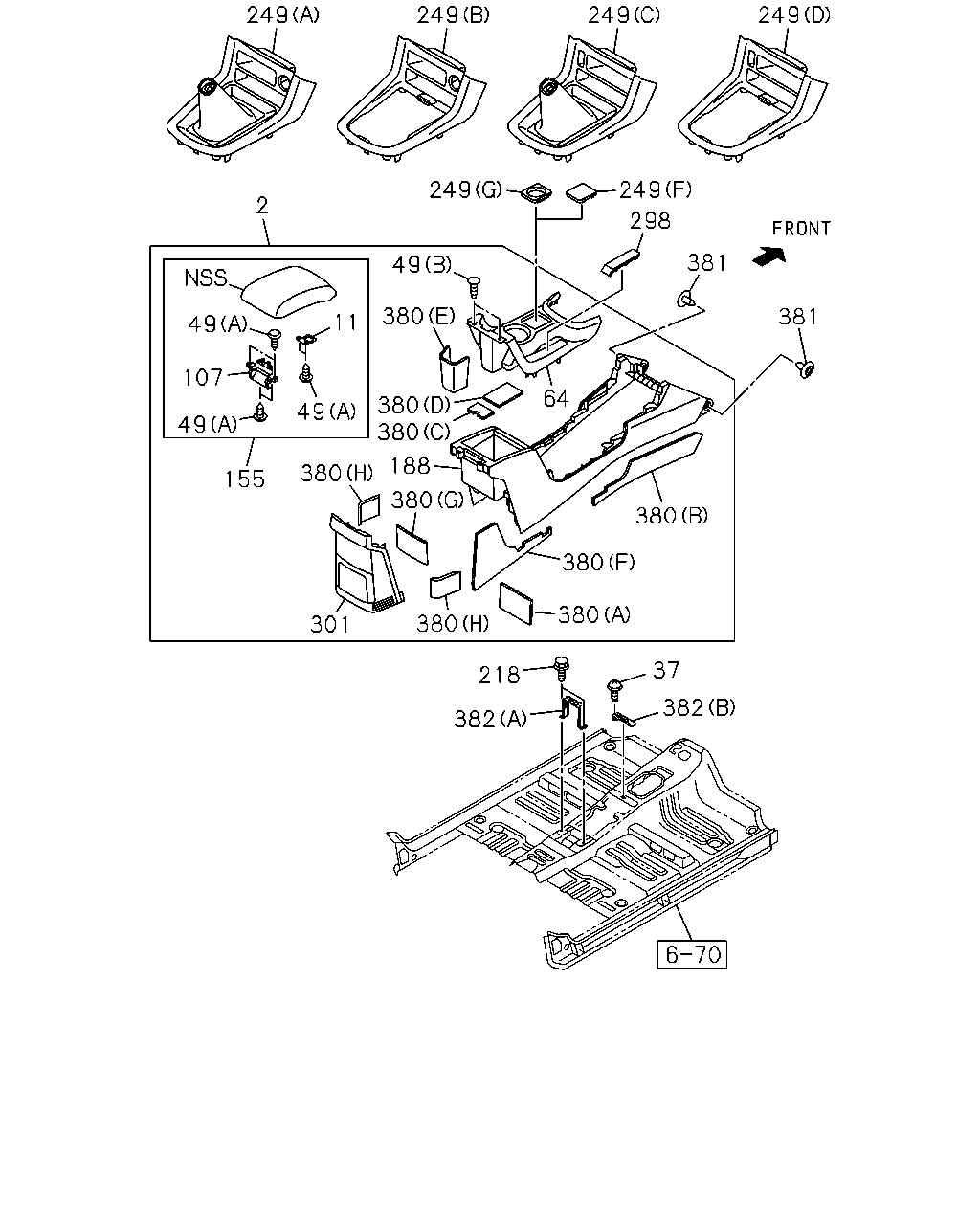

çizim 381028
380 381 381 298 249 249 2 49 380 64 380 188 380 380 155 49 107 49 11 49 380 301 380 218 382 380 380 37 382 249 249 249 249
BalonParca AdiParca NoAdetTipApplied Date A B
2 CONSOLE; CENTER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> BLACK THA 		8-97427-527-0 01 1 1310- ● ●
2 CONSOLE; CENTER
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97427-528-0 01 1 1310- ●
11 HINGE; CONSOLE LID
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-090-0 01 1 1310- ● ●
37 SCREW; CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1310- ●
37 SCREW; CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> M5X16 TAPPING W/PL WASHER IMA 		0-74165-516-0 03 1 1310- ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (A) M5X16 THA 		8-98197-847-0 06 1 1310- ● ●
49 SCREW; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (B) M4X14 THA 		8-98234-823-0 02 1 1310- ● ●
64 BEZEL; CENTER CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-087-3 01 1 1310- ● ●
107 LOCK; LID,RR CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-089-0 01 1 1310- ● ●
155 LID; PARCEL BOX
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-088-1 01 1 1310- ● ●
188 CONSOLE; RR
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-086-3 01 1 1310- ● ●
218 BOLT; BRKT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1310- ●
218 BOLT; BRKT
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> M6X12.5 FLANGE THA 		8-98014-141-0 02 1 1310- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ> INTERIOR BASIC<RBA> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (A) BLACK THA 		8-97417-151-2 01 1 1310- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR BASIC<RBA> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER<UGQ> (B) BLACK THA 		8-97417-153-1 01 1 1310- ●
249 COVER
M/T MUA 5 SPEED 5H<MWQ> INTERIOR CUSTOM<RBD> (C) SILVER THA 		8-97427-523-0 01 1 1310- ●
249 COVER
M/T MUX 5 SPEED 5S<MZJ> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (C) SILVER THA 		8-97427-523-0 01 1 1310- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> INTERIOR CUSTOM<RBD> (D) SILVER THA 		8-97427-525-0 01 1 1310- ●
249 COVER
A/T 5 SPEED-AISIN<MA1> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY<UCY>, AM/FM,CLOCK,BLUE TOOTH,DVD W/DISPLAY<UVA> (D) SILVER THA 		8-97427-525-0 01 1 1310- ●
249 COVER
AUTO COOLER SYSTEM<CJ2> (E) BLACK THA 		8-97416-614-2 01 1 1310- ● ●
249 COVER
COOLER W/FRESH AIR<C65> (E) BLACK THA 		8-97416-613-2 01 1 1310- ● ●
249 COVER
(F) BLACK THA 		8-97416-660-1 01 1 1310- ●
249 COVER
(G) BLACK THA 		8-97416-659-2 01 1 1310- ●
298 BEZEL; HAND BRAKE,CONSOLE
BLACK THA 		8-97416-651-2 01 1 1310- ● ●
301 BEZEL; CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> BLACK THA 		8-97423-091-2 01 1 1310- ● ●
301 BEZEL; CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID<D55> BLACK THA 		8-97423-092-2 01 1 1310- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (A) THA 		8-98234-827-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (B) THA 		8-98234-828-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (C) THA 		8-98234-830-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (D) THA 		8-98234-829-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (E) THA 		8-98234-831-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (F) THA 		8-98234-826-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> (G) THA 		8-98234-824-0 01 1 1310- ● ●
380 INSULATOR; CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID<D55> (G) THA 		8-98234-825-0 01 1 1310- ●
380 INSULATOR; CONSOLE
FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (H) THA 		8-98245-194-0 02 1 1310- ● ●
381 RETAINER; FLOOR CONSOLE
BLACK THA 		8-97360-070-0 02 1 1310- ● ●
382 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (A) THA 		8-98102-973-3 01 1 1310- ●
382 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> (A) THA 		8-98102-973-3 01 1 1310- ●
382 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07>,FLOOR CONSOLE W/LID<D55> (B) THA 		8-98112-864-4 01 1 1310- ●
382 BRACKET; FLOOR CONSOLE
AUTO COOLER SYSTEM<CJ2>,COOLER W/FRESH AIR<C65> FLOOR CONSOLE W/LID & RR CUP HOLDER<D07> (B) THA 		8-98112-864-4 01 1 1310- ●
