◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#129614) — 33 parça

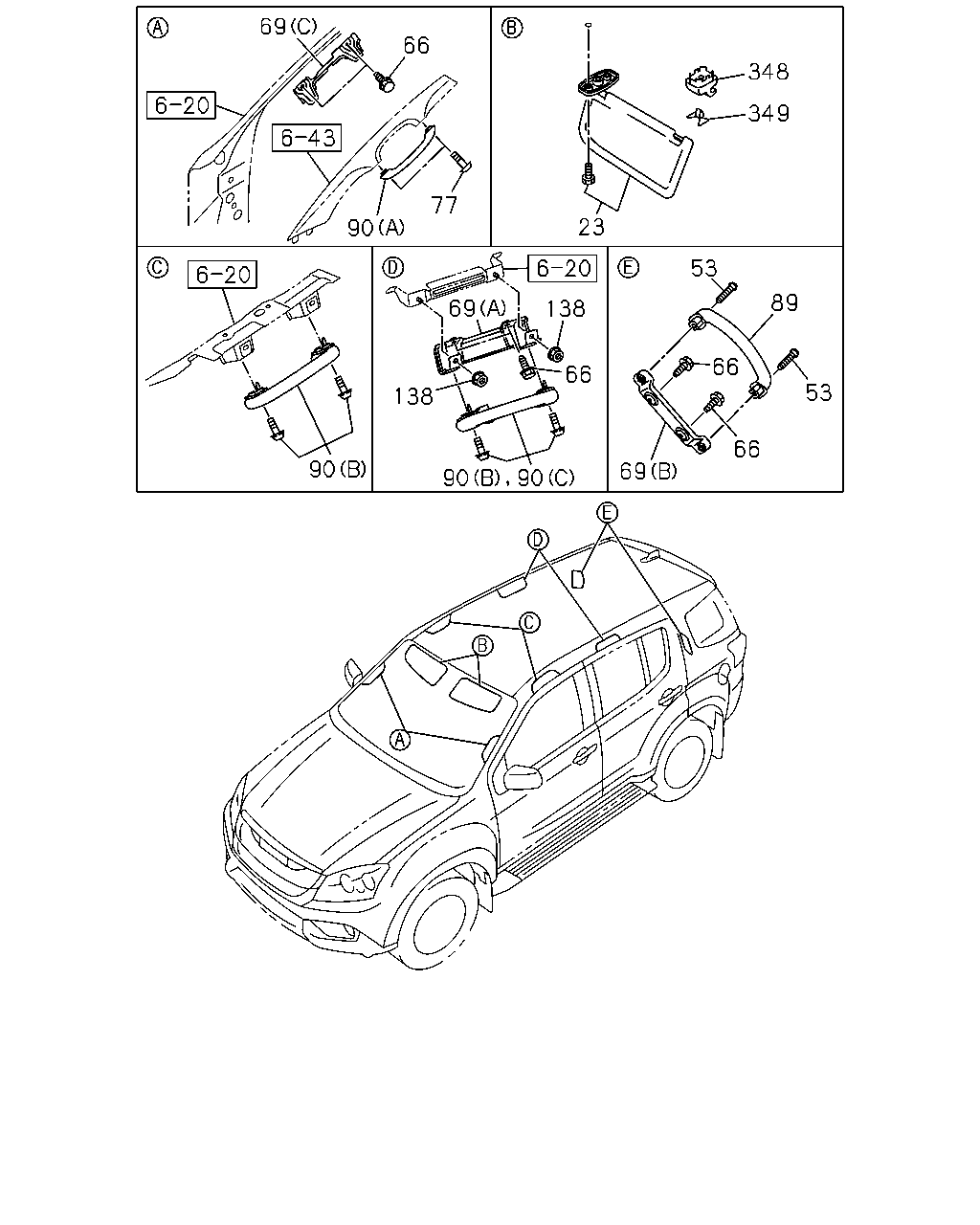

çizim 379676
69 66 77 90 23 348 349 90 138 69 66 138 90 90 53 89 53 66 66 69
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97429-637-0 01 1 1402- ●
23 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-686-3 01 1 1310- ●
23 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97416-686-3 01 1 1310- ●
23 SUN VISOR
AIR BAG DRIVER & PASSENGER DELETE<AK6> EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-681-2 01 1 1310- ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-683-2 01 1 1310- ●
23 SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> GRAY THA 		8-97416-682-2 01 1 1310- ●
23 SUN VISOR
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> GRAY THA 		8-97416-687-2 01 1 1310- ●
53 SCREW; ASSIST HANDLE
M6X32 IMA 		8-97811-323-0 04 1 1310- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 04 1 1310- ● ●
66 BOLT; ASSIST GRIP BRKT
M6X16 FLANGE THA 		8-98050-320-0 08 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(A) THA 		8-98198-262-0 02 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(B) THA 		8-98198-281-0 01 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(B) THA 		8-98198-282-0 01 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(C) THA 		8-98220-691-0 01 1 1310- ● ●
69 BRACKET; ASSIST GRIP
(C) THA 		8-98220-692-0 01 1 1310- ● ●
77 SCREW; ASSIST GRIP
M6X25 THA 		0-36230-625-0 04 1 1310- ● ●
89 HANDLE; ASSIST
GRAY IMA 		8-97424-381-0 02 1 1310- ● ●
90 GRIP; ASSIST,ROOF
(A) GRAY THA 		8-97416-698-4 02 1 1310- ● ●
90 GRIP; ASSIST,ROOF
(B) GRAY THA 		8-97419-356-5 02 1 1310- ● ●
90 GRIP; ASSIST,ROOF
INTERIOR BASIC<RBA> (B) GRAY THA 		8-97419-356-5 02 1 1310- ●
90 GRIP; ASSIST,ROOF
INTERIOR CUSTOM<RBD> (C) GRAY THA 		8-97419-357-6 01 1 1310- ●
90 GRIP; ASSIST,ROOF
(C) GRAY THA 		8-97419-357-6 01 1 1310- ●
90 GRIP; ASSIST,ROOF
INTERIOR CUSTOM<RBD> (C) GRAY THA 		8-97423-347-4 01 1 1310- ●
90 GRIP; ASSIST,ROOF
(C) GRAY THA 		8-97423-347-4 01 1 1310- ●
138 NUT; BRKT,HEADER SHELF
M6 FLANGE THA 		0-91180-106-0 04 1 1310- ● ●
348 RETAINER; SUNSHADE
INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> GRAY THA 		8-97403-990-0 02 1 1310- ●
348 RETAINER; SUNSHADE
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97403-990-0 02 1 1310- ●
348 RETAINER; SUNSHADE
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97403-990-0 02 1 1310- ●
348 RETAINER; SUNSHADE
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA 		8-97403-990-0 02 1 1310- ●
349 CLIP; RETAINER SUNSHADE
INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> THA 		8-97307-749-0 02 1 1310- ●
349 CLIP; RETAINER SUNSHADE
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-97307-749-0 02 1 1310- ●
349 CLIP; RETAINER SUNSHADE
INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-97307-749-0 02 1 1310- ●
349 CLIP; RETAINER SUNSHADE
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA 		8-97307-749-0 02 1 1310- ●
