◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#129613) — 91 parça

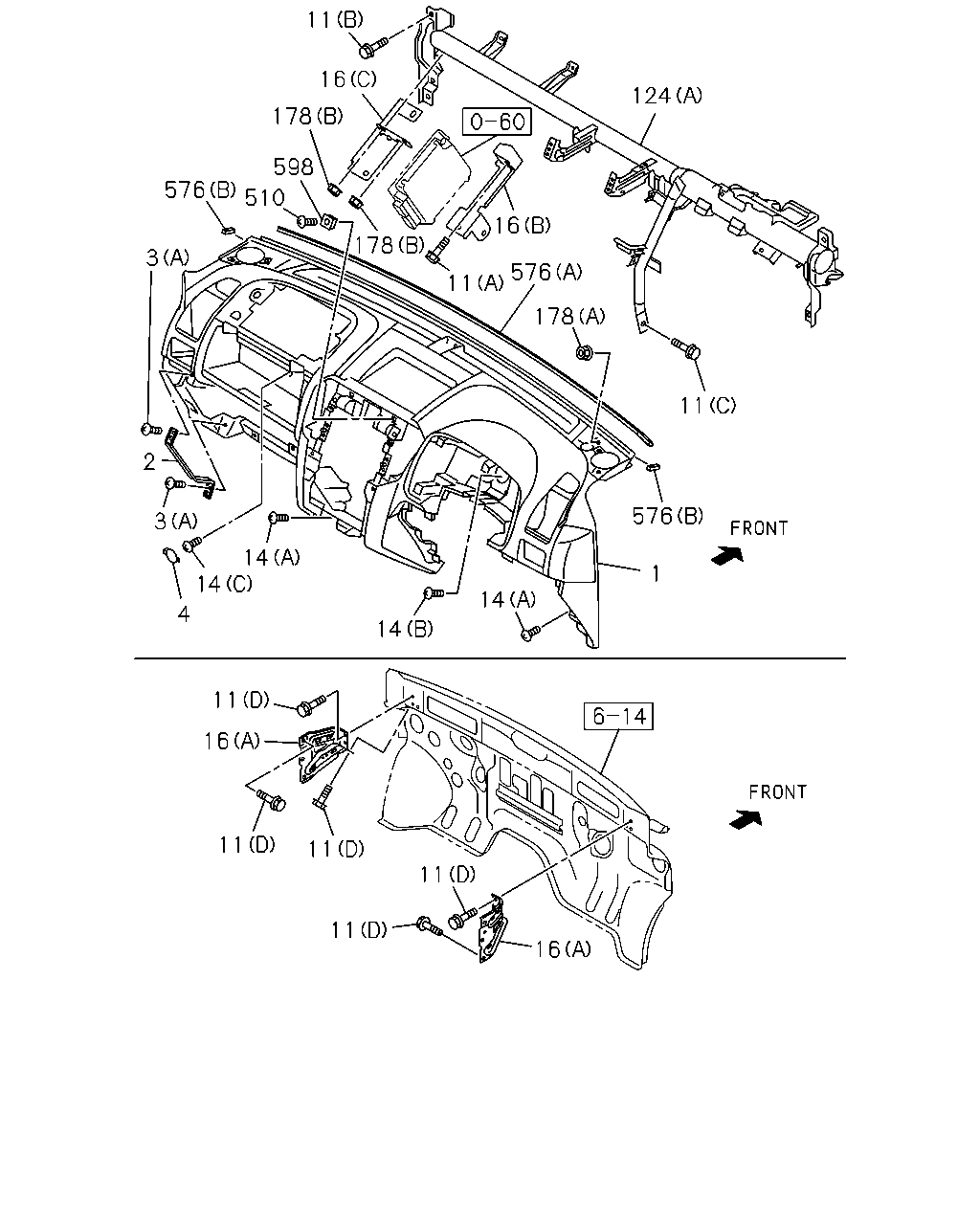

çizim 379691
16 11 11 1 11 16 1 14 14 4 14 14 1 576 11 178 576 16 124 1 3 2 3 576 510 598 178 16 11 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
BLACK THA 		8-97423-070-0 01 1 1310- ● ●
2 REINFORCEMENT; INST PNL,LWR
THA 		8-98232-644-1 01 1 1310- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AUTO COOLER SYSTEM<CJ2> (A) M5X16 THA 		8-98246-739-0 31 1 1310- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> COOLER W/FRESH AIR<C65> (A) M5X16 THA 		8-98246-739-0 32 1 1310- ● ●
3 SCREW; BINDER HD
(B) M5X16 THA 		8-98197-847-0 02 1 1310- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) M5X16 THA 		8-98246-739-0 36 1 1310- ●
4 COVER; INST PNL
BLACK THA 		8-97416-610-0 01 1 1310- ● ●
11 BOLT; INST PNL
(A) M6X20 FLANGE THA 		0-28650-620-0 01 1 1310- ● ●
11 BOLT; INST PNL
(B) M8X25 FLANGE THA 		0-28450-825-0 04 1 1310- ● ●
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER THA 		8-98057-965-0 01 1 1310- ● ●
11 BOLT; INST PNL
(D) M8X32.5 W/PL WASHER THA 		8-98136-077-0 12 1 1310- ● ●
14 SCREW; INST PNL
(A) M5X16 THA 		8-98167-220-0 04 1 1310- ● ●
14 SCREW; INST PNL
(A) M5X16 THA 		8-98167-220-0 03 1 1310- ● ●
14 SCREW; INST PNL
(B) M5X16 TAPPING THA 		8-98167-449-0 06 1 1310- ● ●
14 SCREW; INST PNL
(C) M5X14 TAPPING THA 		8-98184-363-0 01 1 1310- ● ●
16 BRACKET; INST PNL
(A) THA 		8-98104-144-3 01 1 1310- ● ●
16 BRACKET; INST PNL
(A) THA 		8-98108-670-2 01 1 1310- ● ●
16 BRACKET; INST PNL
(B) THA 		8-98222-757-1 01 1 1310- ● ●
16 BRACKET; INST PNL
(C) THA 		8-98229-117-1 01 1 1310- ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA 		8-98064-644-4 01 1 1310- ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98064-646-4 01 1 1310- ●
124 REINFORCEMENT; INST PNL,UPR
(B) THA 		8-98232-645-0 01 1 1310- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE IMA 		8-98055-704-0 03 1 1310- ● ●
178 NUT; INST PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1310- ● ●
510 SCREW; CENTER CLUSTER
M5X16 TAPPING THA 		8-98167-449-0 02 1 1310- ● ●
576 CUSHION
(A) THA 		8-98232-668-0 01 1 1310- ● ●
576 CUSHION
(B) THA 		8-98232-669-0 02 1 1310- ● ●
598 GROMMET; SCREW
THA 		8-98164-685-0 15 1 1310- ● ●

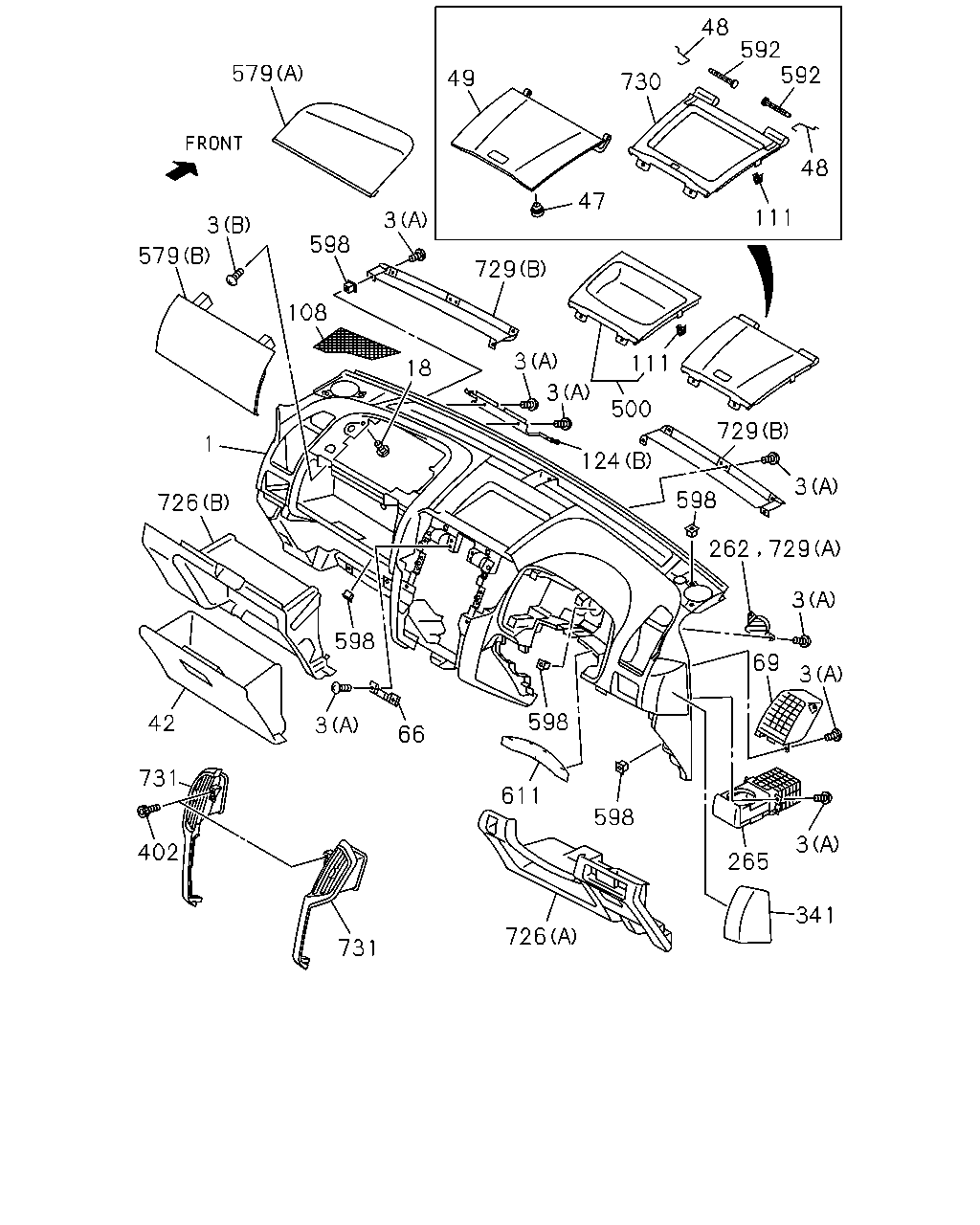

çizim 381195
579 49 730 48 592 592 48 111 47 111 729 3 729 3 3 3 341 265 69 262 598 500 124 3 3 729 3 18 598 598 726 611 66 731 3 598 402 731 42 726 108 598 3 579 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
BLACK THA 		8-97423-070-0 01 1 1310- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AUTO COOLER SYSTEM<CJ2> (A) M5X16 THA 		8-98246-739-0 31 1 1310- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> COOLER W/FRESH AIR<C65> (A) M5X16 THA 		8-98246-739-0 32 1 1310- ● ●
3 SCREW; BINDER HD
(B) M5X16 THA 		8-98197-847-0 02 1 1310- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) M5X16 THA 		8-98246-739-0 36 1 1310- ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> M8X40 FLANGE THA 		0-28650-840-0 02 1 1310- ● ●
42 BOX; GLOVE,INST PNL
BLACK THA 		8-97416-631-2 01 1 1310- ● ●
47 STOPPER; GLOVE BOX LID
INTERIOR CUSTOM<RBD> THA 		8-98194-179-1 03 1 1310- ●
47 STOPPER; GLOVE BOX LID
THA 		8-98194-179-1 03 1 1310- ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM<RBD> THA 		8-98194-177-1 01 1 1310-1411 ●
48 SPRING; GLOVE BOX LID
THA 		8-98194-177-1 01 1 1310-1411 ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM<RBD> THA 		8-98298-678-0 01 1 1412- ●
48 SPRING; GLOVE BOX LID
THA 		8-98298-678-0 01 1 1412- ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM<RBD> THA 		8-98194-178-1 01 1 1310-1411 ●
48 SPRING; GLOVE BOX LID
THA 		8-98194-178-1 01 1 1310-1411 ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM<RBD> THA 		8-98298-679-0 01 1 1412- ●
48 SPRING; GLOVE BOX LID
THA 		8-98298-679-0 01 1 1412- ●
49 LID; GLOVE BOX
INTERIOR CUSTOM<RBD> BLACK THA 		8-97423-320-1 01 1 1310- ●
49 LID; GLOVE BOX
BLACK THA 		8-97423-320-1 01 1 1310- ●
66 REINFORCEMENT; INST PANEL
THA 		8-98187-112-0 01 1 1310-1402 ● ●
69 GRILLE; SIDE,AIR OUTLET
BLACK THA 		8-97423-071-2 01 1 1310- ● ●
69 GRILLE; SIDE,AIR OUTLET
BLACK THA 		8-97423-072-2 01 1 1310- ● ●
108 GRILLE; INST PNL
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA 		8-97416-627-2 01 1 1310- ● ●
108 GRILLE; INST PNL
BLACK THA 		8-97416-626-2 01 1 1310- ● ●
108 GRILLE; INST PNL
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK THA 		8-97416-625-2 01 1 1310- ● ●
111 CLIP; CLUSTER PANEL,GRILLE
THA 		8-98164-677-0 02 1 1310- ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA 		8-98064-644-4 01 1 1310- ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE<AK6> (A) THA 		8-98064-646-4 01 1 1310- ●
124 REINFORCEMENT; INST PNL,UPR
(B) THA 		8-98232-645-0 01 1 1310- ● ●
262 GRILLE; DEFROSTER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AUTO COOLER SYSTEM<CJ2> BLACK THA 		8-97423-076-0 01 1 1310- ● ●
262 GRILLE; DEFROSTER
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> AUTO COOLER SYSTEM<CJ2> BLACK THA 		8-97423-077-0 01 1 1310- ● ●
265 HOLDER; CUP
BLACK THA 		8-97423-073-0 01 1 1310- ● ●
265 HOLDER; CUP
BLACK THA 		8-97423-074-0 01 1 1310- ● ●
341 LID; FUSE BOX
BLACK THA 		8-97416-611-3 01 1 1310- ● ●
341 LID; FUSE BOX
BLACK THA 		8-97416-612-3 01 1 1310- ● ●
402 SCREW; VENT GRILLE,INST
M5X16 TAPPING THA 		8-98167-449-0 02 1 1310- ● ●
500 CLUSTER; INST CENTER
INTERIOR BASIC<RBA> BLACK THA 		8-97427-625-0 01 1 1310- ●
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE<AK6> COOLER W/FRESH AIR<C65> (A) BLACK THA 		8-97423-078-0 01 1 1310- ●
579 COVER; INST PNL
(B) BLACK THA 		8-97423-075-4 01 1 1310- ● ●
592 HINGE; LID
INTERIOR CUSTOM<RBD> THA 		8-98194-176-1 02 1 1310- ●
592 HINGE; LID
THA 		8-98194-176-1 02 1 1310- ●
598 GROMMET; SCREW
THA 		8-98164-685-0 15 1 1310- ● ●
611 SHEET
THA 		8-98187-119-0 01 1 1310- ● ●
726 PANEL; INST LW
INTERIOR BASIC<RBA> (B) BLACK THA 		8-97428-091-0 01 1 1310- ●
726 PANEL; INST LW
(A) BLACK THA 		8-97416-615-5 01 1 1310- ● ●
726 PANEL; INST LW
INTERIOR CUSTOM<RBD> (B) BLACK THA 		8-97423-218-0 01 1 1310- ●
726 PANEL; INST LW
(B) BLACK THA 		8-97423-218-0 01 1 1310- ●
729 COVER; GRILLE
COOLER W/FRESH AIR<C65> (A) BLACK THA 		8-97423-079-0 01 1 1310- ●
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> COOLER W/FRESH AIR<C65> (A) BLACK THA 		8-97423-079-0 01 1 1310- ●
729 COVER; GRILLE
COOLER W/FRESH AIR<C65> (A) BLACK THA 		8-97423-080-0 01 1 1310- ●
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> COOLER W/FRESH AIR<C65> (A) BLACK THA 		8-97423-080-0 01 1 1310- ●
729 COVER; GRILLE
COOLER W/FRESH AIR<C65> (B) BLACK THA 		8-97423-081-0 01 1 1310- ●
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> COOLER W/FRESH AIR<C65> (B) BLACK THA 		8-97423-081-0 01 1 1310- ●
729 COVER; GRILLE
COOLER W/FRESH AIR<C65> (B) BLACK THA 		8-97423-082-0 01 1 1310- ●
729 COVER; GRILLE
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> COOLER W/FRESH AIR<C65> (B) BLACK THA 		8-97423-082-0 01 1 1310- ●
730 BEZEL; LID
INTERIOR CUSTOM<RBD> BLACK THA 		8-97423-319-0 01 1 1310- ●
730 BEZEL; LID
BLACK THA 		8-97423-319-0 01 1 1310- ●
731 GRILLE; VENTILATOR
INTERIOR BASIC<RBA> BLACK THA 		8-97416-639-4 01 1 1310- ●
731 GRILLE; VENTILATOR
INTERIOR BASIC<RBA> BLACK THA 		8-97416-640-4 01 1 1310- ●
731 GRILLE; VENTILATOR
INTERIOR CUSTOM<RBD> SILVER THA 		8-97416-637-4 01 1 1310- ●
731 GRILLE; VENTILATOR
SILVER THA 		8-97416-637-4 01 1 1310- ●
731 GRILLE; VENTILATOR
INTERIOR CUSTOM<RBD> SILVER THA 		8-97416-638-4 01 1 1310- ●
731 GRILLE; VENTILATOR
SILVER THA 		8-97416-638-4 01 1 1310- ●
