51488 - UCR/UCS(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

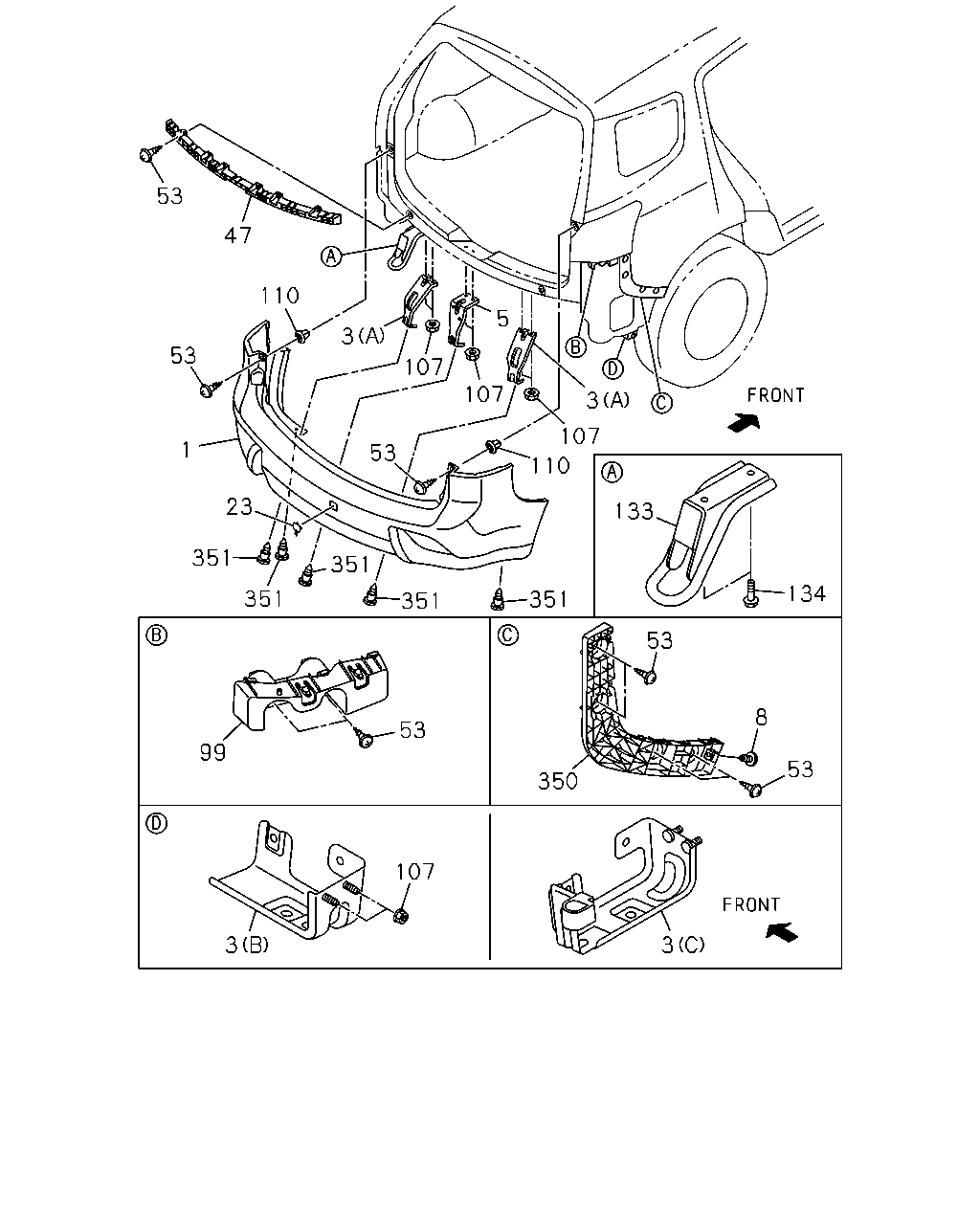

6-90 — REAR BUMPER
(#129608) — 21 parça
Tümü
A - UCB5VC
B - UCS5VC
3
3
107
53
99
351
351
23
351
351
350
53
8
53
134
133
110
107
3
107
107
5
3
110
47
53
53
1
351
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
COLOR KEYED BUMPER<VT4> PRIMER THA
8-98249-952-0
01
1
1310-
●
●
1
BUMPER; RR
EXC. COLOR KEYED BUMPER<VT4> PRIMER THA
8-98253-438-0
01
1
1310-
●
●
3
BRACKET; BUMPER
REAR COOLER WO/HEATER<C69> (C) THA
8-98250-619-0
01
1
1310-
●
3
BRACKET; BUMPER
(C) THA
8-98250-619-0
01
1
1310-
●
3
BRACKET; BUMPER
(A) THA
8-98189-786-0
02
1
1310-
●
●
3
BRACKET; BUMPER
EXC. REAR COOLER WO/HEATER<C69> (B) THA
8-98189-902-0
01
1
1310-
●
3
BRACKET; BUMPER
(B) THA
8-98189-903-0
01
1
1310-
●
●
5
SUPPORT; RR BUMPER
THA
8-98189-785-0
01
1
1310-
●
●
8
BOLT; RR SIDE BUMPER
M6X20 TAPPING W/PL WASHER THA
8-98167-444-0
02
1
1310-
●
●
23
COVER; RR BUMPER,HOLE
PRIMER THA
8-98249-953-0
01
1
1310-
●
●
47
RETAINER; BUMPER RR CENTER
THA
8-98188-351-2
01
1
1310-
●
●
53
BOLT; BUMPER SUPPORT
M6X16 TAPPING W/PL WASHER THA
0-74160-616-0
20
1
1310-
●
●
99
RETAINER; RR BUMPER,UPR
THA
8-98188-352-2
01
1
1310-
●
●
99
RETAINER; RR BUMPER,UPR
THA
8-98188-353-2
01
1
1310-
●
●
107
NUT; SUPPORT
M6 FLANGE THA
0-91180-106-0
10
1
1310-
●
●
110
GROMMET; BUMPER
IMA
8-97801-635-1
02
1
1310-
●
●
133
HOOK
THA
8-98253-334-0
01
1
1310-
●
●
134
BOLT; HOOK
M10X30 FLANGE THA
0-28661-030-0
02
1
1310-
●
●
350
RETAINER; BUMPER RR LWR
THA
8-98188-354-2
01
1
1310-
●
●
350
RETAINER; BUMPER RR LWR
THA
8-98188-355-2
01
1
1310-
●
●
351
RETAINER; BUMPER SUPPORT
THA
8-97301-188-0
05
1
1310-
●
●
