6-86 — TRUNK OPENER AND FUEL LID (#129606) — 9 parça

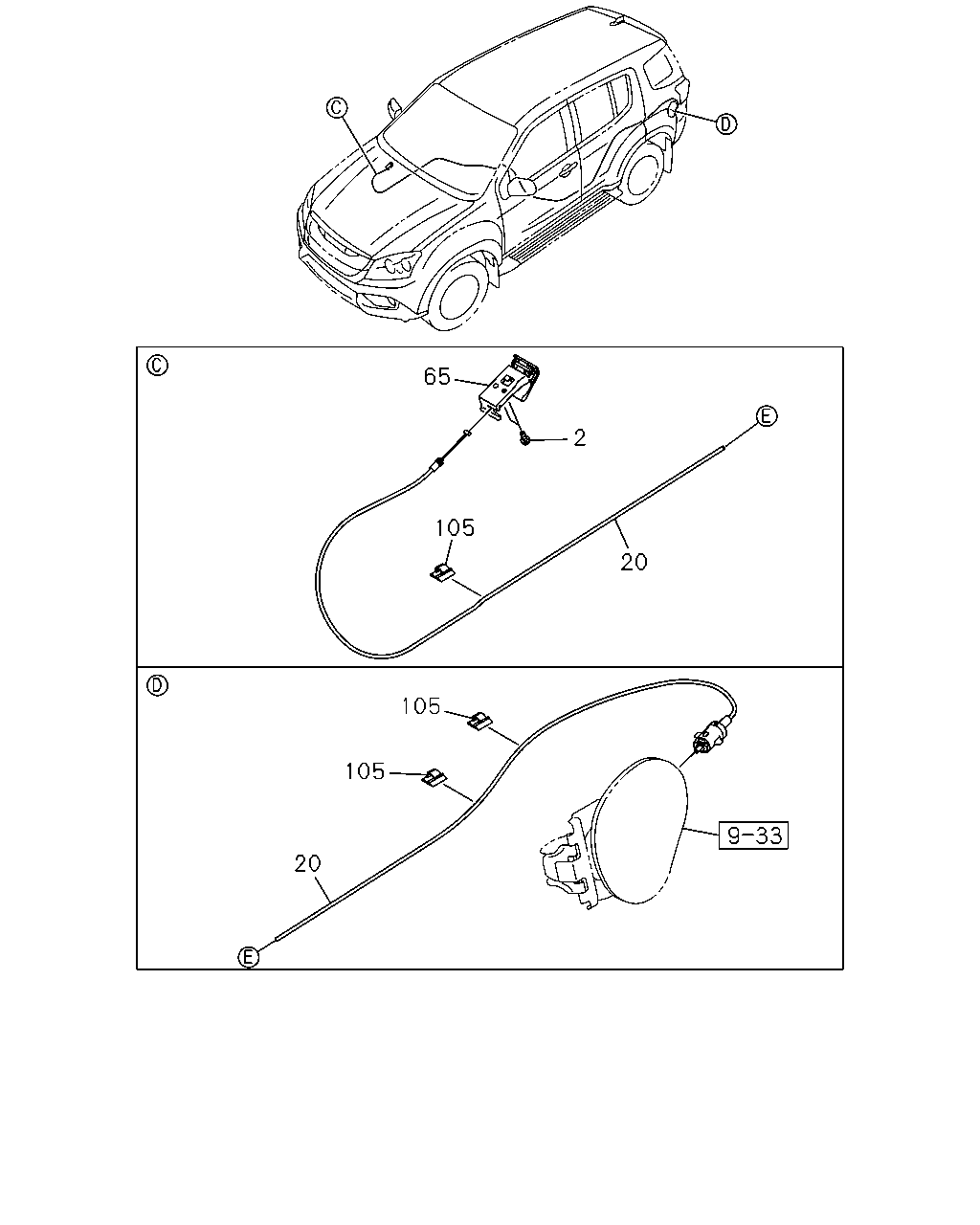

2 20 105 65 105 105 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	SCREW; LEVER TO BODY M5X16 TAPPING THA	8-98167-449-0	02	1	1310-	●	●
20	CABLE; TRUNK LID & FUEL FILLER THA	8-98189-124-1	01	1	1310-	●	●
65	KNOB; FUEL FILLER DOOR BLACK THA	8-98103-120-0	01	1	1310-	●	●
105	CLIP; CABLE,FUEL LID OPENER ID=7 THA	8-98158-303-0	10	1	1310-	●	●

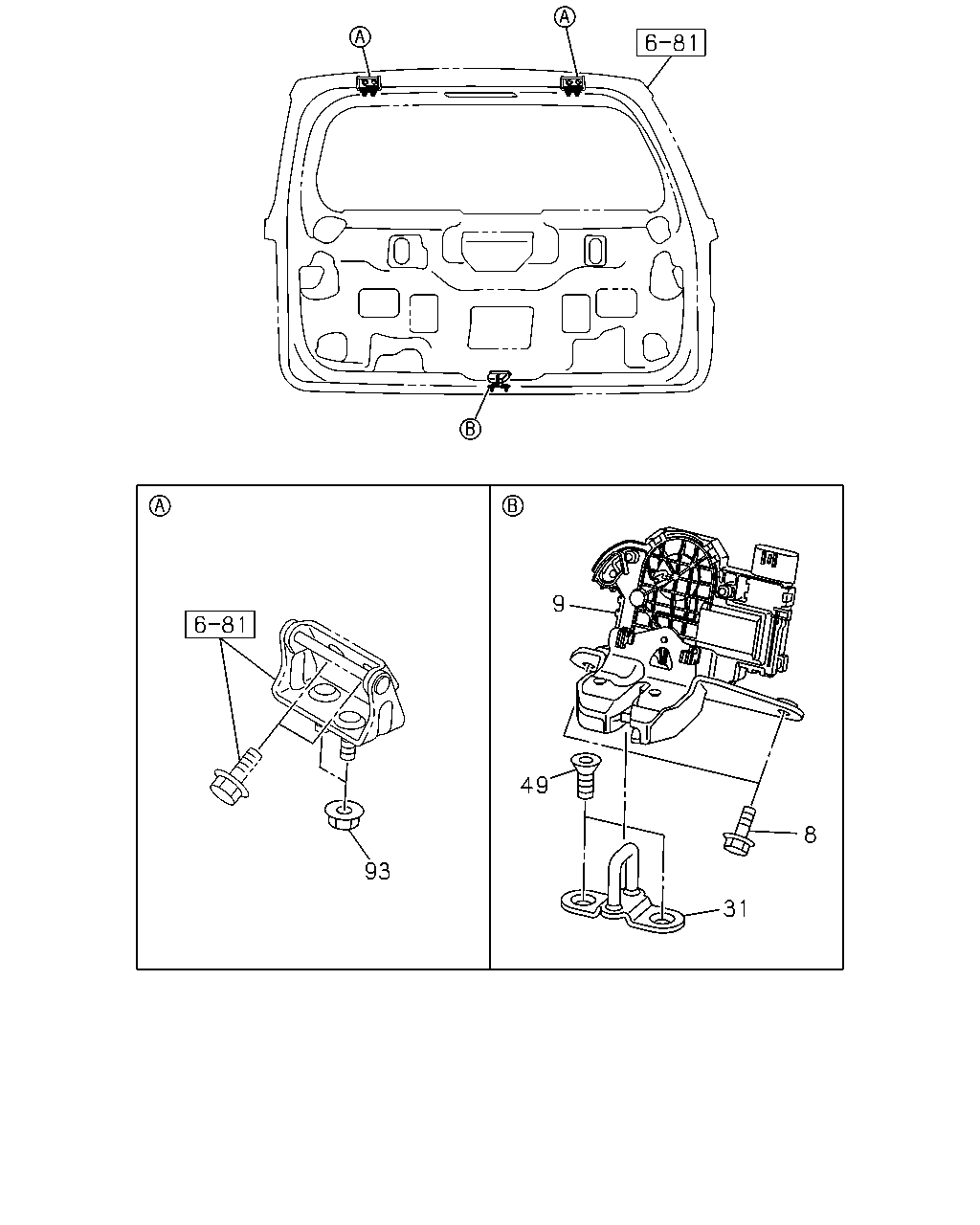

9 49 93 8 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; TAIL GATE LOCK THA	8-98224-562-0	02	1	1310-	●	●
9	LOCK; TRUNK LID THA	8-98188-325-1	01	1	1310-	●	●
31	STRIKER; TAIL GATE THA	8-98188-326-0	01	1	1310-	●	●
49	SCREW; STRIKER TO TAIL GATE M8X20 W/TORQUES THA	8-98049-356-0	02	1	1310-	●	●
93	NUT; LOCK M8 FLANGE THA	8-98049-361-0	04	1	1310-	●	●
