6-83 — BACK DOOR LOCK AND HANDLE (#129604) — 20 parça

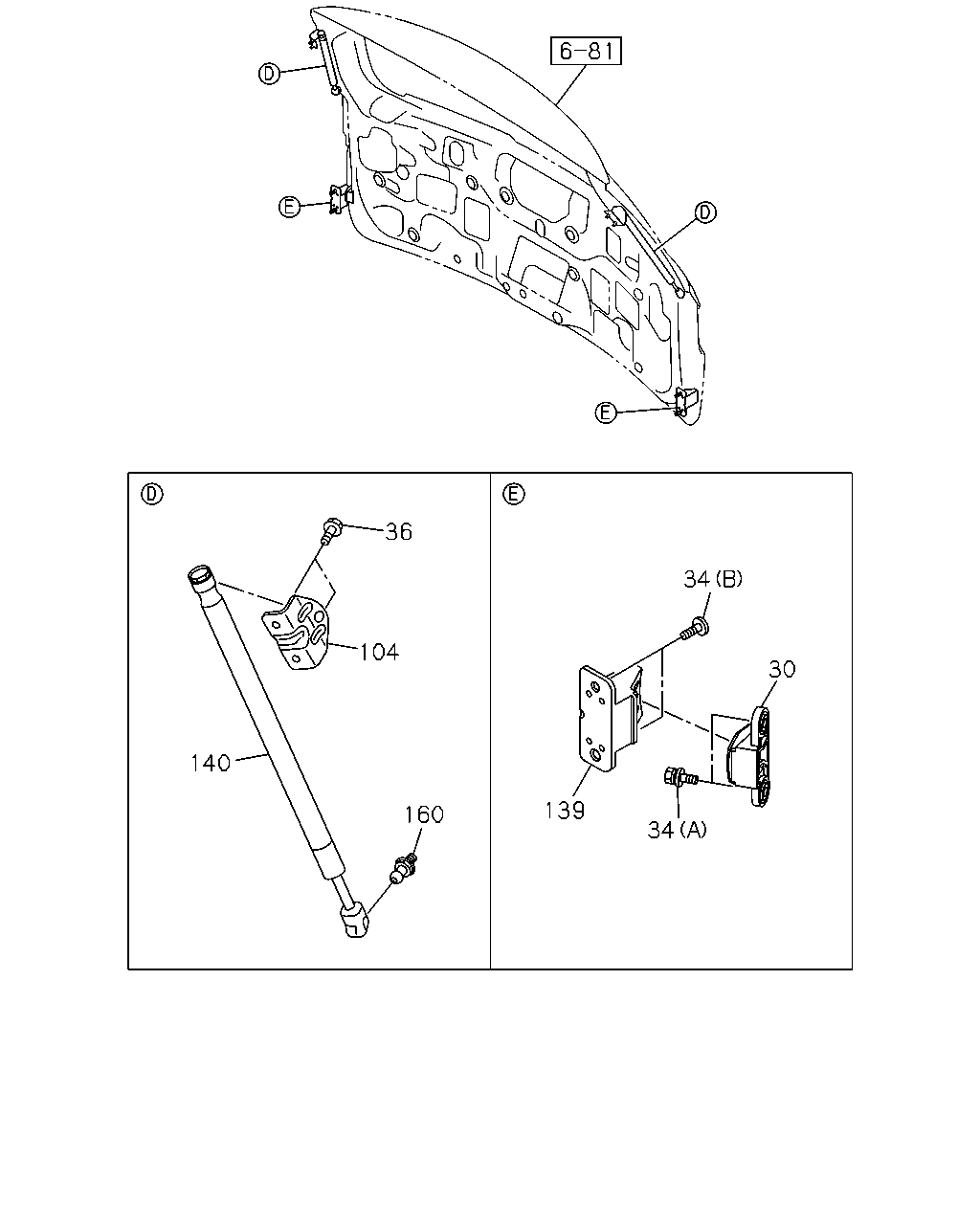

çizim 379594
34 30 34 139 160 36 104 140
BalonParca AdiParca NoAdetTipApplied Date A B
30 DOVETAIL; BACK DOOR
THA 		8-98189-933-2 02 1 1310- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(A) M6X16 W/LK&PL WASHER THA 		8-98125-360-0 04 1 1310- ● ●
34 BOLT; DOVETAIL TO BACK DOOR
(B) THA 		8-98228-811-0 04 1 1310- ● ●
36 BOLT; LINK
M6X16 FLANGE THA 		8-98049-357-0 04 1 1310- ● ●
104 BRACKET
THA 		8-98220-920-0 02 1 1310- ● ●
139 DOVETAIL; BODY
THA 		8-98189-854-1 02 1 1310- ● ●
140 STAY; TAIL GATE
THA 		8-98188-524-1 01 1 1310- ● ●
140 STAY; TAIL GATE
THA 		8-98188-525-1 01 1 1310- ● ●
160 STUD; BACK DOOR
THA 		8-98220-953-0 02 1 1310- ● ●

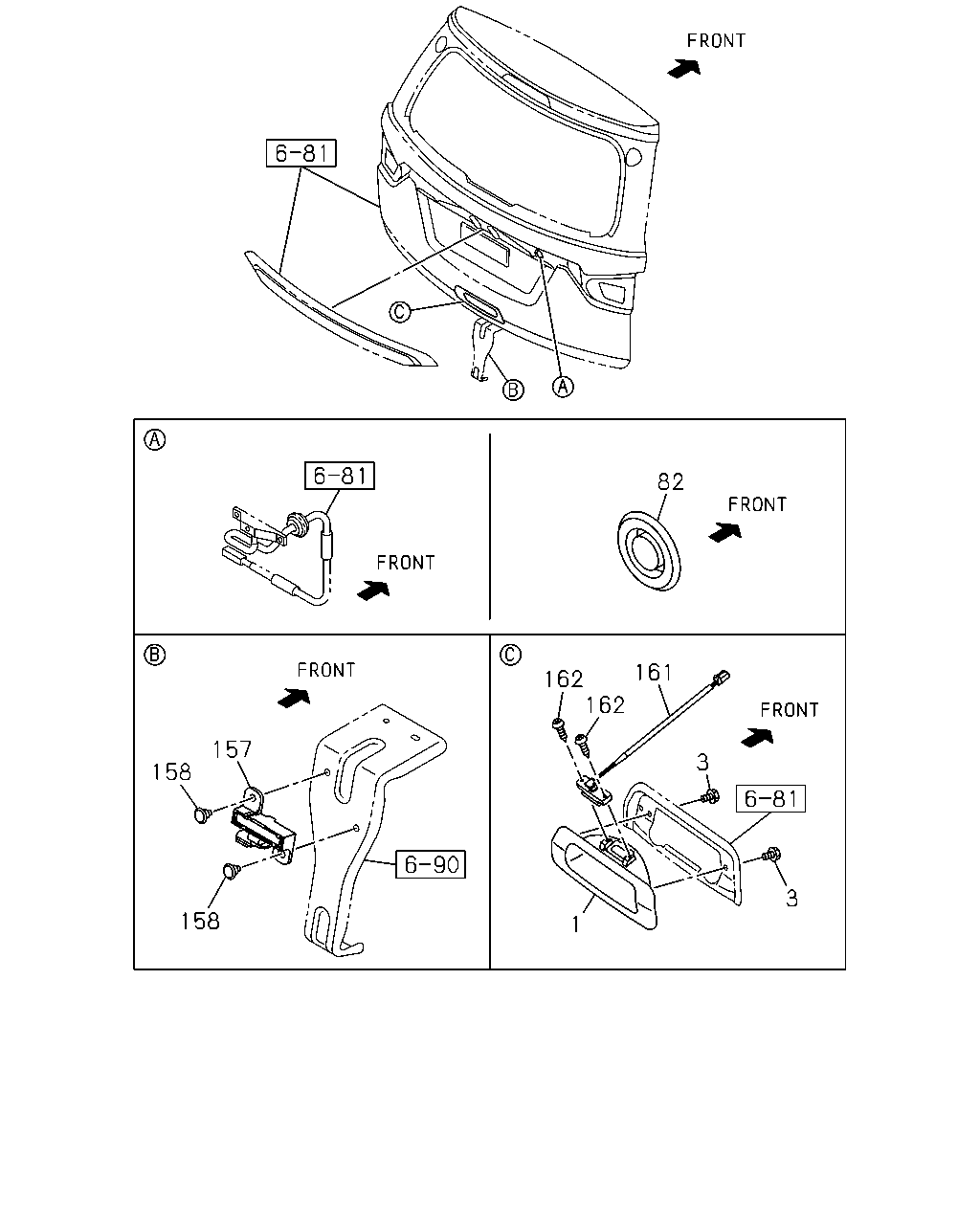

çizim 381363
82 161 162 162 3 3 1 157 158 158
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR COSMIC BLACK MICA<523> BLACK THA 		8-97425-503-0 01 1 1310- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR TITANIUM SILVER MET<529> SILVER THA 		8-97425-505-0 01 1 1310- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR SILKY WHITE PEARL<531> WHITE THA 		8-97425-506-0 01 1 1310- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR ULURU BROWN MET<544> BROWN THA 		8-97425-507-0 01 1 1310- ● ●
1 HANDLE; OUTSIDE,BACK DOOR
BODY COLOR FJORD BLUE MET<545> LIGHT BLUE THA 		8-97425-508-0 01 1 1310- ● ●
3 BOLT; TAIL GATE HANDLE
M6X8 FLANGE THA 		8-98048-996-0 02 1 1310- ● ●
82 PLUG; BACK DOOR
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> OD=30 THA 		8-94107-655-0 01 1 1310- ● ●
157 ANTENNA; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98190-526-1 01 1 1310- ● ●
158 FASTENER; DOOR LOCK
PASSIVE ENTRY AND START SYSTEM<AP3> IMA 		8-97372-006-0 02 1 1310- ● ●
161 SWITCH; BACK DOOR LK
THA 		8-98211-442-0 01 1 1310- ● ●
162 SCREW; SWITCH, BACK DOOR LK
THA 		8-98235-426-0 02 1 1310- ● ●
