6-81 — BACK DOOR AND HINGE (#129602) — 23 parça

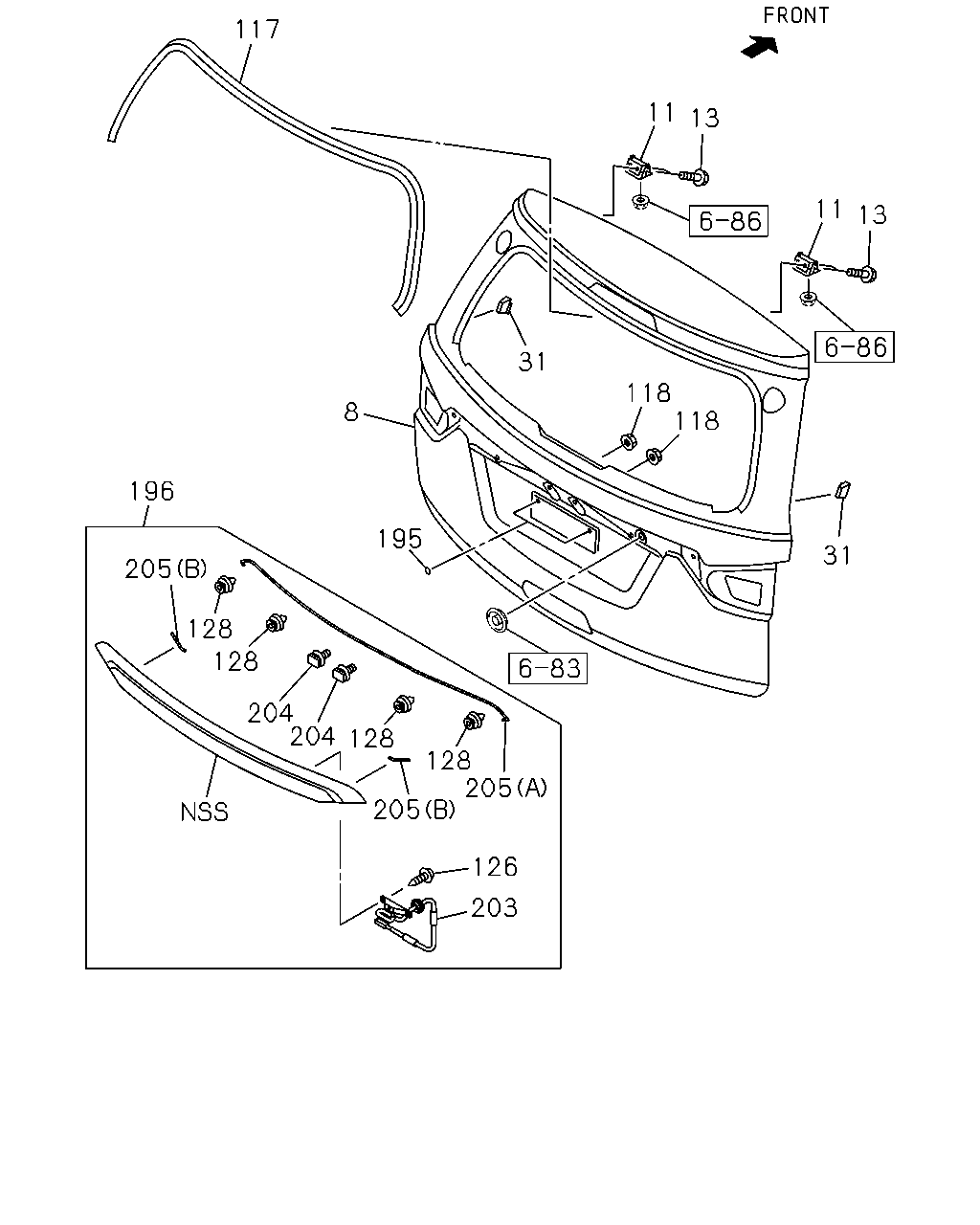

çizim 379583
117 11 13 11 13 31 118 118 31 8 195 196 205 128 128 204 204 128 128 205 205 126 203
BalonParca AdiParca NoAdetTipApplied Date A B
8 PANEL; TAIL GATE
RR WIPER W/INTERMITTENT<6WJ> THA 		8-98208-954-2 01 1 1310- ●
8 PANEL; TAIL GATE
THA 		8-98208-954-2 01 1 1310- ●
8 PANEL; TAIL GATE
EXC. RR WIPER W/INTERMITTENT<6WJ> THA 		8-98211-090-2 01 1 1310- ●
11 HINGE; TAIL GATE
THA 		8-98189-934-0 01 1 1310- ● ●
11 HINGE; TAIL GATE
THA 		8-98189-935-0 01 1 1310- ● ●
13 BOLT; HINGE TO TAIL GATE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1310- ● ●
31 BUFFER; BACK DOOR
THA 		8-98239-418-0 01 1 1310- ● ●
31 BUFFER; BACK DOOR
THA 		8-98239-419-0 01 1 1310- ● ●
117 GARNISH
THA 		8-98200-429-2 01 1 1310- ● ●
118 NUT; GARNISH
M6 FLANGE IMA 		8-97065-431-0 02 1 1310- ● ●
126 SCREW; GARNISH
PASSIVE ENTRY AND START SYSTEM<AP3> M5X16 TAPPING W/PL WASHER THA 		8-98193-872-0 02 1 1310- ● ●
128 CLIP; GARNISH
THA 		8-97359-942-0 04 1 1310- ● ●
195 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK IMA 		5-76777-036-0 02 1 1310- ● ●
196 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98220-291-2 01 1 1310-1511 ● ●
196 MOLDING; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98295-831-0 01 1 1512- ● ●
196 MOLDING; TAIL GATE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98188-916-2 01 1 1310-1511 ● ●
196 MOLDING; TAIL GATE
EXC. PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98295-830-0 01 1 1512- ● ●
203 SWITCH; TAIL GATE
PASSIVE ENTRY AND START SYSTEM<AP3> THA 		8-98190-563-2 01 1 1310- ● ●
204 STUD; GARNISH
THA 		8-98250-593-0 02 1 1310- ● ●
205 SPONGE; GARNISH
(A) THA 		8-98250-590-0 01 1 1310-1511 ● ●
205 SPONGE; GARNISH
(A) THA 		8-98296-179-0 01 1 1512- ● ●
205 SPONGE; GARNISH
(B) THA 		8-98250-591-0 02 1 1310-1511 ● ●
205 SPONGE; GARNISH
(B) THA 		8-98296-180-0 02 1 1512- ● ●
