◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#129599) — 40 parça

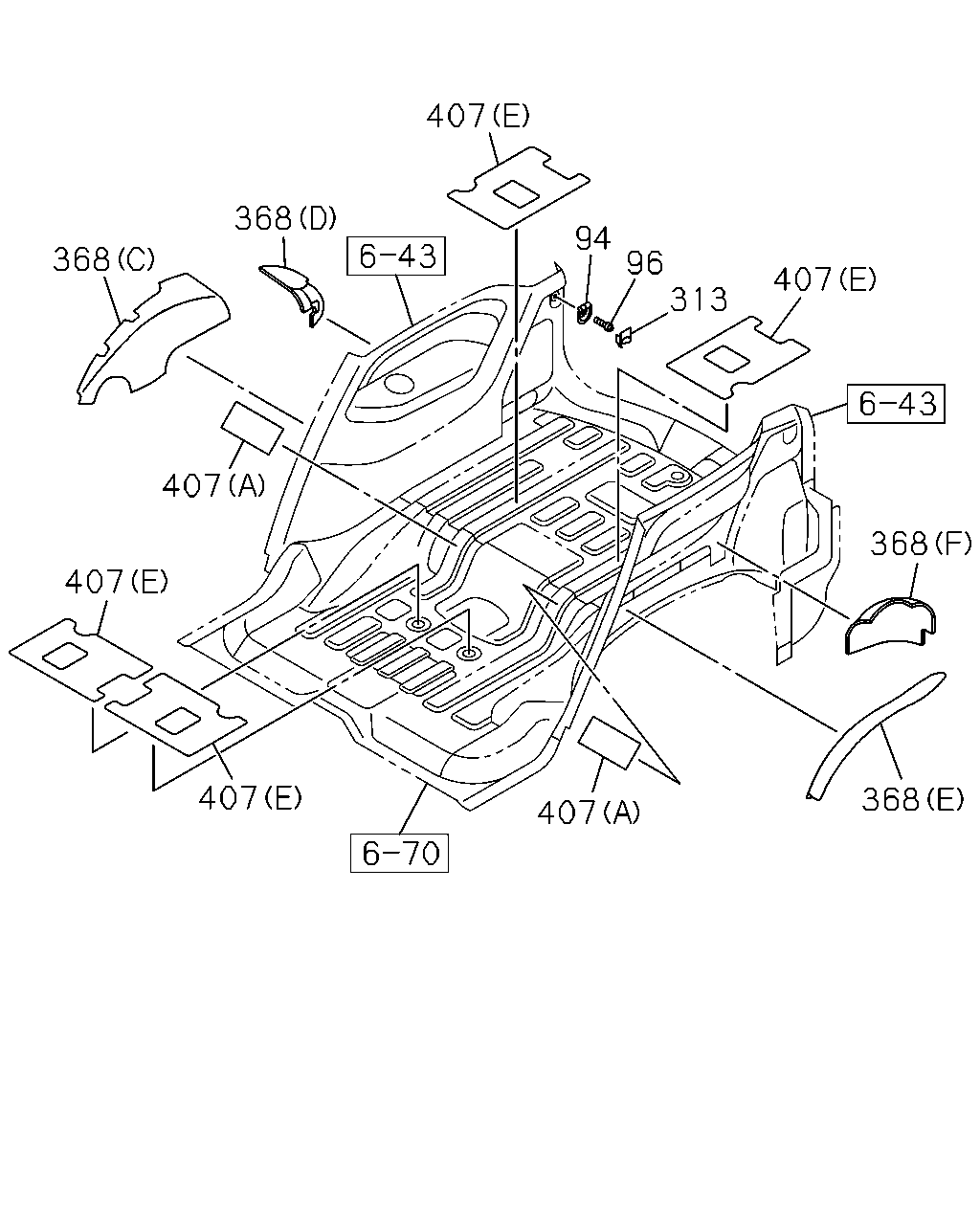

çizim 379542
368 368 407 94 407 313 96 368 368 407 407 407 407
BalonParca AdiParca NoAdetTipApplied Date A B
94 HOOK ASM; ROPE
THA 		8-98240-171-0 02 1 1310- ● ●
96 BOLT; ROPE HOOK FIX
THA 		8-98228-484-0 02 1 1310- ● ●
313 COVER; ROPE HOOK
BLACK THA 		8-97424-485-1 02 1 1310- ● ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> (A) THA 		8-98166-707-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98166-706-0 01 1 1310- ●
368 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98166-706-0 01 1 1310- ●
368 INSULATOR; FLOOR,RR
(C) THA 		8-98236-190-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
(D) THA 		8-98236-191-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
(E) THA 		8-98236-192-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
(F) THA 		8-98236-193-0 01 1 1310- ● ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98244-858-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98244-858-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98103-655-1 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98103-655-1 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-98155-918-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-98155-918-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (D) THA 		8-98165-147-0 01 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98165-147-0 01 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (E) THA 		8-98199-856-0 04 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98199-856-0 04 1 1310- ●

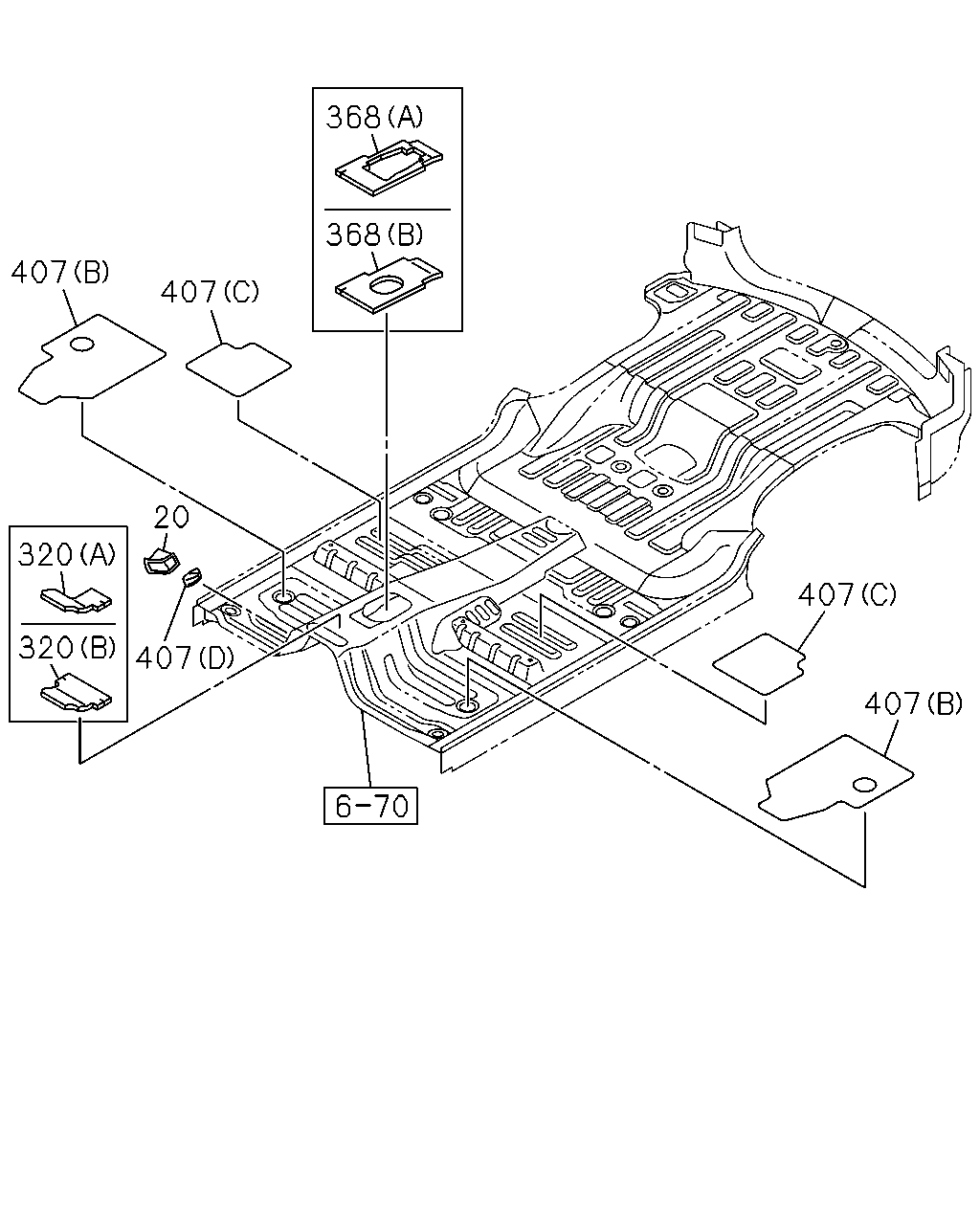

çizim 381277
407 407 368 368 20 320 320 407 407 407
BalonParca AdiParca NoAdetTipApplied Date A B
20 REST; FOOT
THA 		8-98064-439-2 01 1 1310- ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> (A) THA 		8-98166-704-0 01 1 1310- ● ●
320 INSULATOR; FLOOR,FRT
AIR BAG DRIVER & PASSENGER DELETE<AK6> (B) THA 		8-98166-705-0 01 1 1310- ●
368 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN<MA1> (A) THA 		8-98166-707-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98166-706-0 01 1 1310- ●
368 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98166-706-0 01 1 1310- ●
368 INSULATOR; FLOOR,RR
(C) THA 		8-98236-190-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
(D) THA 		8-98236-191-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
(E) THA 		8-98236-192-0 01 1 1310- ● ●
368 INSULATOR; FLOOR,RR
(F) THA 		8-98236-193-0 01 1 1310- ● ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (A) THA 		8-98244-858-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (A) THA 		8-98244-858-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98103-655-1 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (B) THA 		8-98103-655-1 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-98155-918-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (C) THA 		8-98155-918-0 02 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (D) THA 		8-98165-147-0 01 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (D) THA 		8-98165-147-0 01 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUA 5 SPEED 5H<MWQ> (E) THA 		8-98199-856-0 04 1 1310- ●
407 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN<MA1>,M/T MUX 5 SPEED 5S<MZJ> (E) THA 		8-98199-856-0 04 1 1310- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
