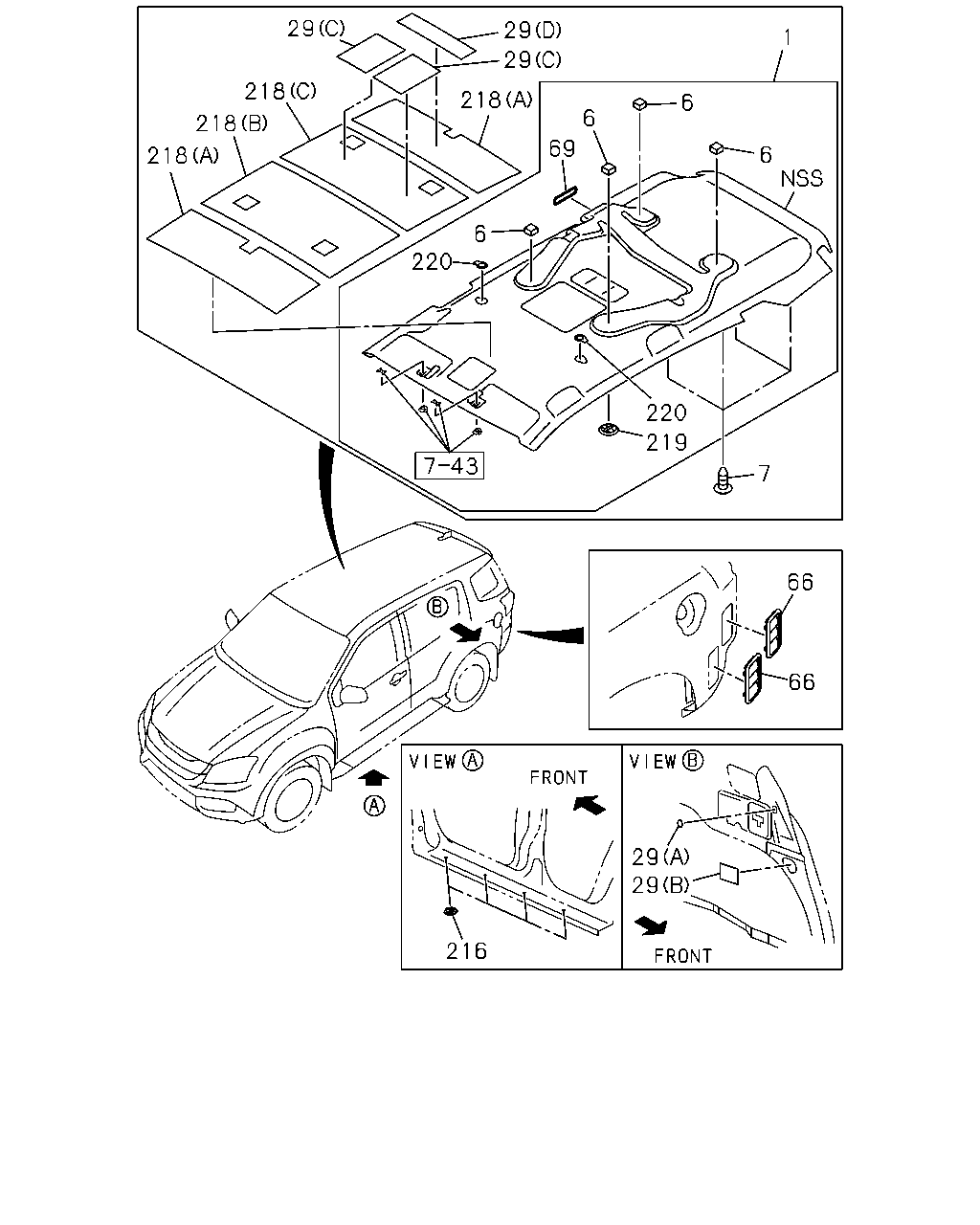

6-66 — HEAD LINING AND TRIM (#129596) — 46 parça

29 218 218 218 29 218 29 69 6 6 6 1 6 220 220 7 66 66 219 29 29 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-815-2	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER<AK5> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-815-2	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-814-2	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER<AK5> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-814-2	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97427-816-2	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER<AK5> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97427-816-2	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-817-2	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER<AK5> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-817-2	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69> GRAY THA	8-97427-667-2	01	1	1310-	●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-665-2	01	1	1310-	●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REAR COOLER WO/HEATER<C69> GRAY THA	8-97427-668-2	01	1	1310-	●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> GRAY THA	8-97427-666-2	01	1	1310-	●
1	LINING; HD INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-378-6	01	1	1310-	●
1	LINING; HD INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. REAR COOLER WO/HEATER<C69>,HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-373-6	01	1	1310-	●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-375-5	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5> 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-375-5	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-374-5	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-374-5	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97424-376-5	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 2ND SEAT DVD MONITOR<U48> 8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97424-376-5	01	1	1310-		●
1	LINING; HD INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-377-5	01	1	1310-	●
1	LINING; HD AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 8-SPEAKER SYSTEM CUSTOM<U87> EXC. 2ND SEAT DVD MONITOR<U48> GRAY THA	8-97424-377-5	01	1	1310-		●
6	SPACER; HD LINING INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> THA	8-98244-491-0	04	1	1310-	●
6	SPACER; HD LINING INTERIOR CUSTOM<RBD> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98244-491-0	04	1	1310-	●
6	SPACER; HD LINING AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98244-491-0	04	1	1310-		●
7	RETAINER; HEADLINING RAIL GRAY THA	8-97416-696-0	04	1	1310-	●	●
29	DEADENER; ROOF PANEL (A) THA	8-98244-526-0	02	1	1310-	●	●
29	DEADENER; ROOF PANEL (B) THA	8-98244-527-0	02	1	1310-	●	●
29	DEADENER; ROOF PANEL 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (C) THA	8-98253-366-0	02	1	1310-1508	●	●
29	DEADENER; ROOF PANEL (C) THA	8-98253-366-0	02	1	1509-	●	●
29	DEADENER; ROOF PANEL 4JJ1-TCX ENG<LS0> A/T 5 SPEED-AISIN<MA1> (D) THA	8-98253-367-0	01	1	1310-1508	●	●
29	DEADENER; ROOF PANEL (D) THA	8-98253-367-0	01	1	1509-	●	●
66	GRILLE; AIR OUTLET THA	8-98190-079-2	02	1	1310-	●	●
69	SEAL; AIR OUTLET DUCT INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> THA	8-98226-169-0	01	1	1310-	●
69	SEAL; AIR OUTLET DUCT INTERIOR CUSTOM<RBD> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98226-169-0	01	1	1310-	●
69	SEAL; AIR OUTLET DUCT AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98226-169-0	01	1	1310-		●
216	GROMMET; HOLE OD=19 THA	8-97365-823-0	08	1	1310-	●	●
218	INSULATOR; ROOF (A) THA	8-98228-817-3	02	1	1310-	●	●
218	INSULATOR; ROOF (B) THA	8-98228-818-3	01	1	1310-	●	●
218	INSULATOR; ROOF (C) THA	8-98228-819-3	01	1	1310-	●	●
219	GRILLE; RR COOLER INTERIOR BASIC<RBA> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> 6-SPEAKER SYSTEM BASE<UW5> EXC. HEADER CONSOLE<DK6>,2ND SEAT DVD MONITOR<U48> GRAY THA	8-97425-070-0	04	1	1310-	●
219	GRILLE; RR COOLER INTERIOR CUSTOM<RBD> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97425-070-0	04	1	1310-	●
219	GRILLE; RR COOLER AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 6-SPEAKER SYSTEM BASE<UW5>,8-SPEAKER SYSTEM CUSTOM<U87> GRAY THA	8-97425-070-0	04	1	1310-		●
220	BRACKET; SPEAKER INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER DELETE<AK6> REAR COOLER WO/HEATER<C69> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98128-570-0	02	1	1310-	●
220	BRACKET; SPEAKER INTERIOR CUSTOM<RBD> AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> HEADER CONSOLE<DK6> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98128-570-0	02	1	1310-	●
220	BRACKET; SPEAKER AIR BAG DRIVER & PASSENGER<AK5>,AIR BAG DRIVER & PASSENGER & SIDE & ROOF<AY0> 8-SPEAKER SYSTEM CUSTOM<U87> THA	8-98128-570-0	02	1	1310-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
