◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51488 - UCR/UCS(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-51 - REAR DOOR GLASS AND REGULATOR ▶
6-51 — REAR DOOR GLASS AND REGULATOR (#129592) — 18 parça

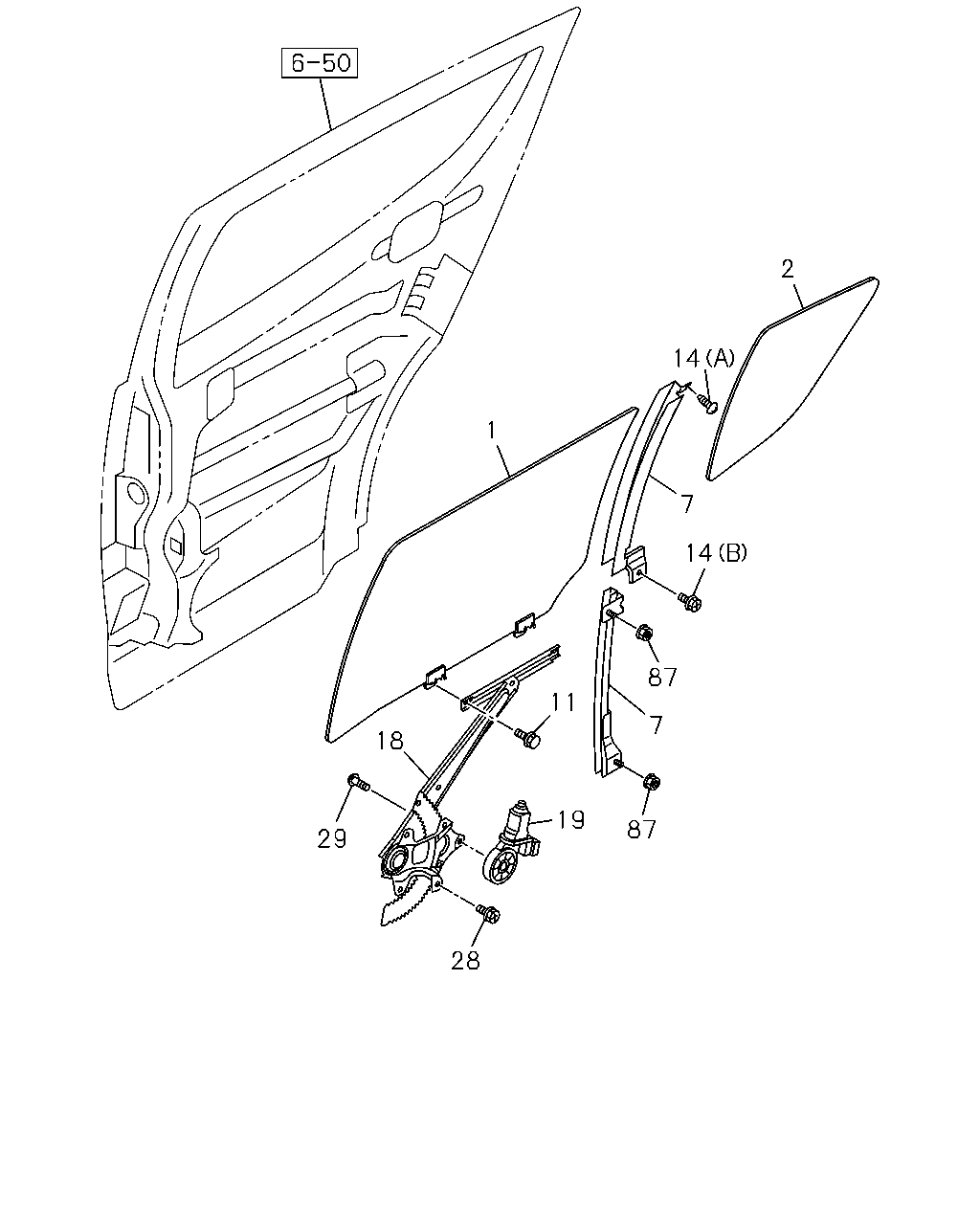

çizim 379547
14 7 14 2 1 11 7 87 19 28 29 18 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; RR DOOR
THA 		8-98189-286-1 01 1 1310- ● ●
1 GLASS; RR DOOR
THA 		8-98189-287-1 01 1 1310- ● ●
2 GLASS; RR DOOR,RR
THA 		8-98189-362-0 01 1 1310- ● ●
2 GLASS; RR DOOR,RR
THA 		8-98189-363-0 01 1 1310- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
UPPER THA 		8-98202-651-1 01 1 1310- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
UPPER THA 		8-98202-652-1 01 1 1310- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
LOWER THA 		8-98203-623-0 01 1 1310- ● ●
7 CHANNEL; GLASS RUN,RR DOOR
LOWER THA 		8-98203-624-0 01 1 1310- ● ●
11 BOLT; GLASS
M6X10 FLANGE THA 		8-98188-381-0 04 1 1310- ● ●
14 BOLT; RR DOOR GLASS
(A) M4X8 TAPPING IMA 		0-71240-408-0 02 1 1310- ● ●
14 BOLT; RR DOOR GLASS
(B) M6X8 FLANGE THA 		8-98048-996-0 02 1 1310- ● ●
18 REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98211-011-1 01 1 1310- ● ●
18 REGULATOR; WINDOW,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98211-013-1 01 1 1310- ● ●
19 MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98167-091-1 01 1 1310- ● ●
19 MOTOR; POWER WINDOW REG,RR DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98167-092-1 01 1 1310- ● ●
28 BOLT; WINDOW REG
M6X10 FLANGE THA 		8-98188-381-0 06 1 1310- ● ●
29 SCREW; WINDOW REG
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>, DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> THA 		8-98195-236-0 06 1 1310- ● ●
87 NUT; WINDOW
M6 FLANGE THA 		8-98049-362-0 04 1 1310- ● ●
