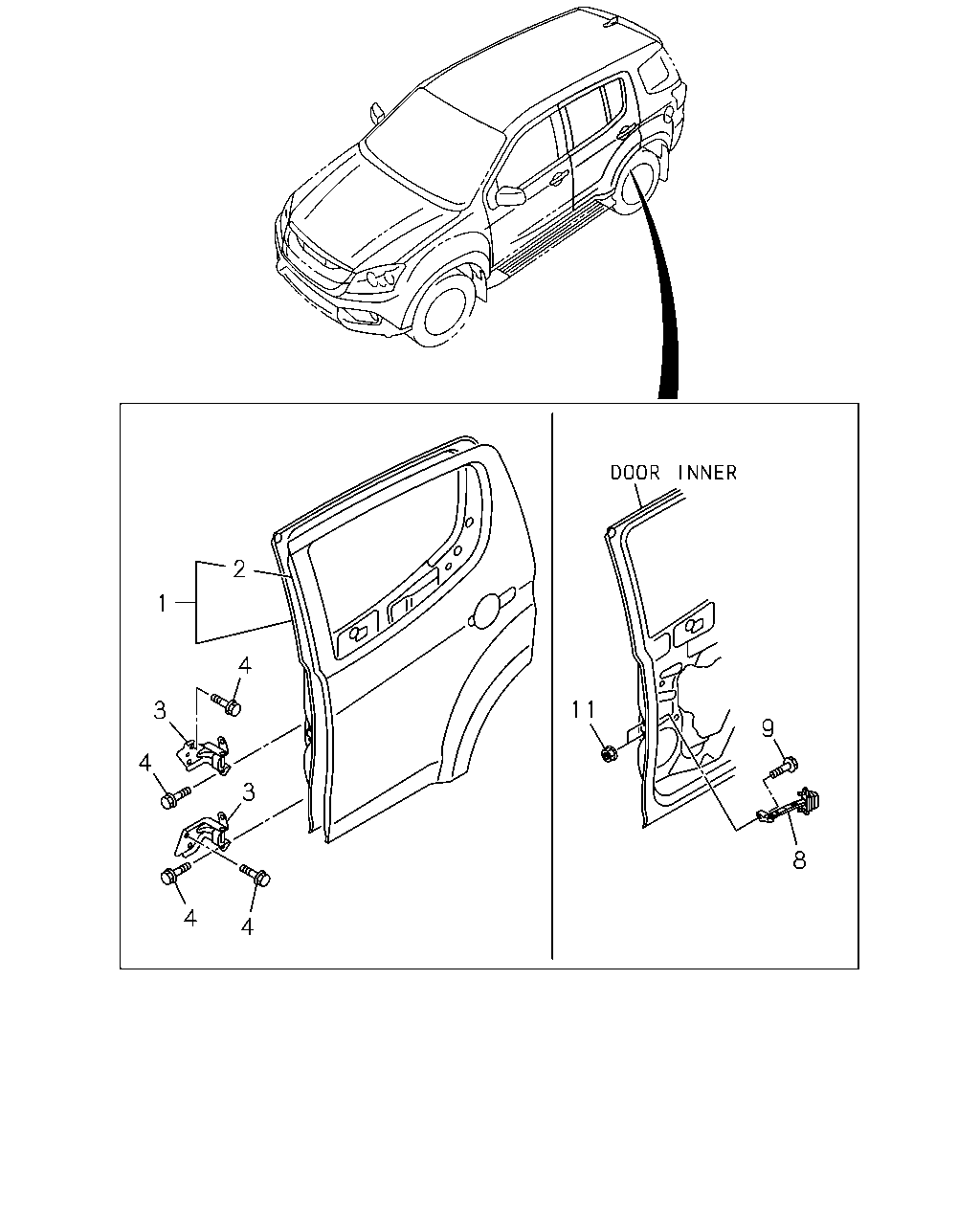

6-50 — REAR DOOR AND HINGE (#129591) — 10 parça

9 8 11 4 4 3 4 2 1 3 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DOOR ASM; REAR THA	8-98208-993-0	01	1	1310-	●	●
1	DOOR ASM; REAR THA	8-98208-994-0	01	1	1310-	●	●
2	PANEL; RR DOOR OUTER THA	8-98206-072-1	01	1	1310-	●	●
2	PANEL; RR DOOR OUTER THA	8-98206-073-1	01	1	1310-	●	●
3	HINGE; RR DOOR UPR RH & LWR LH THA	8-98105-280-1	02	1	1310-	●	●
3	HINGE; RR DOOR LWR RH & UPR LH THA	8-98105-281-1	02	1	1310-	●	●
4	BOLT; HINGE M8X23 FLANGE THA	8-98005-842-0	16	1	1310-	●	●
8	ARM; CHECK,RR DOOR THA	8-98227-238-1	02	1	1310-	●	●
9	BOLT; CHECK ARM M8X23 THA	8-98166-694-0	02	1	1310-	●	●
11	NUT M6 FLANGE THA	8-98049-362-0	04	1	1310-	●	●
